SECTION 3

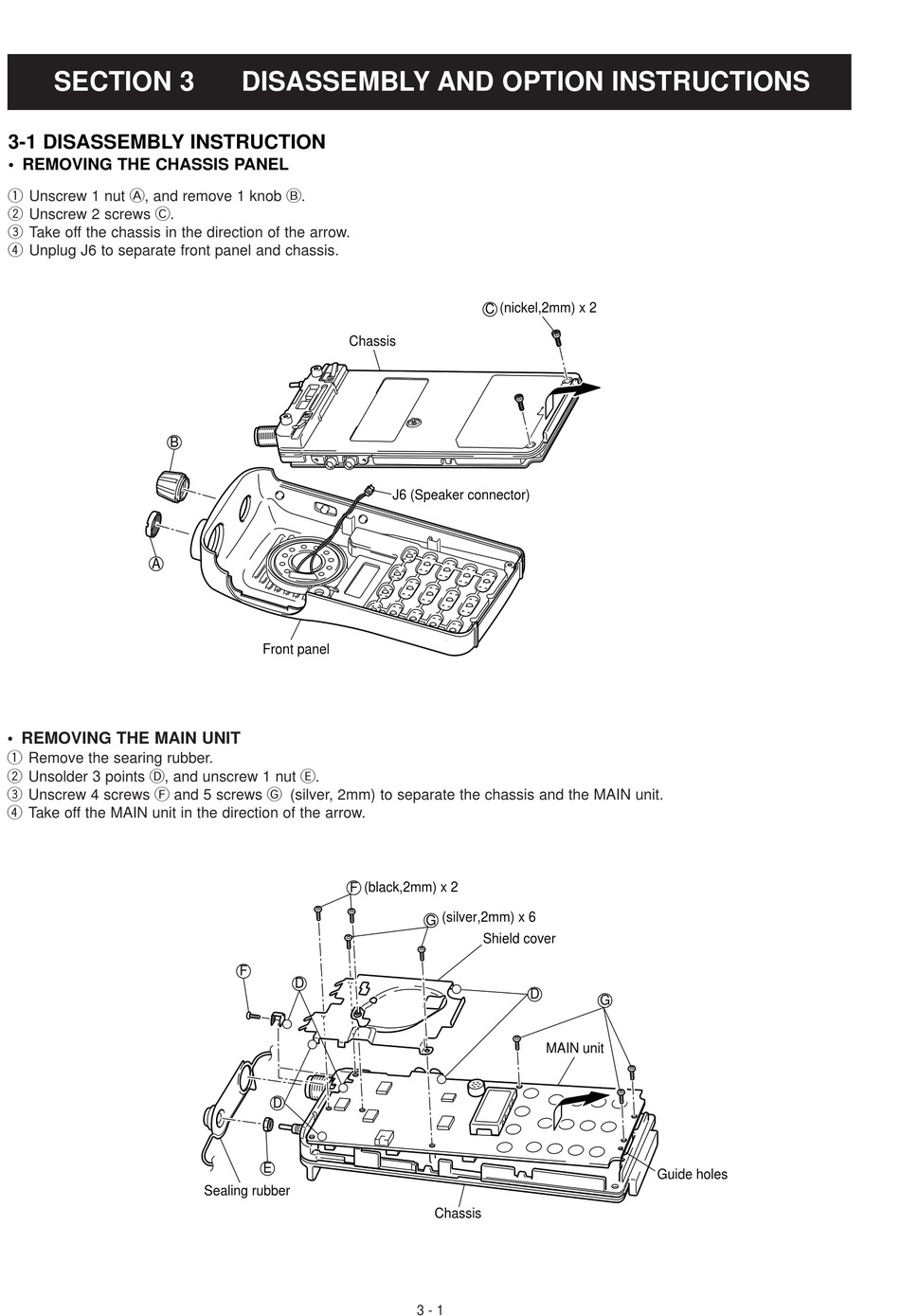

3-1 DISASSEMBLY INSTRUCTION

• REMOVING THE CHASSIS PANEL

1 Unscrew 1 nut A, and remove 1 knob B.
2 Unscrew 2 screws C.
3 Take off the chassis in the direction of the arrow.
4 Unplug J6 to separate front panel and chassis.
B
A

• REMOVING THE MAIN UNIT

1 Remove the searing rubber.
2 Unsolder 3 points D, and unscrew 1 nut E.
3 Unscrew 4 screws F and 5 screws G (silver, 2mm) to separate the chassis and the MAIN unit.
4 Take off the MAIN unit in the direction of the arrow.

DISASSEMBLY AND OPTION INSTRUCTIONS

Chassis
Front panel
F (black,2mm) x 2
F
D
D
E
Sealing rubber
(nickel,2mm) x 2
C
J6 (Speaker connector)
(silver,2mm) x 6
G
Shield cover
D
MAIN unit
Chassis
3 - 1
G
Guide holes
