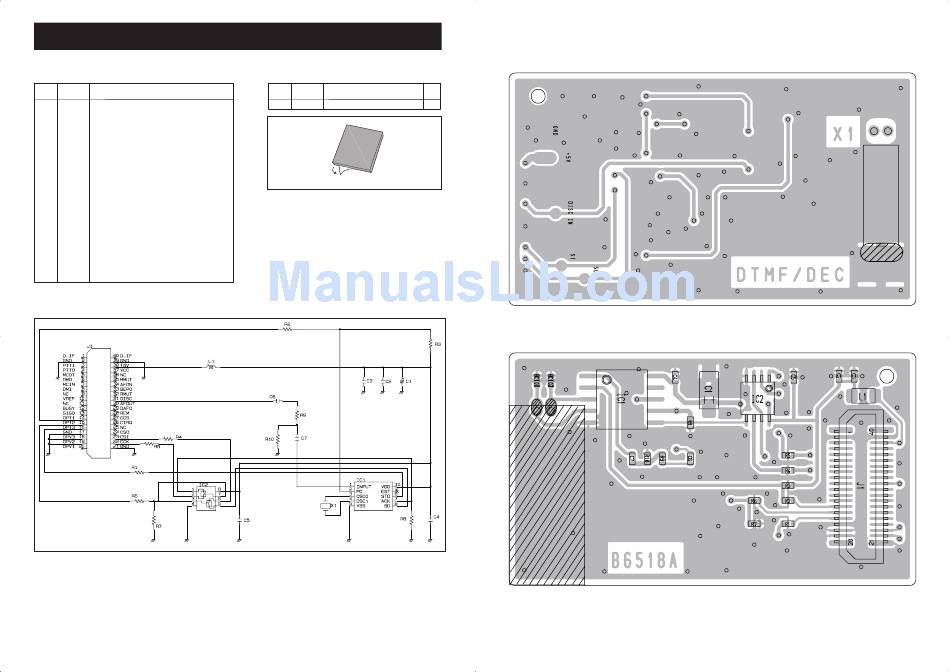

Icom IC-V85 Service Manual page 27

SECTION 12 UT-108 (Optional Product)
• PARTS LIST
[MAIN UNIT]
REF ORDER
DESCRIPTION
NO. NO.
IC1 1130007561 S.IC LC73881M-TLM-E
IC2 1130007301 S.IC TC4W66FU (TE12L,F)
X1 6050005090 XTL CR-245 (4.194304 MHz)
L1 6200001260 S.COL MLF2012A 1R8M-T
R1 7030005120 S.RES ERJ2GEJ 102 X (1 k)
R2 7030005120 S.RES ERJ2GEJ 102 X (1 k)
R3 7030005090 S.RES ERJ2GEJ 104 X (100 k)
R4 7030005120 S.RES ERJ2GEJ 102 X (1 k)
R5 7030005120 S.RES ERJ2GEJ 102 X (1 k)
R6 7030005120 S.RES ERJ2GEJ 102 X (1 k)
R7 7030005090 S.RES ERJ2GEJ 104 X (100 k)
R8 7030005090 S.RES ERJ2GEJ 104 X (100 k)
R9 7030007340 S.RES ERJ2GEJ 153 X (15 k)
R10 7030008410 S.RES ERJ2GEJ 392 X (3.9 k)
C1 4550006980 S.TAN TEESVA2 1A 475M8R
C2 4030017460 S.CER ECJ0EB1E102K
C3 4030017420 S.CER ECJ0EC1H470J
C4 4030016930 S.CER ECJ0EB1A104K
C5 4030016930 S.CER ECJ0EB1A104K
C6 4030016930 S.CER ECJ0EB1A104K
C7 4030016930 S.CER ECJ0EB1A104K
J1 6510025230 S.CNR AXK640345J
• SCHEMATIC DIAGRAM
[ACCESSORY]
REF ORDER
DESCRIPTION
NO. NO.
MP1 8930070290 SPONGE(JC)
MP1
12 - 1
• BOARD LAYOUTS
[TOP VIEW]
QTY.
1
[BOTTOM VIEW]
