- Page 1 CABINET PARTS REFRIGERATOR For Models: KSCS23FVWH02, KSCS23FVBL02, KSCS23FVSS02, KSCS23FVMS02, KSCS23FVMK02 (White) (Black) (Stainless) (Monochromatic (Monochromatic Stainless) Stainless) Part No. W10307477 Rev. A 11−09 Printed In U.S.A. (jdc)(bay)
-
Page 2: Cabinet Parts

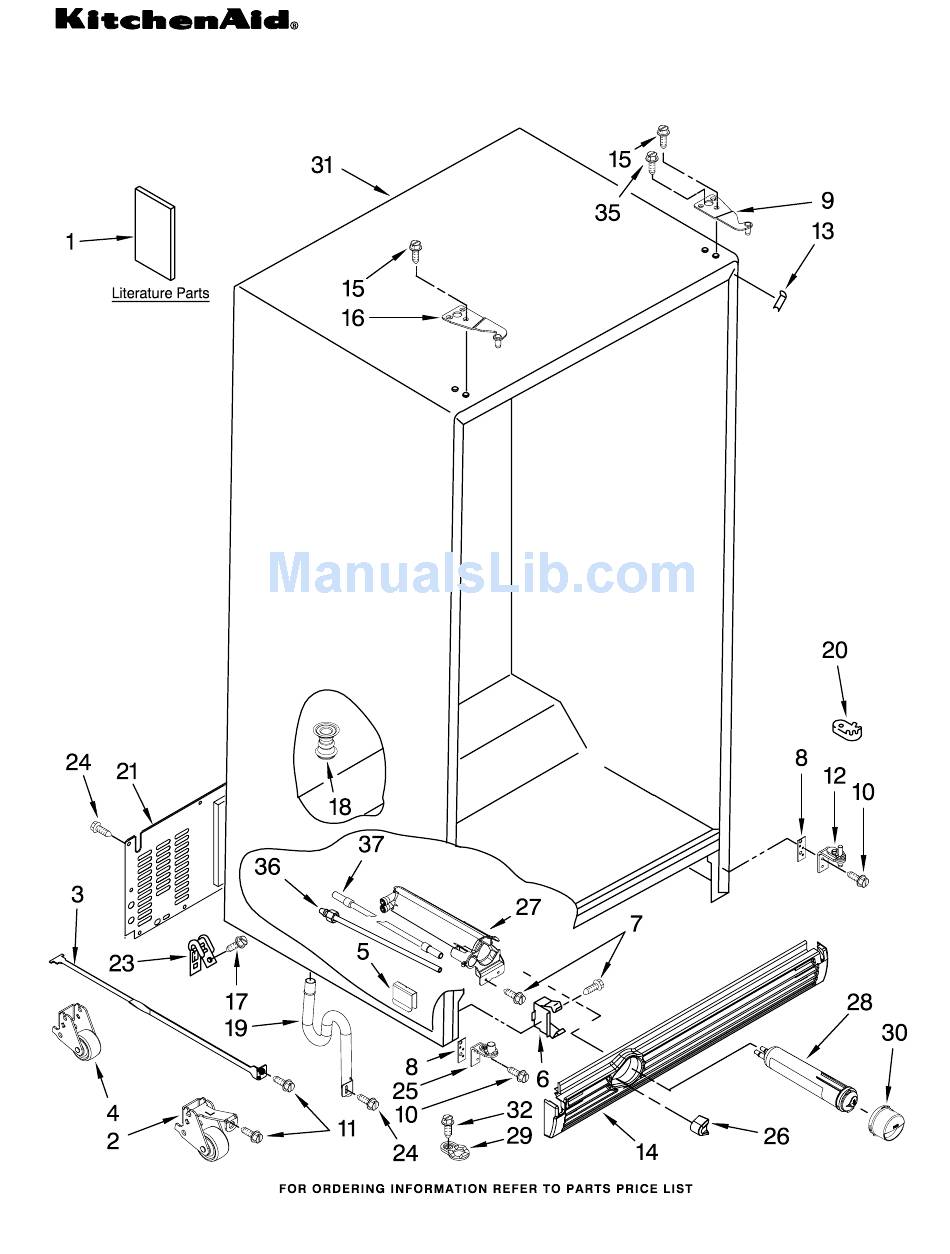

For Models: KSCS23FVWH02, KSCS23FVBL02, KSCS23FVSS02, KSCS23FVMS02, KSCS23FVMK02 (White) Illus. Part DESCRIPTION Literature Parts W10162436 Use & Care Guide W10152832 Service & Wiring Sheet 2318510 Installation Instructions W10194145 Energy Guide 2220407 Modular Icemaker Service Sheet Front Roller Asm W10199222 Left Side... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSCS23FVWH02, KSCS23FVBL02, KSCS23FVSS02, KSCS23FVMS02, KSCS23FVMK02 (White) W10307477 (Black) (Stainless) (Monochromatic (Monochromatic Stainless) Stainless) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2223524 Escutcheon, Meat Pan Control 2223339 Slide Meat Pan Control 1118894 Switch, Rocker 2188820 Thermistor... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSCS23FVWH02, KSCS23FVBL02, KSCS23FVSS02, KSCS23FVMS02, KSCS23FVMK02 (White) (Black) (Stainless) (Monochromatic (Monochromatic Stainless) Stainless) Illus. Part DESCRIPTION 1 W10235943 Shelf Assembly, Cantilever (3) 2301025 Button, Humidity 2301026 Slide, Humidity 2301117 Gasket, Side (2) 2203027 Cover, Meat Pan (Includes Items 13, 14, 15 &... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSCS23FVWH02, KSCS23FVBL02, KSCS23FVSS02, KSCS23FVMS02, KSCS23FVMK02 (White) (Black) (Stainless) (Monochromatic (Monochromatic Stainless) Stainless) W10307477... - Page 6 FREEZER LINER PARTS For Models: KSCS23FVWH02, KSCS23FVBL02, KSCS23FVSS02, KSCS23FVMS02, KSCS23FVMK02 (White) Illus. 20 W10193840 P.C. Board 21 W10185438 Cover, Ice Maker 26 W10194422 Light Bulb 29 W10173569 Cover, Receiver 31 W10193666 P.C. Board, (Black) (Stainless) (Monochromatic (Monochromatic Part DESCRIPTION Liner (Not A...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSCS23FVWH02, KSCS23FVBL02, KSCS23FVSS02, KSCS23FVMS02, KSCS23FVMK02 (White) (Black) (Stainless) (Monochromatic (Monochromatic Stainless) Stainless) W10307477... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSCS23FVWH02, KSCS23FVBL02, KSCS23FVSS02, KSCS23FVMS02, KSCS23FVMK02 (White) Illus. 10 W10278732 Blade, Rotary 13 W10178731 Blade, Rotary 20 W10140685 Latch, Bin 100 W10140693 Ice Container (Black) (Stainless) (Monochromatic (Monochromatic Part DESCRIPTION 1 W10139482 Ice Bin...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSCS23FVWH02, KSCS23FVBL02, KSCS23FVSS02, KSCS23FVMS02, KSCS23FVMK02 (White) (Black) (Stainless) (Monochromatic (Monochromatic Stainless) Stainless) W10307477... - Page 10 REFRIGERATOR DOOR PARTS For Models: KSCS23FVWH02, KSCS23FVBL02, KSCS23FVSS02, KSCS23FVMS02, KSCS23FVMK02 (White) Illus. (Black) (Stainless) (Monochromatic (Monochromatic Part DESCRIPTION Refrigerator Door (Includes #7) W10128346 White W10128348 Black 2307199SAP Monochromatic Stainless 2307199S Stainless Steel 2203087K Trim, Shelf 2255421 Dairy Door 2223883 Caddy, Can...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSCS23FVWH02, KSCS23FVBL02, KSCS23FVSS02, KSCS23FVMS02, KSCS23FVMK02 (White) (Black) (Stainless) (Monochromatic (Monochromatic Stainless) Stainless) W10307477... - Page 12 FREEZER DOOR PARTS For Models: KSCS23FVWH02, KSCS23FVBL02, KSCS23FVSS02, KSCS23FVMS02, KSCS23FVMK02 (White) Illus. 3 W10170540 Stud, Handle (Black) (Stainless) (Monochromatic (Monochromatic Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) W10149670 White W10149671 Black W10149875 Monochromatic Stainless W10149593 Stainless Steel...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSCS23FVWH02, KSCS23FVBL02, KSCS23FVSS02, KSCS23FVMS02, KSCS23FVMK02 (White) (Black) (Stainless) (Monochromatic (Monochromatic Stainless) Stainless) W10307477... - Page 14 DISPENSER FRONT PARTS For Models: KSCS23FVWH02, KSCS23FVBL02, KSCS23FVSS02, KSCS23FVMS02, KSCS23FVMK02 (White) Illus. 5 W10184813 Motor, Ice Door 10 W10187441 Spigot 20 W10222215 LED Assembly 24 W10178851 Wire Assembly, (Black) (Stainless) (Monochromatic (Monochromatic Part DESCRIPTION Housing, Dispenser (Not Serviced) 2305202 Bracket, Motor...
-
Page 15: Air Flow Parts
For Models: KSCS23FVWH02, KSCS23FVBL02, KSCS23FVSS02, KSCS23FVMS02, KSCS23FVMK02 (White) Illus. Part DESCRIPTION 2182120 Fan Scroll 2223733 Retainer, Fan Motor 4 W10256500 Air Duct, Upper 2223771 Air Duct Freezer 6 W10225581 Bi−Metal, Defrost 2259385 Fan Motor 2169142 Fan Blade 2304241 Gasket, Evaporator... -
Page 16: Control Parts
CONTROL PARTS For Models: KSCS23FVWH02, KSCS23FVBL02, KSCS23FVSS02, KSCS23FVMS02, KSCS23FVMK02 (White) Illus. 1 W10175591 Control Box (Black) (Stainless) (Monochromatic (Monochromatic Part DESCRIPTION (Includes #3) 2223882 Heat Shield Asm (Includes #5) 2307037 Control Board Asm 2223506 Light Lens, Control Box 2223857 Light Socket... -
Page 17: Unit Parts
UNIT PARTS For Models: KSCS23FVWH02, KSCS23FVBL02, KSCS23FVSS02, KSCS23FVMS02, KSCS23FVMK02 (White) (Black) (Stainless) (Monochromatic (Monochromatic Stainless) Stainless) W10307477... - Page 18 For Models: KSCS23FVWH02, KSCS23FVBL02, KSCS23FVSS02, KSCS23FVMS02, KSCS23FVMK02 (White) Illus. Part DESCRIPTION 777070 Screw 2 W10139483 Fan, Blade 3 W10193018 Condenser Assembly 489427 Screw 3400524 Screw (6) 2223703 Housing, Control Board 2223351 Tube Suction 2161302 Sleeve 2319835 Grommet, Condenser (4) 8533859 Screw...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: KSCS23FVWH02, KSCS23FVBL02, KSCS23FVSS02, KSCS23FVMS02, KSCS23FVMK02 (White) (Black) (Stainless) (Monochromatic (Monochromatic Stainless) Stainless) W10307477... - Page 20 ICEMAKER PARTS For Models: KSCS23FVWH02, KSCS23FVBL02, KSCS23FVSS02, KSCS23FVMS02, KSCS23FVMK02 (White) Illus. 10 W10122527 Mold & Heater 11 W10272168 Cup, Water Fill 13 W10272161 Ice Striper 100 W10272869 Icemaker Assembly (Black) (Stainless) (Monochromatic (Monochromatic Part DESCRIPTION 489084 Screw 2303216 Fitting, Water...
- Page 21 OPTIONAL PARTS (NOT INCLUDED) For Models: KSCS23FVWH02, KSCS23FVBL02, KSCS23FVSS02, KSCS23FVMS02, KSCS23FVMK02 (White) Illus. Part DESCRIPTION PAINT, PRESSURIZED SPRAY (12 oz.) 350942 Primer, White 350939 Black 350930 White 8171357 Graphite 4392901 Biscuit PAINT, TOUCH−UP (1/2oz.) 72017 White 80051 Graphite 72032 Black...
