Summary of Contents for KitchenAid KSCS23FSBL03

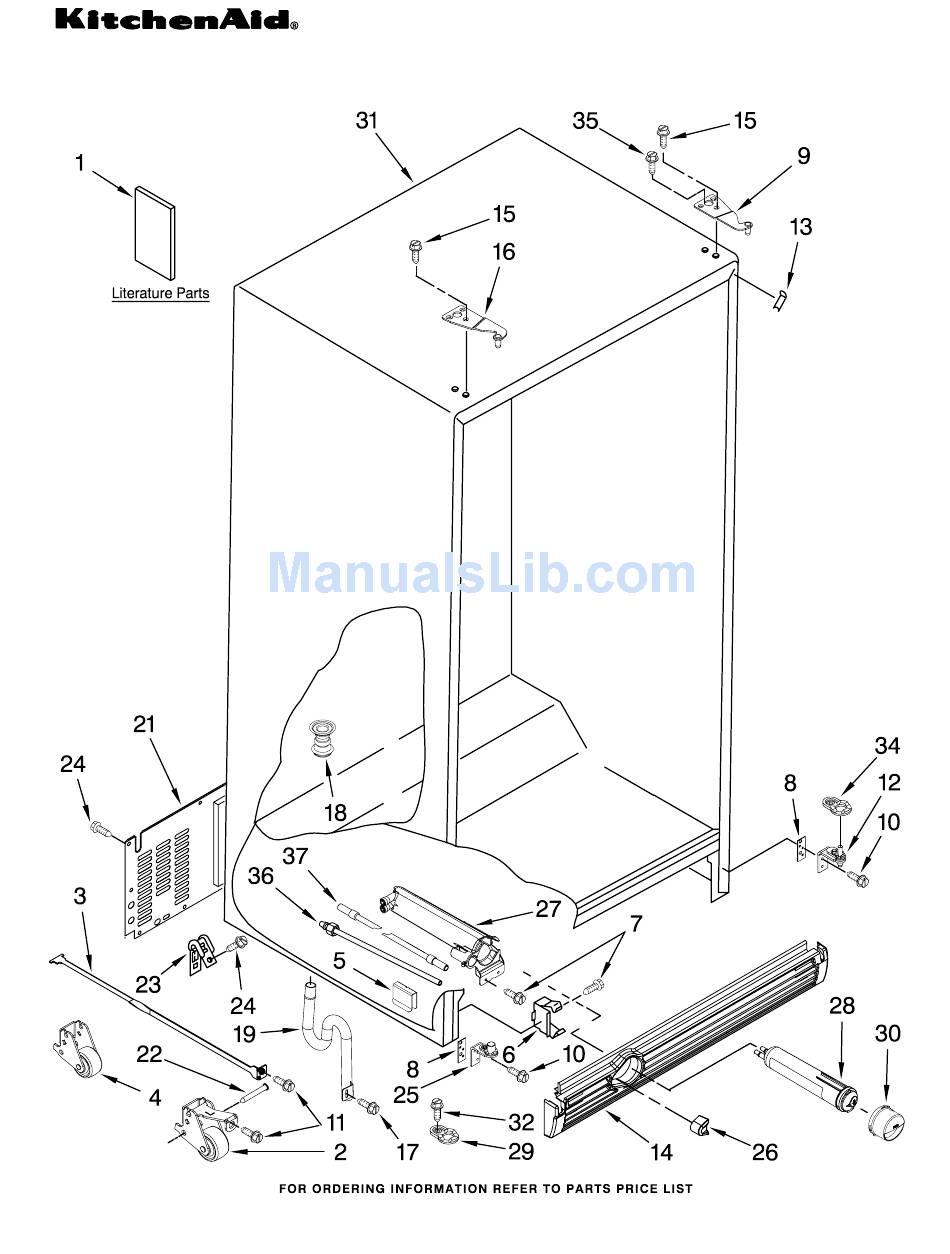

- Page 1 CABINET PARTS REFRIGERATOR For Models: KSCS23FSWH03, KSCS23FSBT03, KSCS23FSBL03, KSCS23FSMS03, KSCS23FSSS03 (White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless Steel) 09−07 Printed In U.S.A. (mat) Part No. W10153531 Rev. A...
-
Page 2: Cabinet Parts
For Models: KSCS23FSWH03, KSCS23FSBT03, KSCS23FSBL03, KSCS23FSMS03, KSCS23FSSS03 (White) Illus. Part DESCRIPTION Literature Parts 2318583 Use & Care Guide 2223419 Service & Wiring Sheet 2223996 Installation Instructions 2318827 Energy Guide 2220407 Modular Icemaker Service Sheet Front Roller Asm 2306950 Left Side... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSCS23FSWH03, KSCS23FSBT03, KSCS23FSBL03, KSCS23FSMS03, KSCS23FSSS03 (White) W10153531 (Biscuit) (Black) (Monochromatic Stainless) (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2224121 Escutcheon, Meat Pan Control 2224123 Slide Meat Pan Control 1118894 Switch, Rocker 2188820 Thermistor... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSCS23FSWH03, KSCS23FSBT03, KSCS23FSBL03, KSCS23FSMS03, KSCS23FSSS03 (White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless Steel) Illus. Part DESCRIPTION 2224061 Shelf Assembly, Cantilever (2) 2301025 Button, Humidity 2301026 Slide, Humidity 2301117 Gasket, Side (2) 2203027 Cover, Meat Pan (Includes Items 13, 14, 15 &... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSCS23FSWH03, KSCS23FSBT03, KSCS23FSBL03, KSCS23FSMS03, KSCS23FSSS03 (White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless Steel) W10153531... - Page 6 FREEZER LINER PARTS For Models: KSCS23FSWH03, KSCS23FSBT03, KSCS23FSBL03, KSCS23FSMS03, KSCS23FSSS03 (White) Illus. (Biscuit) (Black) (Monochromatic Stainless) (Stainless Steel) Part DESCRIPTION Liner (Not A Seviceable Part) 2223777 Spacer, Slide (2) 2224053 Front−Basket 2196483 Stud Assembly 2223691 Basket, Deep (2) 8281158 Screw...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSCS23FSWH03, KSCS23FSBT03, KSCS23FSBL03, KSCS23FSMS03, KSCS23FSSS03 (White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless Steel) W10153531... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSCS23FSWH03, KSCS23FSBT03, KSCS23FSBL03, KSCS23FSMS03, KSCS23FSSS03 (White) Illus. (Biscuit) (Black) (Monochromatic Stainless) (Stainless Steel) Part DESCRIPTION 2223317 Ice Bin 2317256 Crusher Bin 2317240 Auger 2258220 Washer 1119007 Spacer, Flat (4) 2317248 Cover, Crusher 2257024 Blade, Rotary...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSCS23FSWH03, KSCS23FSBT03, KSCS23FSBL03, KSCS23FSMS03, KSCS23FSSS03 (White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless Steel) W10153531... - Page 10 REFRIGERATOR DOOR PARTS For Models: KSCS23FSWH03, KSCS23FSBT03, KSCS23FSBL03, KSCS23FSMS03, KSCS23FSSS03 (White) Illus. (Biscuit) (Black) (Monochromatic Stainless) (Stainless Steel) Part DESCRIPTION Refrigerator Door (Includes #7) W10128346 White W10128350 Biscuit W10128348 Black 2307199S Stainless Steel 2307199SAP Monochromatic Stainless 2203087K Trim, Shelf 2255421 Dairy Door...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSCS23FSWH03, KSCS23FSBT03, KSCS23FSBL03, KSCS23FSMS03, KSCS23FSSS03 (White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless Steel) W10153531... - Page 12 FREEZER DOOR PARTS For Models: KSCS23FSWH03, KSCS23FSBT03, KSCS23FSBL03, KSCS23FSMS03, KSCS23FSSS03 (White) Illus. (Biscuit) (Black) (Monochromatic Stainless) (Stainless Steel) Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) W10133799 White W10133798 Biscuit W10133797 Black 2327680SB Stainless Steel 2327680SAP Monochromatic Stainless...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSCS23FSWH03, KSCS23FSBT03, KSCS23FSBL03, KSCS23FSMS03, KSCS23FSSS03 (White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless Steel) W10153531... - Page 14 DISPENSER FRONT PARTS For Models: KSCS23FSWH03, KSCS23FSBT03, KSCS23FSBL03, KSCS23FSMS03, KSCS23FSSS03 (White) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 3196537 Screw 2194719 Retainer, Levers 2304772 Spring, Torsion 2196195 Pin 2180353 Door, Ice 2304355 Door Mechanism Assembly 2205686 Mechanism Delay Grille, Overflow...
-
Page 15: Air Flow Parts
For Models: KSCS23FSWH03, KSCS23FSBT03, KSCS23FSBL03, KSCS23FSMS03, KSCS23FSSS03 (White) Illus. Part DESCRIPTION 2182120 Fan Scroll 2223733 Retainer, Fan Motor 2223298 Air Scoop 2223303 Air Duct, Upper 2223771 Air Duct Freezer 2321799 Bi−Metal, Defrost 2259385 Fan Motor 2169142 Fan Blade 2304241 Gasket, Evaporator... -
Page 16: Control Parts
For Models: KSCS23FSWH03, KSCS23FSBT03, KSCS23FSBL03, KSCS23FSMS03, KSCS23FSSS03 (White) Illus. CONTROL PARTS (Biscuit) (Black) (Monochromatic Stainless) (Stainless Steel) Part DESCRIPTION 2319753 Control Box (Includes #3) 2223882 Heat Shield Asm (Includes # 5) 2307037 Control Board Asm 2223506 Light Lens, Control Box... -
Page 17: Unit Parts
UNIT PARTS For Models: KSCS23FSWH03, KSCS23FSBT03, KSCS23FSBL03, KSCS23FSMS03, KSCS23FSSS03 (White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless Steel) W10153531... - Page 18 For Models: KSCS23FSWH03, KSCS23FSBT03, KSCS23FSBL03, KSCS23FSMS03, KSCS23FSSS03 (White) Illus. Part DESCRIPTION 777070 Screw 2225834 Fan, Blade 2223315 Condenser Assembly 8281197 Screw 3400524 Screw (6) 2223703 Housing, Control Board 2223351 Tube Suction 2161302 Sleeve 2301979 Plate, Mounting 8281196 Screw 2215676 Cover, Terminal 2319835 Grommet−Cond(4)
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: KSCS23FSWH03, KSCS23FSBT03, KSCS23FSBL03, KSCS23FSMS03, KSCS23FSSS03 (White) (Biscuit) (Black) (Monochromatic Stainless) (Stainless Steel) W10153531... - Page 20 ICEMAKER PARTS For Models: KSCS23FSWH03, KSCS23FSBT03, KSCS23FSBL03, KSCS23FSMS03, KSCS23FSSS03 (White) Illus. 100 W10122502 Icemaker Assembly (Biscuit) (Black) (Monochromatic Stainless) (Stainless Steel) Part DESCRIPTION 489084 Screw 2256096 Fitting, Water Tube 628379 Clip, Fuse 489478 Screw 2315533 Water Valve Asm 2208136 Tube Clip...
- Page 21 OPTIONAL PARTS (NOT INCLUDED) For Models: KSCS23FSWH03, KSCS23FSBT03, KSCS23FSBL03, KSCS23FSMS03, KSCS23FSSS03 (White) Illus. Part DESCRIPTION PAINT, PRESSURIZED SPRAY (12 oz.) 350942 Primer, White 350939 Black 350930 White 8171357 Graphite 4392901 Biscuit PAINT, TOUCH−UP (1/2oz.) 72017 White 80051 Graphite 72032 Black...
