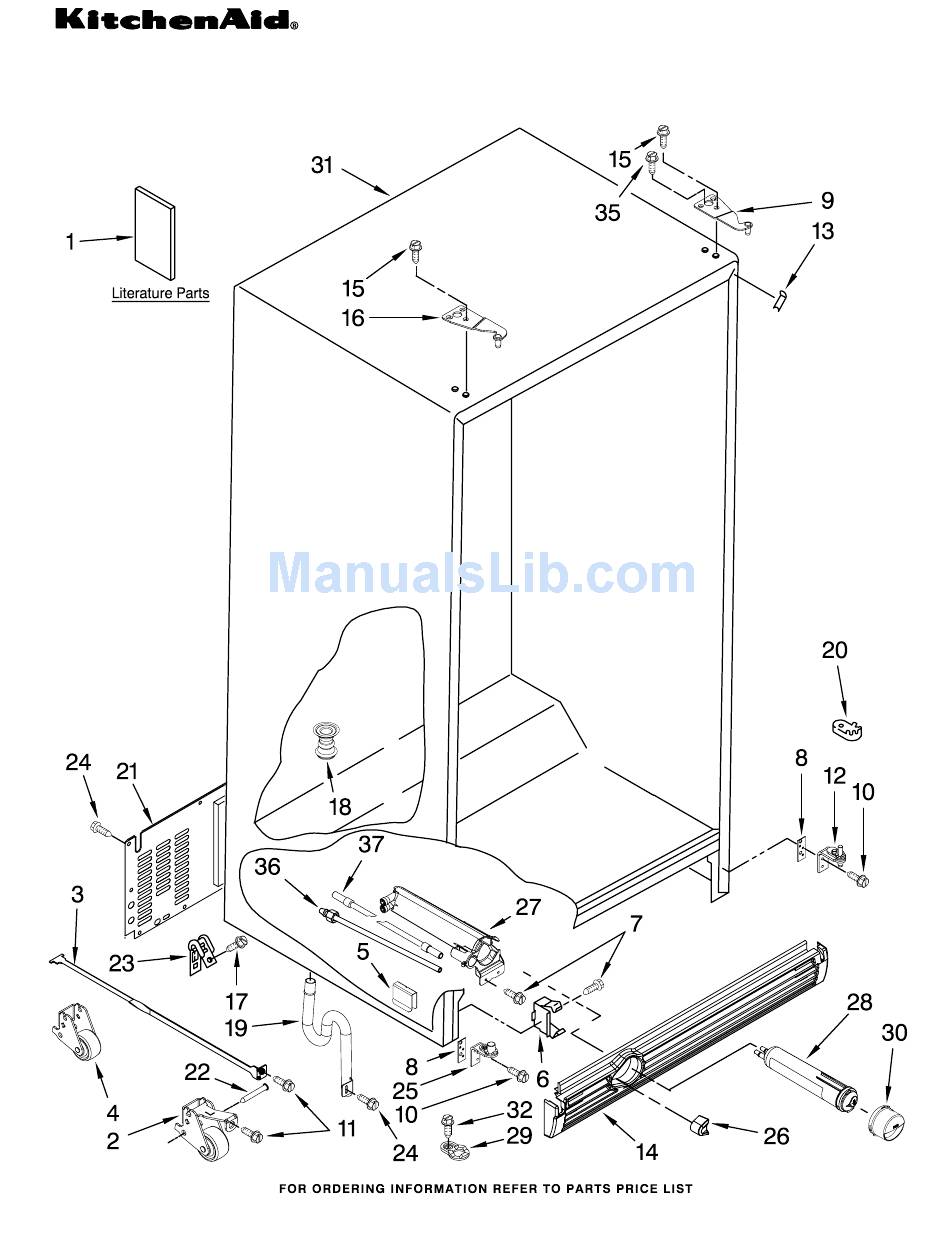

- Page 1 CABINET PARTS REFRIGERATOR For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02 (White) (Biscuit) (Black) (Monochromatic Stainless)(Stainless Steel) 05−07 Printed In U.S.A. (cjj) Part No. W10139479 Rev. A...
-
Page 2: Cabinet Parts
For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02 (White) Illus. Part DESCRIPTION Literature Parts 2323158 Use & Care Guide 2304186 Service Sheet 2318510 Installation Instructions 2326270 Energy Guide 2220407 Modular Icemaker Service Sheet Front Roller Asm 2306950 Left Side 2306951 Right Side... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02 (White) W10139479 (Biscuit) (Black) (Monochromatic Stainless)(Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2224121 Escutcheon, Meat Pan Control 2224123 Slide Meat Pan Control 1118894 Switch, Rocker 2188820 Thermistor... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02 (White) (Biscuit) (Black) (Monochromatic Stainless)(Stainless Steel) Illus. Part DESCRIPTION 2224061 Shelf Assembly, Cantilever (2) 2301025 Button, Humidity 2301026 Slide, Humidity 2301117 Gasket, Side (2) 2203027 Cover, Meat Pan (Includes Items 13, 14, 15 &... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02 (White) (Biscuit) (Black) (Monochromatic Stainless)(Stainless Steel) W10139479... - Page 6 FREEZER LINER PARTS For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02 (White) Illus. (Biscuit) (Black) (Monochromatic Stainless)(Stainless Steel) Part DESCRIPTION Liner (Not A Seviceable Part) 2223777 Spacer, Slide (2) 2223782 Basket, Front 2196483 Stud Assembly 2254611 Basket, Deep (2) 8281158 Screw...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02 (White) (Biscuit) (Black) (Monochromatic Stainless)(Stainless Steel) W10139479... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02 (White) Illus. 100 W10127745 Ice Container (Biscuit) (Black) (Monochromatic Stainless)(Stainless Steel) Part DESCRIPTION 2305416 Ice Bin 2305294 Crusher Bin 2320327 Auger 2258220 Washer 1119007 Spacer, Flat (4) 2305244 Cover, Crusher...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02 (White) (Biscuit) (Black) (Monochromatic Stainless)(Stainless Steel) W10139479... - Page 10 REFRIGERATOR DOOR PARTS For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02 (White) Illus. (Biscuit) (Black) (Monochromatic Stainless)(Stainless Steel) Part DESCRIPTION Refrigerator Door (Includes #7) W10128346 White W10128350 Biscuit W10128348 Black 2307199SAP Monochromatic Stainless 2307199S Stainless Steel 2203087K Trim, Shelf 2255421 Dairy Door...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02 (White) (Biscuit) (Black) (Monochromatic Stainless)(Stainless Steel) W10139479... - Page 12 FREEZER DOOR PARTS For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02 (White) Illus. (Biscuit) (Black) (Monochromatic Stainless)(Stainless Steel) Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) W10130210 White W10130220 Biscuit W10130215 Black 2326211SAP Monochromatic Stainless 2326211SB Stainless Steel Handle...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02 (White) (Biscuit) (Black) (Monochromatic Stainless)(Stainless Steel) W10139479... - Page 14 DISPENSER FRONT PARTS For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02 (White) Illus. (Biscuit) (Black) (Monochromatic Stainless)(Stainless Steel) Part DESCRIPTION Housing, Dispenser (Not Serviced) 2305202 Bracket, Motor 2305242 Connector, Door Bracket 2305262 Motor, Ice Door 2305258 Door, Ice 2305204 Support, Ice...
-
Page 15: Air Flow Parts
For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02 (White) Illus. Part DESCRIPTION 2182120 Fan Scroll 2223733 Retainer, Fan Motor 2223298 Air Scoop 2223303 Air Duct, Upper 2223771 Air Duct Freezer 2319914 Bi−Metal, Defrost 2259385 Fan Motor 2169142 Fan Blade 2304241 Gasket, Evaporator... -
Page 16: Control Parts
CONTROL PARTS For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02 (White) Illus. (Biscuit) (Black) (Monochromatic Stainless)(Stainless Steel) Part DESCRIPTION 2318985 Control Box (Includes #3) 2223882 Heat Shield Asm (Includes #5) 2307037 Control Board Asm 2223506 Light Lens, Control Box 2223857 Light Socket... -
Page 17: Unit Parts
UNIT PARTS For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02 (White) (Biscuit) (Black) (Monochromatic Stainless)(Stainless Steel) W10139479... - Page 18 For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02 (White) Illus. Part DESCRIPTION 777070 Screw 2225834 Fan, Blade 2223315 Condenser Assembly 8281197 Screw 3400524 Screw (6) 2223703 Housing, Control Board 2223351 Tube Suction 2161302 Sleeve 2319835 Grommet, Condenser (4) 2301979 Plate, Mounting...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02 (White) (Biscuit) (Black) (Monochromatic Stainless)(Stainless Steel) W10139479... - Page 20 ICEMAKER PARTS For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02 (White) Illus. (Biscuit) (Black) (Monochromatic Stainless)(Stainless Steel) Part DESCRIPTION 489084 Screw 2256096 Fitting, Water Tube 628379 Clip, Fuse 2313394 Shield, Water Valve 489478 Screw 2319734 Smart Valve Asm 2208136 Tube Clip...
- Page 21 OPTIONAL PARTS (NOT INCLUDED) For Models: KSCS23FTWH02, KSCS23FTBT02, KSCS23FTBL02, KSCS23FTMS02, KSCS23FTSS02 (White) Illus. Part DESCRIPTION PAINT, PRESSURIZED SPRAY (12 oz.) 350942 Primer, White 350939 Black 350930 White 8171357 Graphite 4392901 Biscuit PAINT, TOUCH−UP (1/2oz.) 72017 White 80051 Graphite 72032 Black...
