- Page 1 CABINET PARTS REFRIGERATOR For Models: KSCS23FVWH00, KSCS23FVBL00, KSCS23FVSS00, KSCS23FVMS00, KSCS23FVMK00 (White) (Black) (Stainless) (Monochromatic (Monochromatic Stainless) Stainless) 04−08 Printed In U.S.A. (jdc) Part No. W10200763 Rev. A...
-
Page 2: Cabinet Parts

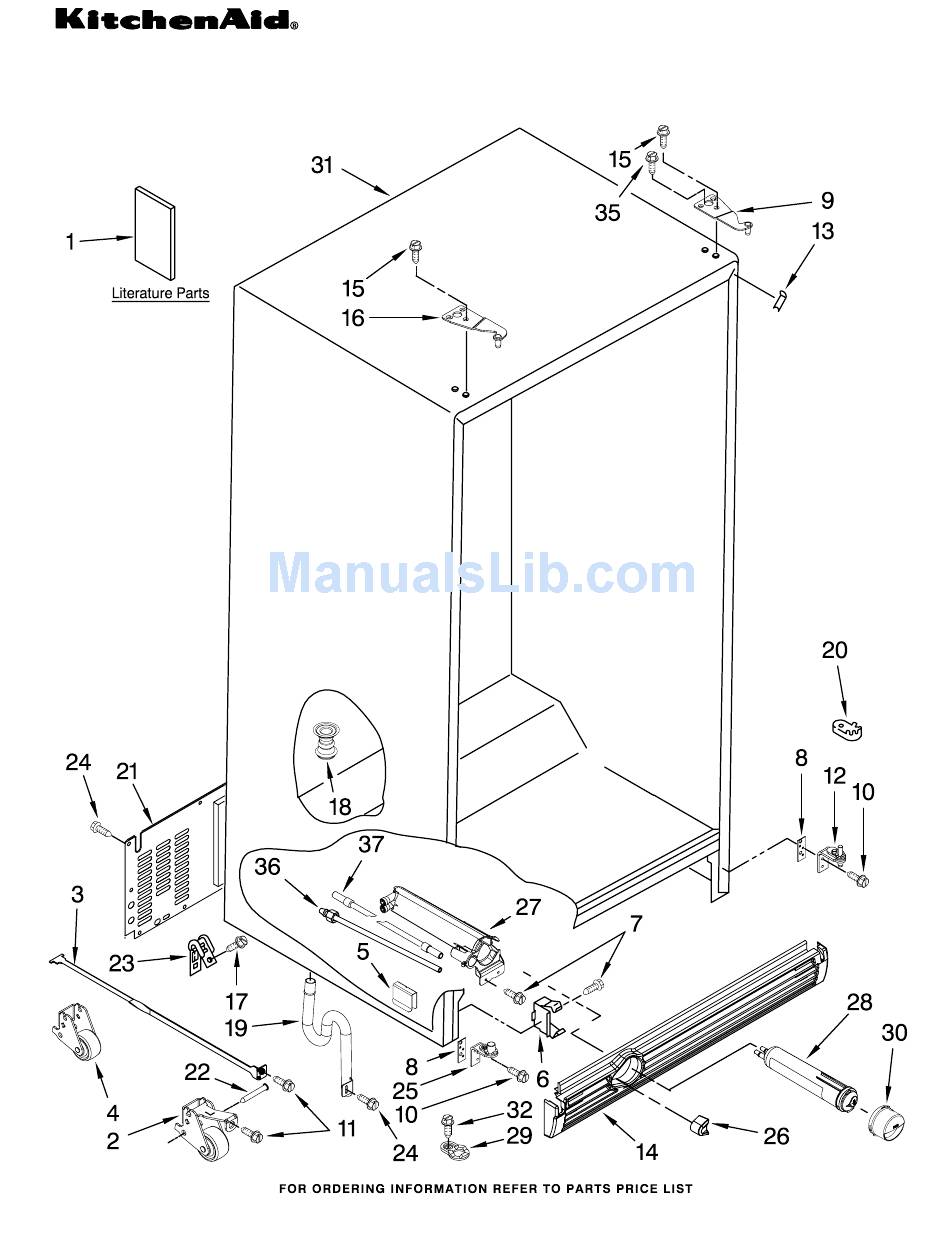

CABINET PARTS For Models: KSCS23FVWH00, KSCS23FVBL00, KSCS23FVSS00, KSCS23FVMS00, KSCS23FVMK00 (White) (Black) (Stainless) (Monochromatic (Monochromatic Stainless) Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts 2307179 Hinge Assembly, 2307152 Hinge Assembly, W10162436 Use & Care Guide Bottom−RC Bottom−FC W10152832 Service &... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSCS23FVWH00, KSCS23FVBL00, KSCS23FVSS00, KSCS23FVMS00, KSCS23FVMK00 (White) (Black) (Stainless) (Monochromatic (Monochromatic Stainless) Stainless) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2224121 Escutcheon, Meat Pan Control 2224123 Slide Meat Pan Control 1118894 Switch, Rocker 2188820 Thermistor 3400893 Screw 2319866 Ladder, Shelf (2) 2301234 Housing, Door... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSCS23FVWH00, KSCS23FVBL00, KSCS23FVSS00, KSCS23FVMS00, KSCS23FVMK00 (White) (Black) (Stainless) (Monochromatic (Monochromatic Stainless) Stainless) Illus. Part DESCRIPTION 2224061 Shelf Assembly, Cantilever (2) 2301025 Button, Humidity 2301026 Slide, Humidity 2301117 Gasket, Side (2) 2203027 Cover, Meat Pan (Includes Items 13, 14, 15 &... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSCS23FVWH00, KSCS23FVBL00, KSCS23FVSS00, KSCS23FVMS00, KSCS23FVMK00 (White) (Black) (Stainless) (Monochromatic (Monochromatic Stainless) Stainless) W10200763... - Page 6 FREEZER LINER PARTS For Models: KSCS23FVWH00, KSCS23FVBL00, KSCS23FVSS00, KSCS23FVMS00, KSCS23FVMK00 (White) (Black) (Stainless) (Monochromatic (Monochromatic Stainless) Stainless) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2223777 Spacer, Slide (2) 2224051 Basket, Front 2196483 Stud Assembly 2223691 Basket, Deep (2) 8281158 Screw 2223500 Shelf Assembly, Cantilever (2) 2224053 Front, Basket...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSCS23FVWH00, KSCS23FVBL00, KSCS23FVSS00, KSCS23FVMS00, KSCS23FVMK00 (White) (Black) (Stainless) (Monochromatic (Monochromatic Stainless) Stainless) W10200763... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSCS23FVWH00, KSCS23FVBL00, KSCS23FVSS00, KSCS23FVMS00, KSCS23FVMK00 (White) (Black) (Stainless) (Monochromatic (Monochromatic Stainless) Stainless) Illus. Part DESCRIPTION 2305416 Ice Bin 2305294 Crusher Bin 2320327 Auger 2258220 Washer 1119007 Spacer, Flat (4) 2305244 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed 2257023 Blade, Rotary...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSCS23FVWH00, KSCS23FVBL00, KSCS23FVSS00, KSCS23FVMS00, KSCS23FVMK00 (White) (Black) (Stainless) (Monochromatic (Monochromatic Stainless) Stainless) W10200763... - Page 10 REFRIGERATOR DOOR PARTS For Models: KSCS23FVWH00, KSCS23FVBL00, KSCS23FVSS00, KSCS23FVMS00, KSCS23FVMK00 (White) (Black) (Stainless) (Monochromatic (Monochromatic Stainless) Stainless) Illus. Part DESCRIPTION Refrigerator Door (Includes #7) W10128346 White W10128348 Black 2307199SAP Monochromatic Stainless 2307199S Stainless Steel 2203087K Trim, Shelf 2255421 Dairy Door 2223883 Caddy, Can 2219698 Stud, Handle Door Gasket,...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSCS23FVWH00, KSCS23FVBL00, KSCS23FVSS00, KSCS23FVMS00, KSCS23FVMK00 (White) (Black) (Stainless) (Monochromatic (Monochromatic Stainless) Stainless) W10200763... - Page 12 FREEZER DOOR PARTS For Models: KSCS23FVWH00, KSCS23FVBL00, KSCS23FVSS00, KSCS23FVMS00, KSCS23FVMK00 (White) (Black) (Stainless) (Monochromatic (Monochromatic Stainless) Stainless) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) W10130210 White W10130215 Black 2326211NO Monochromatic Stainless 2326211SB Stainless Steel Handle 2319727W White 2319727B Black 2319727S Stainless Steel 2219698 Stud, Handle...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSCS23FVWH00, KSCS23FVBL00, KSCS23FVSS00, KSCS23FVMS00, KSCS23FVMK00 (White) (Black) (Stainless) (Monochromatic (Monochromatic Stainless) Stainless) W10200763... - Page 14 DISPENSER FRONT PARTS For Models: KSCS23FVWH00, KSCS23FVBL00, KSCS23FVSS00, KSCS23FVMS00, KSCS23FVMK00 (White) (Black) (Stainless) (Monochromatic (Monochromatic Stainless) Stainless) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 2305202 Bracket, Motor 2305242 Connector, Door Bracket 2305262 Motor, Ice Door 2305258 Door, Ice 2305204 Support, Ice Door 4449745 Screw Tray Assembly...
-
Page 15: Air Flow Parts
AIR FLOW PARTS For Models: KSCS23FVWH00, KSCS23FVBL00, KSCS23FVSS00, KSCS23FVMS00, KSCS23FVMK00 (White) (Black) (Stainless) (Monochromatic (Monochromatic Stainless) Stainless) Illus. Part DESCRIPTION 2182120 Fan Scroll 2223733 Retainer, Fan Motor 2223298 Air Scoop 2223303 Air Duct, Upper 2223771 Air Duct Freezer 2321799 Bi−Metal, Defrost 2259385 Fan Motor 2169142 Fan Blade 2304241 Gasket, Evaporator... -
Page 16: Control Parts
CONTROL PARTS For Models: KSCS23FVWH00, KSCS23FVBL00, KSCS23FVSS00, KSCS23FVMS00, KSCS23FVMK00 (White) (Black) (Stainless) (Monochromatic (Monochromatic Stainless) Stainless) Illus. Part DESCRIPTION 1 W10175591 Control Box (Includes #3) 2223882 Heat Shield Asm (Includes #5) 2307037 Control Board Asm 2223506 Light Lens, Control Box 2223857 Light Socket 2326255 Light Bulb 489000 Screw... -
Page 17: Unit Parts
UNIT PARTS For Models: KSCS23FVWH00, KSCS23FVBL00, KSCS23FVSS00, KSCS23FVMS00, KSCS23FVMK00 (White) (Black) (Stainless) (Monochromatic (Monochromatic Stainless) Stainless) W10200763... - Page 18 UNIT PARTS For Models: KSCS23FVWH00, KSCS23FVBL00, KSCS23FVSS00, KSCS23FVMS00, KSCS23FVMK00 (White) (Black) (Stainless) (Monochromatic (Monochromatic Stainless) Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 777070 Screw 2188874 Fan, Motor Following Parts Not Illustrated 2 W10139483 Fan, Blade 2223398 Tray, Evaporator 3 W10131059 Condenser 2224022 Heat Shield and Optional Parts Not Included...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: KSCS23FVWH00, KSCS23FVBL00, KSCS23FVSS00, KSCS23FVMS00, KSCS23FVMK00 (White) (Black) (Stainless) (Monochromatic (Monochromatic Stainless) Stainless) W10200763... - Page 20 ICEMAKER PARTS For Models: KSCS23FVWH00, KSCS23FVBL00, KSCS23FVSS00, KSCS23FVMS00, KSCS23FVMK00 (White) (Black) (Stainless) (Monochromatic (Monochromatic Stainless) Stainless) Illus. Part DESCRIPTION 489084 Screw 2303216 Fitting, Water Tube 628379 Clip, Fuse 2313394 Shield, Water Valve 489478 Screw 6 W10159840 Smart Valve Asm 2208136 Tube Clip 2174358 Cover 488649 Screw 10 W10122527 Mold &...
- Page 21 OPTIONAL PARTS (NOT INCLUDED) For Models: KSCS23FVWH00, KSCS23FVBL00, KSCS23FVSS00, KSCS23FVMS00, KSCS23FVMK00 (White) (Black) (Stainless) (Monochromatic (Monochromatic Stainless) Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION PAINT, BULK (1 qt.) PAINT, PRESSURIZED SPRAY TORX SCREW WRENCH (12 oz.) 1117510 Torx Key 799340 Black 350942 Primer, White 799344 White...
