Enlarged version

ICE MAKER

POCKET GUIDE
Cornelius Ice Makers Only
Starting with Serial Code FA
June 1990 Production
IMI CORNELIUS
One Cornelius Place
Anoka, MN 55303
1–800–238–3600
TD 184

Advertisement

Table of Contents
loading

Related Manuals for Cornelius ICE MAKER

Summary of Contents for Cornelius ICE MAKER

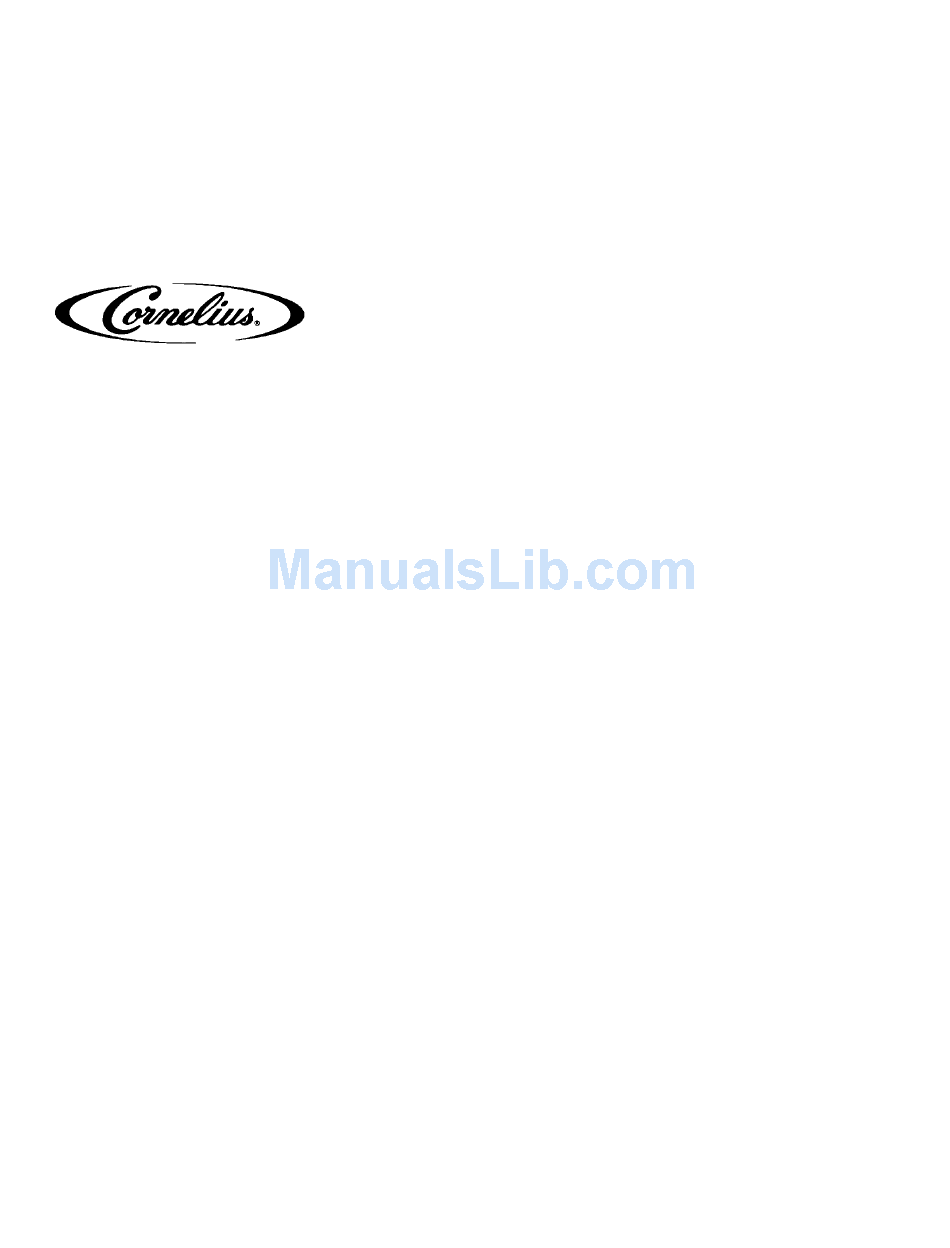

  • Page 1: Ice Maker

    ICE MAKER POCKET GUIDE Cornelius Ice Makers Only Starting with Serial Code FA June 1990 Production IMI CORNELIUS One Cornelius Place Anoka, MN 55303 1–800–238–3600 TD 184...
  • Page 2 TD 184...

  • Page 3: Table Of Contents

    ..... . . ICE PRODUCTION CHECK ..... . COMMERICAL CUBER ICE MAKER ICE PRODUCTION CAPACITY (Approximate) ..
  • Page 4 TABLE OF CONTENTS CONT’D PAGE (WATER COOLED) SERIES 1100 ... . . (AIR COOLED) SERIES 2400 ....(WATER COOLED) SERIES 2400 .
  • Page 5 TABLE OF CONTENTS CONT’D PAGE CURTAIN DOES NOT STAY IN PLACE... ICE TOO THICK OR TOO THIN....GOES OFF ON CODE 4 .

  • Page 6: Introduction

    One Cornelius Place Anoka, MN 55303 1–800–554–3526 The warranty on Cornelius icemakers begins on the date of installation, as reported on the warranty registration card to the original owner/user. If no warranty card is received by the factory, the date of shipment from the factory will determine the start of the warranty.

  • Page 7: Serial Number Date Code Definition

    SERIAL NUMBER DATE CODE DEFINITION F A 0000 Sequential Number Year Month 1990 1991 1992 1993 1994 1995 –– –– –– –– –– TD 184...

  • Page 8: Original Owner, End-User

    ORIGINAL OWNER, END-USER RESPONSIBILITY To verify the equipment installation date by the return of the warranty registration card to the fac- tory within five days of the installation. To pay freight or handling charge. To pay for service labor and/or parts required to correct improperly installed equipment.

  • Page 9: Sequence Of Operation Cuber Only

    SEQUENCE OF OPERATION CUBER ONLY After the installation of the water lines from the primary water supply, the float valve will be open and remain open until the reservoir is filled to the proper level. (1/4” below the support). Note: Primary water supply must not be less than 20 psi, nor mor then 50 psi on Float Valves with no Flow Washer, or 125 psi for Float Valves with Flow Washer.

  • Page 10: Approximate Pressure Ranges

    Approximate Pressure Ranges Depending on operating ambient and incoming water temperature. CUBERS Freeze DFROST Cycle CYCLE Suction Head Pressure Head Suction Start – End Refrigerant Pressure Pressure Pressure R-12 20-12 85-95 R-22 35-22 180-190 R-502 225-250 30-18 180-190 FLAKERS Refrigerant Head Pressure Suction Pressure R-12...

  • Page 11: Ice Production Check

    Example: Weight/cycle x cycles/day = total production/24 hrs. Compare to the production tables. COMMERCIAL CUBER ICE MAKER ICE PRODUCTION CAPACITY (Approximate) Air Cooled: Take air temperature at the intake of the con- denser, 2” from the condenser fins.

  • Page 12: Series 700

    SERIES 700 INCOMING WATER TEMP. ° F (CONDENSER) AMBIENT TEMP. ° F ° 50° 70° 80° (Air Cooled) 70° 80° 90° 70° (Water Cooled) 80° 90° OUTSIDE AIR ° F (Remote-Air) 50° 70° NOTE: Remote Unit designed for 90° use with CS.120 Remote Con- 110°...

  • Page 13: Series 900

    SERIES 900 INCOMING WATER TEMP. ° F MODEL NUMBER AMBIENT TEMP. ° F ° (CONDENSER) 50° 70° 80° AC-900-SS-MH 70° (Air Cooled) 80° 90° 70° WC-900-SS-MH (Water Cooled) 80° 90° OUTSIDE AIR ° F 50° RC-900-SS-MH (Remote-Air) 70° Note: Remote unit designed for 90°...

  • Page 14: Series 1400

    SERIES 1400 INCOMING WATER TEMP. ° F MODEL NUMBER AMBIENT TEMP. ° F ° (CONDENSER) 50° 70° 80° (Air Cooled) 70° 1400 1240 1180 80° 1320 1175 1110 90° 1210 1085 1025 70° 1420 1250 1120 (Water Cooled) 80° 1390 1220 1095 90°...

  • Page 15: Commerical Flaker Ice Maker Ice Production Capacity (Approximate)

    COMMERICAL FLAKER ICE MAKER ICE PRODUCTION CAPACITY (Approximate) (AIR COOLED) SERIES 200 °F Ambient Room Temp. °C °F Inlet Water Temp. °C Production per 24 hrs. 200 175 150 100 (AIR COOLED) SERIES 525 °F Ambient Room Temp. °C °F Inlet Water Temp.

  • Page 16: (Air Cooled) Series 725

    (AIR COOLED) SERIES 725 °F Ambient Room Temp. °C °F Inlet Water Temp. °C Production per 24 hrs. 690 590 490 390 (WATER COOLED) SERIES 725 °F Ambient Room Temp. °C °F Inlet Water Temp. °C Production per 24 hrs. 765 675 618 480 (AIR COOLED) SERIES 750 °F...

  • Page 17: (Air Cooled) Series 1100

    (AIR COOLED) SERIES 1100 °F Ambient Room Temp. °F Inlet Water Temp. Production per 24 hrs. Lbs 1050 (WATER COOLED) SERIES 1100 °F Ambient Room Temp. °F Inlet Water Temp. Production per 24 hrs. Lbs 1050 (AIR COOLED) SERIES 2400 °F Ambient Room Temp.

  • Page 18: The Following Maintenance Should Be Performed At Least Every Six Months On Flaked Ice Machines

    THE FOLLOWING MAINTENANCE SHOULD BE PERFORMED AT LEAST EVERY SIX MONTHS ON FLAKED ICE MACHINES Check power supply with machine running for prop- er voltage. Check water level in the float tank reservoir. Water level should be maintained at the top of the evapo- rator.

  • Page 19: Flaker Sanitizing And Cleaning Procedure

    12. Re–assemble. steps 6 through 10. CAUTION: IN RE–ASSEMBLING THE AUGER GEARMOTOR, THE HOLD DOWN CLAMPS MUST BE TIGHT AND SECURE. IN RE–INSTAL- LING THE EVAPORATOR SHELL, BE ABSO- LUTELY SURE THAT THE “O” RING IS NOT PINCHED OFF AS THIS WOULD CAUSE A WA- TER LEAK AROUND THE BASE OF THE EVAP- ORATOR.

  • Page 20: Cuber Sanitizing And Cleaning Procedure

    Add 1/2 oz. “sanitizer” to a gallon of lukewarm wa- ter. With a non–metallic bristle brush, scrub the inte- rior of the ice bin including the under side of the door, and the outside of the ice chute that protrudes into the ice bin.
  • Page 21 Inside surface of the ice bin including top and door. Inside surface of the ice maker to include evap- orator section in the ice machine including the top, front panel and evaporator splash curtain. Make sure splash curtain is correctly posi- tioned.

  • Page 22: Adjustment For Ice Bridge Thickness

    ADJUSTMENT FOR ICE BRIDGE THICK- NESS An ice bridge connecting all cubes is necessary for a proper harvest of discharge of cubes from the evaporator. To increase ice bridge thickness carefully turn adjustment screw counter-clockwise no more than one turn at a time. Wait and check thickness before re-adjusting.

  • Page 23: Checkout Procedure For Harvest Bin

    CHECKOUT PROCEDURE FOR HARVEST BIN SWITCHES Turn on the ice machine and move the evaporator curtains(s) away from the evaporator(s). The ice machine should then shut off in approximately 8 seconds. (see detail A). Slowly let the evaporator curtain(s) move back toward the evaporator(s) until the bottom edge of the curtains(s) is at least at the bent edge of the water reservoir or closer to the evaporator.

  • Page 24: Wiring Diagrams

    TD 184...
  • Page 25 NOTE: The solid state control DELAYS the start of the water pump until the evaporator temperature reaches 20 deg. F. TD 184...
  • Page 26 TD 184...
  • Page 27 230V TD 184...
  • Page 28 TD 184...
  • Page 29 TD 184...
  • Page 30 TD 184...
  • Page 31 TD 184...

  • Page 32: Flakers

    AF-200 SC 115V 60HZ 1PH TD 184...
  • Page 33 TD 184...
  • Page 34 TD 184...
  • Page 35 TD 184...
  • Page 36 TD 184...
  • Page 37 TD 184...
  • Page 38 TD 184...
  • Page 39 TD 184...
  • Page 40 DUAL COMPRESSORS...

  • Page 41: Troubleshooting Cube Ice Makers

    TROUBLESHOOTING CUBE ICE MAKERS STATUS INDICATORS 300 AND 322 SERIES No Lights Unit in freeze cycle. Flashing Red Bridge thickness temperature has been reached. Harvest to start in approximately 30 seconds yellow Unit in Harvest Cycle Green Unit off on Full Bin STATUS INDICATORS 500 THRU 1400 SERIES STATUS...
  • Page 42 Cut the suspected sensor wire at least six inches from the thermowell in which it is located. Remove the sensor from the thermowell. Carefully separate the wires and strip the insulation off the end. Pack a glass or container with ice and add some water to make an ice water solution.

  • Page 43: Evaporator

    NO ICE BEING FORMED ON EVAPORATOR. No water in reservoir – clean or replace float. Pump not running – check sensor & board. Dump solenoid – open during freeze cycle. Refrigeration problems – check for leaks. Dirty Condenser. Hot Gas valve open. Weak compressor.

  • Page 44: Fluctuating Low Side Pressure (More Than 5#)

    FLUCTUATING LOW SIDE PRESSURE (MORE THAN 5#). Is TXV bulb tight on top of suction line? Is there a proper charge in unit? Is water running over the evaporator continuously? TXV is faulty. WATER OVERFLOW RESERVOIR. Check water pressure, not less than 20 psi, and not more than 50 psi on Float Valves with no Flow Washer, or 125 psi for Float Valves with Flow Washers..

  • Page 45: High Head Pressure

    HIGH HEAD PRESSURE. Is condenser clean. Is fan operating properly? On “water cooled” is water valve adjusted properly? Too high ambient conditions (above 100° F). COMPRESSOR WILL NOT START. Is there power from the board? Is there power from the power relay? Are start components good? Check LRA.

  • Page 46: Water Pump Will Not Run

    WATER PUMP WILL NOT RUN Is evaporator below 20°F? Is evaporator sensor good? Is pump motor good – Does it run in the “clean” position? Are connections tight on board? Is control board bad? GOES OFF ON #2 BIN NOT FULL Curtain out of adjustment? Bridge too thin –...

  • Page 47: Troubleshooting Flakers

    TROUBLESHOOTING FLAKERS Trouble Probable Cause Remedy 1. Unit will not run On-off switch in Turn switch to “on” “off” position. Defective on-off Check and replace. switch. Blown fuse. Replace fuse and check for cause of blown fuse. Thermostat set Adjust colder. too warm for ambient.

  • Page 48: Making Wet Ice

    Trouble Probable Cause Remedy 2. Compressor Loose electrical Check wiring. cycles connection. intermittently . (cont’d) 3. Making wet ice. Surrounding air Correct or move temperature too unit. high. High water level Lower water level, in float reservoir. Dirty condenser Clean condenser. Faulty Check and replace compressor...

  • Page 49: Excessive Noise Or Chattering

    Trouble Probable Cause Remedy 5. Water leaks “O” ring leaking Check and replace (cont’d) at bottom of evaporator shell Storage bin Check and repair drain and tubing 6. Excessive noise Mineral or scale Remove and clean or chattering. deposits on inside surfaces by inside of immersing...

  • Page 50: Unit Off On Reset

    Trouble Probable Cause Remedy 8. Unit off on reset Ice jams up in Clean inside evaporator shell surface of evaporator shell Bin thermostat Check and adjust or will not shut off replace machine. Set too cold Auger motor Check and replace has worn bearings 9.
  • Page 51 Trouble Probable Cause Remedy 9. Unit goes off on Strips loose or Inspect and replace reset (cont’d) missing on evaporator shell if inside of necessary evaporator shell Low ambient Maintain temperature in temperature above room where 50 degrees unit is located Gearmotor Check amp draw of sticking which...
  • Page 52 Trouble Probable Cause Remedy 9. Unit goes off on Auger out of Replace auger and reset (cont’d) line causing evaporator shell excessive wear on the lower outside surface where it rubs against evaporator shell liner at the bottom Broken auger Replace auger Evaporator Inspect and replace...
