- Page 1 CABINET LINER AND DOOR PARTS ICE CUBE For Models: KUIS15PRHW5, KUIS15PRHB5 MAKER (WHITE) (BLACK) Part No. 8198726 5−09 Litho In U.S.A. (ebk) (eeb)
-

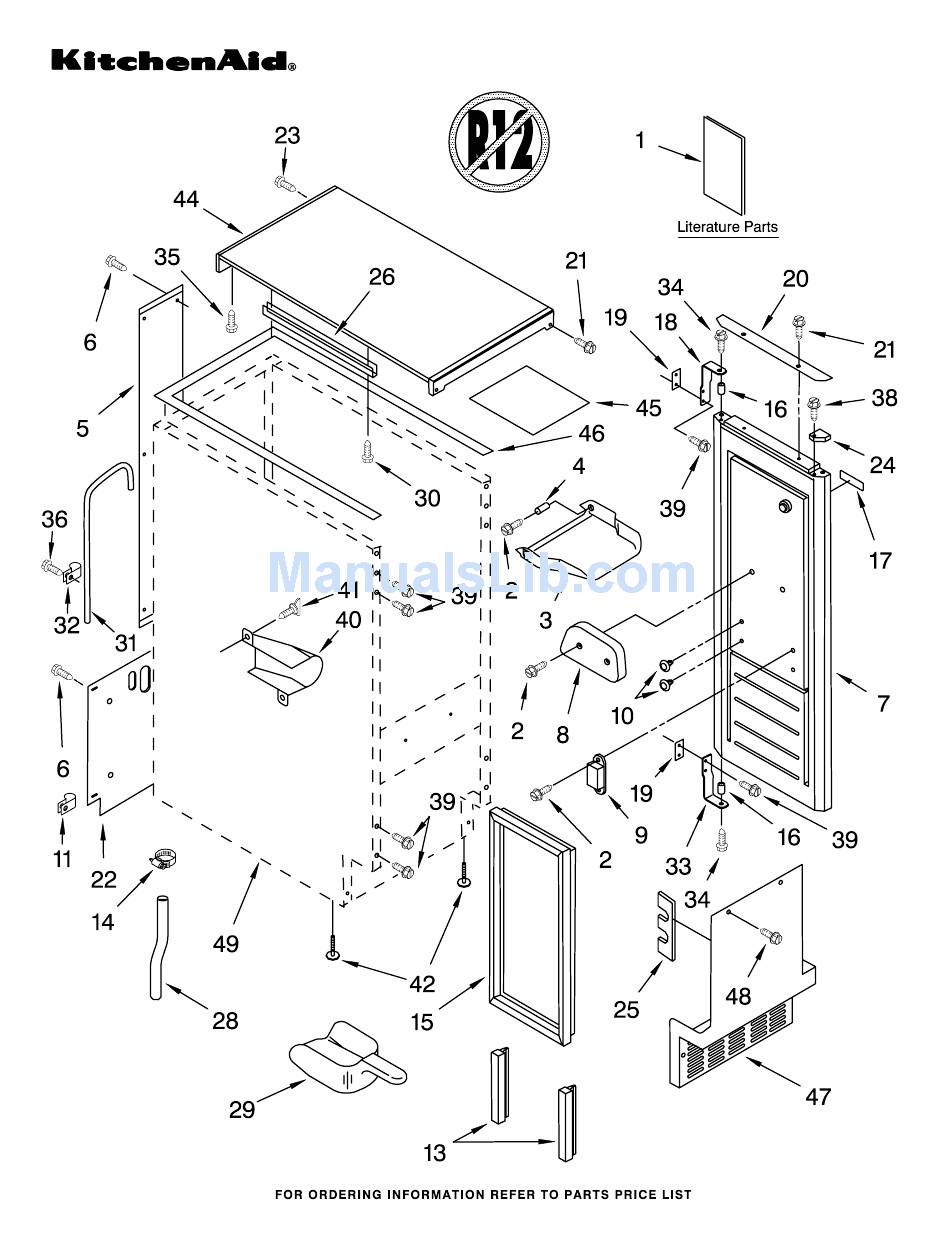

Page 2: Cabinet Liner And Door Parts
2212760 White 2212762 Black 2185710 Hinge, Top 2185709 Shim, Hinge Handle, Door 2208492W White 2208492B Black Screw 8281188 White 8281186 Black For Models: KUIS15PRHW5, KUIS15PRHB5 (WHITE) (BLACK) Illus. Part DESCRIPTION 2185730 Assembly, Unit Cover 8281184 Screw Filler, Endcap Left Side... - Page 3 EVAPORATOR, ICE CUTTER GRID AND WATER PARTS For Models: KUIS15PRHW5, KUIS15PRHB5 (WHITE) (BLACK) 8198726...
- Page 4 EVAPORATOR ICE CUTTER GRID AND WATER PARTS For Models: KUIS15PRHW5, KUIS15PRHB5 (WHITE) (BLACK) Illus. Part DESCRIPTION 2185758 Valve, Complete Water 2217286 Tube, Plastic 488687 Screw 8−15 X 5/8 2185523 Dispenser, Water W10218037 Evaporator 627018 Nut, Compression 841707 Insert, Tube 2172593 Tube, Water Fill...
-
Page 5: Pump Parts
8198726 PUMP PARTS For Models: KUIS15PRHW5, KUIS15PRHB5 (WHITE) (BLACK) Illus. Part DESCRIPTION 2217220 Pump, Water (Complete) 3400884 Screw 8−18 X 5/8 2185677 Cover, Pump 2185585 Bracket, Connector Assembly... -
Page 6: Control Panel Parts
CONTROL PANEL PARTS For Models: KUIS15PRHW5, KUIS15PRHB5 (WHITE) (BLACK) Illus. Part DESCRIPTION 2185738 Box, Control 2185657 Transformer 2185592 Assembly, Switch (ALSO ORDER #4) 4 2208317W Overlay 6100499 P.C. Board 2149705 Switch, Plunger 2185694 Lens, LED 2185692 Wiring Harness Grid/ Light... -
Page 7: Unit Parts
UNIT PARTS For Models: KUIS15PRHW5, KUIS15PRHB5 (WHITE) (BLACK) 8198726... - Page 8 UNIT PARTS For Models: KUIS15PRHW5, KUIS15PRHB5 (WHITE) (BLACK) Illus. Part DESCRIPTION 2185532 Bracket, Fan Mtg. 2185675 Pad, Foam 2190685 Blade, Fan 2188537 Motor, Fan Wiring Harness, Complete Unit (See #11 On Control Panel Parts Page) 304392 Screw 8−18 X 1/2...
