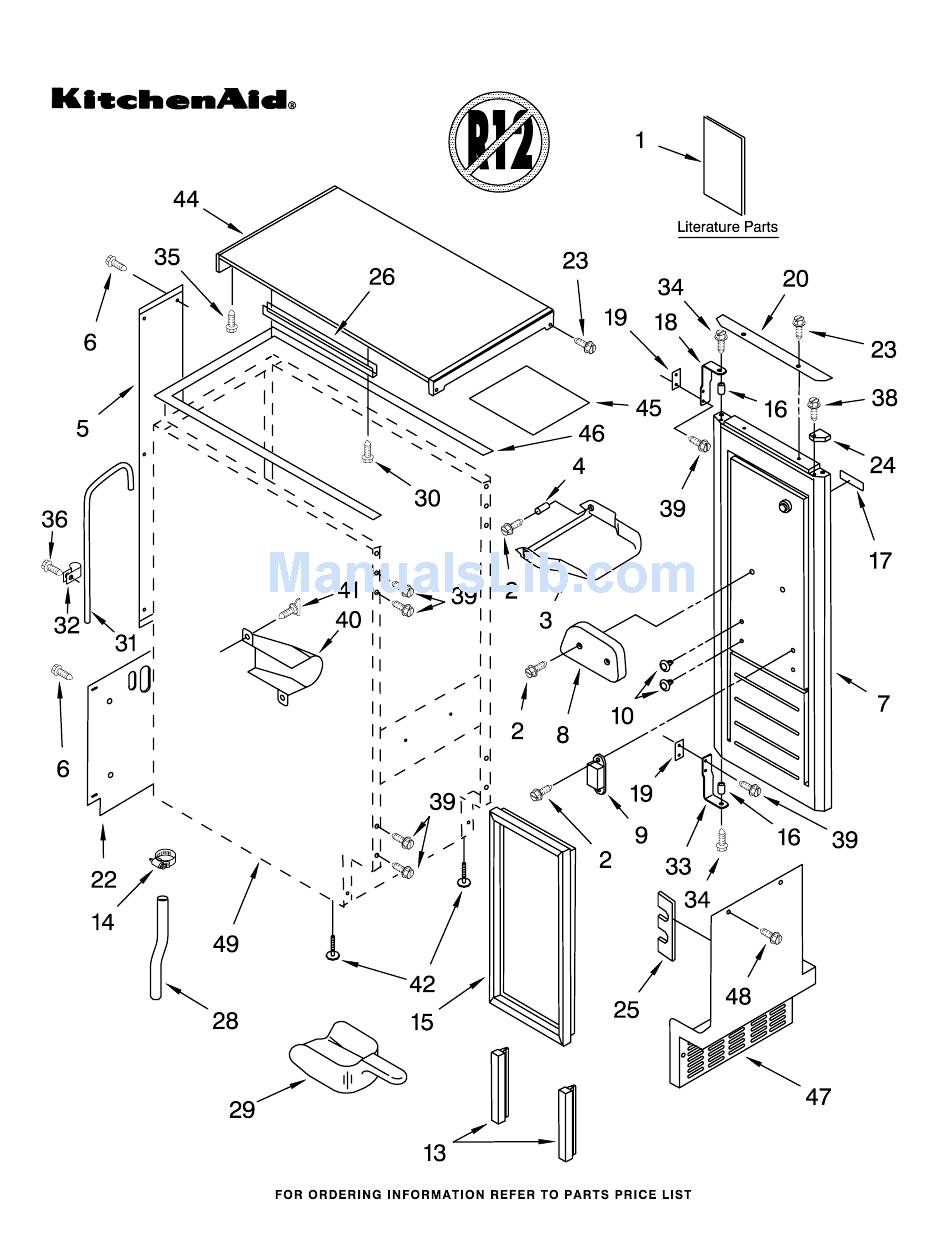

- Page 1 CABINET LINER AND DOOR PARTS ICE CUBE MAKER For Models: KUIS155HPW2, KUIS155HPB2 (WHITE−PUMP MODEL) (BLACK−PUMP MODEL) 9−01 Litho In U.S.A. (cre) Part No. 4398912 Rev.A...
- Page 2 2185709 Shim, Hinge Handle, Door 2208492W White 2208492B Black 2185730 Assembly, Unit Cover Screw, Handle 8281137 White 8281138 Black For Models: KUIS155HPW2, KUIS155HPB2 (WHITE−PUMP MODEL) (BLACK−PUMP MODEL) Illus. Part DESCRIPTION Filler, Endcap Left Side 2185655W White 2185655B Black Right Side...
- Page 3 EVAPORATOR, ICE CUTTER GRID AND WATER PARTS For Models: KUIS155HPW2, KUIS155HPB2 (WHITE−PUMP MODEL) (BLACK−PUMP MODEL) 4398912...
- Page 4 EVAPORATOR ICE CUTTER GRID AND WATER PARTS For Models: KUIS155HPW2, KUIS155HPB2 (WHITE−PUMP MODEL) (BLACK−PUMP MODEL) Illus. Part DESCRIPTION 2185758 Valve, Complete Water 2185669 Tube, Plastic 488687 Screw 8−15 X 5/8 2185523 Dispenser, Water 2208464 Evaporator 627018 Nut, Compression 841707 Insert, Tube...
-
Page 5: Pump Parts
4398912 PUMP PARTS For Models: KUIS155HPW2, KUIS155HPB2 (WHITE−PUMP MODEL) (BLACK−PUMP MODEL) Illus. Part DESCRIPTION 2208482 Pump, Water (Complete) 3400884 Screw 8−18 X 5/8 2185677 Cover, Pump 2185585 Bracket, Connector Assembly... -
Page 6: Control Panel Parts
CONTROL PANEL PARTS For Models: KUIS155HPW2, KUIS155HPB2 (WHITE−PUMP MODEL) (BLACK−PUMP MODEL) Illus. Part DESCRIPTION 2185738 Box, Control 2185657 Transformer 2185592 Assembly, Switch (ALSO ORDER #4) 4 2208317W Overlay 6100499 P.C. Board 2149705 Switch, Plunger 2185694 Lens, LED 2185692 Wiring Harness... -
Page 7: Unit Parts
UNIT PARTS For Models: KUIS155HPW2, KUIS155HPB2 (WHITE−PUMP MODEL) (BLACK−PUMP MODEL) 4398912... - Page 8 UNIT PARTS For Models: KUIS155HPW2, KUIS155HPB2 (WHITE−PUMP MODEL) (BLACK−PUMP MODEL) Illus. Part DESCRIPTION 2185532 Bracket, Fan Mtg. 2185675 Pad, Foam 2190685 Blade, Fan 2183437 Motor, Fan Wiring Harness, Complete Unit (See #11 On Control Panel Parts Page) 304392 Screw 8−18 X 1/2...
