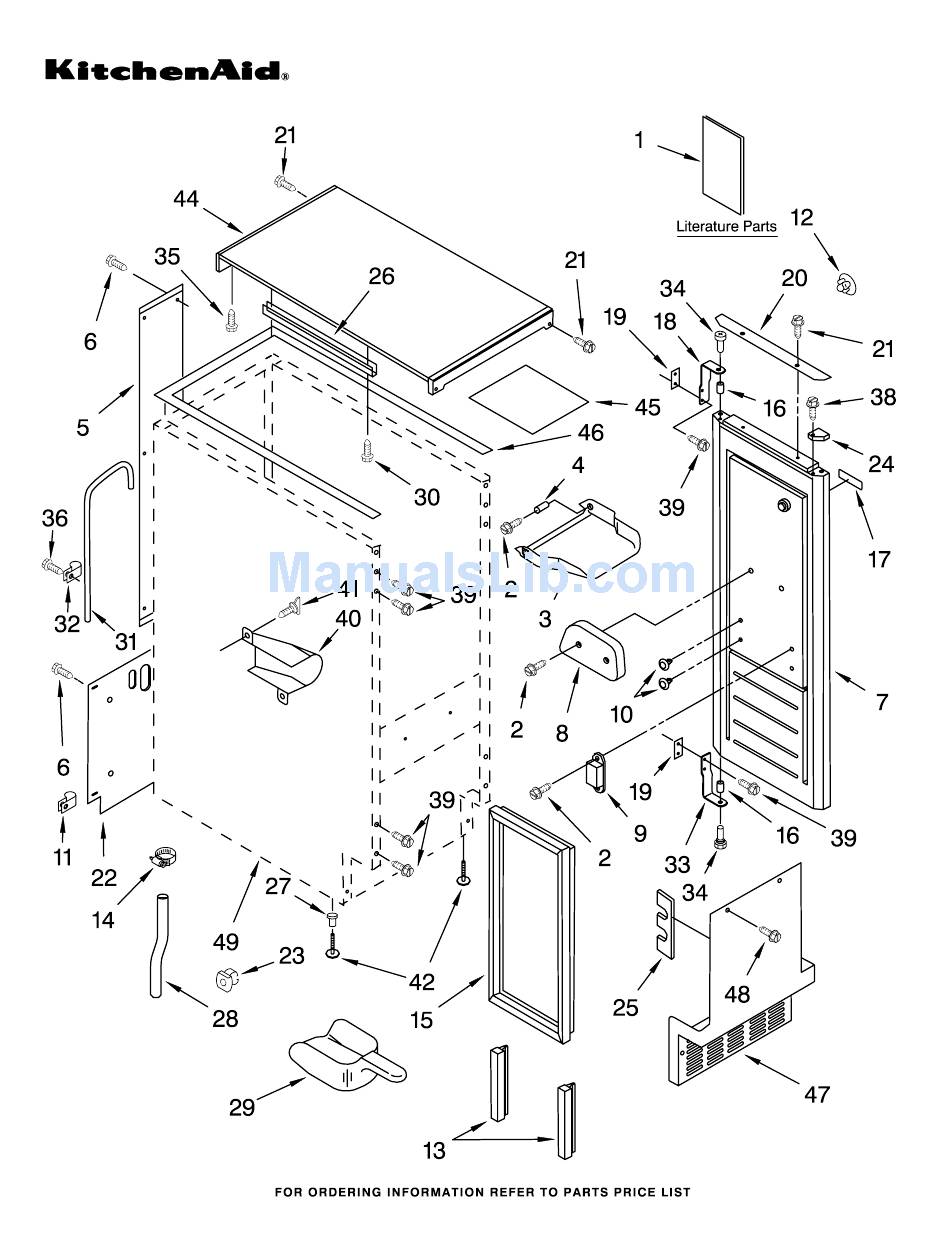

- Page 1 CABINET LINER AND DOOR PARTS ICE CUBE MAKER For Models: KUIS15PRHW7, KUIS15PRHB7 (White−Pump Model) (Black−Pump Model) 5−09 Litho In U.S.A. (djc) (eeb) Part No. 8199462...
- Page 2 CABINET LINER AND DOOR PARTS For Models: KUIS15PRHW7, KUIS15PRHB7 (White−Pump Model) (Black−Pump Model) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts 489048 Screw, Ground 2185710 Hinge, Top 2217404 Use & Care Guide 8281265 Screw 8−18 x 1/2 2185709 Shim, Hinge 2313728 Service &...
- Page 3 EVAPORATOR, ICE CUTTER GRID AND WATER PARTS For Models: KUIS15PRHW7, KUIS15PRHB7 (White−Pump Model) (Black−Pump Model) 8199462...
- Page 4 EVAPORATOR ICE CUTTER GRID AND WATER PARTS For Models: KUIS15PRHW7, KUIS15PRHB7 (White−Pump Model) (Black−Pump Model) Illus. Part DESCRIPTION 2185758 Valve, Complete Water 2217286 Tube, Plastic 488208 Screw 2185523 Dispenser, Water W10218037 Evaporator 627018 Nut, Compression 841707 Insert, Tube 2172593 Tube, Water Fill 488660 Nut, Speed 836667 Spacer 2208539 Fastener,...
-
Page 5: Pump Parts
PUMP PARTS For Models: KUIS15PRHW7, KUIS15PRHB7 (White−Pump Model) (Black−Pump Model) Illus. Part DESCRIPTION 2217220 Pump, Water (Complete) 3400884 Screw 8−18 x 5/8 2185677 Cover, Pump 2185585 Bracket, Connector Assembly 8199462... -
Page 6: Control Panel Parts
CONTROL PANEL PARTS For Models: KUIS15PRHW7, KUIS15PRHB7 (White−Pump Model) (Black−Pump Model) Illus. Part DESCRIPTION 2185738 Box, Control 2185657 Transformer 2185592 Assembly, Switch (ALSO ORDER #4) 4 2208317W Overlay 2304016 Control Board 2149705 Switch, Plunger 2185694 Lens, LED 2185692 Wiring Harness Grid/ Light 745362 Bulb 2313633 Thermostat, Bin... -
Page 7: Unit Parts
UNIT PARTS For Models: KUIS15PRHW7, KUIS15PRHB7 (White−Pump Model) (Black−Pump Model) 8199462... - Page 8 UNIT PARTS For Models: KUIS15PRHW7, KUIS15PRHB7 (White−Pump Model) (Black−Pump Model) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2217434 Bracket, Fan Mtg. 2208415 Tube, Process 2208534 Pump, Drain 2185675 Pad, Foam 489423 Screw Drier 2190685 Blade, Fan 489472 Screw 2209223 Production 2188537 Motor, Fan 759112 Coil, Solenoid...
-
Page 9: Optional Parts
OPTIONAL PARTS For Models: KUIS15PRHW7, KUIS15PRHB7 (White−Pump Model) (Black−Pump Model) Illus. Part DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) 503695 Sealer, Cork (1/4 Pound) 797403 Cement, Insulation (1 Oz.) 505587 Sealer, Mastic (1 Qt.) 212643 Sealer, Gum (22 Pcs. 3/16" x 7") 479976 Kit, Insulation (5 Pcs.
