Exhaust Hose Installation - Midea PORTABLE AIR CONDITIONER Owner's Manual

Fig.18
Fig.19
Expansion plug
position
Adaptor A
Adaptor
cap
max 120CM
min 30CM

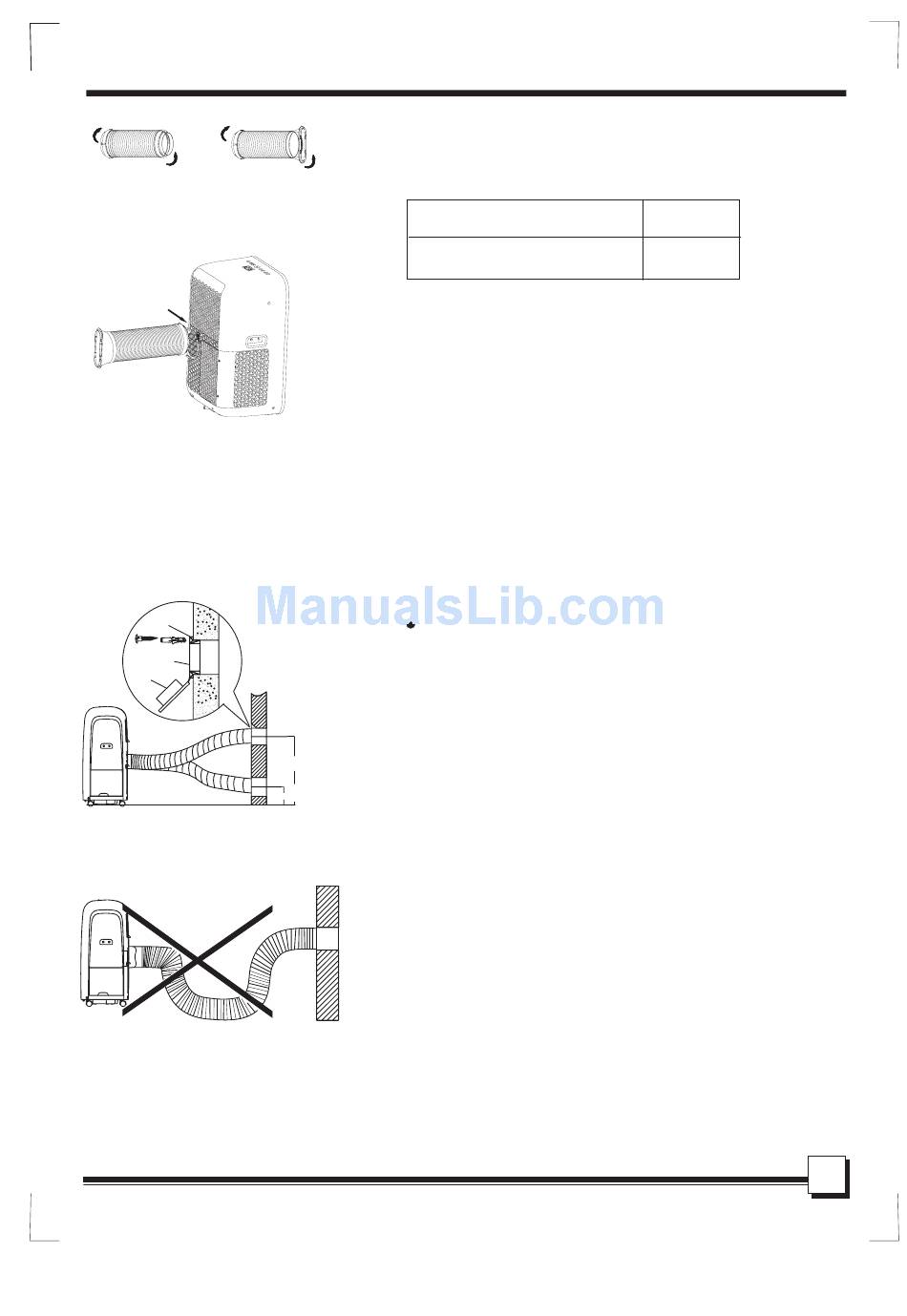

Exhaust hose installation:

The exhaust hose and adaptor must be installed or removed
in accordance with the usage mode.
COOL mode
FAN or DEHUMIDIIFY mode
1. Install the window Exhaust adaptor B onto the exhaust
hose as shown in Fig.18. or Fig.19. Refer to the previous
pages for window kit installation.
2. Push the Exhaust hose into the air outlet opening along the
the arrow direction(See Fig.20)
Fig.20
The exhaust hose can be installed into the wall
(Not applicable to the units without adaptor A, expansion
plugs and wooden screws of Accessories )
1. Prepare a hole in the wall. Install the wall Exhaust adaptor A
onto the wall(outside) by using 4 expansion plugs and
wooden screws, be sure to fix thoroughly. (See Fig.21)
2. Attach the Exhaust hose to wall Exhaust adaptor A.
Note:
Cover the hole using the adaptor cap when not in use.
The duct can be compressed or extended moderately
according to the installation requirement, but it is
desirable to keep the duct length to a minimum.
IMPORTANT:
DO NOT OVER BEND THE DUCT (SEE Fig.22)
Fig.21
Fig.22
INSTALLATION INSTRUCTIONS
Install
Remove
.
12
