SECTION 2
MAIN UNIT
AF amplifier
(IC15: TA7368FG)
IF amplifier
(Q7: 2SC5107)
PLL IC
(IC2: MB15A02PFV1)
IF IC
(IC9: TA31136FNG)
LCD driver
(IC20: LC75834W)
PA UNIT
Antenna switch
(D701: 1SV307)
Pre-drive amplifier
(Q704: 2SC5006)

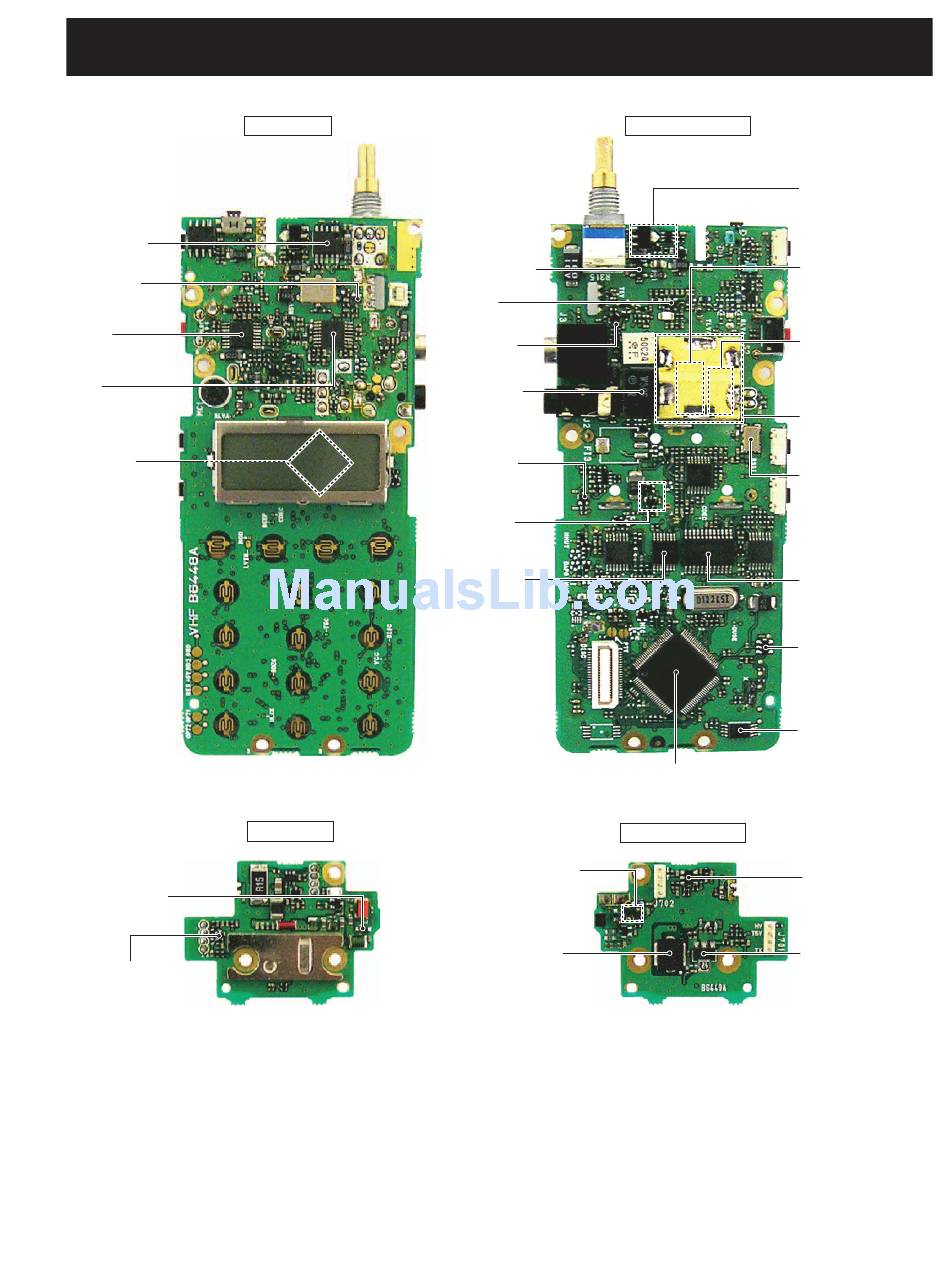

INSIDE VIEWS
TOP VIEW
TOP VIEW
CPU5 regulator
(IC17: NJM2870)
1st mixer
(Q6: 3SK324)
R5 regulator
(Q25: 2SA1577)
Ceramic filter
450 KHz
(FI2: CFWM450F)
S5 regulator
(Q23: 2SA1577)
T5 regulator
( Q24: 2SA1577 )
Q49: UNR9213J
Analog switch
IC3:
( )
CD4066BPWR
Antenna switches
( D704: 1SV307 )
D706: 1SV307
Power amplifier
(Q701: RD07MVS1)
2 - 1
BOTTOM VIEW
(
TX VCO
(
RX VCO
(
VCO circuits
Crystal oscillator
15.3 MHz
D/A converter
(IC12: M62364FP)
Reset IC
(IC8: BD5242G)
EEPROM
(IC10: HN58X2464TI)
CPU
(IC22: HD64F2238BTF13V)
BOTTOM VIEW
+5 regulator
Q26: 2SB1132 )
Q27: XP6501
Q28: UNR9213J
)
Q16: 2SC5006
D10, D13, D34:
HVC375B
Q17: 2SC5006 )
D9, D11, D33:
HVC375B
(X2: CR-783)
APC amplifier
(IC701: TA75S01F)
Drive amplifier
(Q702: RD01MUS1)
