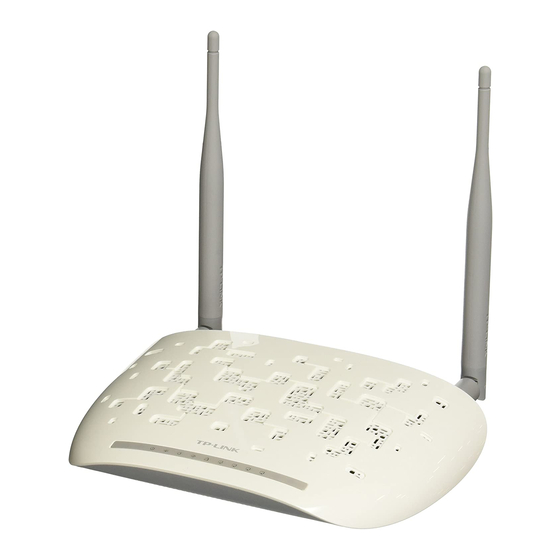

TP-Link TD-W8961ND Installation Manual

TP-Link TD-W8961ND Installation Manual

Wireless modem router
Hide thumbs Also See for TD-W8961ND:
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual See also: Operating Manual, Installation Manual
Installation Guide - TP-LINK TD-W8961ND Wireless Modem Router
Getting Your Internet Running
Check your modem package contents. It should contain the items shown here:
Familiarize yourself with the back of your modem
Power - The Power plug is where you will connect the power adapter.
ADSL - Connect the modem to your phone line with a telephone cable (RJ11 cable).
Ethernet - These ports are used for wired Ethernet connections.
Reset – Reset modem to factory default.
DO NOT Reset
Your modem has been pre-programmed.
Contact us
if you have any question.
1

Advertisement

loading

Related Manuals for TP-Link TD-W8961ND

Summary of Contents for TP-Link TD-W8961ND

  • Page 1 Installation Guide - TP-LINK TD-W8961ND Wireless Modem Router Getting Your Internet Running Check your modem package contents. It should contain the items shown here: Familiarize yourself with the back of your modem Power - The Power plug is where you will connect the power adapter.
  • Page 2 Connect Your Modem Before cable connection, cut off the power supply and keep your hands dry. You can follow the steps below to install it. 1. Use ADSL Splitter, The splitter has three ports: LINE: Connect to the wall jack PHONE: Connect to the phone sets MODEM: Connect to the ADSL port of your Modem 2.
  • Page 3 Front Panel LED Explanation: Power - The modem router is powered on. ADSL - ADSL line is synchronized and ready to use. If this light is off, refer to sect. Connect Your Modem and check the ADSL port connection. Internet - Internet success connected. If this light is off, follow the next section Set up Your Internet Connection.

  • Page 4: Setup Internet Connection

    Setup Internet Connection Your Modem has been pre-programmed. Normally you may skip the sections below. Followings are for your reference. 1. Start your web browser (eg. IE, Firefox), type the IP address in the URL field: 192.168.1.1 2. In the login window, enter the default User Name admin and the default Password admin (in lower case), and then click OK...
  • Page 5 3. Click Interface Setup -> Internet from menu, configure the parameters as below, and then click Save...

  • Page 6: Setup Wireless Network

    Setup Wireless Network Your Modem has been pre-programmed. Normally you may skip the sections below. Followings are for your reference. 1. Follow the section Setup Internet Connection step 1 & 2 to login your modem. 2. Click Interface Setup -> Wireless from menu, configure the parameters as below, and then click Save...
  • Page 7 Reset your modem Your Modem has been pre-programmed. Normally you DO NOT need to reset your modem. Do this unless you have well known the above sections. Contact us if you have any question. To reset your modem to the factory default state by pressing and hold Reset for 5 seconds.
