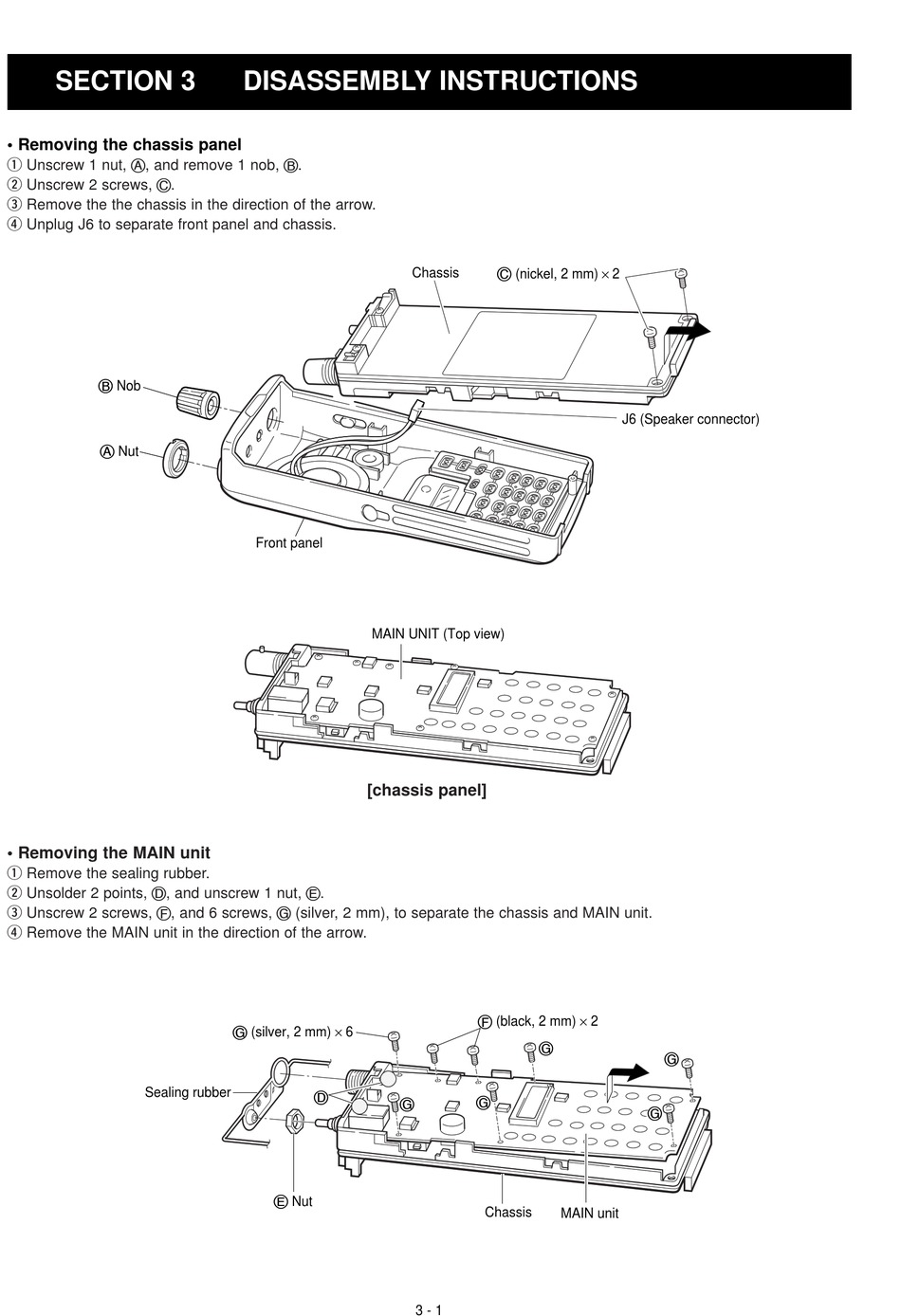

Icom IC-T2H Service Manual page 6

SECTION 3
• Removing the chassis panel
A
q Unscrew 1 nut,
, and remove 1 nob,
C
w Unscrew 2 screws,
.
e Remove the the chassis in the direction of the arrow.
r Unplug J6 to separate front panel and chassis.
B
Nob
A
Nut
• Removing the MAIN unit
q Remove the sealing rubber.
D
w Unsolder 2 points,
, and unscrew 1 nut,
F
e Unscrew 2 screws,
, and 6 screws,
r Remove the MAIN unit in the direction of the arrow.
Sealing rubber
DISASSEMBLY INSTRUCTIONS
B
.
Front panel
MAIN UNIT (Top view)
[chassis panel]
E
.
G
(silver, 2 mm), to separate the chassis and MAIN unit.
G
(silver, 2 mm) × 6
D
G
E
Nut
C
(nickel, 2 mm) × 2
Chassis
F
(black, 2 mm) × 2
G
G
Chassis
MAIN unit
3 - 1
J6 (Speaker connector)
G
G
