- Page 1 Owner’s manual & Installation manual Mode d’emploi et manuel d’installation Manual de instrucciones y de instalación XC6210 XC6410 XC AMPLIFIERS AMPLIFICATEURS XC AMPLIFICADORES XC...
-
Page 2: Table Of Contents
XC6410 Wiring and Applications ....... 8 XC6210 Wiring and Applications ....... 12 Adjusting the Input Gain Control . -
Page 3: Description

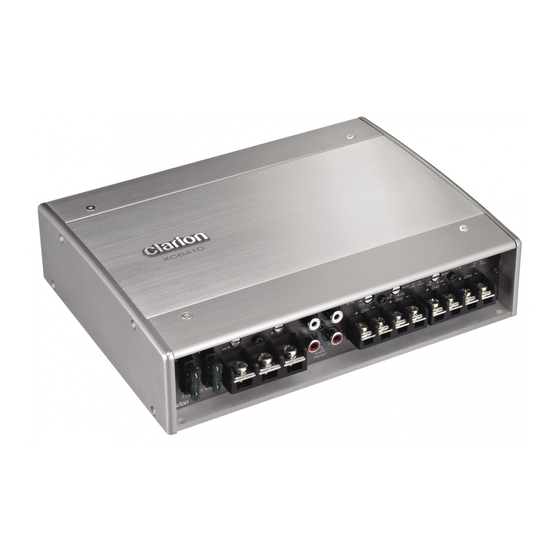

DESCRIPTION The XC6210 and XC6410 use a PWM regulated power supply for superior sound and output wattage. All of the connections and controls for the XC6210 and XC6410 are conveniently labeled and located on one side of the amplifier. To ensure the best possible electrical connections, the power, speaker and RCA inputs are corro- sion resistant. An additional benefit of the XC6410 is the ability to create a 2, 3, or 4 configuration. In the event of component failure or a short circuit, the XC6210 and XC6410 incorporate protection circuits and ATC fuse protection to prevent damage to the amplifier. INPUT CONNECTIONS AND AUDIO CONTROLS The front panel of the XC6410 and XC6210 contain both connections for RCA and speaker level inputs, along with the audio controls as shown below. Fig. 1 XC6410 18 19 22 23 1. CH1 RCA Input 17. CH3/CH4 Input Gain Control 2. CH2 RCA Input 18. Auto Sense (Automatic Power 3. CH3 RCA Input ON /OFF) 4. CH4 RCA Input 19. Bass Boost 5. CH1 Speaker Output 20. CH1/2 Crossover Frequency Selector... - Page 4 Speaker level adaptor cable RCA inputs are fully balanced and can accept RCA pre amp levels. Black With speaker level adaptor cable the inputs will accept speaker levels. (High Level RCA Speaker White White Blue Adapter Included) XC6210 1. CH1 RCA Input 12. Output Mode Selector Switch 2. CH2 RCA Input (STEREO/CH1 Bridged/CH1-2 3. CH1 Speaker Output MONO) 4. CH2 Speaker Output 13. CH1/CH2 Crossover Frequency 5. +12VDC Input Battery Selector (50Hz~500Hz), if x10 Range 6. Remote Turn-on Input Selected (500Hz~5kHz) 7. Ground (Chassis Ground) 14. Crossover Range Selection (x1 or 8. 30 Amp ATC Fuse x10) multiplier 9. CH1/CH2 Input Gain Control 15. CH1/2 Crossover Mode Selection 10. Auto Sense (Automatic Power-on/off)
- Page 5 (50Hz, 0~12dB). NOTE: XC6410 – If 2CH or 4CH input is selected, bass boost only affects CH1/CH2. If 2CH BB input is selected, bass boost will affect CH1/CH2/CH3/CH4. • Input Select (XC6410 Only) [2CH BB/2CH/4CH]: 2CH BB: Uses CH1/2 inputs and has output from all 4 channels with Bass Boost. 2CH: Uses CH1/2 inputs and has output from all 4 channels. The Bass Boost will work only on CH1/2. 4CH: Uses all 4 channel inputs and has output from all 4 channels. The Bass Boost will work only on CH1/2. • Output Mode Selector Switch: XC6210 STEREO: (Common applications) Input of RCA into CH1/CH2 will result in speaker output of CH1/CH2. CH1 BRIDGED: (Limited/Special applications) Input of RCA into CH1 will result in speaker output of CH1/CH2. CH1-2 Mono: (Subwoofer applications) Summed input of RCA into CH1/CH2 will result in speaker output of CH1/CH2 or CH1+ and CH2-. XC6410 CH1-2 STEREO: (Common applications) Input of RCA into CH1/CH2/CH3/CH4 will result in speaker output of CH1/CH2/CH3/CH4. CH1 BRIDGED: (Limited/Special applications) Input of RCA into CH1 will result in speaker output of CH1/CH2. CH1-2 Mono: (Subwoofer applications) Summed input of RCA into CH1/CH2 will result in speaker output of CH1/CH2 or CH1+ and CH2-.
- Page 6 XC6410 - Electrical Connection Remote Turn-On CH1 Speaker (+) CH2 Speaker (-) CH1 Speaker (-) CH2 Speaker (+) CH3 Speaker (+) CH4 Speaker (-) CH3 Speaker (-) CH4 Speaker (+) XC6210 - Electrical Connection XC6210/XC6410...
-
Page 7: Installation
INSTALLATION This section suggests Mounting and Wiring Precautions for installing the Clarion XC6210 or XC6410. If you do not posses the necessary tools and installation experience, do not attempt to install these amplifiers. Instead, contact your local Clarion audio dealer to perform the installation. MOUNTING PRECAUTIONS Prior to mounting the amplifier, make sure it is safe to mount the amplifier in desired location. Failure to do so can result in serious damage to the vehicle/ boat. Extra care and attention is necessary in marine installations due to the uncertainty of water conditions environment. Stainless steel hardware is recommended for marine applications. Additional precautions and suggestions: 1. For the most efficient cooling, mount the amplifier so cool air runs along the length of the heat sink, rather than across them. To increase air movement and circulation, a cooling fan can be installed. 2. Mount the amplifier on a rigid surface; avoid mounting to subwoofer enclosures or areas prone to vibration. 3. Prior to drilling and mounting, make sure the proposed mounting holes will not cut into the fuel tank, fuel lines, brake lines, electrical wiring, or the body of vehicle or boat. 4. Do not mount the amplifier where it is susceptible to water. WIRING PRECAUTIONS Read all of the wiring precautions prior to making any connections. If you are unsure and/or don’t have the necessary installation hardware, contact your local Clarion audio dealer to perform the installation. 1. Before you begin the installation, make sure the vehicle is not running and is in the OFF position. 2. Disconnect the negative (-) lead of the battery (or batteries) before making any power connections. 3. When making connections, be sure that each connection is clean and secure. Insulate final connections with electrical tape or heat shrink tubing. Failure to do so may damage your equipment. 4. A good ground is critical for the performance of the amplifier. A ground wire should be run directly from the battery to the amplifier (marine application). Use black insulated 10-gauge or larger wire for the amplifier’s ground (-) power lead. 5. Add a fuse holder and fuse at the positive (+) terminal of the battery. The fuse rating should equal the total current consumption at full output of the amplifier(s). Use red insulated 10-gauge or larger wire for the amplifier’s positive (+) power lead. Do not install the fuse until the complete installation has been... -
Page 8: Xc6410 Wiring And Applications
7. When creating passage holes for power cables, RCA’s cables, and speaker wires, use grommets to eliminate any sharp edges created during drilling. This will protect the wire from being damaged and prevent a short circuit. 8. Extra cable can cause signal loss and act as an “antenna” for noise. Use only high-quality RCA cables that are no longer than necessary. 9. In multiple amplifier systems, it is recommended to use a relay on the remote turn-on lead of the radio. XC6410 WIRING AND APPLICATIONS The Clarion XC6410 4-channel audio amplifier can be used in a variety of system applications. Here are a few examples to help plan your own installation. Fig. 4 4-Channel Full Range Stereo System In this application, the XC6410 is used as a 4-channel amplifier to drive four full range speakers in stereo. Note the switch settings. SETTING PANEL (Enlarged picture) CH1 Speaker CH2 Speaker CH3 Speaker CH4 Speaker XC6210/XC6410... - Page 9 Fig. 5 2-Channel High-Pass, 2-Channel Low-Pass In this 4-channel system, the XC6410 drives a pair of component speakers and a pair of subwoofers. Note the switch settings. SETTING PANEL (Enlarged picture) CH1 Subwoofer 2Ω or 4Ω CH2 Subwoofer 2Ω or 4Ω CH3 Speaker System CH4 Speaker System XC6210/XC6410...
- Page 10 Fig. 6 2-Channel Stereo System with Low-Pass Bridged Mono Channel The XC6410 can also be used to drive a pair of component speakers and a single mono subwoofer using one set of RCA’s. Note the switch settings. SETTING PANEL (Enlarged picture) CH4 Speaker System Subwoofer 4Ω only CH3 Speaker System XC6210/XC6410...
- Page 11 Fig. 7 2-Channel High Power System Speakers The XC6410 can be set up as a 2-channel high power amplifier to drive a pair of speakers (stereo). Note the switch settings. SETTING PANEL (Enlarged picture) Bridged CH1/CH2 Bridged CH3/CH4 Speaker System Speaker System 4Ω only 4Ω only (Note: Output is from Input CH1) (Note: Output is from Input CH2) XC6210/XC6410...
-
Page 12: Xc6210 Wiring And Applications
XC6210 WIRING AND APPLICATIONS The Clarion XC6210 2-channel audio amplifier can be used in a variety of system applications. Here are a few examples to help plan your own installation. Fig. 8 2-Channel Full-Range Stereo System In this application, the amplifier is used in stereo and drives two full-range speakers. Note the switch settings. Full Range Speaker Full Range Speaker XC6210/XC6410... - Page 13 Fig. 9 Subwoofer Stereo System In this application, the amplifier is used to drive two subwoofers. Note the switch settings. Subwoofer Subwoofer 2Ω or 4Ω 2Ω or 4Ω Fig. 10 Bridged - Mono Subwoofer System In this application the amplifier is bridged for mono operation to drive a subwoofer. Note the switch settings. Subwoofer Ω only XC6210/XC6410...
-
Page 14: Adjusting The Input Gain Control
ADJUSTING THE INPUT GAIN CONTROL After completing the installation, follow these steps to set the Input Gain Control. 1. Set Input Gain Control to MIN (counterclockwise). 2. Power on source. Set all Tone or Equalization Controls to “flat” positions and set Loudness off. 3. Play a CD, set the Source Volume Control to 75% of max level. 4. Slowly adjust the Input Gain Control of amplifier. Stop when you hear a slight distortion of audio. NOTE: If the audio system uses an equalizer, set its frequency controls to “flat” positions. SETTING THE CROSSOVER The Clarion XC6210 and XC6410 feature fully adjustable high and low pass crossovers. To set the crossover, follow these steps. 1. Using the Crossover Mode Switch, select the desired mode: LOW for Low Pass, HIGH for High Pass or FULL for Full Range. 2. Using the FREQ (Hz) Selection Control, select the desired frequency. If the desired frequency exceeds the range of the FREQ (Hz) Selection Control, slide the Crossover Frequency Multiplier Switch to x10. • For example, 50Hz x 10 = 500Hz or 500Hz x 10 = 5kHz NOTE: x10 Multiplier is available on XC6210 and XC6410 (only on CH3/CH4) SETTING THE BASS BOOST 1. Set Bass Boost to 0dB (counterclockwise). 2. Listen to a variety of music styles (e.g. Rock, Rap, etc.) and slowly adjust the Bass Boost control (clockwise) to realize the best bass response. FINAL SYSTEM CHECK 1. Power on the source unit. Slowly increase the Volume Control and listen to the audio. If there is no audio or if you hear any static, distortion, please check the connections and refer to the Troubleshooting section. Depending on your system design, the levels may become quite loud even at low Volume Control settings. Until you get an “audio feel” of the system’s power, use care when... -
Page 15: Troubleshooting
TROUBLESHOOTING Problem No Audio. Amplifier not powering on. (LED turned off) Solution Remote turn-on voltage. Check remote connections at amplifier and source unit. Blown amplifier fuse. Replace with new fuse (same rating). Power wires not connected. Check power and ground wiring at amplifier and at battery. Speaker leads shorted. Check speaker continuity to ground, it should not show a common ground. Speakers not connected or are blown. Check speaker connections at amplifier, measure coil impedance. Problem Audio cycles on and off. Solution Thermal protection circuits are shutting amplifier off. Check location for adequate ventilation; consult an authorized Clarion audio dealer. Problem Distorted audio. Solution Input Gain is not set properly, or damaged speaker cones. Review Setting Gain; inspect each speaker. (i.e. check connection, speaker impedance, etc.) Problem Audio lacks punch. Solution Speakers wired incorrectly, which causes cancellation of bass frequencies. Check polarity of wires from amplifier to each speaker as defined by the system design. XC6210/XC6410... - Page 16 Problem Amplifier fuse keeps blowing. Solution Incorrect wiring or short circuit. Review installation and check all wiring connections. Problem Whining or ticking noise in the audio with engine on. Solution Amplifier is picking up alternator noise or radiated noise. Lower input gain; move audio cables away from power wires. Check power and ground connections on amplifier; check alternator and/or voltage regulator; test for weak battery, check power and ground connections of battery. XC6210/XC6410...
-
Page 17: Product Specifications
Crossover Frequency (Low, High, Full) Variable 50Hz ~ 500Hz, *(x10, 500Hz ~ 5kHz) Low Level Input Sensitivity 200mV ~ 6.0V Max. Power Output @4Ω 600W (300W x 2) RMS Power Output @4Ω 85W x 4 @1.0% THD RMS Power Output @2Ω 125W x 4 @1.0% THD RMS Bridged Power Output @4Ω 250W x 2 @1.0% THD Fuse 30A x 2 Dimensions (WxHxD) 222 mm x 55 mm x 174.2 mm 8.74 in x 2.17 in x 6.86 in Power Output: 85W x 4RMS [4Ω @ 14.4V 1% THD+N] Signal to Noise Ratio: 80dB (Reference: 1W into 4Ω) XC6210 Frequency Response 20Hz ~ 20kHz Crossover Frequency (Low, High, Full) Variable 50Hz ~ 500Hz, *(x10, 500Hz ~ 5kHz) Low Level Input Sensitivity 200mV ~ 6.0V Max. Power Output @4Ω 350W (350W x 1) RMS Power Output @4Ω 85W x 2 @1.0% THD RMS Power Output @2Ω 125W x 2 @1.0% THD RMS Bridged Power Output @4Ω 250W x 1 @1.0% THD Fuse 30A x 1 Dimensions (WxHxD) 161.2 mm x 55 mm x 174.2 mm 6.35 in x 2.17 in x 6.86 in... - Page 18 Clarion Corporation of America All Rights Reserved. Copyright © 2012 Clarion Corporation of America Printed in China / Imprime au Chiné / Impreso en China 12/2012 XC6210/XC6410...
