QUICK
SETUP GUIDE
40" LED TV
NS-40D510NA15
Thank you
for purchasing this state-of-the-art
Insignia television. We hope you enjoy
the quality and reliability of this
television for years to come.
Roku Ready®
Your TV is certified to work with the
Roku Streaming Stick™.
Instantly stream 1000+ entertainment
channels, including Netflix, Hulu Plus,
Pandora, and more. Connect the
Streaming Stick (not included) to the
purple MHL port on your TV and enjoy.
C
M
Y
CM
MY
Included accessories
CY
CMY
K
FIND YOUR
USER GUIDE ONLINE!
We are going green so a copy of your
User Guide is not provided in the box
but is available online.
Go to www.insigniaproducts.com,
then click Support & Service. Enter your
model number in the box under Manual,
Firmware, Drivers & Product Information,
then click .

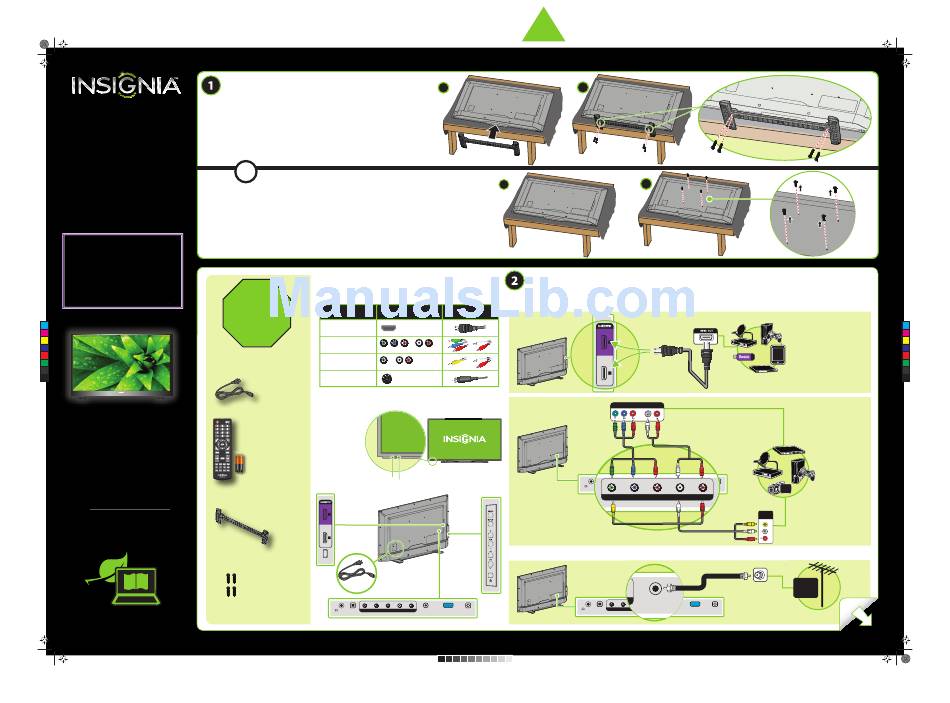

START HERE
How do I attach the stand to my TV?
(not for wall mounting)
You'll need: Phillips screwdriver and a soft surface to lay the TV on.
A Carefully place your TV face-down on a cushioned, clean surface to protect the
screen from damages and scratches.
B Secure the TV stand to the TV with the four provided M4 × 20 mm screws.
- OR -
How do I prepare my TV for wall mounting
(not for use with a TV stand)
A Carefully place your TV face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
B Remove the wall-mount screws from the back of your TV, then attach the wall-mount bracket
using the screws you removed or the screws that came with the wall-mount bracket. See
instructions that came with the wall-mount bracket for information about which screws to use
and how to correctly hang your TV.
Which cables do you have?
Your TV has several different jacks for connecting devices.
STOP!
For the best video quality, use the best available
connection. Use the cables that came with your devices.
Do not plug your
power cord in until
VIDEO QUALITY JACK TYPE
all other devices have
been connected.
BEST
HDMI video/audio
BETTER
Component video and analog audio
GOOD
Composite video and analog audio (AV)
GOOD
Coaxial video/audio
Power cord
Note: You can also connect a DVI device to your TV. See your online User Guide for connection
instructions.
Features
Front view
Remote control
and two AAA
batteries
Remote control sensor
Power indicator
Back view
2
TV stand
MHL
1
ARC/DVI
USB
TV stand screws
Power cord
M4 (20 mm length)
(4 pcs.)
Y / VIDEO P B P R L
/AUDIO DIGITAL
C O M P O N E N T / AV
OUT OUTPUT
Images do not necessarily represent the exact design of your television.
Before using your new product, please read these instructions to prevent any damage.
V2
FINAL
FOR PRINT
B
A
A
MAKING CONNECTIONS
How do I watch TV (cable or satellite receiver) or connect a device such as a DVD or
Blu-ray Disc player, game console, Roku Streaming Stick™, or MHL-enabled device?
CABLE CONNECTOR
Using an HDMI cable
(BEST)
Using component cables (BETTER)
- OR -
Using an AV cable (GOOD)
/AUDIO
OUT
How do I connect my TV to an antenna or cable wall jack?
R
/AUDIO
PC / DVI
ANT / CABLE VGA OUT
AUDIO IN
M4 (20 mm)
B
2 2
2
MHL MHL
MHL
1 1
ARC/DVI ARC/DVI
1
ARC/DVI
USB USB
Component cable option
AUDIO/VIDEO OUT
Y / VIDEO P B P R L R
Y / VIDEO P B P R L R
DIGITAL PC / DVI
C O M P O N E N T / AV ANT / CABLE VGA
OUTPUT AUDIO IN
C O M P O N E N T / AV A
AV cable option
AUDIO/VIDEO
OUT
Note: Connect the yellow video cable connector
to the green Y/VIDEO jack on the back of your TV.
ANT / CABLE
Y / VIDEO P B P P R R L L R R
DIGITAL ANT / CABLE ANT / CABL VGA PC / DVI
C O M P O N E N T / AV O N E N T / AV A A AUDIO IN
OUTPUT
M4 (20 mm)
Multi-purpose jacks: You can plug any
device that uses HDMI into either
HDMI jack. However, certain devices
must be connected to the ARC/DVI or
MHL jack. See the instructions that
came with your ARC, DVI device,
MHL-enabled device, or Roku Streaming
Stick™ for more information.
Note: The component and AV jacks
are shared. This means you can
connect only one component or AV
device at a time. We suggest using
HDMI if your device supports it.
CABLE
OVER
