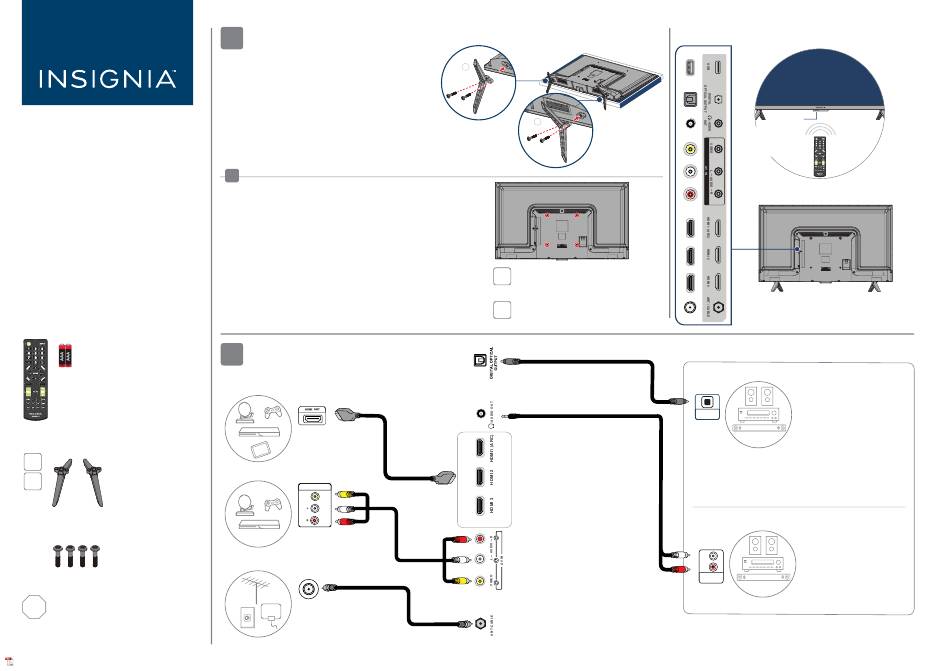

QUICK SETUP GUIDE
FHD
40"/43"
1080p 60Hz
LED TV
NS-40D510NA21 / NS-40D510CA21 /
NS-43D510NA21
ACCESSORIES
Remote and two AAA batteries
+ + +
TV stands
40"
43"
M4 screws (16 mm length) (4 pcs.)
STOP
Before using your new product, read these
instructions to prevent any damage.
Do not plug your power cord in until all other
devices have been connected.
INSTALLING THE STANDS OR A WALL MOUNT
1
Place your TV face-down on a cushioned, clean surface.
STANDS
1 Align the TV stand screw holes
with the holes on your TV's
bottom.
2 Use a Phillips screwdriver and
two provided screws to secure
each stand to your TV.
OR
WALL MOUNT
Before you mount your TV, make sure that:
• You remove the stands.
• The wall-mount bracket supports the weight of your TV.
See the instructions that came with your wall mount for more
information about how to correctly mount your TV.
WARNING: Your TV has four VESA mounting holes on the back. You
must secure a wall-mount bracket to all four holes. If you do not use
all four holes, your TV may fall and cause property damage or personal
injury.
Note: Wall-mount screws are not included.
MAKING CONNECTIONS
2
HDMI
(best video quality)
Note: You can use the
HDMI 1 (ARC) jack to
connect a digital
audio system.
AV
(good video quality)
AUDIO/VIDEO OUT
Coaxial
(good video quality)
H D H D
Connect an antenna to
access live over-the-air TV.
L
40" TV shown
R
M4 × 16 mm screws
40" TV shown
VESA Mounting Pattern
40"
200 x 200 mm
M6 screws (10 mm length) (4 pcs.)
VESA Mounting Pattern
43"
400 x 200 mm
M6 screws (10 mm length) (4 pcs.)
HDMI options
FEATURES
Power indicator/
Remote control sensor
Power/
Input button
Press to turn your TV on or
off manually.
When your TV is on, a short
press changes inputs and a
long press turns off your TV.
40" TV shown
Note: Images do not necessarily represent
the exact design of your television.
AUDIO OPTIONS
DIGITAL
You can use the DIGITAL
OPTICAL OUTPUT jack or the
HDMI 1 (ARC) jack.
OPTICAL
AUDIO IN Note: To change the digital audio
format, on your TV's Audio
SOUNDBAR
menu, select Audio Format/Audio
Delay, then set Audio Format to
PCM.
ANALOG
L
R
SOUNDBAR
AUDIO IN
