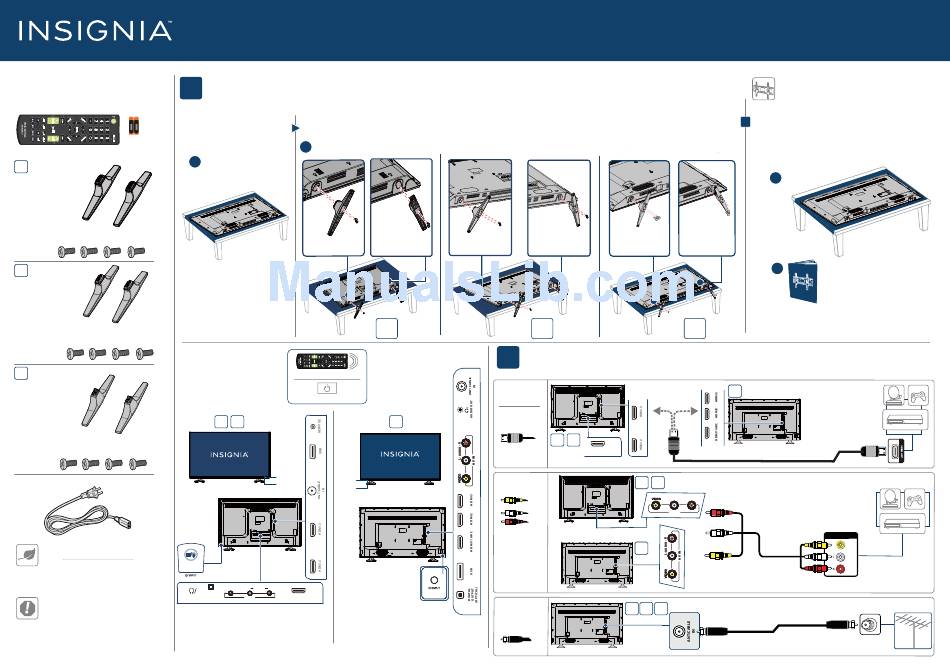

Insignia NS-40D420MX18 Quick Setup Manual

INCLUDED ACCESSORIES
1
Remote control and
two AAA batteries
+ +
A
40"
TV stands
ST4 screws (14 mm) (4pcs.)
49"
TV stands
ST4 screws (25 mm) (4pcs.)
FEATURES
55"
TV stands
M4 screws (20 mm length) (4 pcs.)
Power cord
55" model
FIND YOUR USER GUIDE ONLINE!
1. Go to www.insigniaproducts.com.
2. Use the search bar to find NS-40D420NA18,
NS-49D420NA18, or NS-55D420NA18 .
3. Select Support & Downloads.
4. Next to User Guide, select the language you want.
AUDIO OUT
STOP
Do not plug your power cord in until all other
devices have been connected.
Before using your new product, please read these
instructions to prevent any damage.
START HERE
How do I attach the stands to my TV? (not for wall mounting)
You'll need: Soft surface and Phillips screwdriver
Place your TV face-down B Align the TV stands with the screw holes on the bottom of your TV, then secure the stands to your TV with the four provided screws.
on a cushioned, clean surface.
B
A
ST4 × 14 mm screws
55" TV shown
Remote control sensor
Power indicator
40"
49"
Remote
Remote
control
control
sensor
sensor
Power
40" TV shown
Power
indicator
indicator
VIDEO L AUDIO R
DIGITAL
OUTPUT
HDMI 1/ARC
AV IN
(OPTICAL)
Quick Setup Guide |
ST4 × 14 mm screws
ST4 × 25mm screws ST4 × 25mm screws
40"
49"
MAKING CONNECTIONS
2
How do I watch TV (cable, satellite, or antenna) or connect a device, such as a DVD or Blu-ray disc player
or game console?
WHICH CABLES
DO YOU HAVE?
HDMI
(BEST)
55"
Best video quality
40"
AV
(GOOD)
COAXIAL
(GOOD)
NS-40D420NA18 / NS-40D420MX18 / NS-49D420NA18 / NS-55D420NA18 / NS-55D420MX18
OR
M4 × 20 mm screws M4 × 20 mm screws
55"
55"
49"
HDMI 1/ARC
40" 49"
L L - AUDIO - - AUDIO - R R
AV IN AV IN
55"
40" 49" 55"
55" TV shown
40"/ 49"/55" 1080p 60 Hz • LED TV
WALL MOUNT
How do I prepare my TV for wall mounting?
(not for use with a TV stand)
You'll need: Soft surface and Phillips screwdriver
A Carefully place your TV face-down on a
cushioned, clean surface.
B See the instructions that came with your
wall-mount for more information about
which screws to use and how to correctly
mount your TV.
A
55" TV shown
B Your TV has four VESA mounting holes on the back.
If you attach a wall-mount bracket to the back of your TV,
the bracket must be securely attached, using all
four holes. If you do not use all four mounting holes,
your TV may fall and cause property damage or personal
injury. See the documentation that came with your
wall-mount for complete mounting instructions.
Multi-purpose jacks: You can
plug any device that uses HDMI
into any HDMI jack. However,
certain devices must be
connected to the HDMI1/ARC
jack.
See the instructions that came
with your ARC device for more
information.
AUDIO/VIDEO OUT
CABLE
