Insignia NS-40D420NA16 Quick Setup Manual

INCLUDED ACCESSORIES
1
Remote control and
two AAA batteries
A Align the stand column with the stand
+ + base, then secure the column to the base
with the four provided (ST4 × 16 mm)
screws (the long screws).
Stand column
A
Stand base
ST4 screws (16 mm length) (4 pcs.)
FEATURES
M5 screws (12 mm length) (4 pcs.)
Power cord
WALL MOUNT ACCESSORIES
M6 screws (30 mm length) (4 pcs.)
Spacers(4 pcs.)
FIND YOUR USER GUIDE ONLINE!
Go to www.insigniaproducts.com, then click
Support & Service.
Enter NS-40D420NA16 in the box under
Manual, Firmware, Drivers & Product
►
Information, then click . The
USB
NS-40D420MX16 comes with a printed
manual.
STOP
Do not plug your power cord in until all
other devices have been connected.
START HERE
How do I attach the stand to my TV? (not for wall mounting)
You'll need: Soft surface and Phillips screwdriver
B
Carefully place your TV face-down on a
cushioned, clean surface.
B
ST4 x 16 mm screws
Remote control sensor
Power indicator
AV IN
L - AUDIO - R
P P
COMPONENT IN
HDMI1/ARC
Before using your new product, please read these
instructions to prevent any damage.
C
Align the screw holes on the stand column
with the holes on the back of your TV, then
secure the column to your TV with the four
provided M5 × 12 mm screws (the short
screws).
C
M5 x 12 mm screws
MAKING CONNECTIONS
2
How do I watch TV (cable, satellite, or antenna) or connect a device such as a DVD or Blu-ray disc player or game console?
WHICH CABLES
DO YOU HAVE?
HDMI
(BEST)
Best video quality
HDMI1/ARC
COMPONENT
Note: The component and AV jacks are shared. This means you can connect
BETTER
only one component or AV device at a time. We suggest upgrading to HDMI
(BEST) if your device supports it.
OR
P
AV
(GOOD)
COMPONENT IN
Note: Connect the yellow
video cable to the
green VIDEO/Y jack.
COAXIAL
AV IN
GOOD
DIGITAL L AUDIO R
- - VIDEO / Y P P
B R
OUTPUT
COMPONENT IN
(OPTICAL)

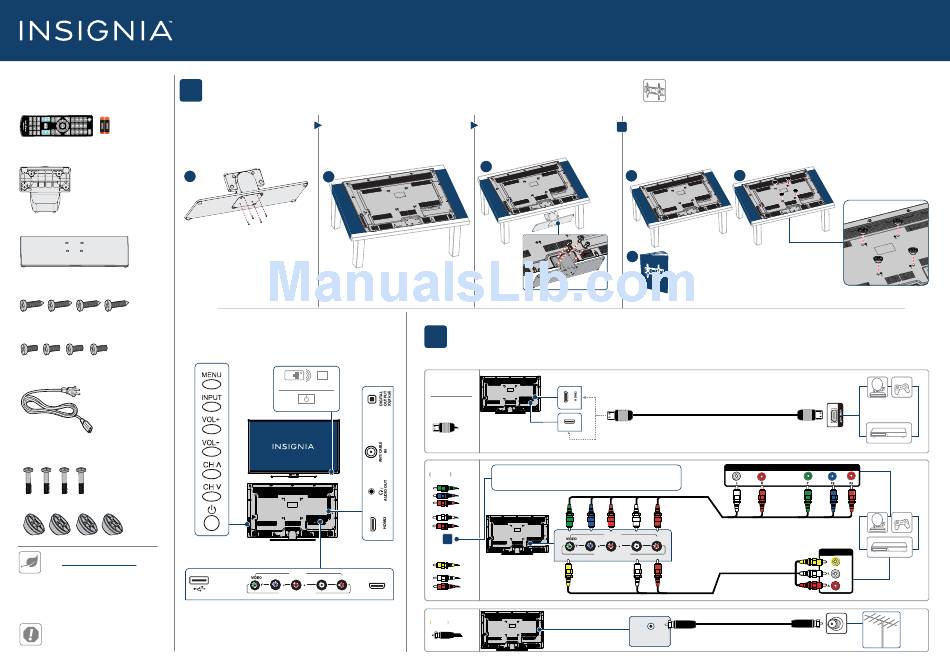

Quick Setup Guide
WALL MOUNT
How do I prepare my TV for wall mounting? (not for use with a TV stand)
You'll need: Soft surface and Phillips screwdriver
A
Carefully place your TV face-down on a cushioned, clean surface.
B Insert four spacers (provided) into the mount screw holes on the back of your TV, then attach the
wall-mount bracket to your TV using either the four M6 × 30 mm screws (provided) or the screws that
OR
came with the wall-mount bracket. See instructions that came with the wall-mount bracket for
information about which screws to use and how to correctly hang your TV.
Warning: This apparatus is intended to be supported by a UL Listed wall-mount bracket.
C
See the instructions that came with your wall mount for more information about how to correctly mount
your TV.
A B
C
Your TV has four VESA mounting holes on the back. If you attach a wall-mount
bracket to the back of your TV, the bracket must be securely attached, using
all four holes. If you do not use all four mounting holes, your TV may fall and
cause property damage or personal injury. See the documentation that came with
your wall mount for complete mounting instructions.
Multi-purpose jacks: You can plug any device that uses HDMI into either HDMI jack.
However, certain devices must be connected to the ARC jack. See the instructions that came
with your device for more information.
AUDIO/VIDEO OUT AUDIO/VIDEO OUT
AV IN
L - AUDIO - R
P
ANT/CABLE
IN
|

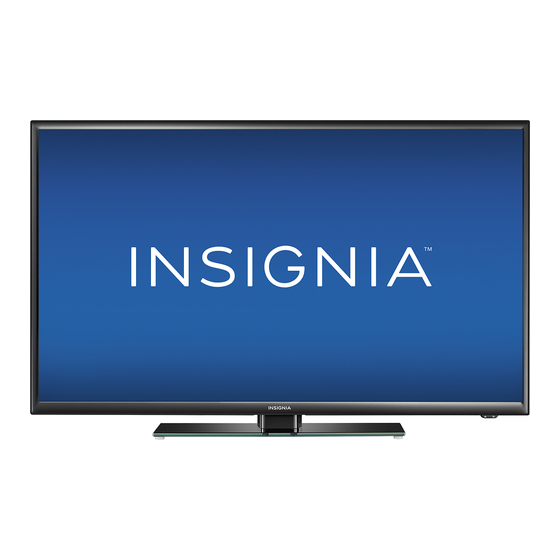

NS-40D420NA16/NS-40D420MX16
40" 1080p • 60Hz LED TV
M6 x 30 mm screws
AUDIO/VIDEO OUT AUDIO/VIDEO OUT
CABLE
