Insignia NS-40D510NA17 Quick Setup Manual

INCLUDED ACCESSORIES
Remote control and
two AAA batteries
A
+ +
Stand bases
A
M4 screws (24 mm length) (4 pcs.)
Power cord
FEATURES
Power/Input button
FIND YOUR USER GUIDE ONLINE!
Go to www.insigniaproducts.com, then
click Support & Service. Enter
NS-40D510NA17 or NS-40D510MX17
in the box under Manual, Firmware,
►
Drivers & Product Information, then click .
STOP
Do not plug your power cord in until all
other devices have been connected.
Before using your new product, please read these
instructions to prevent any damage.
/ AUDIO OUT
START HERE
1
How do I attach the stand to my TV? (not for wall mounting)
You'll need: Soft surface and
Phillips screwdriver
B Make sure that the arrows on the bottoms of the stands point toward the front
Place your TV face-down on a cushioned,
clean surface. of the TV. Align the screw holes on the TV stands with the holes on the bottom
of your TV, then secure each stand with two of the M4 × 24 mm screws.
B
M4 x 24 mm screws
Remote control sensor
Note: Images do not necessarily represent the exact design of your television.
Power connector
AV IN
ANT / CABLE IN
A Carefully place your TV face-down on a cushioned, clean surface.
OR
B See the instructions that came with your wall-mount for more information about which
screws to use and how to correctly mount your TV.
A
M4 x 24 mm screws
MAKING CONNECTIONS
2
How do I watch TV (cable, satellite, or antenna) or connect a device, such as a DVD or Blu-ray disc player or game console?
WHICH CABLES
Multi-purpose jacks: You can plug any device that uses HDMI into any HDMI jack. However,
DO YOU HAVE?
certain devices must be connected to the HDMI1/ARC jack. See the instructions that came
with your device for more information.
HDMI
(BEST)
Best video quality
AV
(GOOD)
/ AUDIO OUT
COAXIAL
(GOOD)

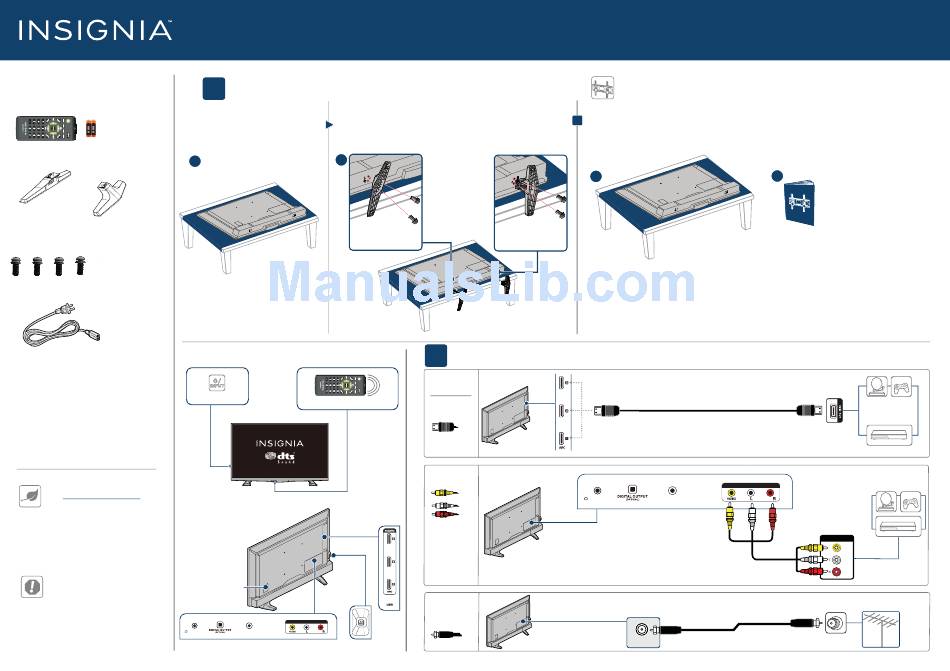

Quick Setup Guide
|
NS-40D510NA17/ NS-40D510MX17
WALL MOUNT
How do I prepare my TV for wall mounting? (not for use with a TV stand)
You'll need: Soft surface and Phillips screwdriver
B
AV IN
ANT / CABLE IN
ANT/CABLE IN

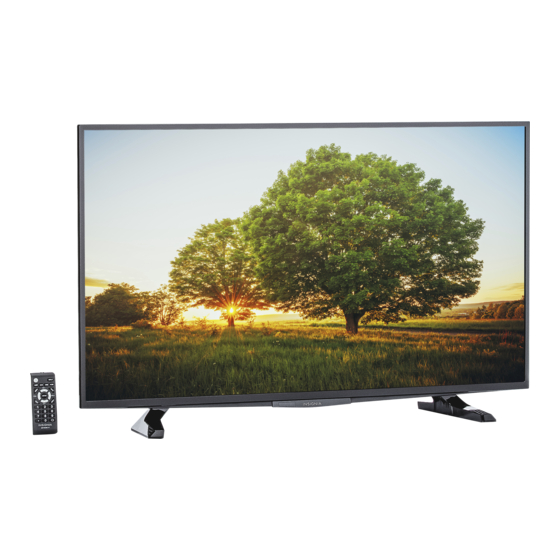

40" 1080p 60Hz LED TV
Your TV has four VESA mounting holes on
the back. If you attach a wall-mount bracket
to the back of your TV, the bracket must
be securely attached, using all four holes.
If you do not use all four mounting holes, your
TV may fall and cause property damage or personal
injury. See the documentation that came with your
wall-mount for complete mounting instructions.
AUDIO/VIDEO OUT
CABLE
