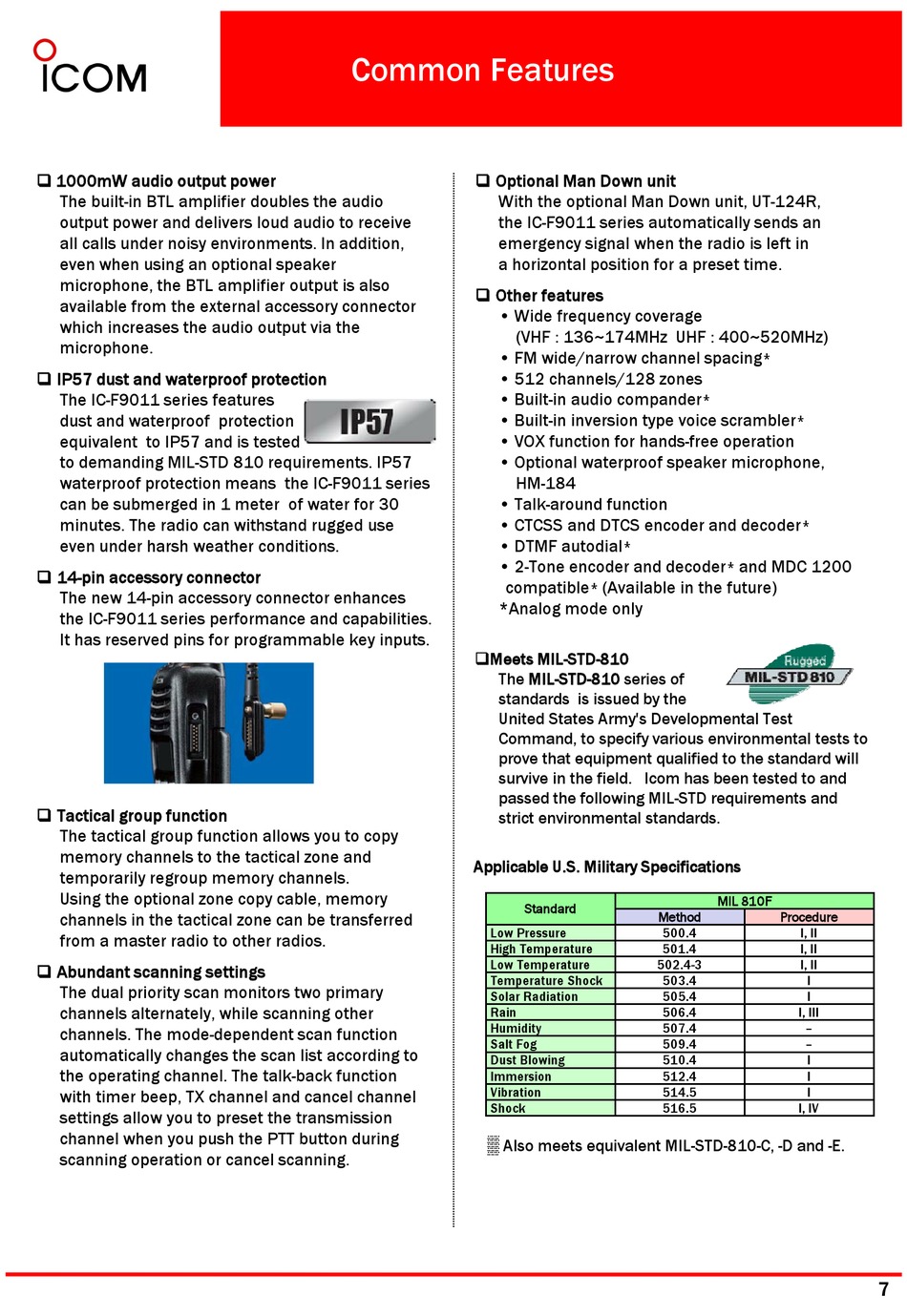

Icom IC-F9011 User Manual page 7

1000mW audio output power
The built-in BTL amplifier doubles the audio
output power and delivers loud audio to receive
all calls under noisy environments. In addition,
even when using an optional speaker
microphone, the BTL amplifier output is also
available from the external accessory connector
which increases the audio output via the
microphone.
IP57 dust and waterproof protection
The IC-F9011 series features
dust and waterproof protection
equivalent to IP57 and is tested
to demanding MIL-STD 810 requirements. IP57
waterproof protection means the IC-F9011 series
can be submerged in 1 meter of water for 30
minutes. The radio can withstand rugged use
even under harsh weather conditions.
14-pin accessory connector
The new 14-pin accessory connector enhances
the IC-F9011 series performance and capabilities.
It has reserved pins for programmable key inputs.
Tactical group function Tactical group function
The tactical group function allows you to copy
memory channels to the tactical zone and
temporarily regroup memory channels.
Using the optional zone copy cable, memory
channels in the tactical zone can be transferred
from a master radio to other radios.
Abundant scanning settings
The dual priority scan monitors two primary
channels alternately, while scanning other
channels. The mode-dependent scan function
automatically changes the scan list according to
the operating channel. The talk-back function
with timer beep, TX channel and cancel channel
settings allow you to preset the transmission
channel when you push the PTT button during channel when you push the PTT button during
scanning operation or cancel scanning.
Common Features
p
Optional Man Down unit
With the optional Man Down unit, UT-124R,
the IC-F9011 series automatically sends an
emergency signal when the radio is left in
a horizontal position for a preset time.
Other features
• Wide frequency coverage
(VHF 136 174MHz UHF 400 520MHz) (VHF : 136~174MHz UHF : 400~520MHz)
• FM wide/narrow channel spacing
• 512 channels/128 zones
• Built-in audio compander
• Built-in inversion type voice scrambler
• VOX function for hands-free operation
• Optional waterproof speaker microphone,
HM-184
• Talk-around function
• CTCSS and DTCS encoder and decoder
• DTMF autodial
*
• 2-Tone encoder and decoder
compatible (Available in the future)
*
*Analog mode only
Meets MIL-STD-810 Meets MIL STD 810
The MIL-STD-810 series of
standards is issued by the
United States Army's Developmental Test
Command, to specify various environmental tests to
prove that equipment qualified to the standard will
survive in the field. Icom has been tested to and
passed the following MIL-STD requirements and
strict environmental standards strict environmental standards.
Applicable U.S. Military Specifications
Standard
Low Pressure
High Temperature
Low Temperature
Temperature Shock Temperature Shock
Solar Radiation
Rain
Humidity
Salt Fog
Dust Blowing
Immersion
Vibration
Shock
▒ Also meets equivalent MIL-STD-810-C, -D and -E. ▒ Also meets equivalent MIL STD 810 C D and E
*
*
*
*
and MDC 1200
*
MIL 810F
Method Procedure
500.4 I, II
501.4 I, II
502.4-3 I, II
503 4 503.4 I I
505.4 I
506.4 I, III
507.4 –
509.4 –
510.4 I
512.4 I
514.5 I
516.5 I, IV
