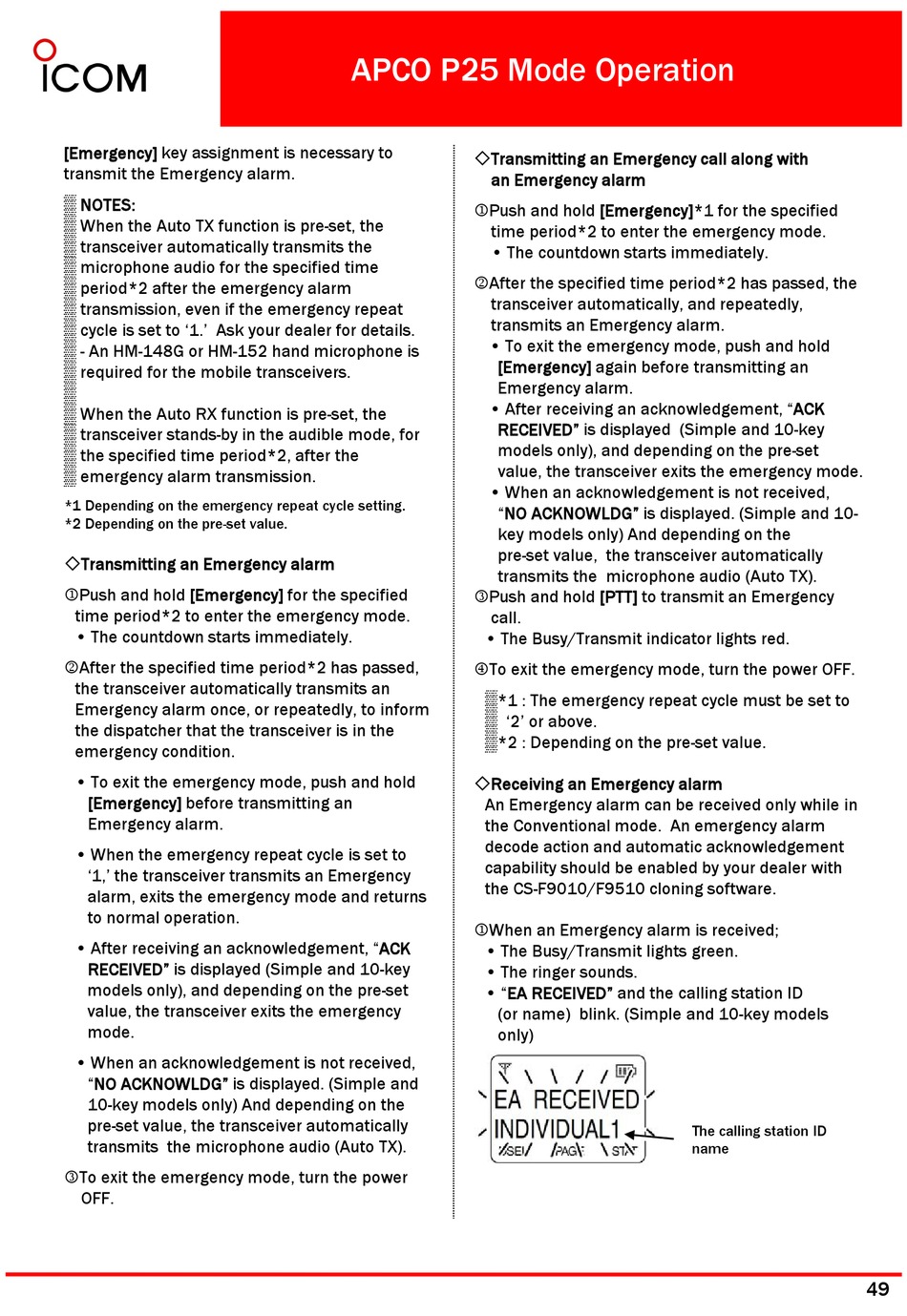

Icom IC-F9011 User Manual page 49

[Emergency] key assignment is necessary to
transmit the Emergency alarm. transmit the Emergency alarm
▒ NOTES:
▒ When the Auto TX function is pre-set, the
▒ transceiver automatically transmits the
▒ microphone audio for the specified time
▒ period*2 after the emergency alarm
▒ transmission, even if the emergency repeat
▒ cycle is set to 1. Ask your dealer for details. ▒ cycle is set to '1.' Ask your dealer for details.
▒ - An HM-148G or HM-152 hand microphone is
▒ required for the mobile transceivers.
▒
▒ When the Auto RX function is pre-set, the
▒ transceiver stands-by in the audible mode, for
▒ the specified time period*2, after the
▒ emergency alarm transmission.
*1 Depending on the emergency repeat cycle setting.
*2 Depending on the pre-set value.
Transmitting an Emergency alarm
1Push and hold [Emergency] for the specified
time period*2 to enter the emergency mode.
• The countdown starts immediately.
2After the specified time period*2 has passed,
the transceiver automatically transmits an
Emergency alarm once, or repeatedly, to inform
the dispatcher that the transceiver is in the
emergency condition.
• To exit the emergency mode, push and hold
[Emergency] before transmitting an
Emergency alarm. E g l
• When the emergency repeat cycle is set to
'1,' the transceiver transmits an Emergency
alarm, exits the emergency mode and returns
to normal operation.
• After receiving an acknowledgement, "ACK
RECEIVED" is displayed (Simple and 10-key
models only), and depending on the pre-set
value, the transceiver exits the emergency
mode.
• When an acknowledgement is not received,
"NO ACKNOWLDG" is displayed. (Simple and
10-key models only) And depending on the
pre-set value, the transceiver automatically
transmits the microphone audio (Auto TX). t it th i
3To exit the emergency mode, turn the power
OFF.
APCO P25 Mode Operation
h di (A t TX)
Transmitting an Emergency call along with
an Emergency alarm
1Push and hold [Emergency]*1 for the specified
time period*2 to enter the emergency mode.
• The countdown starts immediately.
2After the specified time period*2 has passed, the
transceiver automatically, and repeatedly,
transmits an Emergency alarm.
• To exit the emergency mode, push and hold
[Emergency] again before transmitting an
Emergency alarm.
• After receiving an acknowledgement, "ACK
RECEIVED" is displayed (Simple and 10-key
models only), and depending on the pre-set
value, the transceiver exits the emergency mode.
• When an acknowledgement is not received, When an acknowledgement is not received,
"NO ACKNOWLDG" is displayed. (Simple and 10-
key models only) And depending on the
pre-set value, the transceiver automatically
transmits the microphone audio (Auto TX).
3Push and hold [PTT] to transmit an Emergency
call.
• The Busy/Transmit indicator lights red.
4To exit the emergency mode, turn the power OFF.
▒*1 : The emergency repeat cycle must be set to
▒ '2' or above.
▒*2 : Depending on the pre-set value.
Receiving an Emergency alarm
An Emergency alarm can be received only while in
the Conventional mode. An emergency alarm C
decode action and automatic acknowledgement
capability should be enabled by your dealer with
the CS-F9010/F9510 cloning software.
1When an Emergency alarm is received;
• The Busy/Transmit lights green.
• The ringer sounds.
• "EA RECEIVED" and the calling station ID
(or name) blink. (Simple and 10-key models
only)
The calling station ID
name
