Installation Instructions
1.
1.1.
1.2.
1.3.
1.4.
2.
2.1.
2.2.
2.3.
3.
4.
5.
6.
6.1.
6.2.
6.3.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Table of Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

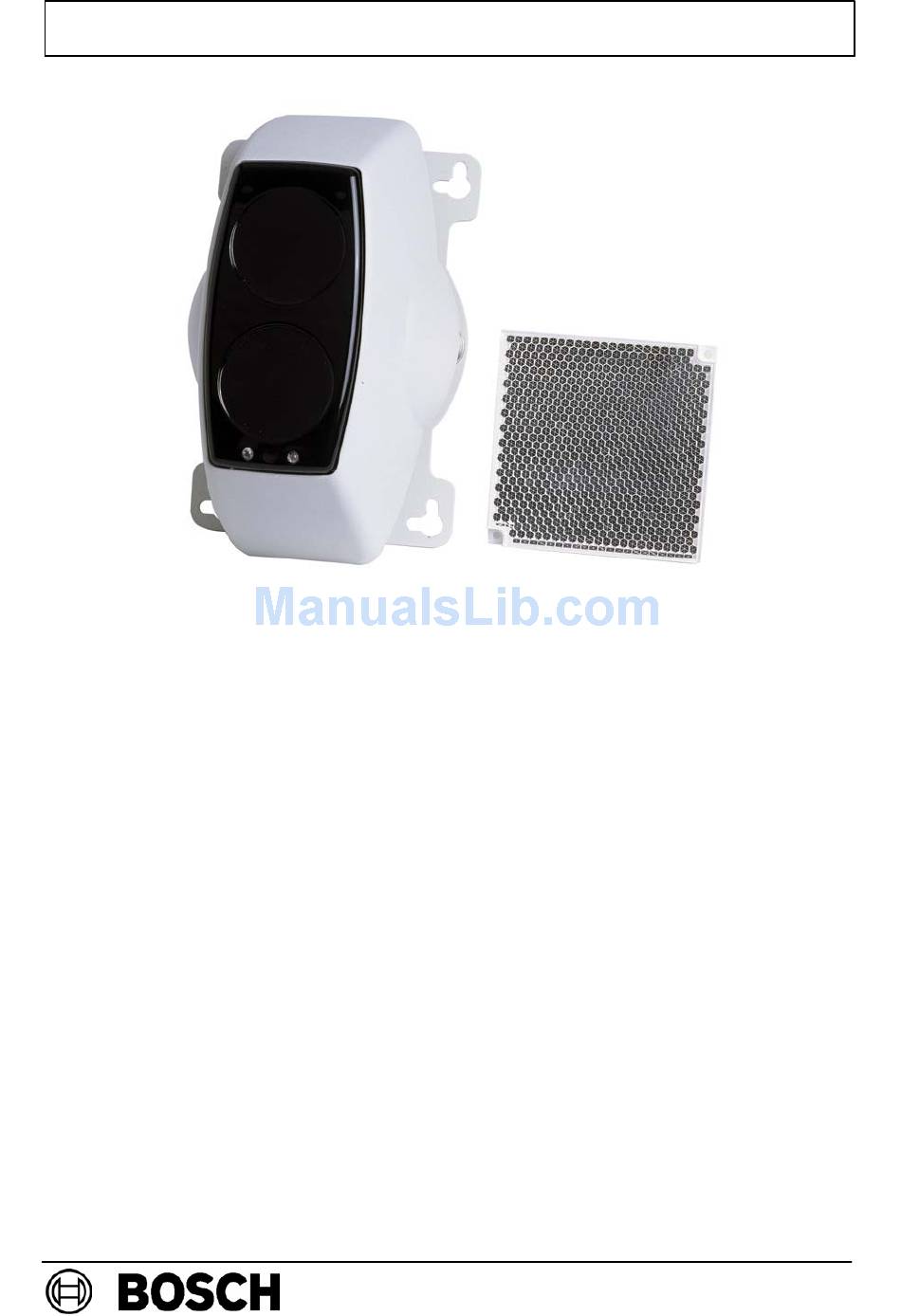

Linear Smoke Detector Fireray 50/100RV
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 1 of 14
610-F.01U.002.706 / A2.en
ST/PMF/zab
2
3
4
4
5
7
7
7
9
9
10
10
11
11
12
13
Advertisement
Table of Contents
Related Manuals for Bosch Fireray 50RV
Summary of Contents for Bosch Fireray 50RV
-
Page 1: Table Of Contents
Installation Instructions Linear Smoke Detector Fireray 50/100RV Table of Contents Mounting Tips ..........1.1. -
Page 2: Mounting Tips
Installation Instructions Linear Smoke Detector Fireray 50/100RV 1. Mounting Tips D Usually, the detector and the reflector are installed at the same height and oriented towards each other. The relatively broad angle of the IR beam eases adjustment and guarantees reliable long - term stability. D The mounting surface for the detector must be firm and vibration - free. -
Page 3: Connections And Dip Switch Settings
Installation Instructions Linear Smoke Detector Fireray 50/100RV 1.1. Connections and DIP switch settings Mounting slots DIP switch Operating mode switch Plug connector 2-pin output for key switch (optional) Fig. 2.: Reverse side of detector with plug connector, operating mode switch and DIP switch DIP switch D The DIP switches can be accessed through the round recess in the detector base plate. -
Page 4: Mounting The Fireray 50/100Rv
1.3. Mounting the prism reflector D Select the mounting location in line with the mounting tips (Section 1.). D A prism reflector must be used for the Fireray 50RV, and four prism reflectors arranged in a square for the Fireray 100RV. -
Page 5: Connection
Installation Instructions Linear Smoke Detector Fireray 50/100RV 1.4. Connection Connection of a Fireray 50/100RV using a NSB100 LSN at the fire panel NSB 100 LSN Bridges Br1, Br2 in position 2-3 Contacts in open position I1 NLT1 Configuration for LSN: I2 ⊥... - Page 6 Installation Instructions Linear Smoke Detector Fireray 50/100RV Connection of two Fireray 50/100RV to fire panel with cross zoning via an NBK 100 LSN and two NSB100 LSNs Bridges Br1, Br2 on the NSB 100 in position 2-3 (see connection of one Fireray 50/100RV) Contacts in open position Configuration for LSN: Parameterize the NSB in the control panel to control output...
-
Page 7: Start-Up
. The detector runs in initialization mode for approx. 5 s. The red LED flashes if the detector is operational: 1 x for Fireray 50RV, 2 x for Fireray 100RV. D Now direct the detector at the prism, using the two knurled screws, until optimum adjustment is confirmed by a steady yellow LED light. - Page 8 Installation Instructions Linear Smoke Detector Fireray 50/100RV D Follow the flow chart to perform the calibration process: Switch center Alignment Mode Yellow LED lights up for approx. 5 s No signal: back to Steady Wait until both LEDs have detector stopped flashing yellow LED set -up (Section 2.1.)
-
Page 9: System Test
DIN VDE 0833 apply, which refer to the maintenance interval according to the manufacturer’s instructions. D Bosch ST recommends a functional and visual inspection at least once a year. D Maintenance and inspection work should be carried out regularly and by trained personnel. -
Page 10: Technical Data
VdS ID number G 203070 Additional Documentation For those with access authorization, on the Bosch ST ExtraNet at www.boschbest.de the current information for each product, as well as the installation instructions supplied with the device, are available for download as a PDF file. -
Page 11: Appendices
6.1. Installation protocol Installation company: Type of object: Installation location: Installation date: Total number of all linear detectors: j Fireray 50RV Detector version: j Fireray 100RV Detector – reflector distance: _________ m Distance of the detector axes to one _________ m... -
Page 12: Fault Diagnosis
Installation Instructions Linear Smoke Detector Fireray 50/100RV 6.2. Fault diagnosis Fault indicator Possible cause Action Beam path blocked by an obstacle Check and/or ensure free visual line in the area between the detector and the reflector. Reflector is contaminated/covered/ Check the status of the reflector and has fallen down. -
Page 13: Notes
Installation Instructions Linear Smoke Detector Fireray 50/100RV 6.3. Notes __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ 610-F.01U.002.706 / A2.en ST/PMF/zab Page 13 of 14... - Page 14 Bosch Security Systems Robert -Koch -Str. 100 D-85521 Ottobrunn Info -Service Telephone: +49 89 6290 - 1039 Fax: +49 89 6290 - 1039 www.bosch -sicherheitssysteme.de info.service@de.bosch.com...
