Options - Icom IC-M506 Instruction Manual

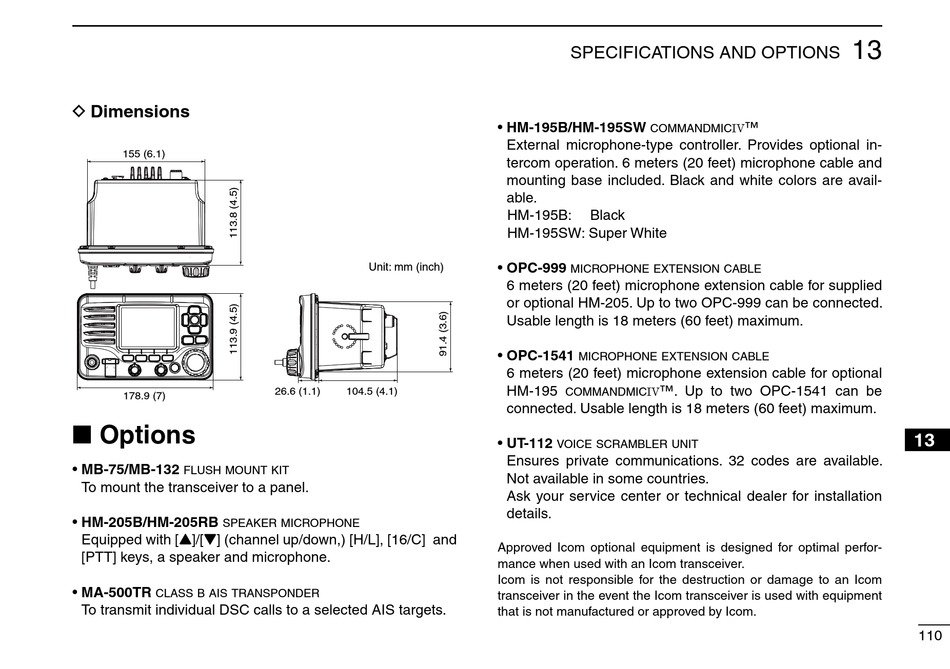

D Dimensions
155 (6.1)
178.9 (7)

Options

■
• MB-75/MB-132
flush mount Kit
To mount the transceiver to a panel.
• HM-205B/HM-205RB
speaKer microphone
Equipped with [Y]/[Z] (channel up/down,) [H/L], [16/C] and
[PTT] keys, a speaker and microphone.
• MA-500TR
class b ais transponder
To transmit individual DSC calls to a selected AIS targets.
Unit: mm (inch)
26.6 (1.1) 104.5 (4.1)
SPECIFICATIONS AND OPTIONS
• HM-195B/HM-195SW
commandmic IV
External microphone-type controller. Provides optional in-
tercom operation. 6 meters (20 feet) microphone cable and
mounting base included. Black and white colors are avail-
able.
HM-195B: Black
HM-195SW: Super White
• OPC-999
microphone extension cable
6 meters (20 feet) microphone extension cable for supplied
or optional HM-205. Up to two OPC-999 can be connected.
Usable length is 18 meters (60 feet) maximum.
• OPC-1541
microphone extension cable
6 meters (20 feet) microphone extension cable for optional
HM-195 commandmic IV ™. Up to two OPC-1541 can be
connected. Usable length is 18 meters (60 feet) maximum.
• UT-112
voice scrambler unit
Ensures private communications. 32 codes are available.
Not available in some countries.
Ask your service center or technical dealer for installation
details.
Approved Icom optional equipment is designed for optimal perfor-
mance when used with an Icom transceiver.
Icom is not responsible for the destruction or damage to an Icom
transceiver in the event the Icom transceiver is used with equipment
that is not manufactured or approved by Icom.
