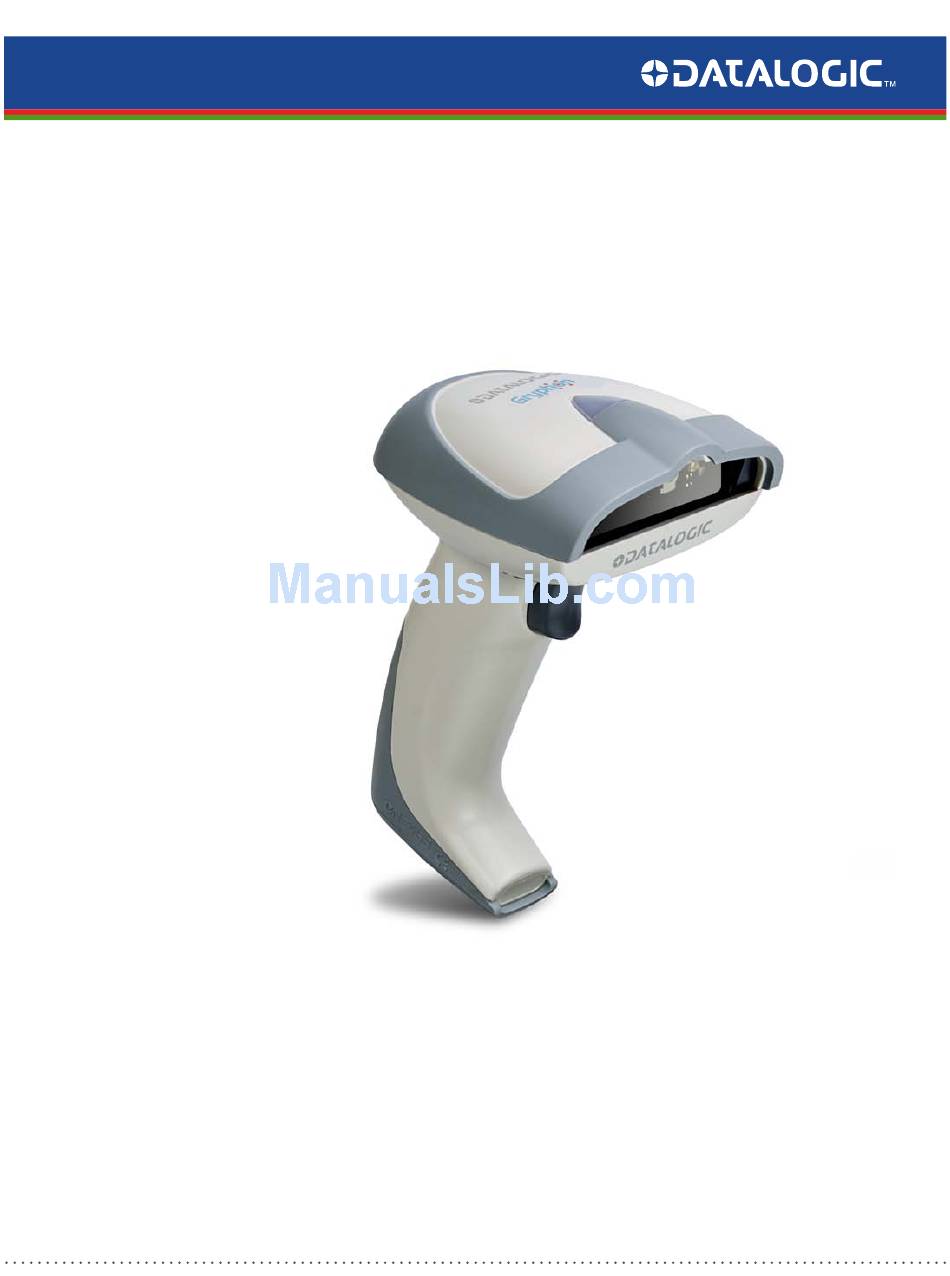

GRYPHON D432/D412Plus
Barcode Reader
Product Reference Guide

Advertisement

Table of Contents
loading

Related Manuals for Datalogic GRYPHON D412Plus

Summary of Contents for Datalogic GRYPHON D412Plus

  • Page 1 GRYPHON D432/D412Plus Barcode Reader Product Reference Guide...
  • Page 2 Datalogic reserves the right to change any specification at any time without prior notice. Datalogic is a registered trademark of Datalogic S.p.A. in many countries and the Datalogic logo is a trademark of Data- logic S.p.A. All other brand and product names referred to herein may be trademarks of their respective owners.

  • Page 3: Table Of Contents

    Table of Contents Preface: About this Guide................................3 How to Use this Manual ............................................3 Registering Your Datalogic Product ....................................3 Document Conventions ............................................3 General View .................................................4 Compliance ...................................................4 CE Compliance ..............................................5 FCC Compliance ...............................................5 Laser Safety .................................................5 LED Illuminator ............................................5 Aiming System ............................................5...
  • Page 4 Contents Chapter 5. References................................113 RS-232 — USB COM ............................................113 ACK/NACK Protocol .........................................113 RX Timeout ............................................113 USB Keyboard ...............................................113 Keyboard Speed..........................................113 Code Selection .............................................114 Issue Identical Codes ........................................114 Reading Parameters ...........................................114 Safety Time............................................114 Configuration Editing Commands ......................................114 Chapter 6. Test Code Symbols ..............................115 Chapter 7.

  • Page 5: Preface: About This Guide

    This section provides an overview of the manual’s organization, and the product. Registering Your Datalogic Product Datalogic values your feedback. Please take a few moments and complete the Product Registration form located on our website ( ). Registering your products ensures www.datalogic.com...

  • Page 6: General View

    Preface: About this Guide General View Figure 1. Gryphon™ D432/D412 Plus Reader Compliance Figure 2 . Gryphon™ D432/D412 Plus Reader Product Labels Aiming System Imager Beam Output Window Gryphon™ D432/D412Plus...

  • Page 7: Ce Compliance

    WARNING FCC Compliance Modifications or changes to this equipment without the express written approval of Datalogic could void the authority to use this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference which may cause undesired operation.
  • Page 8 Preface: About this Guide Table 1 . Laser Safety LA LUCE DIE LASER- LE RAYON LA LUZ LÁSER LASER È STRAHLUNG LASER EST ES VISIBLE AL VISIBILE IST FÜR DAS VISIBLE À ALL'OCCHIO MENSCHLICH L'OEUIL NU HUMANO Y UMANO E E AUGE ET IL EST ES EMITIDA...

  • Page 9: Product Reference Guide

    Compliance any very strong light source, such as the sun. Avoid allowing the laser beam to hit the eye of an observer, even through reflective surfaces such as mirrors, etc. ITALIANO Le seguenti informazioni vengono fornite dietro direttive delle autorità internazionali e si riferiscono all’uso corretto del terminale.
  • Page 10 Preface: About this Guide NORMES DE SECURITE LASER Ce produit est conforme aux normes de sécurité laser en vigueur à sa date de fabrication: CDRH 21 CFR 1040 et EN 60825-1. Il n’est pas nécessaire d’ouvrir l’appareil pour l’installation, l’utilisation ou l’entretien. L'utilisation de procédures ou réglages différents de ceux donnés ici peut entraîner une dangereuse exposition à...

  • Page 11: Weee Compliance

    Internet www.scanning.datalogic.com. Spanish Si desea información acerca de los procedimientos para el desecho de los residuos del equipo eléctrico y electrónico (WEEE), visite la página Web www.scanning.datalogic.com. Portuguese Para informações sobre a disposição de Sucatagem de Equipamentos Eléctricos e Eletrônicos (WEEE - Waste Electrical and Electronic Equipment), consultar o site web www.scanning.datalogic.com.

  • Page 12: Power Supply

    (Gryphon 432) which supplies power directly to the scanner via the jack connector on the cable. Service and Support Datalogic provides several services as well as technical support through its website. Log on to www.scanning.datalogic.com and click on the links indicated for further information including:...

  • Page 13: Chapter 1. Introduction

    The Gryphon D432/D412Plus reader can be set up to select and output a subset of data elements USA Driver License from USA Driver License PDF417 barcodes. This feature can be enabled using either Datalogic Alad- Parsing din™ or the barcodes in the USA Driver License Parsing Quick Reference Guide (QRG), available on the Datalogic website.

  • Page 14: Configuration Methods

    See Appendix D. Using Datalogic Aladdin™ The Datalogic Aladdin™ program, available for download from the Datalogic Web site, allows programming the reader by selecting configuration commands or printing them through a user- friendly graphical interface running on the PC.

  • Page 15: Chapter 2. Using The Gryphon D432/412Plus

    Chapter 2 Using the Gryphon D432/412Plus Aiming System The Gryphon D432/D412Plus reader uses an intelligent aiming system similar to those on cameras. By partially pulling the trigger, the aiming system indicates a field of view to be positioned over the code: Figure 3.

  • Page 16: Normal Operation

    Using the Gryphon D432/412Plus or elements (mil size) should be read farther from the unit. (See "Technical Features" starting on page for further details). Normal Operation Gryphon D432/D412Plus normally functions by capturing and decoding codes. Point the reader at the target and pull the trigger partially to enable the aiming system. Then, pull it completely to capture and decode the image.

  • Page 17: Image Capturing

    Normal Operation Image Capturing Gryphon D432/D412Plus can also function as a camera by capturing images of labels, signatures, and other items. In order to capture an image, the user should read a Capture Image code (see page 80), then point at the image subject and pull the trigger. This way, the image will be captured and sent to the host PC.

  • Page 18: Autoscanning

    Using the Gryphon D432/412Plus Autoscanning Normal Mode Gryphon D432/D412Plus provides an autoscan command (see page 78), which when enabled, causes the reader to scan continuously and to monitor the central zone of its reading area. In this way, Gryphon D432/D412Plus is ready to capture any image (containing a potential code) positioned on a uniform background.

  • Page 19: Concatenation

    Normal Operation 6. Code ID is attached to the resulting string; 7. Global headers and terminators are attached to the resulting string; The codes to be sent to the host may also be selected or ordered depending on the following two conditions: •...
  • Page 20 Using the Gryphon D432/412Plus NOTES Gryphon™ D432/D412Plus...

  • Page 21: Chapter 3. Initial Setup

    Chapter 3 Initial Setup This procedure allows setting up the reader to operate with the default settings. Whenever you need to change the default values refer to "Changing Default Settings" on page 30. RS-232 Interface Selection The Gryphon D432/D412Plus reader requires the RS-232 interface cable and the AC/DC power adapter to be connected.

  • Page 22: Wedge Interface Selection

    Initial Setup Wedge Interface Selection The Gryphon D432Plus reader requires the Wedge interface cable. To install and configure your reader with the Wedge interface, follow these instructions: 1. Connect the cable to the Gryphon D432Plus reader and to the PC as shown: 2.
  • Page 23 Load drivers from the O.S. (if requested). When configuring the USB-COM interface or DLBulkUSB interface, the relevant files and drivers must be installed and can be downloaded from the web site  http://www.scanning.datalogic.com. The reader is ready. FIRST START-UP Green LED b lin ks Connect Gryphon™...
  • Page 24 Initial Setup To install and configure your reader with one of the USB interfaces, see the "First Start-up" diagram above and follow these instructions. 1. Make all the Gryphon D432/D412Plus reader connections as shown: USB Connections 2. Power up your PC. 3.

  • Page 25: Ibm Port 9B/Port 5B/Ibm Usb

    USB Interface Selection IBM PORT 9B/PORT 5B/IBM USB *The IBM PORT 9B and IBM PORT 5B are only for Gryphon D412 + models 1. Make all the Gryphon D432/D412Plus reader connections as shown: 2. Read the desired IBM interface selection codes: IBM PORT 9B IBM PORT 5B AMHKHMFPHMGNEJEIEPANHOGOCK...
  • Page 26 Initial Setup NOTES Gryphon™ D432/D412Plus...

  • Page 27: Chapter 4. Configuration Using Code Symbols

    Appendix D. USA Driver License Parsing is a feature not covered in this manual. For more information, reference the “USA Driver License Parsing Quick Reference Guide” , available on the Datalogic website at www.scanning.datalogic.com. To configure your reader: 1. Read the Enter Configuration code ONCE, available on top of each page.

  • Page 28: Default Settings

    Configuration Using Code Symbols Default Settings Configuration Field Default Setting RS-232 Communication Baud Rate 115200 Parity, Data Bits, Stop Bits No parity; 8 Data bits; 1 Stop bit Handshake None ACK/NACK Protocol None FIFO Enabled Intercharacter Delay Intercode Delay RX Timeout 10 seconds Serial Trigger Lock Disabled...
  • Page 29 Default Settings Configuration Field Default Setting Data Format-Symbology Independent Parameters Code Identifier Disabled Custom Code Identifier Disabled Code Length Disabled *Header No headers CR and LF terminators for RS-232, USB BULK, USB COM, USB Generic HID *Terminator ENTER terminator for Wedge, USB Kbd Data Format-Symbology Dependent Parameters Symbology Specific Format Select All...

  • Page 30: Configuration Using Code Symbols

    Configuration Using Code Symbols Configuration Field Default Setting Code Length Check Disabled Minimum Length Maximum Length Start/Stop Character Disabled Code 32 Selection Disabled Interleaved 2 of 5 Selection Disabled Code Length Check Disabled Minimum Length Maximum Length Codabar Selection Disabled Code Length Check Disabled Minimum Length...
  • Page 31 Default Settings Configuration Field Default Setting Data Matrix Selection Enabled - normal & inverted Rectangular Style Enabled Minimum Code Length 0001 Maximum Code Length 3600 Selection Enabled Postal Codes Selection Disabled Australian Table Selection N Table Maxicode Maxicode Mode 0 Disabled Maxicode Mode 1 Disabled...

  • Page 32: Changing Default Settings

    Configuration Using Code Symbols Configuration Field Default Setting Order by Code Symbology Disabled Autoscan Mode Disabled Autoscan Aiming System Enabled Autoscan Hardware Trigger Enabled Autoscan Illumination System Disabled 500 ms (if Autoscan mode or Software trigger type is Safety Time selected and the Multiple Reads per Cycle option is enabled.
  • Page 33 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK RS-232 INTERFACE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL RS-232 INTERFACE 1200 baud 2400 baud AODOBPHMHNGNENEIEPANHOGOCK AODOBPHMHNGNENEIEPANHOGOCK AHHPMBIMDKEOFMHMLJALEAEHIK AHHPMBAMDKEOFMHMLJAKFFEFIK AKCBPJCJGIIJCMCFGKKJKOJDJK AKCBPJCJGIIJCMCEHMOCCMGBNK AEFBJLBGMHPLMKBDIAOJAOCFGK AEFBJLBGMHPKNKGHFCHBECLHGK AAPHBAJJDEBGGOGPJMMKGENDBK AAPHBAJICAFOGLINMDNLINCNFK AGKFAMOCFGFEOEMPKONGEDGLJK AFKFAPIBAPGEIJIHHJLGAGJLIK DDDLLLLDDLLLLLLDLDLDDLDLDL...
  • Page 34 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK RS-232 INTERFACE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL ARITY None AODOCKHMHNGNENEIEPANHOGOCK AODOCKHMHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJAKEHDEIK AHHPMBIMDKEOFMHMLJAKEBBHIK AKCBPJCJGIIJCMCFHKNICLPJPK AKCBPJCJGIIJCMCFGLOEIEEHJK AEFBJLBGMHPKMKCBGHIFAIHGGK AEFBJLBGMHPKMNFFJCPJKOMHGK AAPHBAJICBECCPIFDALHLEPDBK AAPHBAJIDCAFHGCKNNPLNMJBHK AHKFAKNLOFKOENMPPBAEMFGLKK AGKFAPMCCDJIOHIKFEHIEMBKIK DLLLLLLDDDLLLLLDDLLDDLDLDL DLLLLLLDDDLLLLLDLLLDDLDLDL Even AODOCKHMHNGNENEIEPANHOGOCK AHHPMBAMDKEOFMHMLJALFEBFIK...
  • Page 35 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK RS-232 INTERFACE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL RX T IMEOUT RX Timeout Read a number in the range  AODKBPHMFNGNENEIEPANHOGOCK AHPNIJAMDKEOFMHMLJALFFCFIK AKCBPJCJGIIJCMCEGJNHKMOHPK 00-99, where: AEFBJLBGMHPLMOFHAGONLNCEGK AAPHBAJJDFAAALCKIJIBHMDDFK AFKFAMNLMCOCGLMJDCDIENPLKK...
  • Page 36 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK RS-232 INTERFACE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL FIFO Disabled Enabled AODKGKFOHNGNENEIEPANHOGOCK AODKGKFOHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJALEHEEIK AHHPMBIMDKEOFMHMLJALEBGHIK AKCBPJCJGIIJCMCFHKPBPDILLK AKCBPJCJGIIJCMCFGLMNFMDFNK AEFBJLBGMHPLMKFOFBKAHDNHGK AEFBJLBGMHPLMNCKKENMNFGGGK AAPHBAJJDDHLEHJBMCFNGJDNHK AAPHBAJJCADMBODOCPBBABFPBK AGKFAILCKNMOEJCKPGAMODCKIK AHKFANKLGLPIODGPFDHAGKFLKK DLDLLLLDLLDLLLLDLDDDDLDLLL DLDLLLLDLLDLLLLDDDDDDLDLLL NTERCHARACTER ELAY...

  • Page 37: Usb Com Emulation

    Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL USB COM Emulation ANDSHAKE None XON/XOFF AOALGKHMHNGNENEIEPANHOGOCK AOALGKHMHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJALFDBFIK AHHPMBIMDKEOFMHMLJALFFDGIK AKCBPJCJGIIJCMCEHONJKCAFPK AKCBPJCJGIIJCMCEGPOFANLLJK AEFBJLBGMHPKMMEGABIEOIJGGK AEFBJLBGMHPKMLDCPEPIEOCHGK AAPHBAJICGEOOFKLJMHMGMPDFK AAPHBAJIDFAJLMAEHBDAAEJBDK AGLFAJIKEDPOKPPMNLCCCFGIJK AHLFAMJDIFMIAFLJHOFOKMBJLK DLLLLLLDDLDLLLLDDDLDDLDLLL DLLLLLLDDLDLLLLDLDLDDLDLLL RTS/CTS...
  • Page 38 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL NTERCODE ELAY Intercode Delay AOALBPFOHNGNENEIEPANHOGOCK = disabled AHPNIJAMDKEOFMHMLJALFEHEIK AKCBPJCJGIIJCMCEHOLJCCLLPK AEFBJLBGMHPKMKHHHMDHGNPHGK 01-99 = delay from 1 to 99 AAPHBAJIDAHFGABNDAIPBNELBK AELFANMJEEGKOPKMLLMCEOMLLK DDDLLLLDLDDLLLLDLDDDDLDLLL RX T...

  • Page 39: Usb Keyboard Emulation

    Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL USB Keyboard Emulation FIFO Disabled Enabled AOAPGKFOHNGNENEIEPANHOGOCK AOAPGKFOHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJALECDEIK AHHPMBIMDKEOFMHMLJALEEBHIK AKCBPJCJGIIJCMCEHJJOKGPNLK AKCBPJCJGIIJCMCEGIKCAJEDNK AEFBJLBGMHPLMPBJKCBJCCEFGK AEFBJLBGMHPLMIGNFHGFIEPEGK AAPHBAJICBGIEIKMBJAMEMFDFK AAPHBAJIDCCPBBADPEEACEDBDK AHLFAJLKDIKCEOHGFFIACHKIKK AGLFAMKDPOJEOEDDPAPMKONJIK DDDLLDLDDDLLLLLDLDDDDLDLLL DDDLLDLDDDLLLLLDDDDDDLDLLL NTERCHARACTER...
  • Page 40 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL EYBOARD ATIONALITY This parameter default value is restored through the Interface Selection code and not Restore Default. Belgian English AOAPCOGMHNGNENEIEPANHOGOCK AOAPCOHMHNGNENEIEPANHOGOCK...
  • Page 41 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL EYBOARD PEED This parameter default value is restored through the Interface Selection code and not Restore Default. Normal Fast AOAPBPGMFNGNENEIEPANHOGOCK AOAPBPHMFNGNENEIEPANHOGOCK...

  • Page 42: Ibm 46Xx

    Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL USB IBM TableTop HandHeld IBM 46XX ROTOCOL Port 9B (4501) Port 5B (1520) ORMAT Code 39 Mixed IBM Standard Gryphon™...

  • Page 43: Wedge Interface

    Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK WEDGE INTERFACE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL WEDGE INTERFACE Caps Lock Off Caps Lock On AOCOCOFOHNGNENEIEPANHOGOCK AOCOCOFOHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJAKEEHFIK AHHPMBIMDKEOFMHMLJAKECFGIK AKCBPJCJGIIJCMCFHPJMFONJPK AKCBPJCJGIIJCMCFGOKAPBGHJK AEFBJLBGMHPKMPEAEFKPFEBEGK AEFBJLBGMHPKMIDELANDPCKFGK AAPHBAJJDDHLCANDMPHCNCFDHK AAPHBAJJCADMHJHMCCDOLKDBBK AFLFALKFFFDCEGMMLKJKOLEKJK...
  • Page 44 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK WEDGE INTERFACE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL EYBOARD ATIONALITY This parameter default value is restored through the Interface Selection code and not Restore Default.
  • Page 45 Default Settings EYBOARD ETTING The values set by this procedure are not effected by the Restore Default code but will be lost if the Interface Selection code is read. Set Alphanumeric Keys AOCOBLHMHNGNENEIEPANHOGOCK AHPNIJAMDKEOFMHMLJAKEFHEIK AKCBPJCJGIIJCMCFHKIFCIDNNK AEFBJLBGMHPKNOEFDMIDAIKGGK AAPHBAJJDBGBFEFKLAHODLCLBK AELFAONNHNGEOMLLCMDAAFDLLK DDLLLLLDLLLLLLLDDDLDDLDLLL The reader can be used with terminals or PCs with various keyboard types and nationalities through a simple keyboard setting procedure.
  • Page 46 Configuration Using Code Symbols Table 2 . Alphanumeric Keys 01 : Shift 02 : Alt 03 : Ctrl 04 : Backspace 05 : SPACE 28 : 7 51 : N 06 : ! 29 : 8 52 : O 07 : " 30 : 9 53 : P 08 : #...

  • Page 47: Extended Header/Terminator Keys

    Default Settings Extended Header/Terminator Keys For the WEDGE interface, the following extended keyboard values can also be configured. These values are restored through the Interface Selection code and not Restore Default. Table 3 . Extended Keyboard to Hex Conversion Table IBM AT ENTER HOME...
  • Page 48 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK WEDGE INTERFACE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL USTOM XTENDED EADER ERMINATOR Set Extended Keys AOCOBLHMFNGNENEIEPANHOGOCK AHPNIJAMDKEOFMHMLJAKFAHEIK AKCBPJCJGIIJCMCEGJMDPHOPJK AEFBJLBGMHPKNMHNBGHNEDDEGK AAPHBAJJCBCBJNFHFHFBFPJNHK AFLFAOPHBFNMIOAIIIOEMAEJLK DLLLLLLDDDLLLLLDLDDDDLDLLL The extended Header/Terminator keys for Wedge Interface users can be customized by defining them through a simple keyboard setting procedure.
  • Page 49 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK WEDGE INTERFACE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL Table 4 . Custom Extended Keyboard Setttings Custom Order Shift Ctrl Backspace Acoustic Signals Four types of acoustic signals are associated with the following steps: 1.

  • Page 50: Data Format

    Custom Code ID AOCPCOHMHNGNENEIEPANHOGOCK AOCPCOHMHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJAKFFAFIK AHHPMBIMDKEOFMHMLJAKFDCGIK AKCBPJCJGIIJCMCFGNOPBGHPJK AKCBPJCJGIIJCMCFHMNDLJMBPK AEFBJLBGMHPKNIGPNAEBNHLEGK AEFBJLBGMHPKNPBLCFDNHBAFGK AAPHBAJICGHAMCNFBEFLHEFBDK AAPHBAJIDFDHJLHKPJBHBMDDFK AHLFAOKCHHDGGGHMMLMEENPIKK AGLFALLLLBAAMMDJGOLIMEIJIK DLDLLLLDDLLLLLLDDLDDDLDLLL DLDLLLLDDLLLLLLDLLDDDLDLLL AIM Standard Code ID Datalogic Code ID AOCPCOHMHNGNENEIEPANHOGOCK AOCPCOHMHNGNENEIEPANHOGOCK AHHPMBAMDKEOFMHMLJALEGCEIK AHHPEJIMDKEOFMHMLJAKECFFIK AKCBPJCJGIIJCMCEGKJIDLDDLK AKCBPJCJGIIJCMCEHPNJFAEHNK AEFBJLBGMHPLMPGPPHKFDNJHGK AEFBJLBGMHPKNLFGGOPHKJNGGK AAPHBAJJCBHPJOJIKGAGPFMNBK AAPHBAJJCBEBABOMNOJCIEBNBK AFLFAINIOIDAKBHBLJNIIBHJJK AGKFAJKGNAGCAIGNCLHAIDBLIK DLDLLLLDDLLLLLLDDLDDDLDLLL DLLLLLLDDLLLLLLDDLLDDLDLDL Gryphon™ D432/D412Plus...
  • Page 51 AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL USTOM DENTIFIER Custom Code Identifier AOCPBLHMHNGNENEIEPANHOGOCK 1. Select a Datalogic Standard Code Identifier AHPNIJAMDKEOFMHMLJALEHFHIK AKCBPJCJGIIJCMCFGJLLDNBJNK from the Code Identifier Table in AEFBJLBGMHPKNOGANCECFEMGGK AAPHBAJIDDGNCMJCAFDEFOFNHK AEKFALLKNIIMEADJNKJEAODLJK Appendix C. DLDLLLLDDDLLLLLDLLLDDLDLLL 2. Set the number of characters in the range 0-3, where 0 = Code ID disabled.
  • Page 52 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK DATA FORMAT AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL ERMINATORS Set Terminators AOCLBPHMHNGNENEIEPANHOGOCK 1. Set the number of characters in the AHPNIJAMDKEOFMHMLJAKFAHGIK AKCBPJCJGIIJCMCEGKMBDAFBPK range 00-10. AEFBJLBGMHPLNOFGDKLPFPNFGK AAPHBAJICHAICAAEDMENDAINBK AFKFAMKDELFIIOFHBCGIKDELJK...

  • Page 53: Symbology Dependent Parameters

    The “Symbology Specific Format Default” code on page 54 allows restoring the symbology dependent parameters related to a specific code family to the default values. YMBOLOGY PECIFIC ORMAT Symbology Specific Format AOCLCIHOFNGNENEIEPANHOGOCK 1. Select a Datalogic Standard Code Identifier AHPNIBAMDKEOFMHMLJAKEGHGIK AKCBPJCJGIIJCMCFHLNMJCGPLK from the Code Identifier Table in AEFBJLBGMHPLMMGPEPDOAPMGGK AAPHBAJJDCFMDNCMBONAPKCNHK AGKFALICLLGKIBEJGFOCKENJLK Appendix C.
  • Page 54 AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL EADERS Headers AOCPFPHMFNGNENEIEPANHOGOCK 1. Select a Datalogic Standard Code Identifier AHPNIJAMDKEOFMHMLJALEBGEIK AKCBPJCJGIIJCMCFHKPEEAKDLK from the Code Identifier Table in AEFBJLBGMHPKNPAPMMGMNIIHGK AAPHBAJIDDEICPPPODIOCPCPHK AELFANOCPAJCGLHLEJKOEMJJLK Appendix C. DLLLLDLDLLDLLLLDLLDDDLDLLL 2. 0 = disabled 1 = enabled YMBOLOGY...
  • Page 55 AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL YMBOLOGY HARACTER UBSTITUTION Symbology Character Substitution AOCPBLHMHNGNENEIEPANHOGOCK 1. Select a Datalogic Standard Code Identifier AHPNIJAMDKEOFMHMLJAKFAGGIK AKCBPJCJGIIJCMCFGLKMBHMJPK from the Code Identifier Table in AEFBJLBGMHPKMKHEEDGFDMGHGK AAPHBAJJDCFDBILOKBFBDLPDDK AHKFAINIMEHCEPHBKFHEKPGIIK Appendix C. DLLLLDLDDLDLLLLDLDDDDLDLLL 2. Read the corresponding character as Hex value from the Hex/Numeric table which identifies the character to be substituted.
  • Page 56 AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL HARACTER ELETION Character Deletion AOCLFPHMFNGNENEIEPANHOGOCK 1. Select a Datalogic Standard Code Identifier AHPNIJAMDKEOFMHMLJALFECHIK AKCBPJCJGIIJCMCFHOOJDDAJLK from the Code Identifier Table in AEFBJLBGMHPLNPEOIFPJKFDFGK AAPHBAJJCCFHCMBKKMPIKJFFBK AEKFAONABANMAJILDPBGECLIIK Appendix C. DDLLLDLDLDLLLLLDDDLDDLDLDL 2. 0 = disabled 1 = enabled...

  • Page 57: Concatenation Options

    AKCBPJCJGIIJCMCEHMPHLLLBLK concatenate in the range 2-4. AEFBJLBGMHPLMIANCAAOAKEHGK AAPHBAJIDDAMNCFGAJAINJDPDK AGLFALMAEMIEEPDCHHBIGEDLLK DLLLLDLDLLLLLLLDLLDDDLDLDL 2. Select the Datalogic Standard Code Identifier for each code to concatenate (repeat for same code types) from the table in Appendix C. 3. Read the following Code to enable the configuration you have set.
  • Page 58 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK DATA FORMAT AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL HIRD ONCATENATED ENGTH Set Third Concatenated Code Length AOCLCKHOBNGNENEIEPANHOGOCK Read the number in the AHHPEJIMDKEOFMHMLJAKFBGEIK AKCBPJCJGIIJCMCEHIKFCDNJJK range 000-255.
  • Page 59 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK DATA FORMAT AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL RANSMISSION FTER IMEOUT No Code Transmission First Code Transmission AOCLCKFOFNGNENEIEPANHOGOCK AOCLCKFOFNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJALFDEGIK AHHPMBIMDKEOFMHMLJALFFGFIK AKCBPJCJGIIJCMCFHOIJLDLHLK AKCBPJCJGIIJCMCFGPLFBMAJNK AEFBJLBGMHPLNJHPPIEKCAFEGK AEFBJLBGMHPLNOALANDGIGOFGK AAPHBAJJDEGMKJKMAAALNIONFK AAPHBAJJCHCLPAADONEHLAIPDK...

  • Page 60: Power Save

    Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK POWER SAVE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL POWER SAVE LLUMINATION YSTEM OWER Illumination System OFF Illumination System ON APDMCOHMHNGNENEIEPANHOGOCK APDMCOHMHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJALFFFHIK AHHPMBIMDKEOFMHMLJALFDHEIK AKCBPJCJGIIJCMCFGOLCIKNHNK AKCBPJCJGIIJCMCFHPIOCFGJLK AEFBJLBGMHPLNPBMDCLPNODEGK AEFBJLBGMHPLNIGIMHMDHIIFGK...
  • Page 61 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK CODE SELECTION AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL CODE SELECTION Disable All Symbologies Disable All Linear Symbologies APCPCKHMHNGNENEIEPANHOGOCK APCPGKHMHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJAKFHEHIK AHHPMJAMDKEOFMHMLJAKFBCHIK AKCBPJCJGIIJCMCEHPIFJNCLPK AKCBPJCJGIIJCMCEHKPMGLHBNK AEFBJLBGMHPKNPEHGMLHNABFGK AEFBJLBGMHPKMIHDGICIAJMGGK AAPHBAJICFBOAJJGCKPDGADNBK AAPHBAJIDBDPPIKJPJAMPIPNDK...

  • Page 62: Linear Symbologies

    Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK CODE SELECTION AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL Linear Symbologies UPC/EAN/JAN F AMILY EAN/UPC/JAN Disabled EAN/UPC/JAN Enabled APCLCOHMHNGNENEIEPANHOGOCK APCLCOHMHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJALFHAGIK AHHPMBIMDKEOFMHMLJALFBCFIK AKCBPJCJGIIJCMCFHPJEAPMJJK AKCBPJCJGIIJCMCFGOKIKAHHPK AEFBJLBGMHPKNJGOAPBLPJDHGK AEFBJLBGMHPKNOBKPKGHFPIGGK AAPHBAJJDDGHGLPOOCPECPMHBK AAPHBAJJCACADCFBAPLIEHKFHK...
  • Page 63 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK CODE SELECTION AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL 39 F AMILY ONTINUED Code 39 Full ASCII - Disabled Code 39 Full ASCII- Enabled APCPCKHMFNGNENEIEPANHOGOCK APCPCKHMFNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJAKFFCHIK AHHPMBIMDKEOFMHMLJAKFDAEIK...
  • Page 64 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK CODE SELECTION AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL NTERLEAVED AMILY Disabled Enabled - No Check Digit Control APCLGOHMHNGNENEIEPANHOGOCK APCLGOHMHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJALFBGGIK AHHPMBIMDKEOFMHMLJALFHEFIK AKCBPJCJGIIJCMCFHKONPJJDLK AKCBPJCJGIIJCMCFGLNBFGCNNK AEFBJLBGMHPKMOFKALIECAOEGK AEFBJLBGMHPKMJCOPOPIIGFFGK AAPHBAJJCHEGJKMBDBALLHAHDK AAPHBAJJDEABMDGONMEHNPGFFK...
  • Page 65 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK CODE SELECTION AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL ODABAR AMILY Disabled Enabled - No Check Digit Control APCLGKHMHNGNENEIEPANHOGOCK APCLGKHMHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJAKFDAEIK AHHPMBIMDKEOFMHMLJAKFFCHIK AKCBPJCJGIIJCMCEHNIKIHHBJK AKCBPJCJGIIJCMCEGMLGCIMPPK AEFBJLBGMHPKMOCNKKOMFGEFGK AEFBJLBGMHPKMJFJFPJAPAPEGK AAPHBAJICCDMJFLCEHAEFPKNDK AAPHBAJIDBHLMMBNKKEIDHMPFK...
  • Page 66 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK CODE SELECTION AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL 128 F AMILY Code 128 - Disabled Code 128 - Enabled APCPCOHMHNGNENEIEPANHOGOCK APCPCOHMHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJALECEFIK AHHPMBIMDKEOFMHMLJALEEGGIK AKCBPJCJGIIJCMCFHLIJHMGDJK AKCBPJCJGIIJCMCFGKLFNDNNPK AEFBJLBGMHPLNJCPEGIOIEIFGK AEFBJLBGMHPLNOFLLDPCCCDEGK...
  • Page 67 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK CODE SELECTION AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL 128 F AMILY ONTINUED EAN 128 - Code Length Check Dis- abled EAN 128 - Code Length Check Enabled APCPGOHMFNGNENEIEPANHOGOCK APCPGOHMFNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJAKFBHEIK...
  • Page 68 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK CODE SELECTION AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL GS1 DATABAR™ F AMILY Disable GS1 DataBar Expanded Enable GS1 DataBar Expanded APCLCOHMHNGNENEIEPANHOGOCK APCLCOHMHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJAKEADHIK AHHPMBIMDKEOFMHMLJAKEGBEIK AKCBPJCJGIIJCMCFHNIDCFBJLK AKCBPJCJGIIJCMCFGMLPIKKHNK AEFBJLBGMHPKMNHKJODMJBJGGK...
  • Page 69 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK CODE SELECTION AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL 2D Symbologies PDF417 Disabled Enabled APCPGOHMHNGNENEIEPANHOGOCK APCPGOHMHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJAKFDBEIK AHHPMBIMDKEOFMHMLJAKFFDHIK AKCBPJCJGIIJCMCFHMOHKAOJJK AKCBPJCJGIIJCMCFGNNLAPFHPK AEFBJLBGMHPLNKAPNDDGDFPHGK AEFBJLBGMHPLNNHLCGEKJDEGGK AAPHBAJJDHGHKNAINKBIFENDBK AAPHBAJJCECAPEKHDHFEDMLBHK AELFAMOOAMMACJGJHEHMCFFJKK AFLFAJPHMKPGIDCMNBAAKMCIIK DLDLLDLDLDLLLLLDLLLDDLDLLL DLDLLDLDLDLLLLLDDLLDDLDLLL...
  • Page 70 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK CODE SELECTION AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL ATRIX AMILY Disabled Enabled APCPGKHMHNGNENEIEPANHOGOCK APCPGKHMHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJALFBHGIK AHHPMBIMDKEOFMHMLJALFHFFIK AKCBPJCJGIIJCMCEHLIANOALLK AKCBPJCJGIIJCMCEGKLMHBLFNK AEFBJLBGMHPLNKHIHCFOEDFGGK AEFBJLBGMHPLNNAMIHCCOFOHGK AAPHBAJIDCBNKCHLKMBHLMHJBK AAPHBAJICBFKPLNEEBFLNEBLHK AFKFAIMFHPFKIFPHMKDIIGAIJK AEKFANNMLJGMCPLCGPEEAPHJLK DLLLLDLDDDDLLLLDDDLDDLDLDL DLLLLDLDDDDLLLLDLDLDDLDLDL Minimum Code Length...
  • Page 71 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK CODE SELECTION AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL OSTAL ODES AMILY All Disabled Australian Post - Enabled APCLGKHMHNGNENEIEPANHOGOCK APCLGKHMHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJALEEDFIK AHHPMBIMDKEOFMHMLJALECBGIK AKCBPJCJGIIJCMCEHPJNKNKBLK AKCBPJCJGIIJCMCEGOKBACBPNK AEFBJLBGMHPKNKDJDLMLDOOEGK AEFBJLBGMHPKNNENMOLHJIFFGK AAPHBAJJCDACKBJOODGBDKADHK AAPHBAJJDAEFPIDBAOCNFCGBBK...

  • Page 72: Australian Table Selection

    Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK CODE SELECTION AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL AUSTRALIAN TABLE SELECTION N Table C Table APCLGKHMFNGNENEIEPANHOGOCK APCLGKHMFNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJALFBDFIK AHHPMBIMDKEOFMHMLJALFHBGIK AKCBPJCJGIIJCMCFGMNLHCHDPK AKCBPJCJGIIJCMCFHNOHNNMNJK AEFBJLBGMHPKNIABBBDFHFHGGK AEFBJLBGMHPKNPHFOEEJNDMHGK AAPHBAJJDDECGIJDAEEOFOLFBK AAPHBAJJCAAFDBDMOJACDGNHHK AELFALNNPHKMIFLEBIFEENFLKK AFLFAOMEDBJKCPPBLNCIMECKIK...
  • Page 73 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK CODE SELECTION AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL Maxicode Mode 4 - Disabled Maxicode Mode 4 - Enabled APCPCKHKFNGNENEIEPANHOGOCK APCPCKHKFNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJAKFABGIK AHHPMBIMDKEOFMHMLJAKFGDFIK AKCBPJCJGIIJCMCEHKMLBDCJNK AKCBPJCJGIIJCMCEGLPHLMJHLK AEFBJLBGMHPKMNEBLMNJGGMHGK AEFBJLBGMHPKMKDFEJKFMAHGGK AAPHBAJJDFFEBHJPGPOKHBINDK...
  • Page 74 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK CODE SELECTION AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL OMPOSITE ODES Before enabling this symbology, it is necessary to enable the linear barcode family (among GS1 DATABAR, EAN128 or UPC/EAN) contained in the com- posite code to be read.
  • Page 75 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK READING PARAMETERS AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL READING PARAMETERS RIGGER Trigger Level Trigger Pulse APCOCOHMHNGNENEIEPANHOGOCK APCOCOHMHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJAKEAGGIK AHHPMBIMDKEOFMHMLJAKEGEFIK AKCBPJCJGIIJCMCFGILHGJEHJK AKCBPJCJGIIJCMCFHJILMGPJPK AEFBJLBGMHPLNJAKKIEPNIOFGK AEFBJLBGMHPLNOHOFNDDHOFEGK AAPHBAJJCAHEBANDBIMIMMMLBK AAPHBAJJDDDDEJHMPFIEKEKJHK AEKFALNAJKBEGAIEALHCAKNIJK AFKFAOMJFMCCMKMBKOAOIDKJLK...
  • Page 76 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK READING PARAMETERS AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL EEPER OLUME Beeper OFF Low Volume APDNCKHMFNGNENEIEPANHOGOCK APDNCKHMFNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJALEABGIK AHHPMBIMDKEOFMHMLJALEGDFIK AKCBPJCJGIIJCMCFGJKNDOMDLK AKCBPJCJGIIJCMCFHIJBJBHNNK AEFBJLBGMHPLNNHGFHOILPGHGK AEFBJLBGMHPLNKACKCJEBJNGGK AAPHBAJJDEABIIAFCGBJLGHDHK AAPHBAJJCHEGNBKKMLFFNOBBBK AHKFAOJHOIPOEOGEOGECMGDKKK AGKFALIOCOMIOECBEDDOEPELIK DDDLLLLDLLLLLLLDLDDDDLDLDL...

  • Page 77: User Defined Beeper

    Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK READING PARAMETERS AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL Disable Enable Short APCOCOHMHNGNENEIEPANHOGOCK APCOCOHMHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJALFHFHIK AHHPMBIMDKEOFMHMLJALFBHEIK AKCBPJCJGIIJCMCFGKKAEDJHLK AKCBPJCJGIIJCMCFHLJMOMCJNK AEFBJLBGMHPLMNBODJGILAEEGK AEFBJLBGMHPLMKGKMMBEBGPFGK AAPHBAJICBEKCEPPLMKNKJGFFK AAPHBAJIDCANHNFAFBOBMBAHDK AHKFAILCIGOKGPMMHEJCKLILIK AGKFANKLEANMMFIJNBOOCCPKKK DLDLLDLDLDDLLLLDDDDDDLDLDL DLDLLDLDLDDLLLLDLDDDDLDLDL Enable Medium Enable Long...
  • Page 78 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK READING PARAMETERS AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL EFINED EEPER OLUME Beeper OFF Low Volume APDNCKFMHNGNENEIEPANHOGOCK APDNCKFMHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJALEFEEIK AHHPMBIMDKEOFMHMLJALEDGHIK AKCBPJCJGIIJCMCFGPMIEHNPPK AKCBPJCJGIIJCMCFHOPEOIGBJK AEFBJLBGMHPLMLAILLLFJCFHGK AEFBJLBGMHPLMMHMEOMJDEOGGK AAPHBAJICHEKELAACOKAEILHBK AAPHBAJIDEANBCKPMDOMCANFHK AELFAMPJJGEMILJBJIEAEKFLKK AFLFAJOAFAHKCBNEDNDMMDCKIK...

  • Page 79: Code Ordering And Selection

    Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK READING PARAMETERS AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL Code Ordering and Selection ODES PER One Code per Scan All Codes per Scan APCKGOHMFNGNENEIEPANHOGOCK APCKGOHMFNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJAKEGEFIK AHHPMBIMDKEOFMHMLJAKEAGGIK AKCBPJCJGIIJCMCEHKJFDDGFPK...
  • Page 80 Select the number of codes in AHPNIJAMDKEOFMHMLJAKEEAHIK AKCBPJCJGIIJCMCFGPKMGNENLK the range 0-9. AEFBJLBGMHPKNJGKFLAALGHHGK AAPHBAJJCFCGFDNNCBIJALKDHK AGLFALNLKIAEAMIJIJEICMAIIK DLLLLLLDLDDLLLLDLDLDDLDLLL Select the Datalogic Standard Code Identifier for each above defined code from the table in Appendix C. See "Defining Data Formatting" on page 16 for details. Autoscan UTOSCAN...
  • Page 81 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK READING PARAMETERS AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL UTOSCAN ARDWARE RIGGER Disabled Enabled APCOCKFOHNGNENEIEPANHOGOCK APCOCKFOHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJAKFBFHIK AHHPMBIMDKEOFMHMLJAKFHHEIK AKCBPJCJGIIJCMCEGOJNEKCHNK AKCBPJCJGIIJCMCEHPKBOFJJLK AEFBJLBGMHPLMOHHHCAIHBIEGK AEFBJLBGMHPLMJADIHHENHDFGK AAPHBAJIDCAJIFGOAAKEOHBFDK AAPHBAJICBEONMMBONOIIPHHFK AHKFAPJLGOGCEACIDCMMAEDLLK AGKFAKICKIFEOKGNJHLAINEKJK DLDLLLLDDDLLLLLDLDDDDLDLDL DLDLLLLDDDLLLLLDDDDDDLDLDL...
  • Page 82 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK CAPTURE IMAGE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL CAPTURE IMAGE In order to capture an image, you should read one of these codes (for further details see "Image Capturing"...
  • Page 83 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK ADVANCED IMAGE CAPTURE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL ADVANCED IMAGE CAPTURE Image Preset 1 Basic Configuration – MAGE ORMAT PRESET JPEG Format TIFF Format APCNCOHMHNGNENEIEPANHOGOCK APCNCOHMHNGNENEIEPANHOGOCK AHHPMBIMDKEOFMHMLJAKEDCHIK...
  • Page 84 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK ADVANCED IMAGE CAPTURE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL Advanced Configuration – RIGHTNESS PRESET Increase Read a number in the range  APCNCOHKHNGNENEIEPANHOGOCK AFPFKJAMDKEOFMHMLJAKFDCELK ADPCPJCJGIIJCMCFHIPPHGLNOK 0-100 AIFBJLBGMHPLMJBELBBMIHELKK...
  • Page 85 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK ADVANCED IMAGE CAPTURE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL – OLOR EPTH PRESET 2 Grey Levels* 16 Grey Levels* APCNCOHODNGNENEIEPANHOGOCK APCNCOHODNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJAKEDCFIK AHHPMBIMDKEOFMHMLJAKEFAGIK AKCBPJCJGIIJCMCEGLLFECGHJK AKCBPJCJGIIJCMCEHKIJONNJPK AEFBJLBGMHPKNJEKPNMJGHNGGK AEFBJLBGMHPKNODOAILFMBGHGK...
  • Page 86 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK ADVANCED IMAGE CAPTURE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL Advanced Configuration – RIGHTNESS PRESET Increase Read a number in the range  APCNCKHKHNGNENEIEPANHOGOCK AFPFKJAMDKEOFMHMLJAKFCDGLK ADHCPJCJGIIJCMCEHILNFHGNKK 0-100 AIFBJLBGMHPKNOHJOGBHOHCLKK...
  • Page 87 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK ADVANCED IMAGE CAPTURE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL – OLOR EPTH PRESET 2 Grey Levels* 16 Grey Levels* APCNCKHODNGNENEIEPANHOGOCK APCNCKHODNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJALEBEHIK AHHPMBIMDKEOFMHMLJALEHGEIK AKCBPJCJGIIJCMCFGMNCDMIFLK AKCBPJCJGIIJCMCFHNOOJDDLNK AEFBJLBGMHPKNJDNFMKBBBHHGK AEFBJLBGMHPKNOEJKJNNLHMGGK...
  • Page 88 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK ADVANCED IMAGE CAPTURE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL Image Preset 3 Basic Configuration – MAGE ORMAT PRESET JPEG Format TIFF Format APCJGOHMHNGNENEIEPANHOGOCK APCJGOHMHNGNENEIEPANHOGOCK AHHPMBIMDKEOFMHMLJAKFAAEIK AHHPMBAMDKEOFMHMLJALEFAGIK AKCBPJCJGIIJCMCEGOLKODPNNK...
  • Page 89 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK ADVANCED IMAGE CAPTURE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL Advanced Configuration – RIGHTNESS PRESET Increase Read a number in the range  APCJGOHKHNGNENEIEPANHOGOCK AFPFKJAMDKEOFMHMLJAKFACELK ALPCPJCJGIIJCMCEHNNMGGBPEK 0-100 AIFBJLBGMHPKMKFILFKKCKIIKK...
  • Page 90 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK ADVANCED IMAGE CAPTURE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL – OLOR EPTH PRESET 2 Grey Levels* 16 Grey Levels* APCJGOHODNGNENEIEPANHOGOCK APCJGOHODNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJAKFAAGIK AHHPMBIMDKEOFMHMLJAKFGCFIK AKCBPJCJGIIJCMCEGKNBMHJHLK AKCBPJCJGIIJCMCEHLONGICJNK AEFBJLBGMHPLMODPLAMDMDLHGK AEFBJLBGMHPLMJELEFLPGFAGGK...
  • Page 91 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK ADVANCED IMAGE CAPTURE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL JPEG Q – UALITY ACTOR PRESET JPEG Quality Factor APCJFLFOHNGNENEIEPANHOGOCK Set the JPEG compression AHPNIJAMDKEOFMHMLJAKFHCGIK AKCBPJCJGIIJCMCEHKJPDKKHJK level in the range 000-100.
  • Page 92 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK ADVANCED IMAGE CAPTURE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL – ONTRAST PRESET Increase Read a number in the range  APCJGKHKFNGNENEIEPANHOGOCK AFPFKJAMDKEOFMHMLJAKECGELK ALHCPJCJGIIJCMCFHJPPPNOFEK 0-100 AMFBJLBGMHPKMIHJELLLCANJKK AAPHBAJIDACCLEJOPMGKLKKDDK AEKFAKIKKPEKEADPDOHOMIFIIK...

  • Page 93: Advanced Data Format

    Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK ADVANCED IMAGE CAPTURE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL Advanced Data Format Advanced data format has been designed to offer you complete flexibility in changing the format of barcode data before transmitting it to the host system.

  • Page 94: Format Definition

    Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK ADVANCED IMAGE CAPTURE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL Format Definition STEP 1. FORMAT DEFINITION Define Format 1 Define Format 2 AOCLGKHMFNGNENEIEPANHOGOCK AOCLGKHMFNGNENEIEPANHOGOCK AHHPMBIMDKEOFMHMLJAKEAFGIK AHHPMBAMDKEOFMHMLJALFFFEIK AKCBPJCJGIIJCMCFGLIBLHNBJK AKCBPJCJGIIJCMCEHNMKDFCDNK...
  • Page 95 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK ADVANCED IMAGE CAPTURE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL STEP 2. FORMAT DEFINITION Method 1 - Extracting Information from Barcode Method 1 allows extracting one or more fields by position or by characters from the decoded barcode.
  • Page 96 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK ADVANCED IMAGE CAPTURE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL Example Method 1 Extracting Information from Barcode Decoded code: <DATALOGICproduct> Formatting procedure: Add new string + Extract field by position + Add new string + Extract field by character + Add new string Add New String String...

  • Page 97: Field Extraction By Character

    Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK ADVANCED IMAGE CAPTURE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL FIELD EXTRACTION BY CHARACTER Define Field Starting Character(s) Field Starting Character(s) AOCKHMFKFNGNENEIEPANHOGOCK Read the Hex value from the Hex/Numeric table AHJLJFGOPKEOFMHMLJALEDGHKK AOJDPBCJGIIJCMCEGNOJDNBPEK identifying the starting character(s) of the field to...

  • Page 98: Field Extraction By Position

    Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK ADVANCED IMAGE CAPTURE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL FIELD EXTRACTION BY POSITION Define Field Starting Position Field Starting Position AOBLHMFKFNGNENEIEPANHOGOCK Read a number corresponding to the field AHJLJDHODKEOFMHMLJAKFAAEKK AOJDPBCJGIIJCMCFHLLMNMLLCK starting position.

  • Page 99: Add New String

    Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK ADVANCED IMAGE CAPTURE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL ADD NEW STRING Define New String String Character(s) ANGOGIFKDNGNENEIEPANHOGOCK Read the Hex value from the Hex/Numeric table AHPNIBAMDKEOFMHMLJAKFCDGIK AKCBPJCJGIIJCMCEHJLONAJLLK identifying the character(s).
  • Page 100 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK ADVANCED IMAGE CAPTURE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL Method 2 - Manipulating the Barcode Data Method 2 allows modifying the barcode data by means of one of the following procedures: •...

  • Page 101: String Insertion

    Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK ADVANCED IMAGE CAPTURE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL STRING INSERTION To complete this procedure proceed as follows: Define Form at 1, 2, 3, 4, or 5 Add String? Add new String...

  • Page 102: String Insertion Procedure

    Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK ADVANCED IMAGE CAPTURE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL String Insertion Procedure Insert String Insert String APCJHMFKFNGNENEIEPANHOGOCK AHJLJFGOPKEOFMHMLJAKFBEFKK Read the Hex value from the Hex/Numeric table identifying the char- AOJDPBCJGIIJCMCFGNNKPHPHEK AIFBJLBGMHPKMNFKECEKLIIKOK AAPHBAJJCHGNHBHGFNLIIFKNBK...

  • Page 103: String Deletion

    Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK ADVANCED IMAGE CAPTURE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL STRING DELETION To complete this procedure proceed as follows: Define Format 1, 2, 3, 4, or 5 Add String? Add new String...

  • Page 104: String Deletion Procedure

    Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK ADVANCED IMAGE CAPTURE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL String Deletion Procedure Delete String Delete AMHLGLEKHNGNENEIEPANHOGOCK Read the Hex value from the Hex/Numeric table AHLNEBIMDKEOFMHMLJAKEDDEJK AKCBPJCJGIIJCMCEHKMCKLPJPK identifying the string character(s) to be deleted.

  • Page 105: String Substitution

    Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK ADVANCED IMAGE CAPTURE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL STRING SUBSTITUTION To complete this procedure proceed as follows: Define Form at 1, 2, 3, 4, or 5 Add String? Add new String...
  • Page 106 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK ADVANCED IMAGE CAPTURE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL String Substitution Add New String Procedure String End Selec- Charac- tion ter(s) End String End Format ANGKCIHOFNGNENEIEPANHOGOCK AMHNGIFKDNGNENEIEPANHOGOCK ANGOGIFKDNGNENEIEPANHOGOCK...

  • Page 107: Field Deletion

    Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK ADVANCED IMAGE CAPTURE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL EITHER Add String AMHNGIFKDNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCGEIK To add a new string of characters read the code and follow the proce- AKCBPJCJGIIJCMCEHKODEMDDPK AEFBJLBGMHPKMOBCLFFFACLGGK AAPHBAJIDBGAJHMKPCBLOPFBFK...
  • Page 108 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK ADVANCED IMAGE CAPTURE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL Field Deletion Procedure Field Starting Field Ending Delete Character Character AMHLGLEKHNGNENEIEPANHOGOCK AOCKHMFKFNGNENEIEPANHOGOCK ANGKFLDMFNGNENEIEPANHOGOCK AHHPEBIMDKEOFMHMLJALEAHEIK AHJLJFGOPKEOFMHMLJALEDGHKK AHPNIJAMDKEOFMHMLJAKEFAHIK AKCBPJCJGIIJCMCEHILFPJABJK AOJDPBCJGIIJCMCEGNOJDNBPEK...
  • Page 109 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK ADVANCED IMAGE CAPTURE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL Define Field Starting Character Field Starting Character AOCKHMFKFNGNENEIEPANHOGOCK Read the Hex value from the Hex/Numeric table AHJLJFGOPKEOFMHMLJALEDGHKK AOJDPBCJGIIJCMCEGNOJDNBPEK identifying the starting characters.
  • Page 110 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK ADVANCED IMAGE CAPTURE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL End Format Definition End Format Definition AOHPGIFKDNGNENEIEPANHOGOCK Read the code to end the format definition. AHPNIBAMDKEOFMHMLJALFDHEIK AKCBPJCJGIIJCMCEGPJNABHNLK AEFBJLBGMHPKMIGKBFNOFMEFGK...

  • Page 111: Match Conditions

    Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK ADVANCED IMAGE CAPTURE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL Match Conditions By setting one or more of the following conditions it is possible to select the codes to be formatted.

  • Page 112: Format Enable/Disable

    DDDLLDLDDLDLLLLDDDLDDLDLLL ing to the desired format number; 2. set the number of the matching code sym- bologies in the range 0-4; 3. select the Datalogic Standard Code Identi- fier from the Code Identifier Table in Appendix C. Format Enable/Disable Format 1...
  • Page 113 Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK ADVANCED IMAGE CAPTURE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL Format 3 Format 4 AOCLGKHMHNGNENEIEPANHOGOCK AOCLGKHMHNGNENEIEPANHOGOCK AHHPEJIMDKEOFMHMLJAKEECFIK AHHPEJAMDKEOFMHMLJALFBCHIK AKCBPJCJGIIJCMCFHLMNIBIFPK AKCBPJCJGIIJCMCEGNIGADHHLK AEFBJLBGMHPLNIEABDLCBDLHGK AEFBJLBGMHPKMIDEMBCKFPCFGK AAPHBAJICADLMIGJJAHBBHKDBK AAPHBAJJDEHDMNILMPGAPOFNFK AHKFAMOGHAIKCDGMGKCGAKOKJK AEKFAPIFCJLKEOCELNEGEPBKIK DLDLLDLDDDLLLLLDDDDDDLDLLL DLDLLDLDDDLLLLLDLDDDDLDLLL...

  • Page 114: Mismatch Result

    Enter Reader Configuration Exit and Save Reader Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK ADVANCED IMAGE CAPTURE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL Mismatch Result The result of each format may be set in case the match conditions previously selected are not satisfied.

  • Page 115: Chapter 5. References

    Chapter 5 References RS-232 — USB COM ACK/NACK Protocol The transmission protocol takes place between reader and Host. Once the reader has read a code, it emits a good read beep and passes its data to the Host. When ACK/NACK is disabled, there is no control from reader to Host transmission. When ACK/NACK is enabled, the Host sends an ACK character (06 HEX) in the case of good reception or the NACK character (15 HEX) requesting re-transmission, in the case of bad reception.

  • Page 116: Code Selection

    References Code Selection Issue Identical Codes This parameter manages the code transmission when more than one code containing the same information is detected in a single scan. All identical codes are transmitted to the Host when the parameter is enabled; if disabled, only one of the identical codes is sent.

  • Page 117: Chapter 6. Test Code Symbols

    Chapter 6 Test Code Symbols Use these 1D and 2D test symbols to check that the reader is imaging and decoding properly, according to your configuration. UPC-A 52637 48509 EAN-13 1 234567 000992 Code 39 (Standard) Code 128 Product Reference Guide...
  • Page 118 Test Code Symbols PDF417 PDF417 DataMatrix (Normal) DataMatrix (Inverse) Gryphon™ D432/D412Plus...

  • Page 119: Chapter 7. Maintenance

    Chapter 7 Maintenance You do not need to perform regular preventative maintenance on the Gryphon D432/ D412Plus reader. Do not try to open the case, because you might damage the interior electronic components and such action voids the warranty. You can keep your reader in good operating condition by: •...
  • Page 120 Maintenance NOTES Gryphon™ D432/D412Plus...

  • Page 121: Chapter 8. Technical Features

    Chapter 8 Technical Features Gryphon D432/D412Plus Family Common Features Electrical Features Operating Voltage (D432Plus) 4.75 to 5.25 V (D412Plus ) 4.75 to 24V Power Consumption @ 5V (D432Plus , Typical) 245 mA @4.75V (D432Plus , Peak current) 330 mA @ 5V (D412Plus , Typical) 340 mA @ 4.75V...

  • Page 122: Technical Features

    Technical Features Optical Features (continued) Wavelength In the range 630 ~ 670 nm LED Safety Class Class 1 to EN 60825-1 Aiming System Visible Laser Diode Wavelength 650 nm Laser Safety Class Class 2 - EN 60825-1; Class II CDRH Ambient light 0 - 100000 lux Focus distance...
  • Page 123 Gryphon D432/D412 Plus™ Optical Features Focus distance 140 mm Field of view 28° (H) x 23° (V) Horizontal field of view at distance (d) in 0.52d + 15 Vertical field of view at distance (d) in mm 0.42d + 12 Linear codes - PDF 417 –...
  • Page 124 Technical Features Gryphon D432/D412 Plus™ HD Optical Features Focus distance 65 mm Field of view 27° (H) x 22° (V) Horizontal field of view at distance (d) in 0.50d + 13 Vertical field of view at distance (d) in mm 0.40d + 10 Linear codes - mm Max Resolution...
  • Page 125 Gryphon D432/D412Plus™ WA Optical Features Focus distance 115 mm Field of view 54° (H) x 45° (V) Horizontal field of view at dis- 1.04d + 40 tance (d) in mm Vertical field of view at distance 0.40d + 10 (d) in mm Linear codes - mm PDF 417 –...

  • Page 126: Indicators

    Technical Features Indicators Gryphon D432/D412Plus LED Indicators The Gryphon D432/D412Plus family uses green LED indicators to signal the following reader functions: STATUS BEHAVIOR At power-on, the LEDs blink briefly, then light up for 2 seconds to signal the power supply is pres- Power ON ent.

  • Page 127: Appendix A. Host Configuration Strings

    Configuring some configuration commands, such as those of advanced format- ting, through strings may result very complex. For this reason they are not pro- vided in the following tables but can be configured by using Datalogic Aladdin™ configuration program or referring to the related section in the Con- figuration chapter of this manual.

  • Page 128: Serial Configuration Strings

    SERIAL CONFIGURATION STRINGS ENTER/EXIT CONFIGURATION COMMANDS DESCRIPTION STRING Enter Configuration Exit and Save Configuration Restore Default $+$* Transmit Software Release $+$! Transmit Device Configuration in ASCII $?$& Save Custom Default $+$0 Restore Custom Default $+$1 These commands do not require $- INTERFACE SELECTION DESCRIPTION STRING...
  • Page 129 RS-232 DESCRIPTION STRING Baud rate 1200 DAA00 2400 DAA01 4800 DAA02 9600 DAA03 14400 DAA04 19200 DAA05 38400 DAA06 57600 DAA07 115200 DAA08 Parity none DBA0 even DBA2 DBA1 Data bits DCA0 DCA1 Stop bits DCB0 DCB1 Handshake none DDA0 RTS/CTS DDA2 XON/XOFF...
  • Page 130 RS-232 (continued) DESCRIPTION STRING Intercode Delay DEC00 - DEC99 Serial Trigger Lock disabled DDB0 enabled DDB1 Serial trigger Lock/Unlock characters CQBxx x = Hex value from 00 to FF DESCRIPTION STRING USB-COM Handshake none UDA0 RTS/CTS UDA2 XON/XOFF UDA1 ACK/NACK Protocol disabled UDB0 enabled...
  • Page 131 DESCRIPTION STRING Data Format Restore Default SYMBOLOGY INDEPENDENT PARAMETERS Code Identifier disabled EAA0 AIM standard Code ID EAA2 Custom Code ID EAA1 Datalogic Code ID EAA3 Code Length disabled ECA0 enabled ECA1 Set Headers no header EDA00 one character EDA01x...
  • Page 132 DATA FORMAT (continued) DESCRIPTION STRING Headers disabled EDB0 enabled EDB1 Set Terminators no terminator EEA00 one character EEA01x two characters EEA02xx three characters EEA03xxx four characters EEA04xxxx five characters EEA05xxxxx six characters EEA06xxxxxx seven characters EEA07xxxxxxx eight characters EEA08xxxxxxxx nine characters EEA09xxxxxxxxx ten characters EEA10xxxxxxxxxx...
  • Page 133 POWER SAVE DESCRIPTION STRING Illumination System Power Illumination System OFF HAA0 Illumination System ON HAA1 CODE SELECTION DESCRIPTION STRING Disable All Symbologies AZA0 Disable All Linear Symbologies AXA0 Disable All 2D Symbologies AYA0 Issue Identical Codes disabled AWB0 enabled AWB1 LINEAR SYMBOLOGIES UPC/EAN/JAN disabled...
  • Page 134 CODE SELECTION (continued) DESCRIPTION STRING enabled ABB1 Code Len Check disabled ABC0 enabled ABC1 Minimum Code Length ABDd Maximum Code Length ABEd Start/Stop Char TX enabled ABF0 disabled ABF1 Code 32 disabled ABL0 enabled ABL1 a number from the HEX/Numeric Table d = a number in the range 001-255 CODE SELECTION DESCRIPTION...
  • Page 135 CODE SELECTION (continued) DESCRIPTION enabled – check digit control and transmission ADA3 Code Len Check disabled ADB0 enabled ADB1 Minimum Code Length ADCd Maximum Code Length ADDd Code 128 disabled AAA0 enabled AAA1 Code Len Check disabled AAB0 enabled AAB1 Minimum Code Length AACd Maximum Code Length...
  • Page 136 CODE SELECTION (continued) DESCRIPTION enabled AMB1 GS1 DataBar Omnidirectional disabled AMC0 enabled AMC1 GS1 DataBar Expanded disabled AMD0 Stacked enabled AMD1 GS1 DataBar Stacked disabled AME0 enabled AME1 a number from the HEX/Numeric Table d = a number in the range 001-255 Gryphon™...
  • Page 137 CODE SELECTION DESCRIPTION STRING 2D SYMBOLOGIES PDF417 disabled AGA0 enabled AGA1 Macro PDF417 unbuffered mode AVB0 buffered mode AVB1 Micro PDF417 disabled AGB0 enabled AGB1 DataMatrix disabled AHA0 enabled AHA1 Minimum Code Length AHCe Maximum Code Length AHDe Rectangular disabled AHE0 Style enabled...
  • Page 138 CODE SELECTION (continued) DESCRIPTION STRING 2D SYMBOLOGIES Australian N Table ALB0 Table C Table ALB1 Maxicode Mode 0 disabled AJL0 enabled AJL1 Mode 1 disabled AJM0 enabled AJM1 Mode 2 disabled AJN0 enabled AJN1 Mode 3 disabled AJO0 enabled AJO1 Mode 4 disabled AJP0...
  • Page 139 READING PARAMETERS DESCRIPTION STRING Trigger Mode trigger level BAA0 trigger pulse BAA1 Trigger Type normal trigger BAB0 software trigger BAB1 Flash On Duration BF0f Flash Off Duration BF1f Beeper Tone tone 1 GBA1 tone 2 GBA2 tone 3 GBA3 tone 4 GBA4 Beeper Volume GBB0...
  • Page 140 CODE ORDERING AND SELECTION Code per Scan one code per scan BCB0 all codes per scan BCB1 Central Code Transmission disabled OAA0 enabled OAA1 Order by Code Length disabled OAB0 enabled - increasing order OAB1 enabled - decreasing order OAB2 a number from the HEX/Numeric Table f = a number in the range 01-99 READING PARAMETERS...
  • Page 141 READING PARAMETERS (continued) DESCRIPTION STRING pattern BBE2 Aiming System Delay disabled BLA00 enable short BLA03 enable medium BLA06 enable long BLA10 Good Read Spot disabled BIA0 enable short BIA1 enable medium BIA2 enable long BIA3 a number from the HEX/Numeric Table f = a number in the range 01-99 ADVANCED IMAGE CAPTURE DESCRIPTION...
  • Page 142 ADVANCED IMAGE CAPTURE DESCRIPTION STRING IMAGE PRESET 1 Advanced Configuration Brightness increase IAO0IAFi decrease IAO1IAF1i Contrast increase IAP0IAEi decrease IAP1IAEi Color Depth 2 gray levels IAG0 16 gray levels IAG1 256 gray levels IAG2 a number from the HEX/Numeric Table i = a number in the range 0-100 ADVANCED IMAGE CAPTURE DESCRIPTION...
  • Page 143 ADVANCED IMAGE CAPTURE DESCRIPTION STRING IMAGE PRESET 3 Basic Configuration Image Format JPEG format ICA1 TIFF format ICA2 JPEG Quality Factor ICCg Advanced Configuration Brightness increase ICO0ICFi decrease ICO1ICF1i Contrast increase ICP0ICEi decrease ICP1ICEi Color Depth 2 gray levels ICG0 16 gray levels ICG1 256 gray levels...
  • Page 144 ADVANCED IMAGE CAPTURE (continued) DESCRIPTION STRING Contrast increase IDP0IDEi decrease IDP1IDEi Color Depth 2 gray levels IDG0 16 gray levels IDG1 256 gray levels IDG2 g, i = a number from the HEX/Numeric Table g = a number in the range 000-100 i = a number in the range 0-100 Gryphon™...

  • Page 145: Appendix B. Programming For Expert Users

    Appendix B Programming for Expert Users This document is addressed to expert users who are familiar with software programming languages and want to define a personalized code formatting. The provided programming language allows creating either simple or complex formatting expressions by means of the basic functions connected together through the following operators: (, ), -, +.

  • Page 146: Function Description

    Function Description All the functions and conventions to be used within the formatting expressions are listed below: FUNCTION DESCRIPTION NAME FSTR Searches for a defined substring by its starting and ending string. FLSTR Searches for a defined substring by its starting string and its length. SSTR Extracts a defined substring from the original string.
  • Page 147 FindStringByStartingChar&Len (FLSTR) This function has the following syntax: FLSTR<source_string, string_start, len, mode>ðstring This function searches for a substring having a defined starting character ("string_start") and a defined length ("len") within the "source_string". It returns the string you searched for, or an empty one in case of failure.
  • Page 148 ISTR<source_string, string1, position>string This function inserts a new string ("string1") within the "source_string" and places it in the defined "position". If the value of the "position" argument is longer than "source_string" length, "string1" will be placed after the last character of the source string. ReplaceString (RSTR) This function has the following syntax: RSTR<source_string, string1, string2>string...

  • Page 149: Appendix C. Code Identifier Table

    Appendix C Code Identifier Table EAN/UPC CODABAR APCPCMHOFNGNENEIEPANHOGOCK APCPCIHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJAKEGBHIK AHPNIBAMDKEOFMHMLJALEEHFIK AKCBPJCJGIIJCMCEGOMAPFDLJK AKCBPJCJGIIJCMCFGJKHILNJLK AEFBJLBGMHPLMNBJDBAMFHOEGK AEFBJLBGMHPLMNGOJAGECBEFGK AAPHBAJJCCDBJLHEJOHAEJBBFK AAPHBAJICHELJEAHOIHPKBLLFK AEKFAMIOGAHEOFFNJLAMEFIJKK AFLFAIKFBDOOEJMDCFEIOGNIJK DLDLLLDLDLDLLLLDLDDDDLDLDL DLLLLLDLLLLLLLLDDLDDDLDLLL CODE 128 EAN 128 APCLGMHOFNGNENEIEPANHOGOCK APCPGMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJAKFFDEIK AHPNIBAMDKEOFMHMLJALFHEGIK AKCBPJCJGIIJCMCEGPKEHAMLLK AKCBPJCJGIIJCMCEGJKOCJLBJK AEFBJLBGMHPKNKGMHMAGPDIFGK AEFBJLBGMHPLMODJKELEOGJGGK AAPHBAJICHAPGJKOACPJFHKLBK AAPHBAJIDHCOFOGHOJOKLEHPDK AHLFAOIHKPPIGNIKBLPOMOHKJK AEKFAONHFDEIAADCBCKGGBAILK DLLLLLDLLLDLLLLDDLDDDLDLDL DDDLLDDLLLDLLLLDLLDDDLDLLL CODE 93 CODE 32 APCLGIHOFNGNENEIEPANHOGOCK APCPCMHOFNGNENEIEPANHOGOCK...
  • Page 150 CODE 39 INTERLEAVED 2 OF 5 APCLCMHOFNGNENEIEPANHOGOCK APCLCIHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJAKFDFEIK AHPNIBAMDKEOFMHMLJALFBDGIK AKCBPJCJGIIJCMCEGKNNIGJBJK AKCBPJCJGIIJCMCFGNLKPIHDLK AEFBJLBGMHPKMNFIHIJJCKFGGK AEFBJLBGMHPKMNCPNJPBFMPHGK AAPHBAJIDDCOJIJBNBAGMPGLDK AAPHBAJJDGFEJHOCKHAJCHMBDK AELFAPLMIADKIHKNONLEELKIJK AFKFALJHPDKACLDDFDPAOIPJKK DDDLLLDLDDLLLLLDDLLDDLDLLL DDLLLLDLLDDLLLLDLDLDDLDLDL PDF417 MICRO PDF417 AODOCMHOFNGNENEIEPANHOGOCK AODOGIHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJAKEBAEIK AHPNIBAMDKEOFMHMLJAKEFFHIK AKCBPJCJGIIJCMCFGIPGNMEDNK AKCBPJCJGIIJCMCEGLJEOBIBLK AEFBJLBGMHPKNOGALBGPKNLGGK AEFBJLBGMHPLNLCIAOOOEIFEGK AAPHBAJICEHBNDJJHFEKLMPFDK AAPHBAJJDGAIHHAHIFKBIIBLDK AGKFAMMJMJLMMIAKCJJKCCGLIK AGLFAPLHFKGMKJHGIDOOKBFKIK DDDLLLDLLLLLLLLDLDDDDLDLLL DDDLDLDLDLLLLLLDDDDDDLDLLL DATAMATRIX MAXICODE AODKGMHOFNGNENEIEPANHOGOCK AODOCIHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJAKFCCHIK AHPNIBAMDKEOFMHMLJALEDGGIK...
  • Page 151 JAPAN POST POSTNET AODOGMHOFNGNENEIEPANHOGOCK AODOCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFAFFIK AHPNIBAMDKEOFMHMLJALFGDFIK AKCBPJCJGIIJCMCFGPJIAAMJNK AKCBPJCJGIIJCMCFGKOBPGJDPK AEFBJLBGMHPKNNEACENHBMMEGK AEFBJLBGMHPKMKHECAEIMFBHGK AAPHBAJJDBGOBGIKACNAEBJLFK AAPHBAJJCFEPOHLFNBCPNJFLHK AGKFAOJAPKIACNGFKADAAGOKJK AFKFAPKLNFECMHECFGHKIDDIJK DLDLLDDLDLLLLLLDLLDDDLDLDL DDLLLDDLLDDLLLLDLLLDDLDLLL PLANET GS1 DATABAR AODOGIHOFNGNENEIEPANHOGOCK AODOCIHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJAKFCDHIK AHPNIBAMDKEOFMHMLJAKFEFHIK AKCBPJCJGIIJCMCEGIPPHOCLPK AKCBPJCJGIIJCMCEGNIGIIHBNK AEFBJLBGMHPKNNDHIFLPGKGFGK AEFBJLBGMHPKMKADIBCALDLGGK AAPHBAJIDEBEBJPJHENPKJDBFK AAPHBAJICADFOIMGKHCADBPBHK AHLFAKLLIJBKIBPLBOHEKFLLKK AELFALIAKGNIGLNMOIDOCAGJKK DLLLLDDLLLDLLLLDDDDDDLDLLL DDDLLDDLDDLLLLLDDDLDDLDLDL KIX CODE RM4SCC AODKGMHOFNGNENEIEPANHOGOCK AODKGIHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALEFBGIK AHPNIBAMDKEOFMHMLJAKEHHEIK AKCBPJCJGIIJCMCFGLIFHDGDNK AKCBPJCJGIIJCMCEGMOCANIBPK...
  • Page 152 NOTES Gryphon™ D432/D412Plus...

  • Page 153: Appendix D. Hex And Numeric Table

    Appendix D Hex and Numeric Table CHARACTER TO HEX CONVERSION TABLE char decimal char decimal char decimal < Product Reference Guide...
  • Page 154 > SPACE " & Gryphon™ D432/D412Plus...
  • Page 155 ANFOGIFKDNGNENEIEPANHOGOCK ANEPGIFKDNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJAKFHBHIK AHPNIBAMDKEOFMHMLJALEHEEIK AKCBPJCJGIIJCMCFGPOFMJLDJK AKCBPJCJGIIJCMCEHPLFIKNHNK AEFBJLBGMHPKNIFGJCGBBDNHGK AEFBJLBGMHPKMKGPIEMNLKLEGK AAPHBAJJDEBJCDJAGBDLGHNFHK AAPHBAJIDGFBMBLDDDNIEPNNFK AFKEBJJPCPKMAJNAMBKKKCFJKK AEKEBJMNMOKOIOPNEFCOIJJLJK DLDLLLDDDLLLLLLDLLDDDLDLLL DLDLLLDDLDDLLLLDDDLDDLDLLL ANEOGIFKDNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJAKEFGHIK AKCBPJCJGIIJCMCEGMILJPPDNK AEFBJLBGMHPKMKEKGKAMOGNEGK AAPHBAJJDEFNLJHLIGJCCKKLDK AELEBMKKGLEGCCHPLDIKICJLLK DDLLLLDDDLDLLLLDLLLDDLDLLL AMFPGIFKDNGNENEIEPANHOGOCK AMFOGIFKDNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJAKECHEIK AHPNIBAMDKEOFMHMLJALEAFHIK AKCBPJCJGIIJCMCFGKLNLGILJK AKCBPJCJGIIJCMCFHJIDKDKPJK AEFBJLBGMHPLNJDDOKGPBMIGGK AEFBJLBGMHPLNJBGAEKOEAOGGK AAPHBAJIDCBNPBJGGNKINPEPFK AAPHBAJJDABBIJFONIOCLKDJDK AGLEBMONMCIOAPCIABBMOFHJJK AGKEBJIKGHGGKDKKPHLIOOHJLK DLLLLLDDLLLLLLLDLLLDDLDLDL DDDLLLDDDDLLLLLDDDLDDLDLDL Product Reference Guide...
  • Page 156 AMEPGIFKDNGNENEIEPANHOGOCK AMEOGIFKDNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJAKFAAEIK AHPNIBAMDKEOFMHMLJALFCCHIK AKCBPJCJGIIJCMCEGJNDOAMLNK AKCBPJCJGIIJCMCEHKONPFOPNK AEFBJLBGMHPLMLCPBCACOJIFGK AEFBJLBGMHPLMLAKPMMDLFOFGK AAPHBAJIDCFJGLHNIKABJCDBBK AAPHBAJJDAFFBDLFDPELPHEHHK AHKEBJNIIGGECEIHHDDMMFLLIK AHLEBMLPCDIMIIAFIFJIMOLLKK DDDLLLDDLLDLLLLDLLDDDLDLDL DLLLLLDDDDDLLLLDDDDDDLDLDL ANFNGIFKDNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJAKFCHFIK AKCBPJCJGIIJCMCEHJLAGJEHJK AEFBJLBGMHPKMMHJBODNLMGFGK AAPHBAJIDFBCOHNDCJGDNMAPDK AHKEBNOMACIOMCLCEECKCIFKLK DDLLLLDDDDLLLLLDDLLDDLDLDL ANFMGIFKDNGNENEIEPANHOGOCK ANENGIFKDNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFAFGIK AHPNIBAMDKEOFMHMLJAKEAAFIK AKCBPJCJGIIJCMCEGKIOHMGDJK AKCBPJCJGIIJCMCFHKNODPAHNK AEFBJLBGMHPKMMFMPAPMOAAFGK AEFBJLBGMHPKNOGFOGFAEJGGGK AAPHBAJJDHBOJPBLJMCJLJHJFK AAPHBAJIDFFGHNDIMOMKJBHBHK AHLEBIILKHGGGODALCIOCDFKJK AGLEBINJEGGEOJBNDGAKAIJIKK DLDLLLDDLLLLLLLDLDLDDLDLDL DLDLLLDDDDDLLLLDDLDDDLDLDL Gryphon™ D432/D412Plus...
  • Page 157 APCPGIFKDNGNENEIEPANHOGOCK APCOGIFKDNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJAKFABHIK AHPNIBAMDKEOFMHMLJALFCDEIK AKCBPJCJGIIJCMCEHLIFKKKFJK AKCBPJCJGIIJCMCEGILLLPIBJK AEFBJLBGMHPKNMFGFGAOPLOGGK AEFBJLBGMHPKNMHDLIMPKHIGGK AAPHBAJJDAECFFJNDGOFJPBHFK AAPHBAJIDCEOCNFFIDKPPKGBDK AFKEBKMFNHHIOOPEFNLCMAMLLK AFLEBPKCHCJAECHGKLBGMLMLJK DLLLLLDDLDDLLLLDDLDDDLDLLL DDDLLLDDDLDLLLLDLDDDDLDLLL AODPGIFKDNGNENEIEPANHOGOCK AODOGIFKDNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFFCHIK AHPNIBAMDKEOFMHMLJAKFHAEIK AKCBPJCJGIIJCMCFGOINJGPJNK AKCBPJCJGIIJCMCFHNLDIDNNNK AEFBJLBGMHPLMPAKDIKMFNNEGK AEFBJLBGMHPLMPCPNGGNABLEGK AAPHBAJJDEAOGFLIGIJFAPIFFK AAPHBAJIDGACBNHANNNPGKPDDK AHLEBPOFNLFIGPCBBJIAKMCJLK AHKEBKICHOLAMDKDOPCEKHCJJK DLDLLLDDLLLLLLLDLDDDDLDLDL DDLLLLDDDDLLLLLDDLDDDLDLDL AOCPGIFKDNGNENEIEPANHOGOCK AOCOGIFKDNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALEHFHIK AHPNIBAMDKEOFMHMLJAKEFHEIK AKCBPJCJGIIJCMCEGNODMALJJK AKCBPJCJGIIJCMCEHONNNFJNJK AEFBJLBGMHPLNNBGMAMBKINHGK AEFBJLBGMHPLNNDDCOAAPELHGK AAPHBAJJDEEKPPFDIPDMECPLBK AAPHBAJIDGEGIHJLDKHGCHINHK AGKEBKNAJPLCEEIOGLKAIMOLKK AGLEBPLHDKFKOIAMJNAEIHOLIK DDLLLLDDLLDLLLLDLDLDDLDLDL DLDLLLDDDDDLLLLDDLLDDLDLDL Product Reference Guide...
  • Page 158 AUTOSCAN PATTERN CODE ÌÄÄsÎ Gryphon™ D432/D412Plus...
  • Page 160 Telephone: 49 (0) 61 51/93 58-0 Telephone: (65) 6435-1311 germany.scanning@datalogic.com singapore.scanning@datalogic.com India Spain and Portugal Datalogic Scanning India Datalogic Scanning Sarl Sucursal en España Telephone: 91- 22 - 64504739 Telephone: 34 91 746 28 60 india.scanning@datalogic.com spain.scanning@datalogic.com Italy United Kingdom...

This manual is also suitable for:

Gryphon d432Gryphon d432plus

Table of Contents
