- Page 1 DRAGON™ D SERIES READERS QUICK REFERENCE INSTALLAZIONE RAPIDA INSTALLATION RAPIDE SCHNELLINSTALLATION 820000852 (Rev. B)

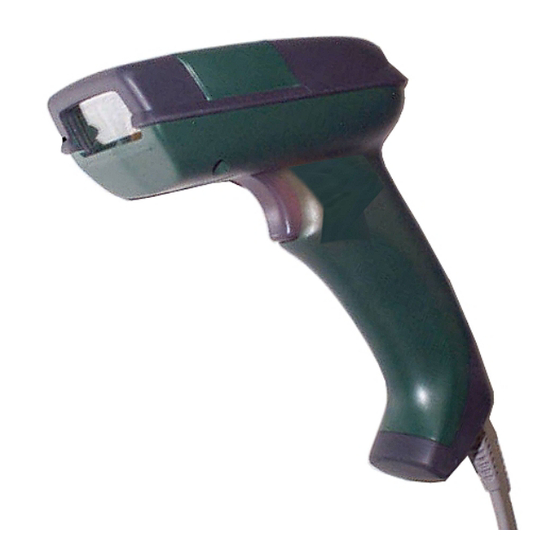

- Page 2 USING DRAGON™ D READERS DRAGON™ D READERS automatically scan barcodes at a distance. Simply aim and pull the trigger. Code scanning is performed along the scan line emitted from the reading wiindow. This line must cross the entire code. Successful scanning is obtained by tilting the reader with respect to the barcode to avoid direct reflections which impair the reading performance(see the figure above).
-
Page 3: Aiming System
AIMING SYSTEM DRAGON™ D101 and DRAGON™ D101 LR models provide a programmable aiming system. If enabled, the scan line emitted from the reading window is preceded by a red spot which must illuminate the code center to get the best reading performance (see figure above, ). - Page 4 Read one of the following codes to set desired aiming system timeout. Leggere uno dei codici seguenti per impostare il timeout del sistema di puntamento. Lire l'un des codes suivants pour sélectionner le "timeout" du système de pointage que vous désirez. Lesen Sie einen der folgenden Codes, um das Zielsystemstimeout einzustellen.
-
Page 5: Technical Features
Typical reading field see reading diagrams width Max. resolution 0.08 0.06 0.25 mils PCS minimum (Datalogic Test Chart) Indicators Laser On LED (red) Good Read LED (green) Beeper Laser Features Power (max) in mW Scan angle 42° 37° 23° Laser Safety Class... - Page 6 DRAGON™ D101 READING DIAGRAMS DRAGON™ D101 108 cm 0.13 mm (5 mils) 0.08 mm (3 mils) 0.19 mm (7.5 mils) 0.25 mm (10 mils) 0.33 mm (13 mils) 0.38 mm (15 mils) 0.50 mm (20 mils) 1.00 mm 1.38 mm (40 mils) (55 mils) DRAGON™...
- Page 7 DRAGON™ D101 - Long Range 225 cm 1.00 mm (40 mils) 1.38 mm (55 mils) 0.25 mm (10 mils) 0.38 mm 0.50 mm (15 mils) (20 mils) 1.00 mm 1.38 mm (40 mils) (55 mils) CONNECTIONS RS232...
- Page 8 WEDGE C-BOX DISCONNECTING THE CABLE...
-
Page 9: Restore Default
1 DEFAULT Read the RESTORE DEFAULT. Leggere il codice che ripristina i default. Lecture du code de configuration par défaut. Lesen Sie den Restore Default Code, um die Werkseinstellung wieder herzustellen. RESTORE DEFAULT RS232 DEFAULT SETTINGS 9600 baud, no parity, 8 data bits, 1 stop bit, no handshaking, delay disabled, rx timeout 5 sec., ack/nack protocol disabled, FIFO enabled, serial trigger lock disabled;... -
Page 10: Decoding Parameters
DECODING PARAMETERS ink spread enabled, overflow control enabled, interdigit control enabled, Puzzle Solver™ disabled, decoding safety = one read CODE SELECTION Enabled codes • EAN 8 / EAN 13 / UPC A / UPC E without ADD ON check digit transmitted, no conversions •... -
Page 11: Reader Configuration
2 READER CONFIGURATION Read interface selection code your application. Leggere il codice per la selezione dell’interfaccia relativo al modo di comunicazione desiderato. Lecture du code “Interface” correspondant à votre modèle. Lesen Sie denjenigen Schnittstellen-Code, der Ihrem gewünschten Kommunikationsmodus entspricht. RS232 WEDGE IBM AT or PS/2 PCs IBM XT... -
Page 12: Keyboard Type
WEDGE (continued) IBM Terminal 3153 IBM Terminals 31xx, 32xx, 34xx, 37xx: To select the interface for these IBM Terminals, read the correct KEY TRANSMISSION code. Select the KEYBOARD TYPE if necessary (default = advanced keyboard). Per selezionare l'interfaccia per i terminali IBM, leg- gere il codice Key Transmission appropriato e, se necessario, il codice Keyboard Type (default = advanced keyboard). - Page 13 WEDGE (continued) The following interface selection allows barcodes sent to the PC to be interpreted correctly independently from the Keyboard Nationality used. You do not need to make a Keyboard Nationality selection. (default = Num Lock Unchanged) Make sure the Num Lock key on your keyboard is ON.
- Page 14 WEDGE (continued) Wyse Terminals ANSI Keyboard PC Keyboard ASCII Keyboard VT220 style keyboard Digital Terminals VT2xx/VT3xx/VT4xx APPLE APPLE ADB Bus...
-
Page 15: Wedge Keyboard Nationality
WEDGE KEYBOARD NATIONALITY Wedge users should select one of the following WEDGE KEYBOARD NATIONALITY codes. Quando è selezionata l’interfaccia Wedge, leggere uno dei seguenti codici per impostare la nazionalità della tastiera. Pour l’interface Wedge, lire l'un des codes suivants pour sélectionner la nationalité du clavier. Für den Betrieb mit einer Wedge-Schnittstelle lesen Sie einen der folgenden Codes, um die Tastaturnationalität einzustellen. - Page 16 The following Keyboard Nationality selections are only valid for IBM AT compatible PCs: Japanese Russian (Latin) Russian (Cyrillic) Hungarian Yugoslavian Romanian Czechoslovakian...
- Page 17 YOUR READER IS NOW READY TO READ BARCODES. To change the defaults, see the DRAGON™ Reference Manual, part number 90ACC1855. IL LETTORE È PRONTO A LEGGERE I CODICI. Per cambiare i parametri di default, fare riferimento al manuale "DRAGON™ Reference Manual", n. d'ordine 90ACC1855.
-
Page 18: Operating Test
3 OPERATING TEST Read the TEST codes below. Leggere i codici di test. Lire les codes tests. Lesen Sie die Test-Coden. EAN-8 1 2 3 4 5 6 7 0 EAN-13 1 2 3 4 5 6 7 0 0 0 9 9 2 Code 39 (Normal) Code 128 Interleaved 2 of 5... -
Page 19: Fcc Compliance
FCC COMPLIANCE This device complies with PART 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference which may cause undesired operation. -
Page 20: Warranty
Datalogic garantit ce produit de tout défaut de fabrication ou des matériels pendant 24 mois de la date de livraison, à condition que le produit soit utlisé correctement. Datalogic a la faculté de réparer ou de remplacer ce produit. mesures prolongeront l’échéance de la garantie. - Page 21 DATALOGIC S.p.A., Via Candini, 2 40012 - Lippo di Calderara Bologna - Italy dichiara che declares that the déclare que le bescheinigt, daß das Gerät declare que el DRAGON™ D101, Hand-Held Reader e tutti i suoi modelli and all its models et tous ses modèles...
