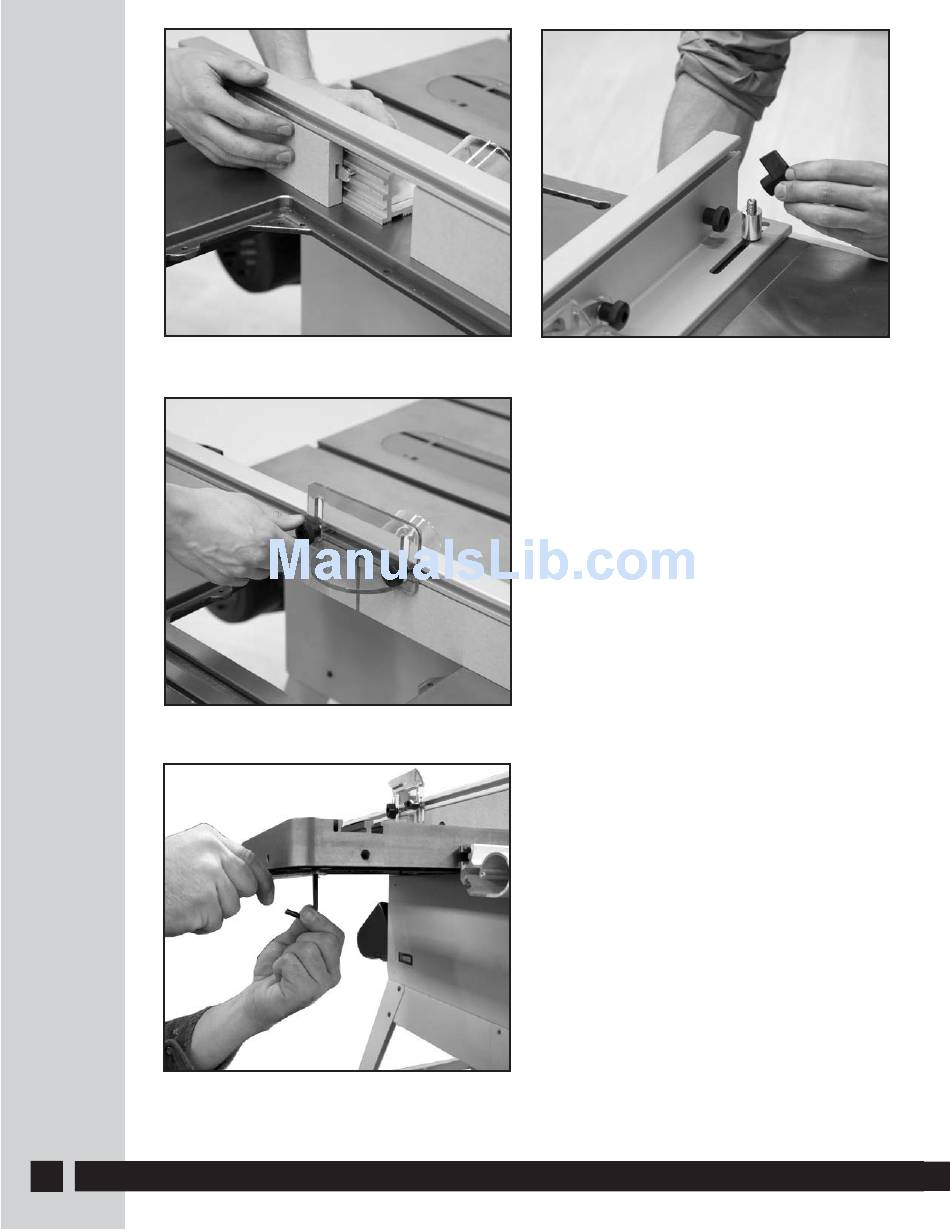

Installing the Fence

1. Attach the dust port.
Connect the dust port to the fence using two
5/16-18 x 1 ⁄ " T-bolts and two round knobs.
1
4
2. Install the two MDF subfences.
Insert two 5/16-18 x 1 1
remaining pre-drilled holes and slide the
subfences over the bolt heads as shown in
Fig. 7. (This will require loosening the knobs
on the dust port). Attach two round knobs
and tighten.
Note: The subfences have no specific left/right
or up/down orientation.
3. Attach the fence to the table.
Use the two 3/8-16 x 2
aluminum knob spacers, two 3/8" nylon
washers and two 3/8" (large) T-knobs. Fig. 8.
4. Attach the dual position bit guard.
Pre-assemble the guard with the two 5/16-18 x
1 ⁄ " T-bolts and two knobs as shown in Fig. 9.
1
4
Slide both bolt heads into the fence's T-slot to
attach to fence.
5. Install fence hang hooks.
Screw the hooks into the table about 3/8" and
tighten the 1/4" jam nuts with a 7/16" wrench.
Fig. 10.
6. Hang the fence when not in use.
⁄ " T-bolts into the fence's
4
⁄ " hex bolts, two
1
2
