4. Three bolt applications:
This pattern always uses the heavy
rectangle washers on each bolt as
shown in Fig. 4. Delta brand uses the
7/16-20 x 1 ⁄ " hex bolts. Most others
1
2
(imports) use the M10 x 1.5 x 40mm
hex bolts. If your bolt size was not
mentioned you must purchase your
own. Only use grade 5 bolts.
6. Lift the router table into position.
Install the bolts while a friend holds
the table in position as shown in
Fig. 5. Just snug the bolts for now.
Make absolutely certain both surfaces
are smooth, flat, and free of burrs
before mating the two tables together!
7. Tighten the router table.
Tighten the bolts gradually and evenly
as shown in Fig. 6. Use a soft tipped
mallet to lightly tap the table surfaces.
If your router table is not flat with
your table saw's table, you may need
to shim it. Use paper or brass shims.
The tolerances of your ProMAX are
probably much higher than those of
your table saw's. Slight inaccuracies
in alignment rarely pose a
significant problem.
Note: The plate opening on your ProMAX
is sized to accommodate a Bench Dog
ProPlate (sold separately). Drop the
ProPlate into the opening and adjust the
included leveling screws until the plate
is flush with the router top. Tighten
the levelers.

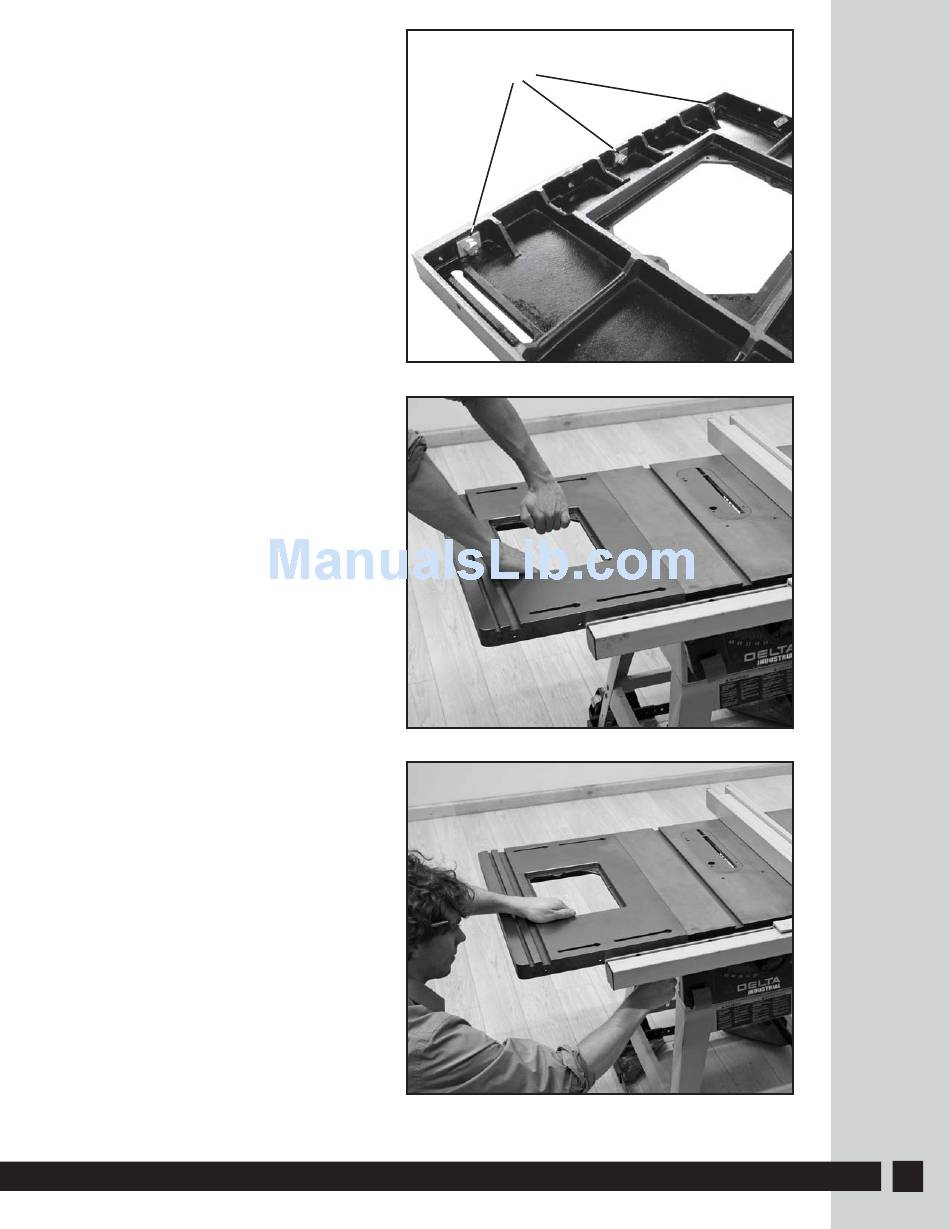

Use heavy washers on all
three holes.
Fig. 4
Fig. 5
Fig. 6
