READ THIS BOOK
LEA ESTE MANUAL
LISEZ CE MANUEL
This book has important information for the use and safe operation of this machine. Failure to read this
book prior to operating or attempting any service or maintenance procedure to your Clarke machine
could result in injury to you or to other personnel; damage to the machine or to other property could occur
as well. You must have training in the operation of this machine before using it. If your operator(s) cannot
read this manual, have it explained fully before attempting to operate this machine.
All directions given in this book are as seen from the operator's position at the rear of the machine.
For new books write to: Clarke
Form No. 70796A
5/06

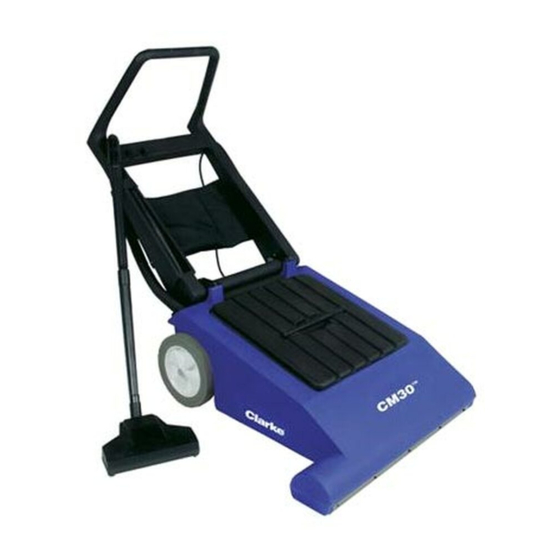

Carpet Master 30
Wide Area Vacuum
Operator's Manual
Manuel d'utilisation
Libro de Instrucciones
®
, 2100 Highway 265, Springdale, Arkansas 72764.
®
Clarke
EN
English (2 - 7)
ES
Español (8 - 13)
FR
Français (14 - 19)
Printed in the U.S.A.
Advertisement
Table of Contents
Related Manuals for Clarke Carpet Master 30
Summary of Contents for Clarke Carpet Master 30
- Page 1 This book has important information for the use and safe operation of this machine. Failure to read this book prior to operating or attempting any service or maintenance procedure to your Clarke machine could result in injury to you or to other personnel; damage to the machine or to other property could occur as well.
-
Page 2: Table Of Contents
Brush Adjustment a& Foot Pedal Drawing and Parts List ......27 Brush Assembly Drawing and Parts List ............28 Vacuum Motor and Filters Drawing and Parts List ........29 Electrical Schematic ..................30 THIS MACHINE IS INTENDED FOR COMMERCIAL USE. Clarke ® Page Operator's Manual (EN) - Carpet Master 30... -
Page 3: Operator Safety Instructions
Electrocution or fire could occur if the machine is used on a power circuit that repeatedly trips or is undersized. Have a licensed electrician check the fuse, circuit breaker or power supply, and/or contact your local Clarke distributor for assistance. WARNING: To reduce the risk of fire, electric shock, or injury: DO NOT USE THIS VACUUM FOR PICK UP OF WET DEBRIS. -
Page 4: Grounding Instructions
Do not use an extension cord longer than 50 feet. Do not join two extension cords. WARNING: Do not move the machine over an electrical cord. Always lift the cord over the machine. Clarke ® Page Operator's Manual (EN) - Carpet Master 30... -
Page 5: Operating Procedures
4. Turn the vacuum switch "ON" (rocker switch on operator's right, figure 4, A). 5. Turn the brush switch "ON" (rocker switch on operator's left, figure 4, B). Figure 4 ® Clarke Operator's Manual (EN) - Carpet Master 30 - 5 -... -
Page 6: Maintenance
6. Storage: The handle may be folded down and the ma- chine stored upright (figure 6) to reduce storage space requirements. Store the machine in a clean dry area. Clarke ® Page Operator's Manual (EN) - Carpet Master 30... - Page 7 Have the vacuum motor inspected annually by a factory autho- rized service technician. If the carbon brushes are worn, they should be replaced. This service will prolong the life of the motor. Figure 8 ® Clarke Operator's Manual (EN) - Carpet Master 30 - 7 -...
- Page 8 Este manual contiene información importante para el uso y la seguridad de la máquina. Si no lee el manual antes de utilizar o intentar reparar o realizar el mantenimiento a su máquina Clarke, usted o el resto del personal podría sufrir lesiones;...
-
Page 9: Instrucciones De Seguridad Para El Operador
Mantenga el cabello, la vestimenta floja, los dedos y el resto del cuerpo lejos de aberturas y partes móviles. Asegúrese que todas las etiquetas, calcomanías, advertencias, precauciones e instrucciones estén adheridas a la máquina. ® Clarke Manual del operador (ES) - Carpet Master 30 - 9 -... - Page 10 15,2 metros (50 pies). No una dos cables de extensión. ADVERTENCIA: No mueva la máquina sobre un cable de alimentación. Pase siempre el cable por encima de la máquina. ® Clarke -10- Manual del operador (ES) - Carpet Master 30...
- Page 11 4, A). 5. Encienda el interruptor del cepillo (interruptor oscilante situado a la izquierda del operador, figura 4, B). Figure 4 ® Clarke Manual del operador (ES) - Carpet Master 30 - 11 -...
- Page 12 6. Almacenamiento: la manija debe estar plegada hacia atrás y la máquina debe guardarse en posición vertical (figura 6) para reducir los requerimientos de espacio para almacenamiento. Guarde la máquina en un área limpia y seca. ® Clarke -12- Manual del operador (ES) - Carpet Master 30...
- Page 13 Si las escobillas de carbono están desgastadas, deben ser reemplazadas. Este tipo de mantenimiento prolongará la vida útil del motor. Filtro de escape Figure 8 ® Clarke Manual del operador (ES) - Carpet Master 30 - 13 -...
- Page 14 Clarke ; le non-respect de ces indications pourra entraîner des blessures, à vous-même ou à d’autres membres du personnel, ainsi que des dommages à la machine ou à d’autres éléments. Vous devrez avoir reçu une formation concernant l’utilisation de cette machine avant de l’utiliser.
- Page 15 Des risques d’électrocution ou d’incendie existent lorsque la machine est utilisée sur un circuit de puissance de taille insuffisante ou se déclenchant de manière répétée. Faites contrôler le fusible, le coupe-circuit et l’alimentation par un électricien qualifié, et/ou contactez votre distributeur Clarke local pour plus d’informations.
- Page 16 15 m et n'utilisez pas deux rallonges bout à bout. AVERTISSEMENT: Ne déplacez pas la machine sur un câble électrique. Soulevez toujours le câble électrique. Soulevez toujours le câble par-dessus la machine. Clarke ® -16- Manuel de l’utilisateur (FR) - Carpet Master 30...
- Page 17 à la droite de l’opérateur, figure 4, A). 5. Mettez l’interrupteur de la brosse sur « ON » (interrupteur basculant, situé à la gauche de l’opérateur, figure 4, B). Figure 4 Clarke ® Manuel de l’utilisateur (FR) - Carpet Master 30 - 17 -...
- Page 18 6. Rangement : La poignée peut être repliée et la machine rangée à la verticale (figure 6) afin de réduire l’espace de rangement. Rangez la machine dans un lieu sec et propre. Clarke ® -18- Manuel de l’utilisateur (FR) - Carpet Master 30...
- Page 19 Si les brosses de carbone sont usées, elles devront être remplacées. Cet entretien prolongera la durée de vie Filtre d'évacuation du moteur. Figure 8 Clarke ® Manuel de l’utilisateur (FR) - Carpet Master 30 - 19 -...
- Page 20 NOTES Page 20 Clarke ® Carpet Master 30 Operator's Manual...
- Page 21 Carpet Master 30 Wide Area Vacuum Section II Parts and Service Manual (70796A) Clarke ® Carpet Master 30 Operator's Manual Page 21...
-
Page 22: Final Assembly Drawing And Parts List
Latch Kit, CM-30 70797A Label, RH CarpetMaster 30 70798A Label, LH CarpetMaster 30 NI = Not Illustrated\ NOTE: indicates a change has been made since the last publication of this manual. Page 22 Clarke ® Carpet Master 30 Operator's Manual... -
Page 23: Hose & Accessories Drawing And Parts List
Hose and Accessories 12/05 Ref. Description Qty. Part No. 53451A Clamp w/screw 30551A Cuff 30549A Hose 59223A Crevice Tool 59884A Wand 53450A Tool Storage Bag 51710A Dusting Tool 30553A Turbo Tool ® Clarke Carpet Master 30 Operator's Manual Page 23... -
Page 24: Switch Assembly Drawing And Parts List
59947A Wheel, 10 x 1.75 920346 Snap Axle Cap *NOTE: Qty. 5 on Washer, 7/16 Flat one side and Qty. 53459A Washer, Fibre Nut, 10-24 ESNA SS 6 on the other. Page 24 Clarke ® Carpet Master 30 Operator's Manual... -
Page 25: Cover Assembly Drawing And Parts List
Cloth Vacuum Bag (Optional) 1 * Ref. # 9 includes the following parts: Part No. Description Qty. Screw, 10-24 x 1/2 PHP 51867A Clamps Nut, 10-24 ESNA NI = not illustrated Clarke ® Carpet Master 30 Operator's Manual Page 25... -
Page 26: Handle & Exhaust Filter Components Drawing And Parts List
Screw, 10-24 x 1 PHP 30546A Handle 53464A Bracket, Handle Screw, 1/4 -20 x 1 PHP 70791A Label, Warning 53461A Exhaust Filter Screw, #8 x 1/2 THP 53462A Screen, Filter 53463A Sound Deadening ® Page 26 Clarke Carpet Master 30 Operator's Manual... -
Page 27: Brush Adjustment A& Foot Pedal Drawing And Parts List
Foot Pedal & Vacuum Adjustment Assembly 1/04 30555A Seal, Vacuum Door 30554A Gasket, Duct 53480A Plate Screw, #8 x 1/2 THP 53465A Foot Pedal (Lever for Door) Not Shown - Part Number 53481A, Plate below seal (#35) Clarke ® Carpet Master 30 Operator's Manual Page 27... -
Page 28: Brush Assembly Drawing And Parts List
40893A Brush Motor* 53470A Brush internal rectifier is part 10693A Brush Asm. (incl. brush w/shafts) number 40888A Screw, 1/4-20 x 1/2 Hex Guard NI = Not illustrated Screw, #4 x 1/4 Page 28 Clarke ® Carpet Master 30 Operator's Manual... -
Page 29: Vacuum Motor And Filters Drawing And Parts List
Screw, 10-24 x 3/4 All-Thread Nut, 10-24 Washer, Flat #10 OPTIONAL - HEPA Filter, part number 53497A NI = Not illustrated NOTE: indicates a change has been made since the last publication of this manual. Clarke ® Carpet Master 30 Operator's Manual Page 29... -
Page 30: Electrical Schematic 1/04
Clarke ® CarpetMaster 30 Electrical Schematic 1/04 ® Page 30 Clarke Carpet Master 30 Operator's Manual... - Page 31 ALTO Cleaning Systems (UK) Ltd., Penrith (810) 544-6300 Gilwilly Industrial Estate Penrith American Lincoln ® / Clarke, Marietta, Georgia 30066 Cumbria CA11 9BN 1455 Canton Road +44 1768 868 995 (770) 973-5225 ALTO France S.A. Strasbourg B.P. 44, 4 Place d’Ostwald...
- Page 32 (b). Return the product to the nearest Clarke repair location. Transportation charges to and from the repair location must be prepaid by the purchaser. (c). Clarke will repair the product and/ or replace any defective parts without charge within a reasonable time after receipt of the product.
