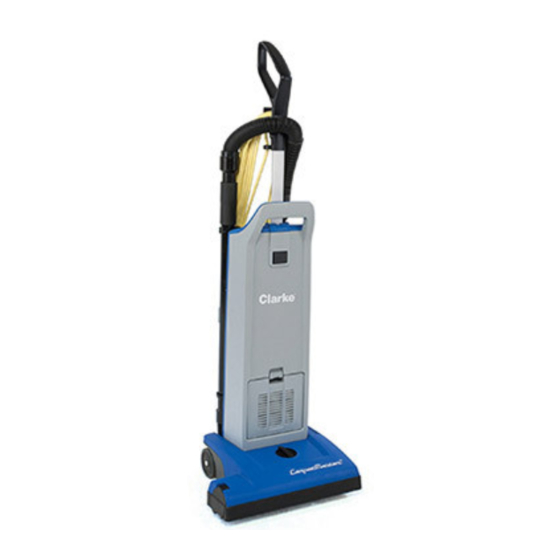

Clarke CarpetMaster 100 Series How-To

1
Loop cord then lock in
restraint clip.
1
Restricted airflow light
indicator comes on,
please check the
following things.
4
Release and remove
the brush cover by
unlocking the bearing
lock then pull brush out.
CarpetMaster 100 Series How To
Prepare for Use
2
Plug machine into an
appropriate electrical
outlet. Turn on main
power switch.

Clearing a Clog

2
Check to see if bag is
full or if the tube, hose
or nozzle is blocked.
Replace bag if needed.
5
Inspect lower hose by
looking through the
wand receptacle to the
brush housing area.
(You should have a clear
view. If not, there is a clog)
Page: 1
3
Step on the pedal then
tilt the vacuum handle
backwards to begin
vacuuming.
3
Remove the upper
hose and wand to
inspect for clogged
debris. Detach the
wand receptacle.
6
Remove debris by
pushing it forward via
the brush opening
long narrow object if needed)
Reinstall brush and
brush cover. Reattach
wand receptacle.
(use a
.
