- Page 1 -MOVE LED PLUS User Instructions A.D.J. Supply Europe B.V. Junostraat 2 6468 EW Kerkrade The Netherlands www.americandj.eu Rev. 6/08...
-
Page 2: Table Of Contents
UC3 CONTROL ..................................11 DMX TRAITS ..................................12 FUSE REPLACEMENT ................................13 CLEANING....................................13 TROUBLE SHOOTING ................................13 SPECIFICATIONS ..................................14 ROHS and WEEE .................................. 15 A.D.J. Supply Europe B.V. – www.americandj.eu – X-Move LED Plus™ Instruction Manual Page 2... -
Page 3: General Information

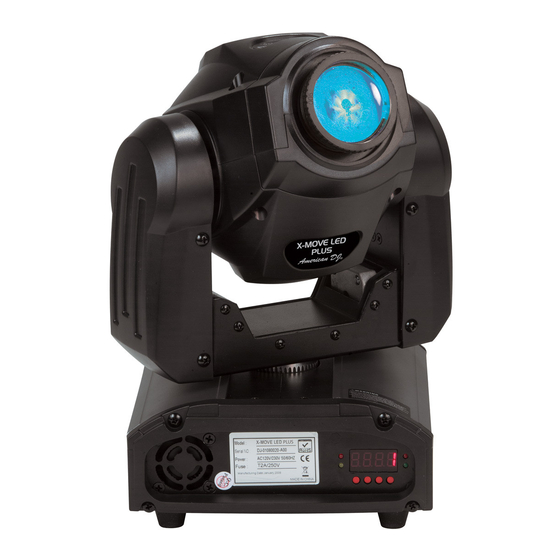

Introduction: The X-Move LED Plus is a eight channel DMX intelligent , moving head, mini LED fixture. The X- Move LED Plus™ can operate as a stand lone fixture or in a Master/Slave configuration. The X-Move LED Plus™... -
Page 4: Safety Precautions
Power Supply: Before plugging your unit in, be sure the source voltage in your area matches the required voltage for your American DJ® X-Move LED Plus.™ The American DJ® X-Move LED Plus™ is available in a 120v and 220v version. Because line voltage may vary from venue to venue, you should be sure your unit voltage matches the wall outlet voltage before attempting to operate you fixture. - Page 5 Data Cable (DMX Cable) Requirements (For DMX and Master/Slave Operation): The X-Move LED Plus™ can be controlled via DMX-512 protocol. The X-Move LED Plus™ is be a eight channel DMX unit. The DMX address is set electronically using the controls on the front panel of the unit.
- Page 6 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior.
-
Page 7: System Menu Chart
Blacout Mode „No Blackout” Pan Normal Pan Inversion Tilt Normal Tilt Invesion LED on LED off Normal Inversion Focus Adjust Self-Test TemperatureTest Fixture Hours Software Version Reset A.D.J. Supply Europe B.V. – www.americandj.eu – X-Move LED Plus™ Instruction Manual Page 7... -
Page 8: System Menu
“OFF” to switch to have the LED display switch off after 10 seconds. 3. Press ENTER to confirm. DISP - This function will reverse the display 180º. A.D.J. Supply Europe B.V. – www.americandj.eu – X-Move LED Plus™ Instruction Manual Page 8... - Page 9 ENTER button to set and save, or press the MENU button to return to return to offset functions without any changes. If you do not press any buttons for 8 seconds the fixture will return to the offset functions automatically. A.D.J. Supply Europe B.V. – www.americandj.eu – X-Move LED Plus™ Instruction Manual Page 9...
-
Page 10: Operation
A DMX controller allows you to create unique programs tailored to your individual needs. 1. The X-Move LED Plus™ is a eight DMX channel DMX fixture. See pages 16-17 for detailed description of the DMX values and traits. -
Page 11: Uc3 Control
Function 1.Sync. Strobe Show1-4 1. Select Color 2. Async strobe 2. Select Gobo 3. Sound Strobe Mode Sound (LED OFF) Show( LED Slow LED ON Blinking) A.D.J. Supply Europe B.V. – www.americandj.eu – X-Move LED Plus™ Instruction Manual Page 11... -
Page 12: Dmx Traits
176 - 196 MOVEMENT 9 197 - 217 MOVEMENT 10 218 - 238 MOVEMENT 11 239 - 255 MOVEMENT 12 0 - 255 MOVEMENT SPEED FAST - SLOW A.D.J. Supply Europe B.V. – www.americandj.eu – X-Move LED Plus™ Instruction Manual Page 12... -
Page 13: Fuse Replacement
1. Low frequencies (bass) should cause the unit to react to sound. Tapping on the microphone, quiet or high pitched sounds may not activate the unit.. A.D.J. Supply Europe B.V. – www.americandj.eu – X-Move LED Plus™ Instruction Manual Page 13... -
Page 14: Specifications
Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. A.D.J. Supply Europe B.V. – www.americandj.eu – X-Move LED Plus™ Instruction Manual Page 14... -
Page 15: Rohs And Weee
We are happy to answer any of your inquiries and welcome your suggestions at: info@americandj.eu A.D.J. Supply Europe B.V. – www.americandj.eu – X-Move LED Plus™ Instruction Manual Page 15... - Page 16 A.D.J. Supply Europe B.V. Junostraat 2 6468 EW Kerkrade The Netherlands www.americandj.eu A.D.J. Supply Europe B.V. – www.americandj.eu – X-Move LED Plus™ Instruction Manual Page 16...
