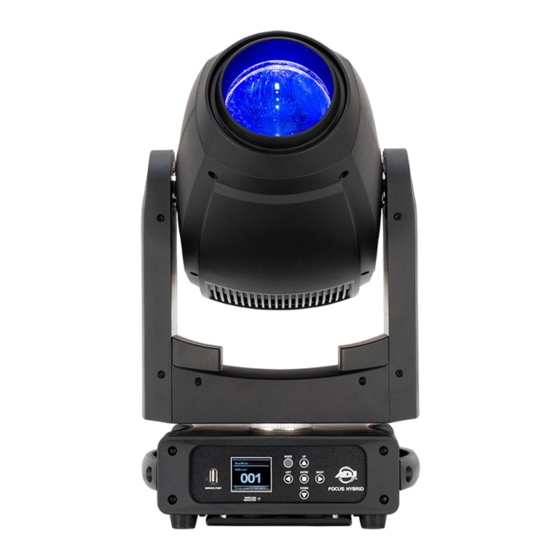

ADJ FOCUS HYBRID User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FOCUS HYBRID
User Manual

Advertisement

Table of Contents
loading

Related Manuals for ADJ FOCUS HYBRID

Summary of Contents for ADJ FOCUS HYBRID

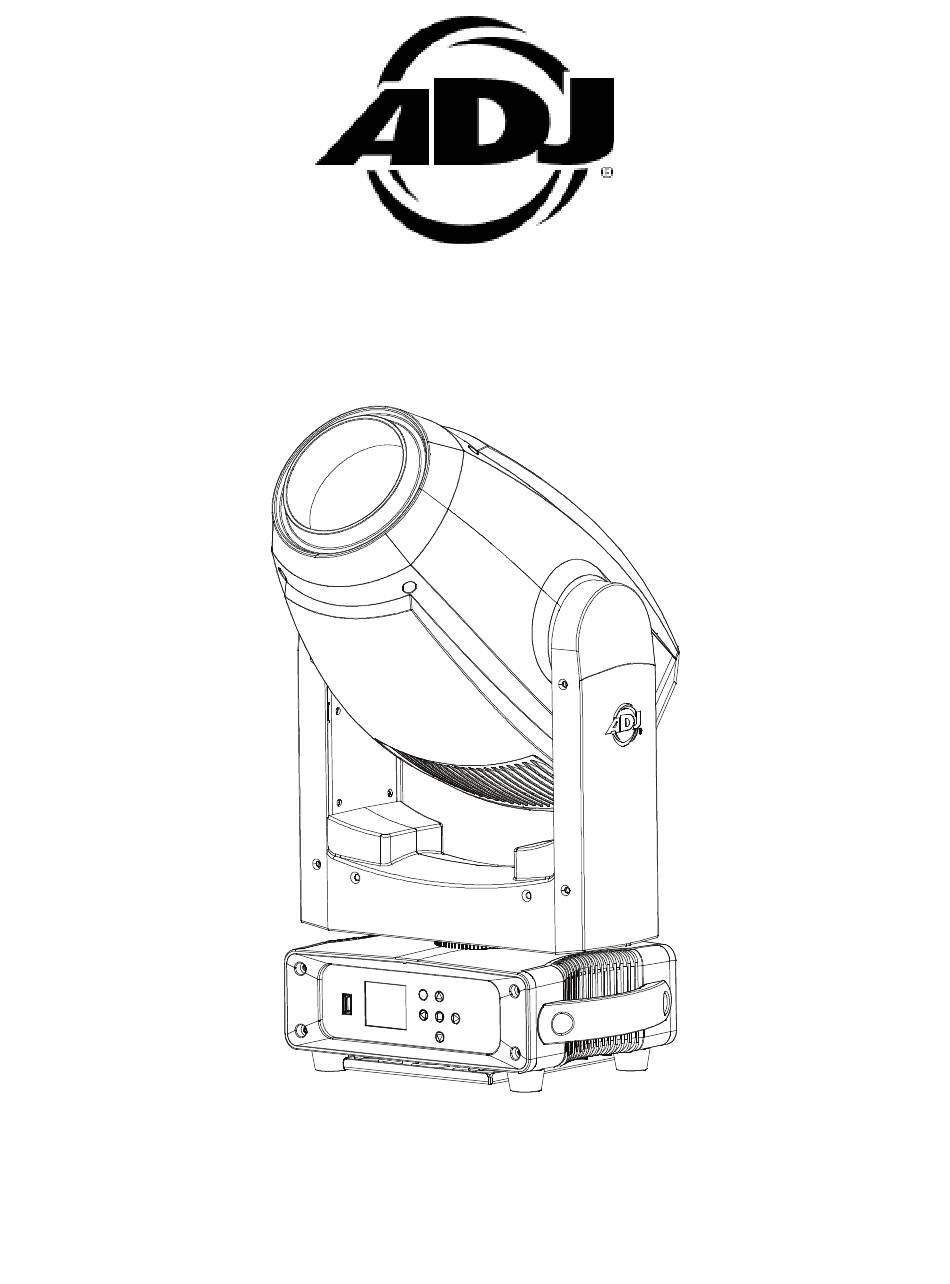

  • Page 1 FOCUS HYBRID User Manual...
  • Page 2 ©2022 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying prod- uct names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

  • Page 3: Table Of Contents

    T A B L E O F C O N T E N T S Introduction Limited Warranty (USA Only) Warranty Registration | Features Safety Precautions Overview Installation Accessory Installation Remote Device Management (RDM) Wifly Color Wheel Gobos Control Panel System Menu DMX Set Up DMX Traits...

  • Page 4: Introduction

    I N T R O D U C T I O N Unpacking: Thank you for purchasing the Focus Hybrid by ADJ Products, LLC. Every device has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping.

  • Page 5: Limited Warranty (Usa Only)

    The sole responsibility of ADJ Products, LLC under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of ADJ Products, LLC. All products covered by this warranty were manufactured after August 15, 2012, and bear identifying marks to that effect.

  • Page 6: Warranty Registration | Features

    W A R R A N T Y R E G I S T R A T I O N Please fill out the enclosed warranty card to validate your purchase. All returned service items, whether under warranty or not, must be freight pre-paid and accompanied by a return authorization (R.A.) number.

  • Page 7: Safety Precautions

    S A F E T Y P R E C A U T I O N S PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED. THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT. DO NOT ATTEMPT ANY REPAIRS YOURSELF, AS DOING SO WILL VOID YOUR MANUFACTURER’S WARRANTY.

  • Page 8: Overview

    O V E R V I E W Mode Button Antenna Button Right Power Button Service Down Enter Fuse DMX Display Left Power Port Button Button Screen Button Safety Cable Loop Omega Omega Bracket Bracket Attachment Attachment Points Points...

  • Page 9: Installation

    I N S T A L L A T I O N DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO! Fixture MUST be installed following all local, national, and country commercial electrical and construc- tion codes and regulations. When installing the unit, the trussing or area of installation must be able to support at least 10 times the weight of the unit and any attached accessories without any deformation.
  • Page 10 I N S T A L L A T I O N CLAMP MOUNTING This fixture features mounting points on the underside for the attachment of two Omega brackets. Additionally, the unit also features a safety cable loop on the underside, between the Omega bracket mounting points (see the illustration below).
  • Page 11 LEDs. This issue is not specific only to ADJ lighting fixtures, but rather it is a common issue with lighting fix- tures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the guidelines below can reduce the risk of potential damage.

  • Page 12: Accessory Installation

    A C C E S S O R Y I N S T A L L A T I O N FROST FILTER 1. Place the device on a flat, stable surface, and allow the device to cool down for at least 1 hour before beginning this procedure.

  • Page 13: Remote Device Management (Rdm)

    R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems.

  • Page 14: Wifly

    W I F L Y There are many factors that can affect and/or interrupt a wireless signal, including walls, glass, metal, objects, and people. Therefore, the following guidelines are recommended in order to maximize the chances of having a clear path for the wireless signal to reach the device: •...

  • Page 15: Color Wheel

    C O L O R W H E E L 3200K CTO Light Green Blue Light Blue Green Yellow Deep Blue Magenta Orange Purple...

  • Page 16: Gobos

    G O B O S DESIGNS FIXED GOBOS ROTATING GOBOS GOBO DIMENSIONS Thickness Inner (Viewable) Diameter Outer Diameter 0.02in (0.5mm) 0.35in (9.0mm) 0.650in (16.5mm 0.007...
  • Page 17 G O B O S GOBO HOLDER DIM DRAWING 5.9mm (0.23in) ø 29mm (1.14in) 0.5mm (0.02in) 1.0mm (0.04in) Orientation Gobo installation Gear Module: M = 0.8 made to 1.8mm surface should be Tooth Number: Z = 28 concave point (0.07in) Ensure that gobo ring, gobo, and retainer are securely installed before...
  • Page 18 G O B O S REPLACEMENT PROCEDURE 1. Place the device on a flat, stable surface, and allow the device to cool down for at least 1 hour before beginning this procedure. 2. Remove the screws holding the head covers in place, and detach the clips for the head cover security cables.

  • Page 19: Control Panel

    C O N T R O L P A N E L The Focus Hybrid features a display screen with a 6-button control pad, which can be used to easily adjust any device settings. • The MODE button cycles through main menu options, or returns to the previous menu without mak- ing changes.

  • Page 20: System Menu

    S Y S T E M M E N U 001 - xxx DMX Address Basic 19 DMX Channel Standard 23 Mode Extended 25 DMX SETTINGS Hold Last Blackout No DMX Status Manual Internal Programs Prim/Sec Mode Primary / Secondary DMX has priority;...
  • Page 21 S Y S T E M M E N U Standard Stage Dim Modes Architectural Theatre Stage 2 Dim Speed 0.1s - 10.0s 900-1500 Hz, 2500 Hz, 4000 Hz, 5000 Hz, 6000 Hz, 10 Default = 1200 Hz LED Refresh Rate KHz, 15 KHz, 20 KHz, 25 KHz Square Linear...
  • Page 22 S Y S T E M M E N U Total time fixture has been pow- Power On Time xxxxxx Hours ered on over its entire life Fixture Life Time Time fixture has P-On Time-R xxxxxx Hours been powered on since last reset Reset P-On Time- P-On Time-Reset...

  • Page 23: Dmx Set Up

    2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will reduce the risk of erratic behavior.
  • Page 24 D M X S E T U P DMX ADDRESSING. All fixtures should be given a DMX starting address when using a DMX controller, so the correct fix- ture responds to the correct control signal. This digital starting address is the channel number from which the fixture starts to “listen”...

  • Page 25: Dmx Traits

    D M X T R A I T S CHANNEL FUNCTION VALUES 19 CH 23 CH 25 CH 000 - 255 Pan Movement (540/630) 000 - 255 Pan Fine 000 - 255 Tilt Movement (270) 000 - 255 Tilt Fine Color Wheel 000 - 008 Open / White 009 - 013 Red...
  • Page 26 D M X T R A I T S CHANNEL FUNCTION VALUES 19 CH 23 CH 25 CH Rotating Gobo Wheel (continued) 190 - 221 Clockwise Gobo Wheel Rotation, fast to slow 222 - 223 No Rotation 224 - 255 Counter-Clockwise Gobo Wheel Rotation, slow to fast Gobo Rotation 000 - 127 Indexing 128 - 189 Clockwise Gobo Rotation, fast to slow...
  • Page 27 D M X T R A I T S CHANNEL FUNCTION VALUES 19 CH 23 CH 25 CH Static Gobos (continued) 174 - 181 Gobo 14 shake, slow to fast 182 - 189 Gobo 15 shake, slow to fast 190 - 221 Clockwise Gobo Wheel Rotation, fast to slow 222 - 223 No Rotation 224 - 255 Counter-Clockwise Gobo Wheel Rotation, slow to fast Shutter...
  • Page 28 D M X T R A I T S CHANNEL FUNCTION VALUES 19 CH 23 CH 25 CH Prism 1 / Gobo Macros (continued) 180 - 194 Macro 12 195 - 209 Macro 13 210 - 224 Macro 14 225 - 239 Macro 15 240 - 255 Macro 16 Prism 2 000 - 031 Open...
  • Page 29 D M X T R A I T S CHANNEL FUNCTION VALUES 19 CH 23 CH 25 CH Dimmer Modes 000 - 020 Default to Unit Setting 021 - 040 Standard 041 - 060 Stage 061 - 080 TV 081 - 100 Architectural 101 - 120 Theater 121 - 140 Stage 2 141 - 160 Dim Speed, fast to slow (0.1s - 10.0s)
  • Page 30 D M X T R A I T S CHANNEL FUNCTION VALUES 19 CH 23 CH 25 CH Special Functions (continued) 155 - 156 Hibernation Off (hold 5s) 157 - 158 Display Backlight On (hold 3s) 159 - 160 Display Backlight Off (hold 5s) 161 - 162 Pan/Tilt Speed 1 (default) (hold 5s) 163 - 164 Pan/Tilt Speed 2 165 - 166 Invert Pan On (hold 3s)
  • Page 31 D M X T R A I T S CHANNEL FUNCTION VALUES 19 CH 23 CH 25 CH LED Refresh Rate (hold 1s) (continued) 1180 Hz 1190 Hz 1210 Hz 1220 Hz 1230 Hz 1240 Hz 1250 Hz 1260 Hz 1270 Hz 1280 Hz 1290 Hz...
  • Page 32 D M X T R A I T S CHANNEL FUNCTION VALUES 19 CH 23 CH 25 CH LED Refresh Rate (hold 1s) (continued) 20,000 Hz 25,000 Hz Internal Programs (hold 3s) Program 1 (scenes 1-8) Program 2 (scenes 9-16) Program 3 (scenes 17-24) Program 4 (scenes 25-32) Program 5 (scenes 33-40)

  • Page 33: Dim Speeds

    D I M S P E E D S DMX VALUES DELAY TIME 0.1 sec 0.2 sec 0.3 sec 0.4 sec 0.5 sec 0.6 sec 0.7 sec 0.8 sec 0.9 sec 1.0 sec 1.5 sec 2.0 sec 3.0 sec 4.0 sec 5.0 sec 6.0 sec 7.0 sec...

  • Page 34: Dim Modes

    D I M M O D E S DIMMER 100% Time (ms) 0 Sec Rise Time Down Time 0 sec Fade Time 1 sec Fade Time Dimming Curve Ramp Effect Rise Time (ms) Down Time (ms) Rise Time (ms) Down Time (ms) Standard (default) Stage 1100...

  • Page 35: Primary-Secondary Set Up | Multi Unit Power Linking

    P R I M A R Y - S E C O N D A R Y S E T U P This function allows you to link units together to run in a Primary-Secondary set-up, in which one unit will act as the controlling unit and the others will react to the controlling unit’s built-in programs.

  • Page 36: Maintenance Guidelines

    Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer.

  • Page 37: Error Codes

    E R R O R C O D E S When power is applied, the unit will automatically enter a “Reset/Test” mode. This mode brings all the internal motors to a home position. If there is an internal problem with one or more of the motors, an error code will flash in the display, as described in the chart below.

  • Page 38: Dimensional Drawings

    D I M E N S I O N A L D R A W I N G S 7.9in (201mm) 11.0in 7.0in (279mm) (177mm) 4.2in (107mm) 13.8in (351mm) 8.0in 3.5in (202mm) (90mm) Drawings are not to scale.

  • Page 39: Specifications

    S P E C I F I C A T I O N S SOURCE • 200W LED Engine • 50,000 Hour Average LED Life PHOTOMETRIC DATA • 4,100 Total Lumens • 7,500K, >70CRI • 57,433 LUX 5,336 FC @16.4’ (5m) (3.1° Beam) •...
