Summary of Contents for ADJ INNO POCKET Z4

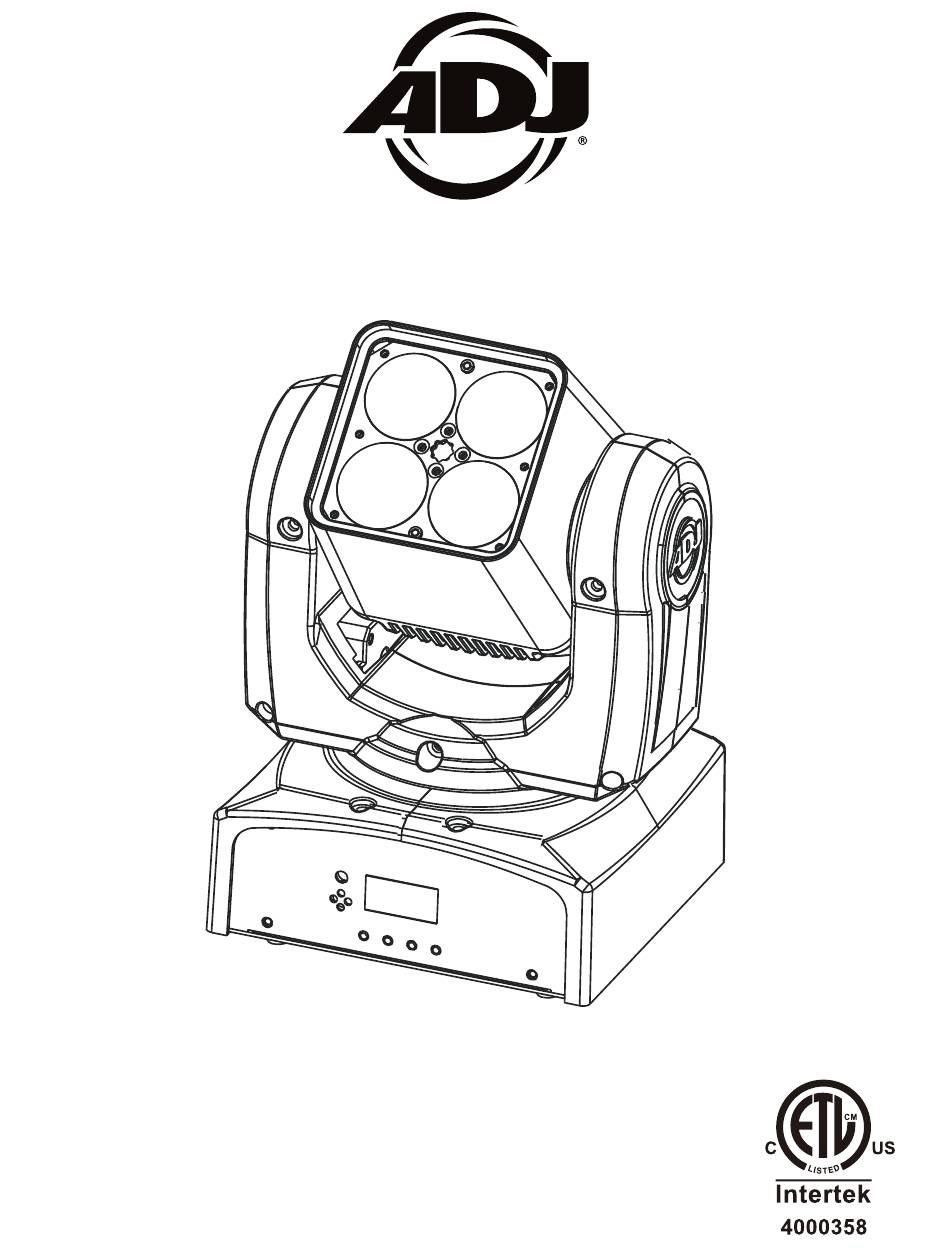

- Page 1 INNO POCKET Z4 User Instructions 10/20...
- Page 2 ©2020 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

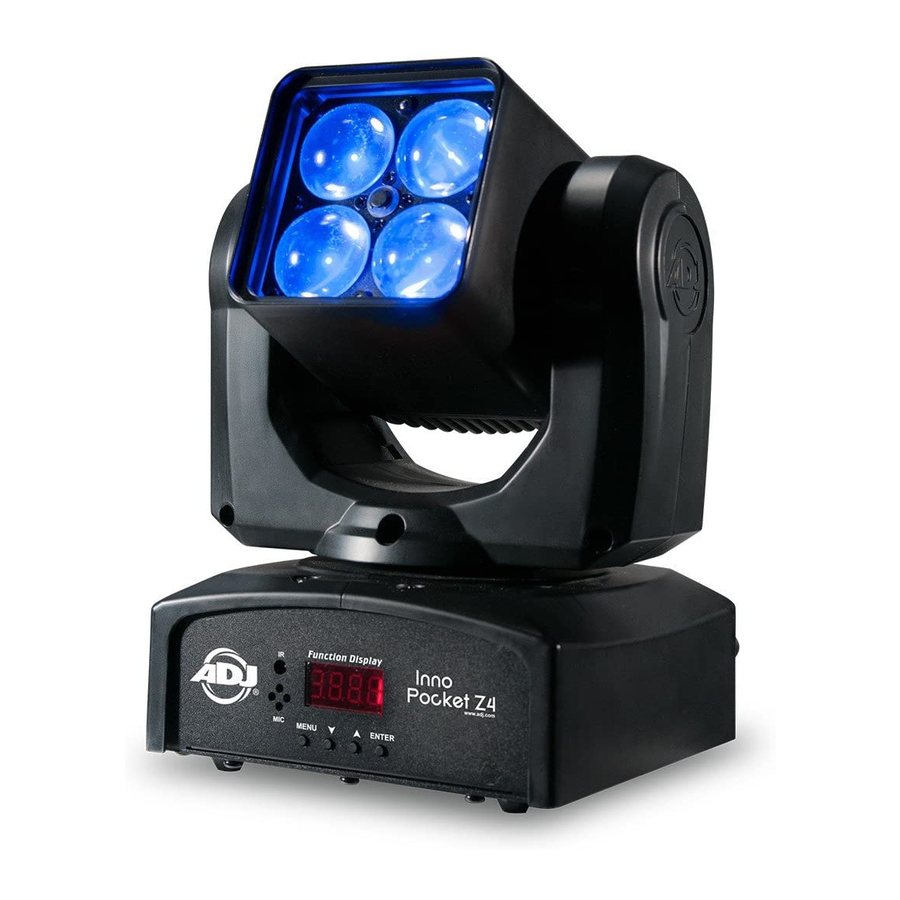

- Page 3 Introduction: The Inno Pocket Z4 is a DMX intelligent, zooming, moving head, mini LED fixture. The Inno Pocket Z4 can operate as a stand alone fixture or in a Primary/Secondary set up. The Inno Pocket Z4 has three operating modes; sound active mode, show mode, DMX controlled.
- Page 4 • UC IR Compatiable (Not Included) INNO POCKET Z4 WARRANTY REGISTRATION The Inno Pocket Z4 carries a 2 year (730 days) limited warranty. Please fill out the enclosed warranty card to validate your purchase and warranty. You may also register your product online at www.adj.com.
- Page 5 A. Objects have fallen, or liquid has been spilled into the appliance. B. The appliance has been exposed to rain or water. C. The appliance does not appear to operate normally or exhibits a marked change in performance. ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page...
- Page 6 The installation should be checked by a skilled person once a year.k The Inno Pocket Z4 is fully operational in three different mounting positions, hanging upside-down from a ceiling, set on a flat level surface, or on its side attached to trussing.
- Page 7 Screw one clamp via a M12 screw and nut to the included bracket. Attach the bracket using the included screws to the bottom of the Inno Pocket Z4. Attach the eyebolt to the bottom of the base and pull the safety-cable through the screw and over the trussing system or a safe fixation spot.
- Page 8 INNO POCKET Z4 DMX SET UP Power Supply: The ADJ Inno Pocket Z4 contains a automatic volt- age switch, which will auto sense the voltage when it is plugged into the power source. With this switch there is no need to worry about the correct power voltage, this unit can be plugged in anywhere.
- Page 9 (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior.
- Page 10 Pin 2 Pin 2 Data True (+ signal) Pin 3 Pin 3 Not Used Pin 4 - Do Not Use Not Used Pin 5 - Do Not Use ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page...
- Page 11 Show Mode Sound Mode Sound Sense DMX Last State Dimmer Mode Pan Invert Tilt Invert Display Auto Test Manual Test Temperature Fixture Hours Software Version Reset White Balance ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page...
- Page 12 NOTE: In a Primary/Secondary configuration you can set one fixture to Primary and then set the next fixture to “SEC2”, the fixtures will now have contrast movement to each other. ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page...
- Page 13 DOWN buttons to adjust the sound sensitivity. 0 being the least sensitive, and 100 being the most sensitive. 3. When you have found your desired setting press ENTER to confirm. ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page...
- Page 14 “THAL” (Theatre). See the dimmer curve chart on page 28 for more info. 2. Press the UP or DOWN buttons to find your desired dimmer curve and press ENTER to confirm and exit. ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page...
- Page 15 1. Press the MENU button until “DISP” is displayed, press ENTER. 2. Press ENTER to “flip” the display. Press ENTER to “flip” it again. Press ENTER when you have made your desired setup. ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page...
- Page 16 1. Press the MENU button until “FHRS” is displayed, press ENTER. 2. The running time of the fixture will now be displayed. Press MENU to exit. ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page...
- Page 17 Use the UP or DOWN buttons to adjust the value. Once you have made your adjustment press ENTER. 4. Repeat steps 2-3 until satisfied. ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page...
- Page 18 UP or DOWN buttons so that “TINT” is displayed, press ENTER. 2. Use the UP and DOWN buttons to make your adjustments, and then press ENTER to confirm. Press the MENU button for one second to exit. ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page...
- Page 19 A DMX controller allows you to create unique programs tailored to your individual needs. 1. The Inno Pocket Z4 has 3 DMX channel modes; 16 channel mode, 19 channel mode, and 22 channel mode. See pages 21-27 for detailed description of the DMX values and traits.
- Page 20 ENTER. Choose either “SEC1” or “SEC2” and press ENTER. See page 11 for more info. 5. The Secondary units will now follow the Primary unit. ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page...
- Page 21 INNO POCKET Z4 UC IR OPERATION The ADJ UC IR (sold separately) infrared remote gives you control of various functions (See below). To control the fixture you must aim the remote at the front of the fixture and be no more then 30 feet away.
-
Page 22: Special Functions
70 - 79 BLACKOUT W/ PAN/TILT MOVEMENT 80 - 89 DISABLE BLACKOUT WITH PAN/TILT MOVEMENT 90 - 199 NO FUNCTION 200 - 209 RESET ALL 210 - 255 NO FUNCTION ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page... - Page 23 116 - 119 COLOR MACRO 30 120 - 123 COLOR MACRO 31 124 - 127 COLOR MACRO 32 128 - 191 COLOR CHANGING 192 - 255 COLOR FADING ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page...
- Page 24 RESET ALL DIMMER CURVES 0 - 20 STANDARD 21 - 40 STAGE 41 - 60 61 - 80 ARCHITECTURAL 81 - 100 THEATRE 101 - 255 DEFAULT DIMMER SETTING ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page...
- Page 25 116 - 119 COLOR MACRO 30 120 - 123 COLOR MACRO 31 124 - 127 COLOR MACRO 32 128 - 191 COLOR CHANGING 192 - 255 COLOR FADING ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page...
- Page 26 NO FUNCTION DIMMER CURVES 0 - 20 STANDARD 21 - 40 STAGE 41 - 60 61 - 80 ARCHITECTURAL 81 - 100 THEATRE 101 - 255 DEFAULT DIMMER SETTING ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page...
- Page 27 2365 1051 9378 2445 1077 RGBW 5731 2581 1431 21210 RGBW 1885 Distance(m) INNO POCKET Z4 DIMMER CURVE CHART (Fade Time) Ramp Effect Standard Stage Architectura l Theatre ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page...
- Page 28 Unit does not respond to sound; 1. Low frequencies (bass) should cause the unit to react to sound. Tapping on the microphone, quiet or high pitched sounds may not activate the unit. ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page...
- Page 29 No accessories should be shipped with the product. If any accessories are shipped with the product, ADJ Products, LLC shall have no liability whatsoever for loss of or damage to any such accessories, nor for the safe return thereof.
- Page 30 Auto Sensing Voltage: This fixture contains a automatic voltage switch, which will auto sense the voltage when it is plugged into the power source. ADJ Products, LLC 6122 S. Eastern Ave. Los Angeles, CA 90040 USA Tel: 323-582-2650 / Fax: 323-725-6100 Web: www.adj.com / E-mail: info@americandj.com A.D.J.
