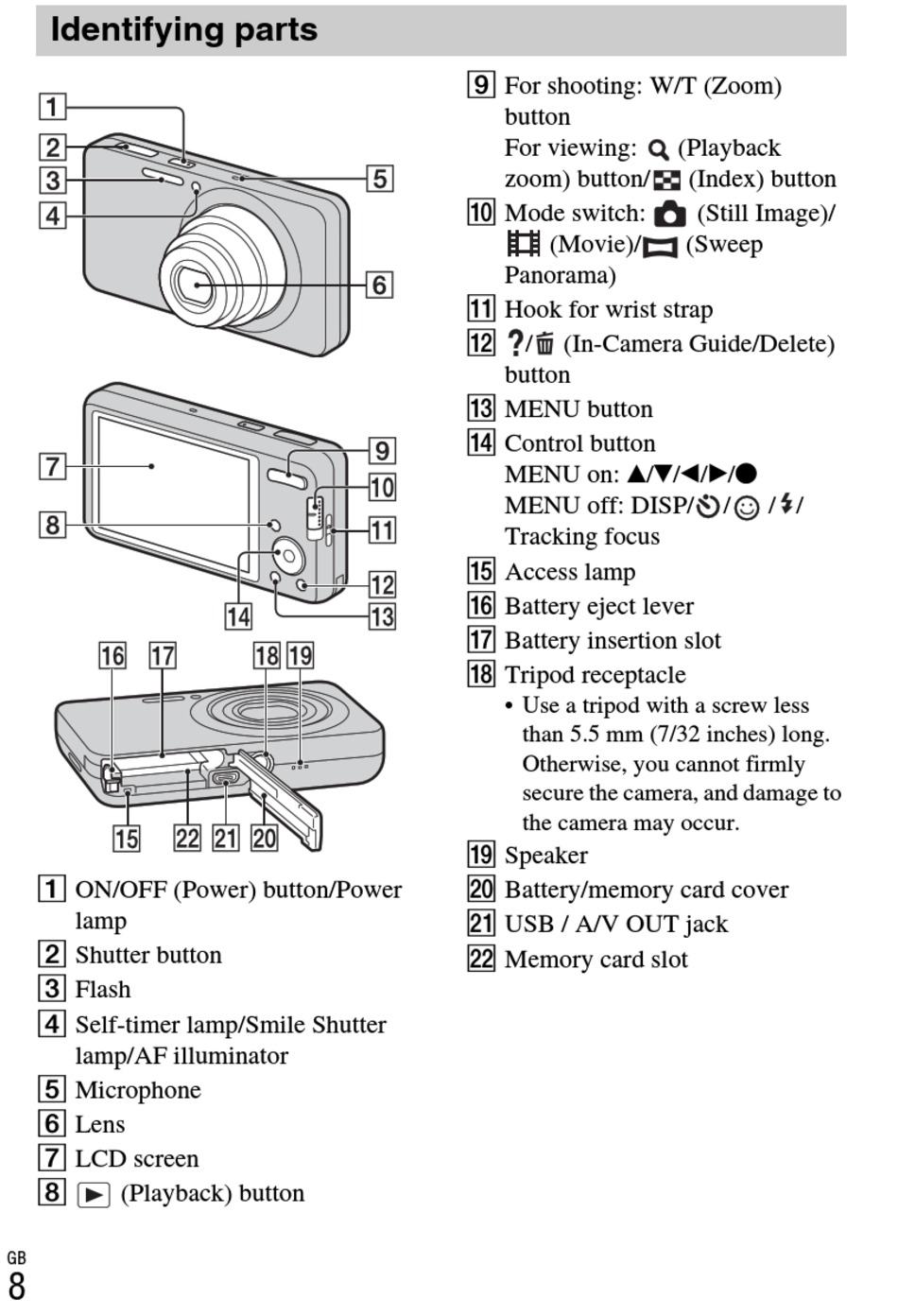

Identifying parts

A ON/OFF (Power) button/Power
lamp
B Shutter button
C Flash
D Self-timer lamp/Smile Shutter
lamp/AF illuminator
E Microphone
F Lens
G LCD screen
H
(Playback) button
GB
8
I For shooting: W/T (Zoom)
button
For viewing:
zoom) button/
J Mode switch:
(Movie)/
Panorama)
K Hook for wrist strap
L
/ (In-Camera Guide/Delete)
button
M MENU button
N Control button
MENU on: v/V/b/B/z
MENU off: DISP/
Tracking focus
O Access lamp
P Battery eject lever
Q Battery insertion slot
R Tripod receptacle
• Use a tripod with a screw less
than 5.5 mm (7/32 inches) long.
Otherwise, you cannot firmly
secure the camera, and damage to
the camera may occur.
S Speaker
T Battery/memory card cover
U USB / A/V OUT jack
V Memory card slot
(Playback
(Index) button
(Still Image)/
(Sweep
/ / /
