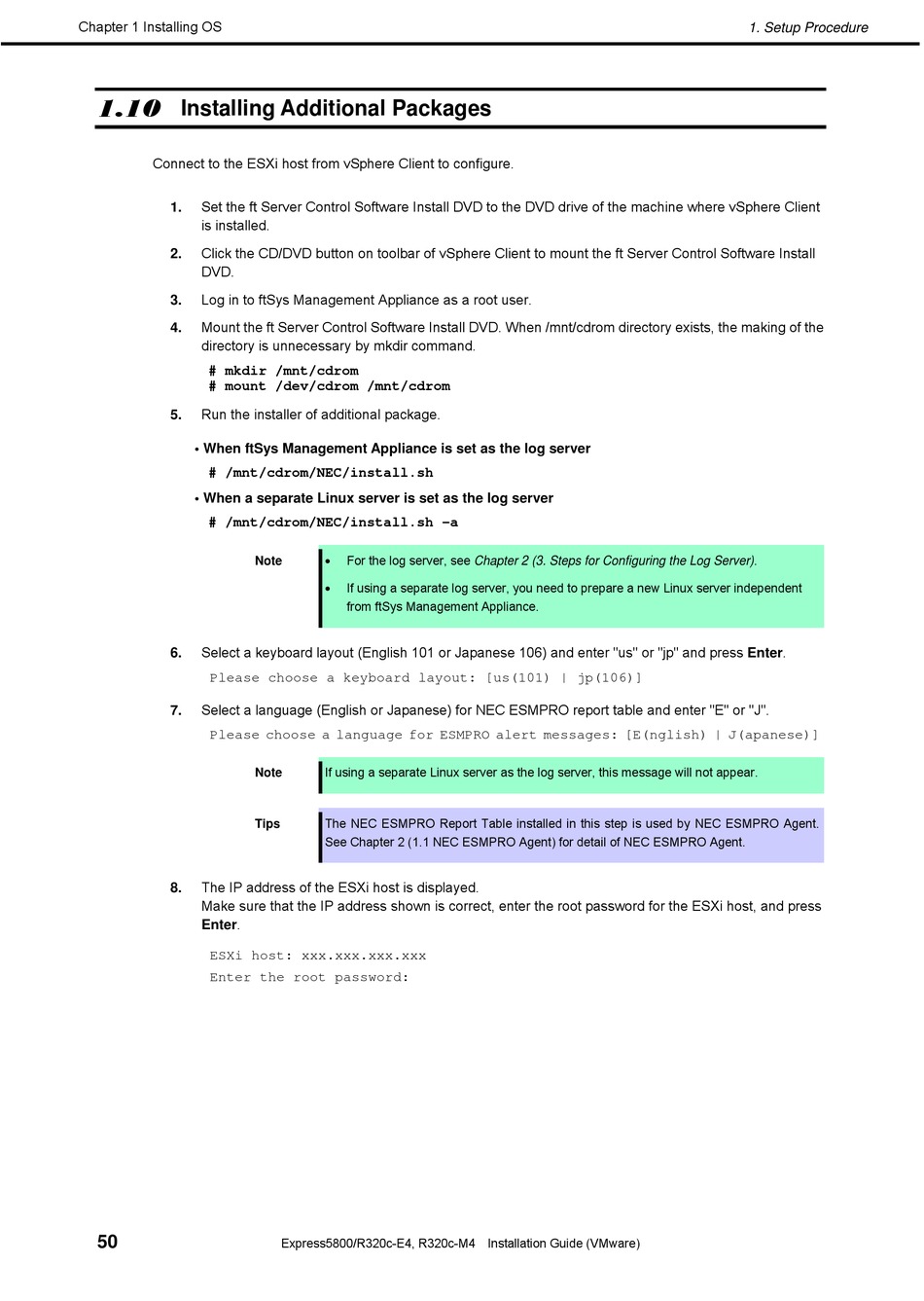

Installing Additional Packages - NEC Express5800/R320c-E4 Installation Manual

Chapter 1 Installing OS
1.10

Installing Additional Packages

Connect to the ESXi host from vSphere Client to configure.
Set the ft Server Control Software Install DVD to the DVD drive of the machine where vSphere Client
1.
is installed.
Click the CD/DVD button on toolbar of vSphere Client to mount the ft Server Control Software Install
2.
DVD.
Log in to ftSys Management Appliance as a root user.
3.
Mount the ft Server Control Software Install DVD. When /mnt/cdrom directory exists, the making of the
4.
directory is unnecessary by mkdir command.
# mkdir /mnt/cdrom
# mount /dev/cdrom /mnt/cdrom
Run the installer of additional package.
5.
• When ftSys Management Appliance is set as the log server
# /mnt/cdrom/NEC/install.sh
• When a separate Linux server is set as the log server
# /mnt/cdrom/NEC/install.sh –a
Select a keyboard layout (English 101 or Japanese 106) and enter "us" or "jp" and press Enter.
6.
Please choose a keyboard layout: [us(101) | jp(106)]
Select a language (English or Japanese) for NEC ESMPRO report table and enter "E" or "J".
7.
Please choose a language for ESMPRO alert messages: [E(nglish) | J(apanese)]
The IP address of the ESXi host is displayed.
8.
Make sure that the IP address shown is correct, enter the root password for the ESXi host, and press
Enter.
ESXi host: xxx.xxx.xxx.xxx
Enter the root password:
50

For the log server, see Chapter 2 (3. Steps for Configuring the Log Server).
Note

If using a separate log server, you need to prepare a new Linux server independent
from ftSys Management Appliance.
If using a separate Linux server as the log server, this message will not appear.
Note
The NEC ESMPRO Report Table installed in this step is used by NEC ESMPRO Agent.
Tips
See Chapter 2 (1.1 NEC ESMPRO Agent) for detail of NEC ESMPRO Agent.
Express5800/R320c-E4, R320c-M4 Installation Guide (VMware)
1. Setup Procedure
