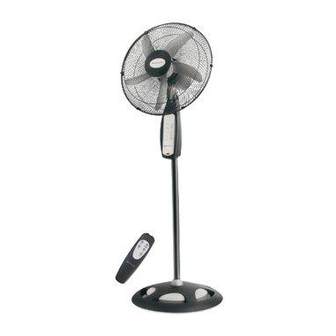

STAND
16" oscillating
fan with Remote
Control
MODEL
BASF1522RC
Read instructions before operating.
Retain for future reference.
Instruction Leaflet
Step 5: Snap the logo plate on to the front grill, making
sure the clips on the logo plate, fit into the
openings on the front grill.
NOTE: SHOULD ANY GRILL CLIPS BREAK; THERE ARE
EXTRAS IN THE BOX.
Step 6: Center the front grill, aligning the Bionaire logo so it
is horizontal and parallel to the floor, place onto the
rear grill, and snap in place by pushing front grill
onto clips while holding clips.
Final Assembly
Step 1: Place the hollow end of the remote control housing
(female end) on to the upper extension pole until it
will not go down any further.
Step 2: Tighten the locking nut on the back of the remote
control housing by turning it clockwise until it
doesn't turn any further.
OPERATING INSTRUCTIONS
Step 1: Set fan on a dry, level surface.
Step 2: Plug cord into any standard outlet.
Step 3: The speed is adjustable by pushing either the ( )
button on the remote control, or the ON/SPEED
( ) button on the touch-key pad. Push this
button first for LOW, again for MEDIUM, and a
third time for HIGH. Push a fourth time to repeat
the sequence. To turn the fan OFF, push the ( )
button on the remote control, or on the touch-key
pad.
Step 4: To oscillate the fan head, push the button marked
( ) on the remote, or OSCILLATE ( ) on the
touch-key pad. Push a second time to stop
OSCILLATION.
Step 5: For a natural BREEZE ( ) movement, push the
button marked ( ) on the remote, or MODE ( )
on the touch-key pad. This will vary the fan
speeds faster and slower. By pressing the ( )
button a second time, or the MODE ( ) button
on the touch-key pad, you activate the SLEEP ( )
setting. This function slows the fan speed down,
and when used in conjunction with the timer
settings, will ultimately turn the fan off.
NOTE: Both the BREEZE and SLEEP functions can be
used with or without OSCILLATION, and start off of
any initial fan speed.
Step 6: This fan is equipped with a 4-setting stop timer. (8
hrs, 4 hrs, 2 hrs, and 1 hr) To activate the TIMER,
push the ( ) button on the remote control, or the
TIMER ( ) button on the touch-key pad. One
push will set the 1 hr, the next push sets the 2 hr,
the third push activates the 4 hr, and the fourth
push sets the 8 hr. Push again to begin repeating
this sequence.
Page 1
FAN SAFETY
PLEASE READ AND SAVE
THESE IMPORTANT
SAFEGUARDS
IMPORTANT INSTRUCTIONS
When using electrical appliances, basic safety precautions
should always be taken including the following:
1. Read all instructions before using this appliance.
2. Use fan only for purposes described in the instruction
manual.
3. To protect against electrical shock do not immerse
unit, plug or cord in water or spray with liquids. Plug
the appliance directly into electrical outlet.
4. Close supervision is necessary when any appliance is
used by or near children.
5. Unplug from outlet when not in use, when moving fan
from one location to another, before putting on or
taking off parts and before cleaning.
6. Avoid contact with moving parts.
7. Do not operate in the presence of explosive and/or
flammable fumes.
8. To avoid fire hazard, NEVER place the cord under
rugs or any parts near an open flame, cooking or
other heating appliance.
9. Do not operate any appliance with a damaged cord or
plug after the appliance malfunctions, or has been
dropped/damaged in any manner. Take it to an
Authorized Service Center for its examination and/or
repair.
10.The use of attachments not recommended or sold by
the appliance manufacturer may cause hazards.
11.Do not use outdoors.
12.Do not let the cord hang over the edge of a table,
counter or come in contact with hot surfaces or leave
exposed to high traffic areas.
13.To disconnect, grip plug and pull from wall outlet.
Never yank on cord.
14.Always use on a dry, level surface.
15.Do not operate fan until fully assembled with all parts
properly in place.
16.This product is intended for household use ONLY and
not for commercial or industrial applications.
17.This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
NOTE: The timer can be used in conjunction with several
other functions. For example: SLEEP + 4HR.
TIMER causes the fan to gradually slow down over
4 hours and eventually turn off.
REMOTE CONTROL HANDHELD UNIT
• Your remote control requires 2 AAA
batteries (not included) for operation.
• Install the 2 AAA batteries in the
compartment on back of the remote,
according to the diagram shown
inside.
• Do not mix old and new batteries.
• Do not mix alkaline, standard (carbon-zinc), or
rechargeable (nickel-cadmium) batteries.
ADJUSTMENT INSTRUCTIONS
Height Adjustment
This fan is equipped with two poles, which allow you to
adjust the height of the fan for three height settings.
• Small Pole Only: 27.5cm
• Large Pole Only: 35.5cm
• Both Poles: 63cm
Tilt Adjustment
To change the tilting angle of the fan head, move the fan
head to the desired angle.
CLEANING/MAINTENANCE INSTRUCTIONS
Follow these instructions to correctly and safely care for
your fan.
• Always unplug the fan before cleaning or
disassembling.
• Be sure to clean your fan with a soft cloth moistened
with a mild soap solution.
• Do not allow water to drip on or enter into the fan
housing.
• Do not use gasoline, thinner, or benzene as a cleaner.
• Lightly run a vacuum cleaner nozzle over the fan grill
to remove any dust or dirt that may have
accumulated.
Fan Blade Cleaning Instructions
Make sure the fan is unplugged before disassembling and
cleaning the fan blade. Carefully remove the front grill from
the clips. Wipe the blade with a soft cloth moistened with
a mild soap solution. DO NOT allow any liquid to drip into
or enter the motor housing. Snap the front grill onto the
fan. Make sure all parts are secured prior to operating the
fan.
or instruction concerning use of the appliance by a
person responsible for their safety. Children should be
supervised to ensure that they do not play with the
appliance.
PLEASE SAVE THESE
INSTRUCTIONS
ASSEMBLY INSTRUCTIONS
Base / Pole Assembly
Step 1: Insert the lower extension pole through the base
cover and twist the pole clockwise to lock in
position. Be careful to align the cut-away grooves
on the threaded joint (male end) with the two
protruding raised pieces inside the hollow end of
the base cover, See (Figure #2).
G
H
I
D
F
A
B
C
E
J
K
A. FRONT GRILL
L
B. FAN BLADE CAP
C. FAN BLADE
P
D. REAR GRILL NUT
M
E. REAR GRILL
F. MOTOR SHAFT
N
G. MOTOR HOUSING
O
H. REMOTE CONTROL
HOUSING
I. REMOTE CONTROL
J. LOCKING NUT

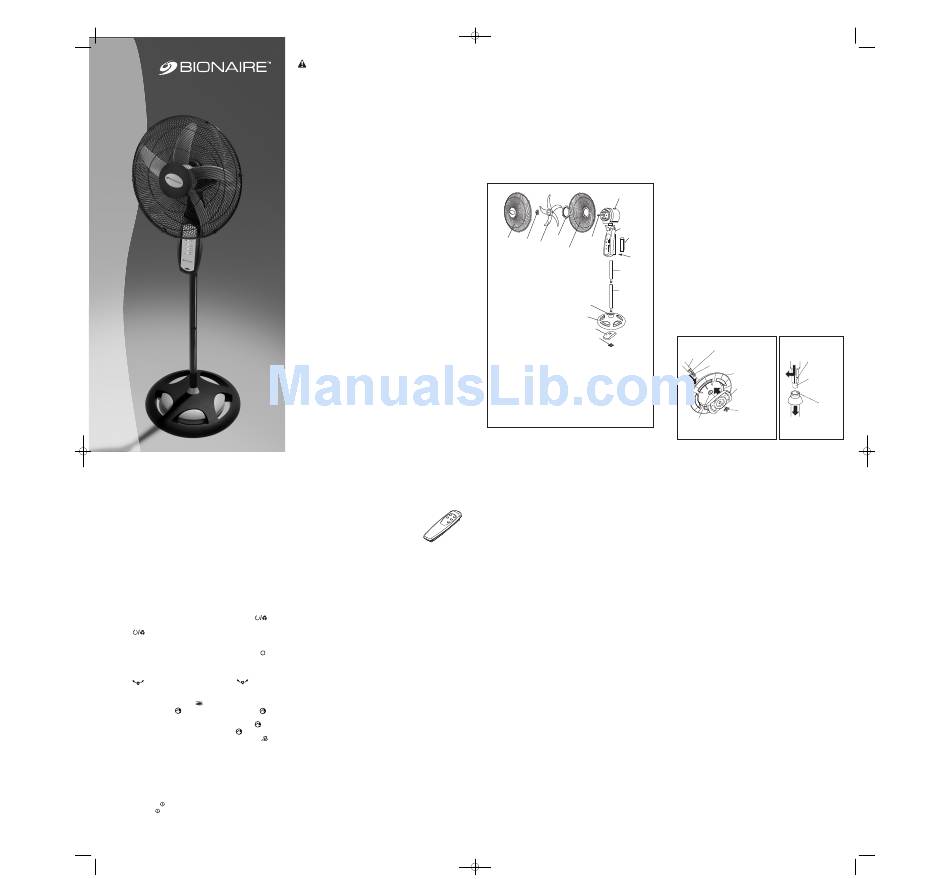

FIGURE 1
K. UPPER EXTENSION POLE
L. LOWER EXTENSION POLE
M. BASE
N. WEIGHTED INSERT
O. BASE NUT
P. DECORATION COVER
FAN STORAGE
Your fan should be stored in the off-season in its original
box. It is important to keep it in a safe, dry location.
• Store your fan in the original box or an appropriately
sized box.
• Protect the fan head from dust.
• Store your fan in a dry location.
How To Obtain Warranty Service: Please see the
country specific warranty insert or contact your
local authorized distributor for Oster appliances.
PLEASE DO NOT RETURN THIS PRODUCT TO THE
PLACE OF PURCHASE
© 2008 Sunbeam Products, Inc. All rights reserved.
Distributed by Sunbeam Latin America, LLC, 5200 Blue
Lagoon Drive, Suite 470, Miami, FL 33126.
One year limited warranty – please see insert for details.
BASF1522RCLA08ESM1
Printed in China
Step 2: Turn the base cover upside down (with the lower
extension pole facing the floor) and place the
weighted insert into the base cover. The pole threads
will be exposed as they protrude through the insert.
Step 3: Place the base nut on the threaded section and
hand-tighten the base nut to securely fasten the
lower extension pole to the base.
NOTE: DO NOT USE A TOOL TO TIGHTEN THE BASE
NUT.
Step 4: Insert the upper extension pole with the threaded
joint (male end) into the hollow end of the lower
extension pole (female end) – See Figure #3, until
both poles meet. Be careful to align the cutaway /
grooves on the threaded joint (male end) with the
two protruding pieces inside the hollow end of the
lower extension pole (female end).
Step 5: Turn the upper extension pole with the threaded
joint clockwise to lock it securely in place. (See
Figure #3).
Fan Head Assembly
You are now ready to assemble the fan head. (See Figure #1).
Step 1: Position the rear grill over the motor shaft, making
certain the 2 notches at the top and bottom of the
rear grill fit over the 2 protruding notches on the
motor housing. Please make sure the rear grill fits
securely against the motor housing.
Step 2: Fasten the rear grill in place using the rear grill nut.
Turn the nut clockwise and tighten firmly.
Step 3: Slide the fan blade, with the hollowed interior of
the fan blade facing toward the rear grill firmly onto
the motor shaft. Make sure that the pin on the
motor shaft lines up with the recessed grooves in
the back of the fan blade. Also, be sure to the
shaft protrudes from the front of the blade.
Step 4: Secure the fan blade onto the motor shaft by
turning the blade cap counter-clockwise (make
sure the blade is firmly in position.)
FIGURE 2 FIGURE 3
CUTAWAY/
GROOVES
POLE
CUTAWAY/
THREADED JOINT
GROOVES
(MALE END)
BASE COVER
THREADED
JOINT
(MALE END)
WEIGHTED
INSERT
HOLLOW
BASE NUT
END (FEMALE
END)
HOLLOW END OF
BASE COVER
ON TOP
