Icom iC-m34 Service Manual page 20

SECTION 7 MECHANICAL PARTS AND DISASSEMBLY
[CHASSIS PARTS]
REF ORDER
NO. NO.
J31 6910014190 2497 ANT CONNECTOR
SP1 2510001330 036D0803
W1 8900016000 OPC-1129A
MP1 8210023610 2987 FRONT PANEL
(Incl. SP1, MP2, MP3, MP4, MP5, MP6, MP7, MP19, MP46, MP47)
8210023620 2987 FRONT PANEL
(Incl. SP1, MP2, MP3, MP4, MP5, MP6, MP7, MP19, MP46, MP47)
MP2 8310068110 2987 WINDOW PLATE
8310068110 2987 WINDOW PLATE
MP3 8930011900 Speaker net (A) (FX-573)
MP4 8930068980 2905 VENT SHEET
MP5 8930070910 2987 KEYBOARD
8930070910 2987 KEYBOARD
MP6 8930070930 2987 PTT BUTTON
MP7 8930070970 2987 PTT HOLDER
MP8 8610011151 2497 BATT LOCK-1
MP9 8930056941 2497 LOCK PLATE-1
MP14 8850001950 Sealing washer (Y)
MP15 8830001720 2721 ANT NUT
MP16 8930070980 2987 MIC CAP
MP17 8930070990 2987 CAP HOLDER
MP18 8930070960 2987 MIC SEAL
MP19 8930071340 2987 WINDOW SHEET
MP21 8210023310 2987 REAR PANEL
MP22 8930070950 2987 MAIN SEAL
MP23 8810010121 Screw PH B0 2X8 SUS SSBC
MP24 8820001320 2795 SCREW
MP25 8930063690 O-RING (BA)
MP31 8010020660 2987 CHASSIS
MP32 8930071320 2987 TERMINAL HOLDER
MP33 8810009561 Screw BT B0 2X6 NI-ZK3 (BT)
MP34 8930060770 2691 A-TERMINAL
MP35 8930056900 2497 B-TERMINAL
MP37 8930056910 2497 C-TERMINAL
MP39 8810009511 Screw BT B0 2X4 NI-ZC3 (BT)
MP42 8810009561 Screw BT B0 2X6 NI-ZK3 (BT)
MP43 8510018100 2987 SHIELD PLATE
MP46 8930070940 2987 PW BUTTON
MP47 8930060790 2691 PW HOLDER
MP48 8930030920 1301 SHEET
MP50 8930071260 O-RING (BL)
[MAIN UNIT]
REF ORDER
NO. NO.
DS246 5030003000 S11000
MC250 7700002710 EM6027P-46C33-G
S250 2260001900 SW-149 (SKHLLD)
EP360 8930057100 SRCN-2497-SP-N-W
MP20* 8510014940 2601 VCO CASE
MP21 8510014950 2601 VCO COVER
MP50* 8410002570 2795 PA HEATSINK
MP360 8210023320 2987 REFLECTOR
MP361 8930071000 2987 LCD HOLDER
*: Refer to SECTION 9 BOARD LAYOUTS.
Screw abbreviations
DESCRIPTION
DESCRIPTION
A, B0, BT: Self-tapping PH: Pan head ZK: Black NI-ZU: Nickel-Zinc SUS: Stainless

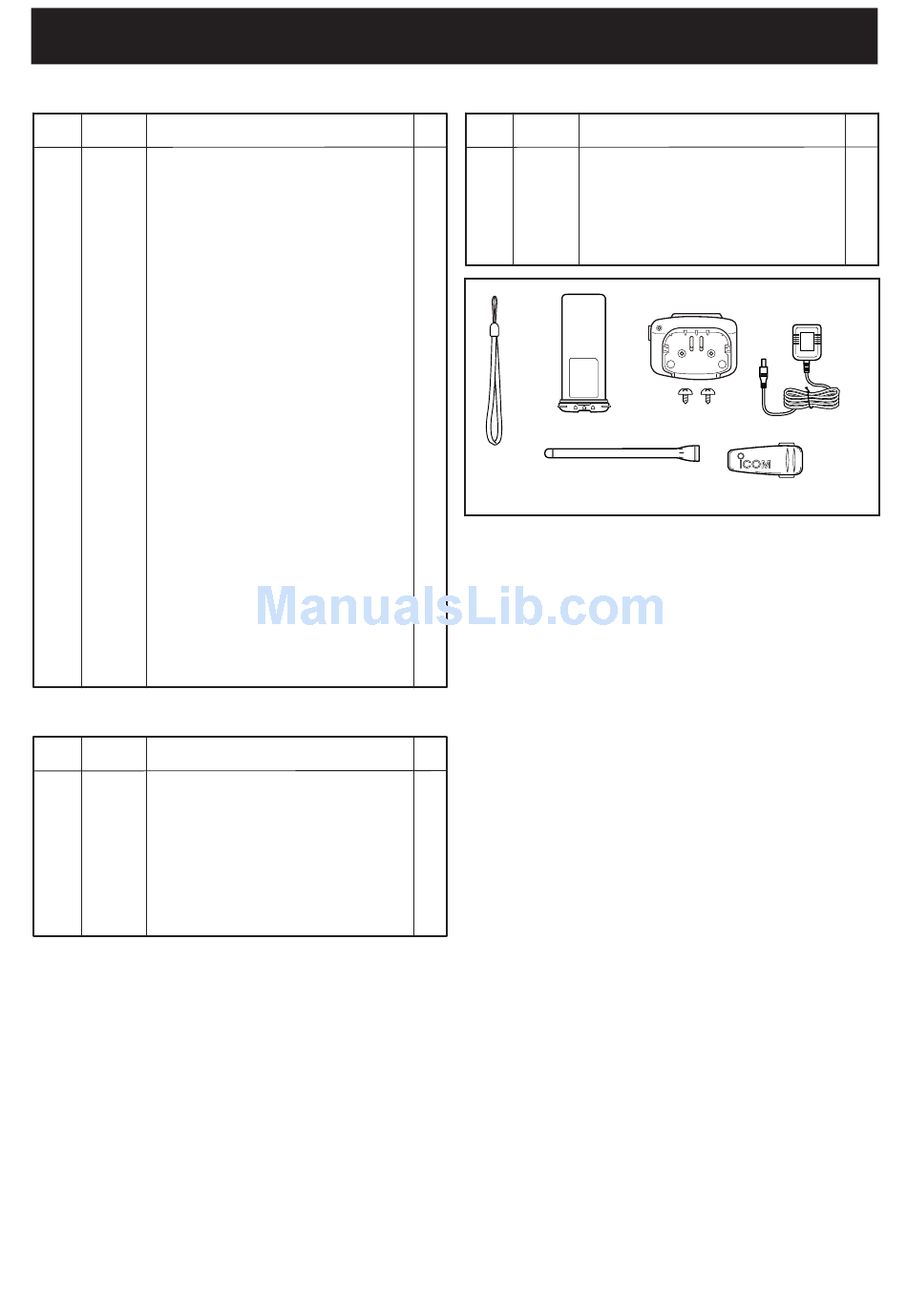

[ACCESSORIES]
REF ORDER
QTY.
NO. NO.
1 EP1
Optional product
EP2 Optional product
1 Optional product
EP4 Optional product
1 EP5 Optional product
EP6 6910018620 BLACK HANDY STRAP
[USA] 1
MP2 Optional product
MP4 8810001460 Screw BT A0 3.5X20 SUS
[SEA] 1
[USA] 1
[SEA] 1
1
1
[USA] 1
[SEA] 1
1
1
1
1
1
1
1
1
1
1
EP6
1
1
2
2
2
1
1
4
1
1
1
7
4
1
1
1
1
1
QTY.
1
1
1
1
1
1
1
1
1
7 - 1
DESCRIPTION
FA-SC58V
BC-174A
BC-174E
BP-252
BC-173 (Incl. MP4)
MB-109
EP5
MP4
EP4
EP1
QTY.
1
[USA] 1
[SEA] 1
1
1
1
1
2
EP2
MP2
