Omron R2 Instruction Manual

2. Preparation
2.1 Installing/Replacing the Batteries
1.
Remove the battery compartment cover
by pulling it off in the direction of the
Wrist Blood
arrow.
Pressure Monitor
1) Push the hook on the bottom of the
battery cover.

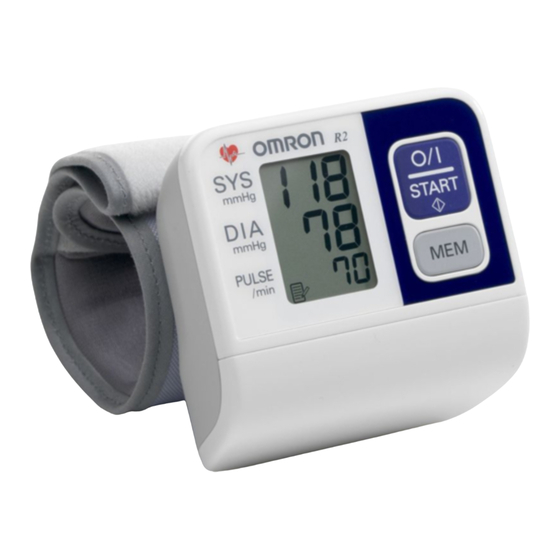

Model R2
Instruction Manual 2) Pull the cover off the main unit.
IM-HEM-6113-RU-04-07/2011
2.
Insert two identical 1.5V "AAA"
5329525-2B
alkaline (LR03) batteries in the
Introduction
battery compartment.
Thank you for purchasing the OMRON R2 Wrist Blood Pressure Monitor.
Make sure their polarity (+/-) is
This remarkable, compact and easy to use instrument is ideal for people who
aligned with the polarity (+/-) as
frequently monitor their own blood pressure. The small, pre-formed wrist cuff is
indicated in the battery compartment.
very convenient and easy to apply.
3.
Put the battery cover back in place.
The OMRON R2 is a compact and easy to use blood pressure monitor,
operating on the oscillometric principle. It measures your blood pressure and Note: The measurement values continue to be stored in memory even
pulse rate simply and quickly. For comfortable controlled inflation without the after the batteries are replaced.
need of pressure pre-setting or re-inflation the devices uses its advanced
2.2 Battery Life & Replacement
"IntelliSense" technology.
The unit also stores up to 30 measurement results in memory.
If the battery low symbol (
Intended Use replace both batteries at the same time.
This product is designed to measure the blood pressure and pulse rate of
people within the range of the designated wrist cuff, following the instructions in
this instruction manual. - When the battery low symbol (
It is mainly designed for general household use. Please read the Important the unit for a short while. You should replace the batteries with new ones
Safety Information in this instruction manual before using the unit. as soon as possible.
- When the symbol (
Please read this instruction manual thoroughly before using the unit. For
replace the batteries with new ones at once.
specific information about your own blood pressure, CONSULT YOUR
DOCTOR. • Turn the unit off before replacing the batteries.
• Remove the batteries if the unit will not be used for three months or more.
• Dispose of batteries according to applicable local regulations.
Important Safety Information
• Two new identical 1.5V "AAA" alkaline batteries will last for approximately
Consult your doctor prior to using in pregnancy or if diagnosed with arrhythmia
300 measurements, when used to take two measurements a day.
or arteriosclerosis.
• Since the supplied batteries are for monitoring use only, they may have a
Please read this section carefully before using the unit.
shorter life and do not last for 300 measurements.
Warning:
• Indicates a potentially hazardous situation which, if not avoided, could result
in death or serious injury.
3. Using the Unit
(General Usage)
• Always consult your doctor. Self-diagnosis of measurement results and
3.1 Applying the Wrist Cuff
self-treatment are dangerous.
• People with severe blood flow problems, or blood disorders, should consult a
You can take a measurement on either your left or right wrist.
doctor before using the unit, as cuff inflation can cause internal bleeding.
(Battery Usage) Notes:
• If battery fluid should get in your eyes, immediately rinse with plenty of clean • You can take a measurement on either your left or right arm.
water. Consult a doctor immediately.
The blood pressure can differ between the right arm and the left arm and
Caution:
therefore also the measured blood pressure values can be different. Omron
• Indicates a potentially hazardous situation which, if not avoided, may result in minor or
recommends to always use the same arm for measurement. If the values
moderate injury to the user or patient or damage to the equipment or other property.
between the two arms differ substantially, please check with your physician
(General Usage)
which arm to use for your measurement.
• Do not leave the unit unattended with infants or persons who cannot express their consent.
• To ensure correct measurement, apply the wrist cuff so that it fits
• Do not use the unit for any purpose other than measuring blood pressure.
• Do not disassemble the unit or wrist cuff. comfortably around your wrist.
• Do not inflate the wrist cuff over 299 mmHg.
• Do not apply over clothing.
• Do not use a mobile phone or other devices that emit electromagnetic fields,
near the unit. This may result in incorrect operation of the unit. 1. Place the wrist cuff over your left wrist with your left thumb
• Do not operate unit in a moving vehicle (car, airplane).
facing upward.
(Battery Usage)
• If battery fluid should get on your skin or clothing, immediately rinse with
plenty of clean water.
• Use only two "AAA" alkaline batteries with this unit. Do not use other types of batteries.
• Do not insert the batteries with their polarities incorrectly aligned.
• Replace old batteries with new ones immediately. Replace both batteries at
the same time.
• Remove the batteries if the unit will not be used for three months or more.
• Do not use new and used batteries together.
General Precautions
• Do not apply strong shocks and vibrations to or drop the unit.
• Do not take measurements after bathing, drinking alcohol, smoking,
exercising or eating.
• Do not inflate the wrist cuff when it is not wrapped around your wrist.
Note: Make sure that the wrist cuff does not cover the protruding part of
• Do not wash the wrist cuff or immerse it in water.
the wrist bone (ulna) on the outside of the wrist.
• Read and follow the "Important information regarding Electro Magnetic
Compatibility (EMC)" in the Technical Data Section.
2.
Hold the bottom part of the wrist
• Read and follow the "Correct Disposal of This Product" in the Technical Data
Section when disposing of the device and any used accessories or optional parts. cuff and wrap it around the wrist
while pulling so that it fits
1. Overview
comfortably.
Main unit:
A C Notes:
• Unless the wrist cuff is wrapped securely
around the wrist, it will not be possible to take
D
correct measurements.
• If you have a slender wrist, the cuff may feel
E
slightly loose.
However, this will not affect measurement
B
results and you should not force the cuff to fit.
• The remaining part of the wrist cuff can be
A. Display C. Wrist cuff
conveniently folded back out of the way.
B. Battery compartment cover D. O/I START button
E. MEM (Memory) button
Display:
F
G • If the remaining part of the cuff is difficult to
K fold back, measurement results will not be
H
L
effected.
I M
J
F. Systolic blood pressure K. Heartbeat symbol
G. Diastolic blood pressure
1. Flashes during measurement
Taking a reading on the right wrist
H. Irregular heartbeat symbol 2. If flashing after measurement
I. Memory symbol completed or when viewing
Measurements can also be made on
(Displayed when viewing
results stored in the memory,
the right wrist.
values stored in memory) indicates blood pressure out of
J. Battery low symbol recommended range* Fit the unit on the right wrist as shown.
L. Pulse display and Memory number
M. Deflation symbol
*Note: If your systolic or diastolic
pressure is outside the
standard range (above
135/85 mmHg) the Heartbeat
symbol ( ) will blink. Please
refer to "3.3 Taking a Reading".
3.2 Correct Posture
Correct posture during measurement helps you get accurate results.
You should also try to measure your blood pressure at the same time each day.
Notes:
• Do not take measurement after bathing, drinking alcohol, or exercising.
2
• Do not move or talk during measurement.
Sit comfortably with your
1
back straight, hold your arm
across your chest and relax.
) appears on the display,
Relax your wrist and hand.
) starts to blink, you will still be able to use
) remains lit, the batteries are exhausted. You should
Do not bend Do not clench
your wrist back. your fist.
3.3 Taking a Reading
1.
Press the O/I START button to start measurement.
The wrist cuff will start to inflate automatically after the
power is turned on.
2.
After the unit has detected your blood pressure and
pulse rate, the cuff automatically deflates and your blood
pressure and pulse rate are displayed.
Notes:
• Sit still and do not talk or move until the measurement is completed.
• Keep the unit at heart height until the measurement is completed.
• To stop measurement, press the O/I START button at any time during
measurement.
3.
Check the measurement result.
The unit automatically stores blood
pressure and pulse rate into its
ulna
memory.
Refer to "3.4 Using the Memory
Function".
4.
Undo the cuff and remove the unit.
5.
Press the O/I START button to turn off the unit.
If you forget to turn off the unit, it will shut itself off
automatically after two minutes.
Important:
• If your systolic or diastolic pressure is outside
the standard range, the heartbeat symbol will
blink when the measurement result is displayed.
Recent research suggests that the following
values can be used as a guide to high blood
pressure for measurements taken at home.
Systolic Blood Pressure Above 135 mmHg
Diastolic Blood Pressure Above 85 mmHg
This criteria is for home blood pressure measurement.
• Your blood pressure monitor includes an
irregular heartbeat feature. Irregular
heartbeats can influence the results of the
measurement. The irregular heartbeat
algorithm automatically determines if the
measurement is usable or needs to be
repeated. If the measurement results are
affected by irregular heartbeats but the result
is valid, the result is shown together with the
irregular heartbeat symbol ( ). If the
irregular heartbeats cause the measurement
to be invalid, no result is shown. If the
irregular heartbeat symbol ( ) is shown
after you have taken a measurement, repeat
the measurement. If the irregular heartbeat
symbol ( ) is shown frequently, please
make your doctor aware of it.
3.4 Using the Memory Function
This unit has a memory capable of storing 30 sets of readings. Every
time you complete the measurement, the unit automatically stores
blood pressure and pulse rate.
Note: When 30 sets of readings are stored in memory, the oldest set will be
deleted to store a new set.
To View Previous Readings Stored in Memory
Position your arm so that
1.
Press the MEM button to view readings stored in
the unit is at the same
memory from the most recent to the oldest.
level as your heart.
The Memory number appears for a second before the
pulse rate is displayed.
The newest set is numbered "1".
Systolic blood pressure Systolic blood pressure
Diastolic blood pressure Diastolic blood pressure
Pulse Pulse
Do not use your other
hand to support the wrist cuff.
Press the MEM button repeatedly to cycle through the
This can result in inaccurate
measurement results.
readings.
2. Press the O/I START button to turn
the unit off.
Note: If you forget to turn the unit off, it will
automatically shut itself off after two
minutes.
To Delete All Values in Memory
Do not bend
You cannot delete the stored readings partially, all the
your wrist forward.
readings in the unit will be deleted.
To delete stored readings, first press the MEM button.
Then while holding it down, press the O/I START button
simultaneously for about 2-3 seconds. All readings will
then be deleted.
Note: After the reading have been deleted, the screen to the right of the
illustration above appears and Memory symbol flashes. Release
the buttons to return to the memory display.
4. Handling Errors and Problems
4.1 Error Messages
Error Symbol Cause Correction
Remove the wrist cuff. Wait
2-3 minutes and then take
Irregular or weak
another measurement.
pulses are
Repeat the steps in section
detected.
3.1. If this error continues to
appear, contact your doctor.
Repeat measurement.
Cuff over inflated.
Remain still and do not move
during measurement.
(Refer to "3.3 Taking a
Reading".)
Movement during
measurement.
The wrist cuff Carefully read and repeat
is not fastened the steps listed under
securely. "3.1 Applying the Wrist Cuff".
An Er mark with
a code/number
Consult your OMRON retail
indicates the
outlet or distributor.
device has a
hardware failure.
Replace the batteries with two
The battery
new "AAA" alkaline (LR03)
power is low.
batteries.
Blinks or appears
continuously
Note: The irregular heartbeat symbol ( ) may also be displayed with
error messages.
4.2 Troubleshooting
6. Technical Data
Symptom Cause Correction Product Description
Model
Measure while in
Display
Are you holding
the correct posture.
the wrist cuff at Measurement
(Refer to "3.2 Correct
Measurement Range
heart level?
Posture".)
Is the cuff Wrap the cuff correctly.
Memory
wrapped snugly (Refer to "3.1 Applying Accuracy
The reading is
around the wrist? the Wrist Cuff".)
extremely low (or
Inflation
Relax and try taking
high).
Deflation
Are your arms and the measurement again.
Power Source
(Refer to "3.3 Taking
shoulders tense?
Battery Life
a Reading".)
Remain still and do not
Movement or
talk during measurement.
talking during
(Refer to "3.3 Taking
measurement. Applied Part
a Reading".)
Operating Temperature/
Wrist cuff pressure Air is leaking from Consult your OMRON
does not rise. the wrist cuff. retail outlet or distributor. Humidity
Apply the cuff correctly Storage Temperature/
so that it is securely Humidity
Wrist cuff deflates
The wrist cuff is loose. wrapped around the wrist.
Weight of Main Unit
too soon.
(Refer to "3.1 Applying Outer Dimensions
the Wrist Cuff".)
Measurable
Blood pressure readings
circumference of wrist
constantly vary with time
Cuff material
of day and how relaxed
Package Content
The blood pressure is different each time.
you are. Take several
The reading is extremely low (or high).
deep breaths and try to
remain relaxed before
taking a measurement.
Note: Subject to technical modification without prior notice.
The unit loses power The batteries are Replace the batteries
during measurement. drained. with new ones.
The batteries are Replace the batteries • This device fulfils the provisions of EC directive 93/42/EEC (Medical Device
drained.
Nothing happens with new ones. Directive).
when you press • This blood pressure monitor is designed according to the European Standard
The batteries have Insert the batteries
the buttons. EN1060, Non-invasive sphygmomanometers Part 1: General Requirements
been inserted with the correct (+/-)
and Part 3: Supplementary requirements for electromechanical blood
incorrectly. polarity.
pressure measuring systems.
• Press the O/I START button and repeat
measurement.
• This OMRON product is produced under the strict quality system of OMRON
• If the problem continues, try replacing the
HEALTHCARE Co. Ltd., Japan. The Core component for OMRON blood
Other problems.
batteries with new ones.
pressure monitors, which is the Pressure Sensor, is produced in Japan.
If this still does not solve the problem, contact • Disposal of this product and used batteries should be carried out in
your OMRON retail outlet or distributor.
accordance with the national regulations for the disposal of electronic
products.
5. Maintenance and Storage
Important information regarding Electro Magnetic Compatibility (EMC)
With the increased number of electronic devices such as PC's and mobile
To protect your unit from damage, please avoid the following:
(cellular) telephones, medical devices in use may be susceptible to
• Subjecting your unit to extreme temperatures, humidity, electromagnetic interference from other devices. Electromagnetic
interference may result in incorrect operation of the medical device and
or direct sunlight.
create a potentially unsafe situation.
• Washing the cuff or exposing the cuff or unit to water.
Medical devices should also not interfere with other devices.
• Disassembling the unit.
In order to regulate the requirements for EMC (Electro Magnetic
• Subjecting the unit to strong shocks or vibrations.
Compatibility) with the aim to prevent unsafe product situations, the
Dropping the unit. EN606061-1-2:2007 standard has been implemented. This standard
defines the levels of immunity to electromagnetic interferences as well as
• Cleaning the unit with volatile liquids.
maximum levels of electromagnetic emissions for medical devices.
This medical device manufactured by OMRON HEALTHCARE conforms to
this EN606061-1-2:2007 standard for both immunity and emissions.
Nevertheless, special precautions need to be observed:
• Do not use mobile (cellular) telephones and other devices, which generate
strong electrical or electromagnetic fields, near the medical device. This
may result in incorrect operation of the unit and create a potentially unsafe
situation. Recommendation is to keep a minimum distance of 7 m. Verify
correct operation of the device in case the distance is shorter.
Further documentation in accordance with EN606061-1-2:2007 is available at OMRON
HEALTHCARE EUROPE at the address mentioned in this instruction manual.
Documentation is also available at www.omron-healthcare.com.
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
• The unit should be cleaned with a soft, dry cloth.
This marking shown on the product or its literature, indicates
• Use a soft, moistened cloth and soap to clean the cuff.
that it should not be disposed of, with other household wastes
• Keep the unit in its storage case when not in use.
at the end of its working life. To prevent possible harm to the
• Fold the cuff into the storage case. environment or human health from uncontrolled waste
disposal, please separate this from other types of wastes and
Do not store the unit in the following situations:
recycle it responsibly to promote the sustainable reuse of
• If the unit is wet. material resources.
• Locations exposed to extreme temperatures, humidity,
Household users should contact either the retailer where they purchased
this product, or their local government office, for details of where and how
direct sunlight, dust or corrosive vapours.
they can take this item for environmentally safe recycling.
• Locations exposed to vibrations, shocks or where it will
be at risk of falling. Business users should contact their supplier and check the terms and
conditions of the purchase contract. This product should not be mixed with
Calibration and Service
other commercial wastes for disposal.
• The accuracy of this blood pressure monitor has been
This product does not contain any hazardous substances.
carefully tested and is designed for a long service life.
• It is generally recommended to have the unit inspected
Manufacturer
every two years to ensure correct functioning and
accuracy. Please consult your authorised OMRON
dealer or the OMRON Customer Service at the address
given on the packaging or attached literature. EU-representative
• If the wrist cuff needs to be replaced have this done by
an authorised expert. Consult your authorised OMRON
dealer or the OMRON Customer Service.
• Do not carry out any repairs by yourself. If a defect Exclusive
distributor in
occurs or you have doubts about the correct functioning
Russia & importer
of the device, consult your authorised OMRON dealer
or the OMRON Customer Service. Production Facility
HEM-6113-RU_A_M02_100618.pdf
Wrist Blood Pressure Monitor
OMRON R2 (HEM-6113-RU)
LCD Digital Display
Oscillometric method
Pressure: 0 mmHg to 299 mmHg
Pulse: 40 to 180 beats/min
30 Measurements
Pressure: within ±3 mmHg
Pulse rate: within ±5% of reading
Automatic inflation by pump
Automatic rapid deflation
Two 1.5V "AAA" alkaline (LR03) batteries
Approximately 300 measurements when used twice
daily with alkaline batteries at a room temperature of
23°C
= Type B
10°C to 40°C, 30 to 85% RH
-20°C to 60°C, 10 to 95% RH
Approximately 117 g (not including batteries)
71 mm (w) × 41 mm (h) × 70 mm (d) (not including
the wrist cuff)
Approximately 13.5 to 21.5 cm
Nylon
Main unit, storage case, two "AAA" alkaline (LR03)
batteries, instruction manual, guarantee card, blood
pressure pass
OMRON HEALTHCARE Co., Ltd.
24, Yamanouchi Yamanosita-cho, Ukyo-ku, Kyoto
615-0084 JAPAN
OMRON HEALTHCARE EUROPE B.V.
Kruisweg 577, 2132 NA Hoofddorp THE NETHERLANDS
www.omron-healthcare.com
ComplectService Ltd.
13-14 building, 26 B. Tishinskiy per.,
Moscow 123557, RUSSIA
www.csmedica.ru
OMRON (DALIAN) CO., LTD.
Economic & Technical Development Zone Dalian
116600, CHINA
Made in China
