4.

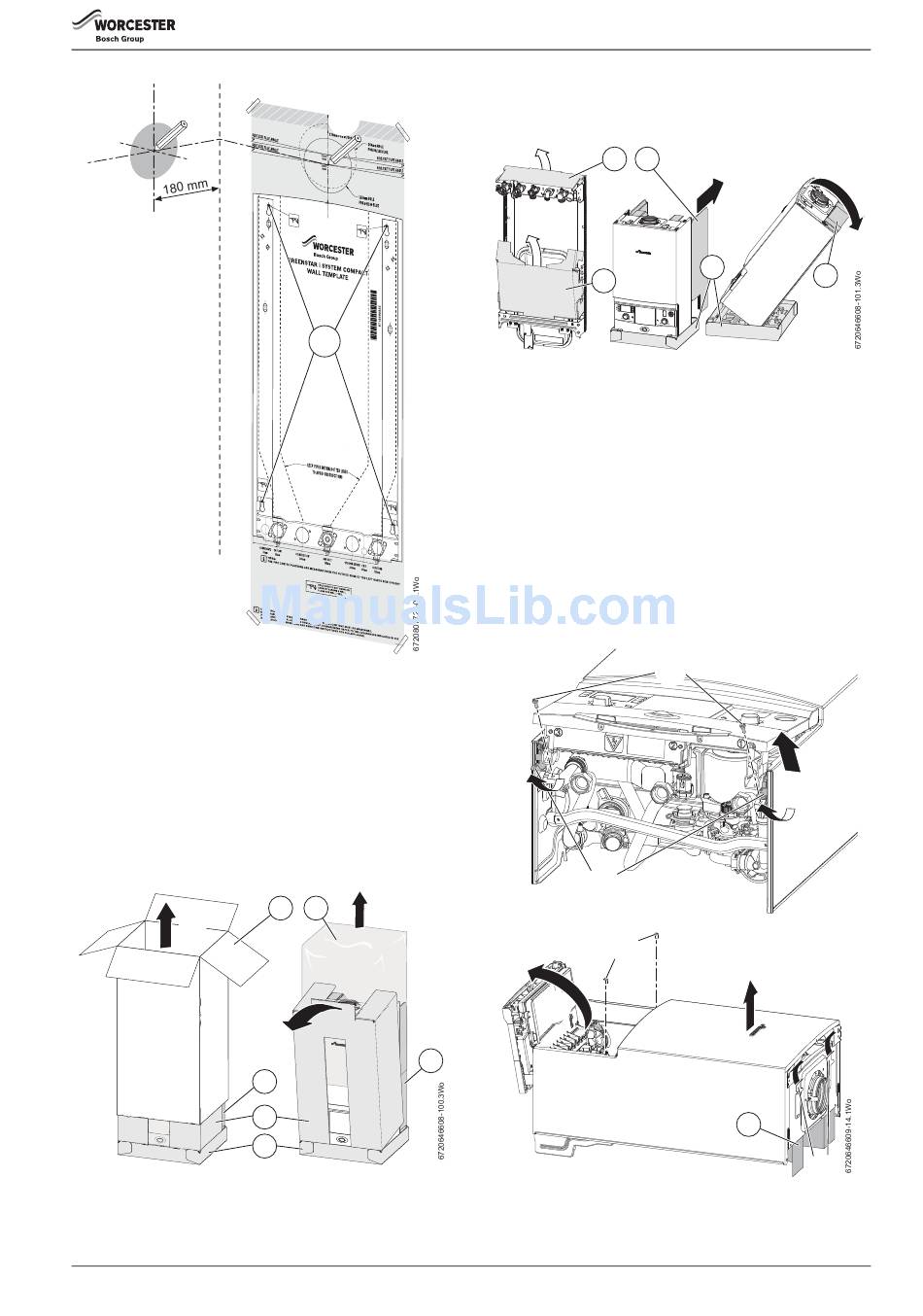

Fig. 22 Marking the flue position
▶ Remove the wall mounting template.
▶ Secure the wall mounting frame to the wall with the appropriate
fittings for the boiler weight and wall type.
▶ Remove and discard the red plastic dust cap from the expansion
vessel pipe before hanging the boiler.
4.3

UNPACKING THE APPLIANCE

1. Remove outer carton (1) and place safely away from the working area.
2. Remove the inner sleeve (2) leaving all other cardboard inserts and
base (3) in place.
3. Remove the protective wrapping (4) from the boiler.
1.
Fig. 23 Remove the carton
4. Remove the protective cardboard (5) from over the isolating valves.
5. Remove the protective cardboard (6) from around the expansion
vessel.
Greenstar i System Compact - 6 720 807 726 (2013/05)
3. 1.
2.
3.
1 5
2.
2
2
3
4
6. Remove the inner packing (2) from the back of the boiler.
7. Lie the boiler on the floor ensuring that the V shaped cardboard insert
(8) is in place.
4.
6 2
5.
7
Fig. 24 Finish unpacking
REMOVING THE OUTER CASE
▶ Before the case can be removed, the control panel must be moved
into the service position, i.e. hinged open.
1. Remove the two screws underneath the fascia securing the control
panel.
2. Pull the catches forward to release.
3. Pull the bottom of the fascia forward and out to release the top of the
control panel.
4. Hinge open the control panel into the service position
5. Refer to figure 25 and release the two screws securing the lower part
of the case.
6. Release the spring clips at the top of the boiler.
7. Slide the case off the frame and store safely out of the way.
1.
2.
5.
4.
Fig. 25 Releasing the control panel
INSTALLATION
6.
7.
4
8
3.
7.
4
6.
