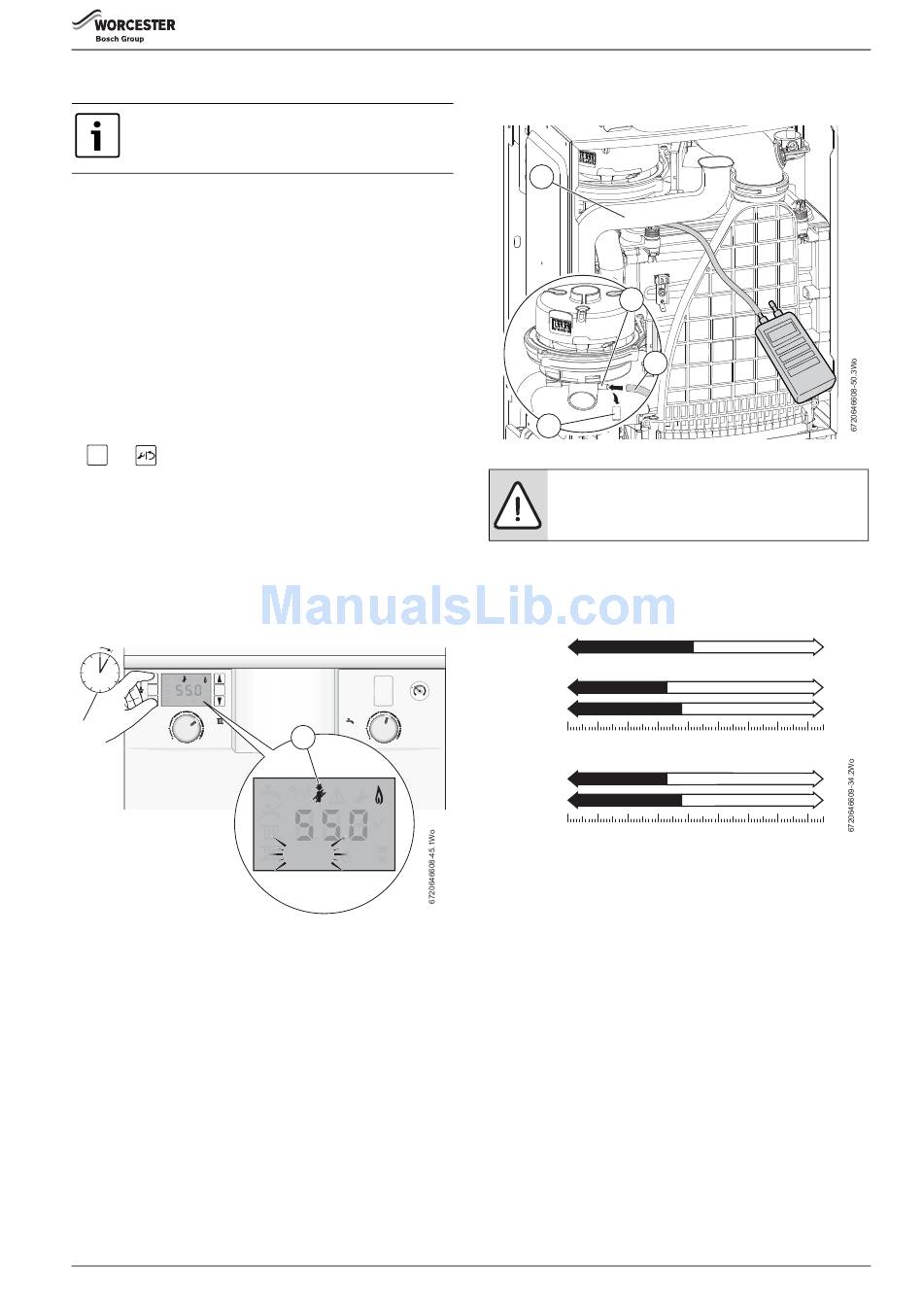

FAN PRESSURE TEST

This test is to determine if the heat cell requires cleaning
or attention.
Before setting the boiler to maximum output for the fan pressure test,
refer to figure 73:
▶ Switch the boiler off.
▶ Remove the combustion air intake pipe (1).
▶ Remove the fan pressure test point cover (2).
▶ Connect the digital manometer pipe (3) to the fan pressure test point
(4).
▶ Replace the combustion air intake pipe.
▶ Switch the boiler on.
▶ Set the boiler to maximum output.

6.5.1 SETTING THE BOILER TO MAXIMUM

To set the boiler to maximum output, refer to figure 72:
1. With the control panel in the operating position, press and hold the
and
buttons together for at least five seconds.
eco
– The chimney sweep symbol (1) will be displayed at the top of the
screen.
– The word "Max" will flash at the bottom of the screen.
– The boiler will take approximately 30 to 35 seconds to ramp up to
maximum output.
– Allow the boiler to stabilise at maximum output for at least 10
minutes.
▶ Ensure that the boiler does not modulate.
≈ ≈
5 s
5 s
eco
°C
reset
ok
°F
Max
1.
e
min
max
Fig. 72 Set boiler to maximum
Greenstar i System Compact - 6 720 807 726 (2013/05)
2
1
1
3
0
bar
4
1
min
max
°C
°F
Max

6.5.2 FAN PRESSURE

1
4
3
2
Fig. 73 Fan pressure test point
NOTICE: Fan pressure test
▶ The boiler must be run at maximum output for the fan
pressure test and flue gas analysis.
With the combustion air intake pipe fitted and the boiler running at
maximum output, measure the fan pressure:
▶ The pressure will read negative, refer to the chart in the figure below.
FAN PRESSURE TEST
Clean the Heat Ex.
NG Boilers
27i System:
-3.3
30i System:
-3.8
0
-1
-2
-3
LPG Boilers
27i System:
-3.3
30i System:
-3.8
0
-1
-2
-3
Fig. 74 Fan pressure readings
▶ If the manometer reading is in the white area of the chart the heat
exchanger/exhaust path/siphon does not require attention.
▶ If the manometer reading is in the black area of the chart then carry
out the following checks:
– Check that the siphon is not blocked.
– Check the exhaust paths for restrictions.
– Clean the heat exchanger with a suitable cleaning tool, refer to
section 6.7 - Cleaning the heat exchanger.
▶ Re-check the fan pressure readings.
If the boiler, after completing the above checks, fails the fan pressure
test then contact Worcester, Bosch Group for advice.
▶ After the measurements are taken switch the boiler off.
▶ Remove the combustion air intake pipe.
▶ Disconnect the manometer and replace the test point cover.
▶ Replace the combustion air intake pipe.
SERVICE AND SPARES
Heat Ex. ok
-4
-5
-6
-7
-8
mbar
-4
-5
-6
-7
-8
mbar
