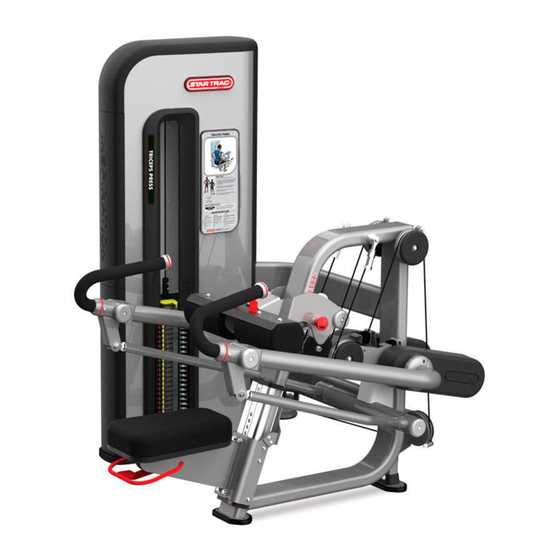

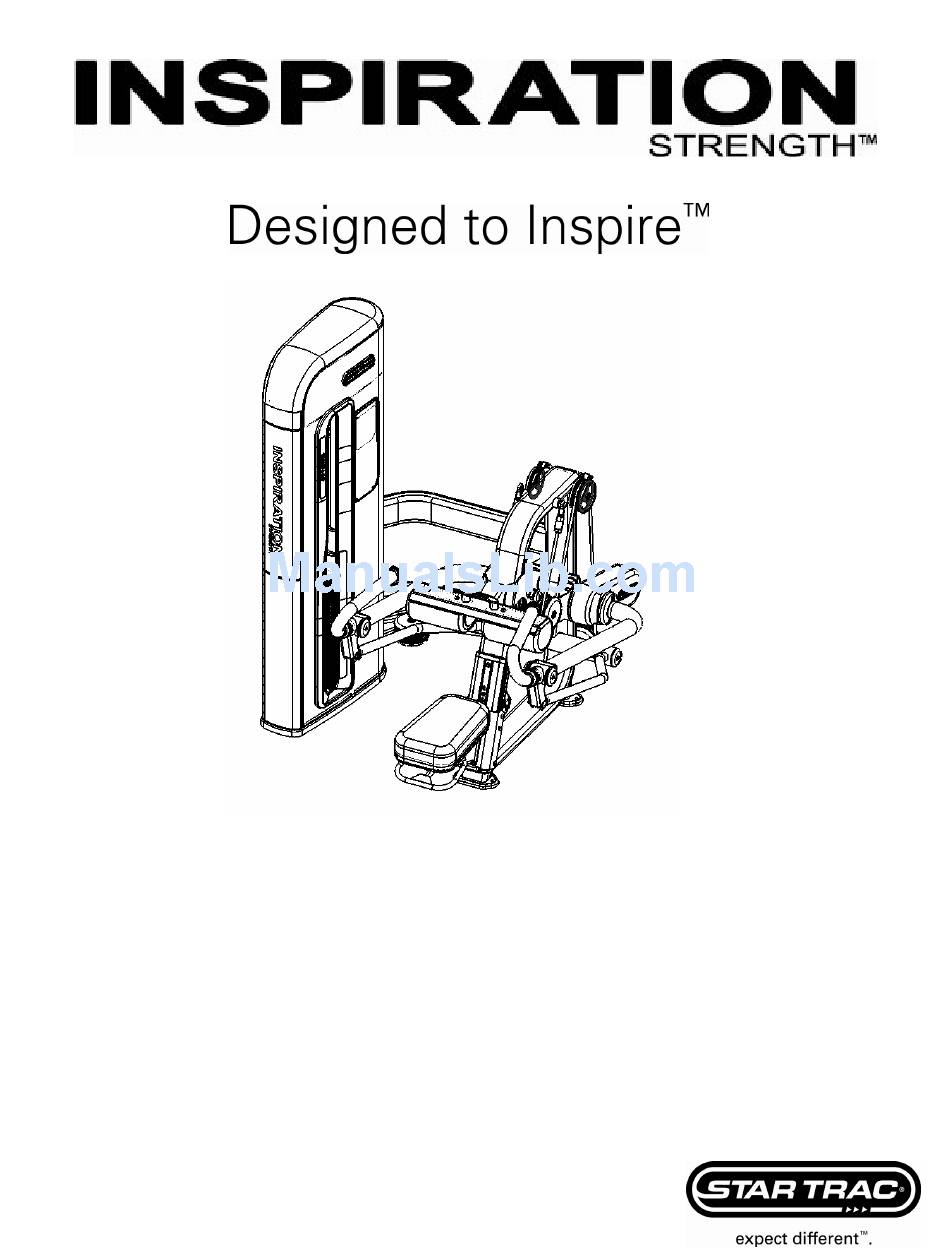

- Page 1 TRICEPS PRESS IP-S5308 INSTALLATION INSTRUCTIONS...
- Page 2 Copyright 2009. Star Trac by Unisen, Inc. All rights reserved, including those to reproduce this book or parts thereof in any form without first obtaining written permission from Star Trac. Every effort has been made to keep this information current; however, periodically, changes are made to the information herein, and these changes will be incorporated into new editions of this publication.
-
Page 3: Installation Instructions
• All Star Trac Strength equipment MUST be secured to the floor using either 10mm or 3/8in. (grade 5 minimum) bolts. To accommodate this there are four mounting points inside the weight stack and one in either of the small feet. - Page 4 REMOVE THE SHROUDS: Using a 4MM hex key socket remove the (M6,30MM,Button Head Bolt) from the rear of the weight stack. Save this bolt as you will need it to re-install later. After the bolt has been removed rotate the black TOP BUMPER towards the front of the weight stack and lift it off.
- Page 5 INSTALLING COUNTER BALANCE: CAUTION: Counter balances are 30kg (66lbs) each and may require two people to install. Face the COUNTER BALANCE with the STAR TRAC logo facing away from the equipment frame as shown. Press the COUNTER BALANCE onto the shaft until both bearings are entirely pressed onto the shaft.
- Page 6 INSTALLING UPPER PULLEYS: Align the PULLEY with the mounting boss on the equipment frame and install a (M10,50MM,Button Head Bolt) and a (M10, Flat Washers.) Orient the cable keeper at an approximate 45 angle with the horizon as shown. Tighten using a 6mm hex key socket.
- Page 7 There are two CABLE ENDS that need to be attached to the equipment frame. Install each CABLE END to its corresponding mount using a (M10,45MM,Button Head Bolt) as shown. Tighten using a 6mm hex key socket. Repeat steps 1 and 2 for the cable nearest to the weight stack.
- Page 8 TOP PLATE & CABLE ADJUSTMENT: M8 Jam Nut (2X) Engage pin at maximum weight and Washer (2X) actuate arm 3 to 4 times to fully seat the weight stacks. Disengage pins and verify that there is no gap between the Top Plate and the lower Frame weight plate.
- Page 9 MACHINE CLEARANCE AND SPACING For the safe operation of Inspiration Strength™ Star Trac recommends that a clearance of 24 inches (60.96cm) be maintained between and behind machines including moving arms and levers. To insure safe entry and exit to each unit a walkway of at least 36 inches (91.44cm) inches is recommended front of, or on the entry side of each...
- Page 10 Page 10...
- Page 11 Page 11...
- Page 12 STAR TRAC 14410 Myford Road Irvine, California 92606 Telephone: (800) 228-6635, (714) 669-1660 Fax: (714) 508-3303 www.startrac.com Part No. 620-7937, Rev B., 21 Aug 2009...
