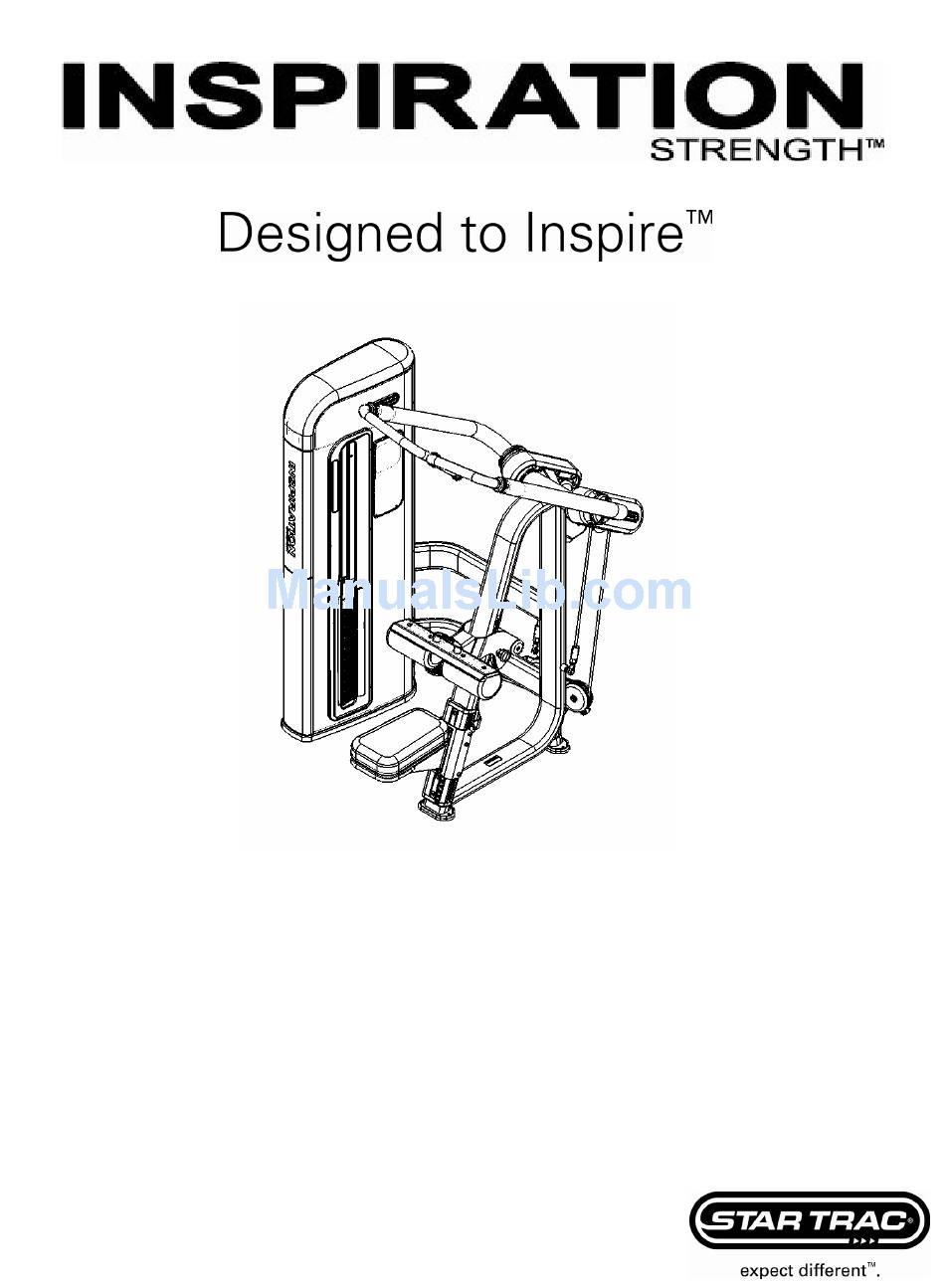

- Page 1 LAT PULL DOWN IP-S3341 INSTALLATION INSTRUCTIONS...
- Page 2 Copyright 2009. Star Trac by Unisen, Inc. All rights reserved, including those to reproduce this book or parts thereof in any form without first obtaining written permission from Star Trac. Every effort has been made to keep this information current; however, periodically, changes are made to the information herein, and these changes will be incorporated into new editions of this publication.
-
Page 3: Installation Instructions
• All Star Trac Strength equipment MUST be secured to the floor using either 10mm or 3/8in. (grade 5 minimum) bolts. To accommodate this there are four mounting points inside the weight stack and one in either of the small feet. - Page 4 REMOVE THE SHROUDS: Using a 4MM hex key socket remove the (M6,30MM,Button Head Bolt) from the rear of the weight stack. Save this bolt as you will need it to re-install later. After the bolt has been removed rotate the black TOP BUMPER towards the front of the weight stack and lift it off.
-
Page 5: Installing The Arm
INSTALLING STOP BRACKET: Orient the STOP BRACKET with the black rubber stops facing up and align the four holes in the STOP BRACKET with the four M8 threaded inserts. Install four (M8, 25MM,Button Head Bolt) and four (M8,Flat Washers) and tighten using a 5mm hex key socket. -
Page 6: Routing Cable
INSTALLING DUAL PULLEYS: Align the DUAL PULLEY bracket with the five M10 threaded inserts and install five (M10,25MM,Button Head Bolts) and five (M10,Flat Washers) and tighten using a 6mm hex key socket. ROUTING CABLE: Note: The cables will come from the factory installed from the weight stack through the dual pulley bracket and the ends bolted to the main frame. -
Page 7: Installing The Seat
INSTALLING THE SEAT: Align and install the ADJUSTABLE SEAT using four (M8,16MM,Socket Head Bolts) and four (M8,Washers) Tighten using a 6MM hex key. Operate the seat up and down by squeezing the red handle, the ADJUSTABLE SEAT should operate smoothly. GUIDE ROD LUBRICATION: Use a general purpose LUBRICANT that does not contain Teflon or solvent (such as 3-IN-ONE®... - Page 8 TOP PLATE & CABLE ADJUSTMENT: M8 Jam Nut (2X) Engage pin at maximum weight and Washer (2X) actuate arm 3 to 4 times to fully seat the weight stacks. Disengage pins and verify that there is no gap between the Top Plate and the lower Frame weight plate.
- Page 9 INSTALLING THE SHROUDS: Insert the SHROUDS from the top sliding downward. The SHROUDS have seven hooks for mounting. Before the shroud can be slide down into place, the SHROUD hooks need to be aligned with the corresponding mounting holes found on the weight frame of the equipment.
- Page 10 MACHINE CLEARANCE AND SPACING For the safe operation of Inspiration Strength™ Star Trac recommends that a clearance of 24 inches (60.96cm) be maintained between and behind machines including moving arms and levers. To insure safe entry and exit to each unit a walkway of at least 36 inches (91.44cm) inches is recommended front of, or on the entry side of each machine.
- Page 11 Page 11...
- Page 12 STAR TRAC 14410 Myford Road Irvine, California 92606 Telephone: (800) 228-6635, (714) 669-1660 Fax: (714) 508-3303 www.startrac.com Part No. 620-7932, Rev B., 21 Aug 09...
