Owner's Operator and Maintenance Manual
TDX
SC
®
TDX
Spree
®

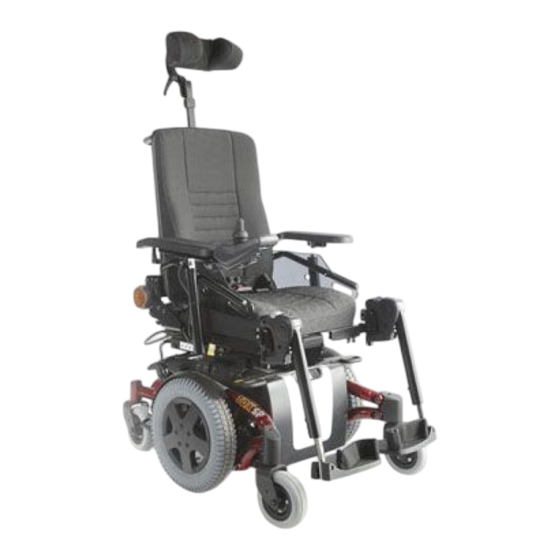

Power Wheelchair Base
DEALER: This manual MUST be given to
the user of the wheelchair.
USER: BEFORE using this wheelchair, read
this manual and save for future reference.
For more information regarding
Invacare products, parts, and services,
please visit www.invacare.com

Advertisement

Table of Contents
loading

Related Manuals for Invacare TDX SC

Summary of Contents for Invacare TDX SC

  • Page 1 Power Wheelchair Base DEALER: This manual MUST be given to the user of the wheelchair. USER: BEFORE using this wheelchair, read this manual and save for future reference. For more information regarding Invacare products, parts, and services, please visit www.invacare.com...

  • Page 2: Reference Documents

    ACCESSORIES WARNING Invacare products are specifically designed and manufactured for use in conjunction with Invacare accessories. Accessories designed by other manufacturers have not been tested by Invacare and are not recommended for use with Invacare products. REFERENCE DOCUMENTS Refer to the table below for part numbers of additional documents which are referenced  in this manual.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS REFERENCE DOCUMENTS ..............2 REGISTER YOUR PRODUCT ............... 7 SPECIAL NOTES ................8 LABEL LOCATIONS ................. 10 All Wheelchairs............................10 Wheelchairs with TRRO ........................11 Wheelchairs without TRRO ........................11 TYPICAL PRODUCT PARAMETERS ..........12 SECTION 1—GENERAL GUIDELINES ..........13 Repair or Service Information .......................13 Operation Information ..........................13 Wheelchairs with TRRO or TRBKTS Only...................15...
  • Page 4 Disconnecting ............................45 Connecting ............................45 MPJ+ Joysticks............................45 SECTION 6—SEAT - TDX SC ONLY ........... 46 Removing/Installing or Tilting the Seat Assembly ................46 Removing/Installing the Seat Assembly - Wheelchairs with Latch Bars Only......46 Tilting the Seat Assembly - Wheelchairs without Latch Bar Only ...........47 TDX®...
  • Page 5 Using the Proper Batteries........................57 Removing/Installing the Batteries......................57 Removing/Installing the Batteries on TDX SC without Elevating Seat........58 Installing/Removing the Batteries on TDX SC with Elevating Seat or TDX Spree ....59 Installing/Removing the Batteries on TDX Spree with TRRO ..........61 Removing/Installing the Elevating Seat Assembly................63 Replacing the Batteries..........................65...
  • Page 6 SECTION 13—TRANSPORT READY PACKAGE (TRRO) ...... 72 About Transport Ready Packages......................73 Compliance Information .........................73 Specifications............................74 Securing the Wheelchair to the Vehicle .....................74 Positioning the Wheelchair in the Vehicle ..................74 Securement Points..........................75 Securing the Wheelchair ........................75 Securing the Occupant ..........................76 Wheelchair-Anchored Belts ......................76 Vehicle-Anchored Belts ........................78 Seating System ............................79 Positioning Belts ...........................79...

  • Page 7: Register Your Product

    Register ONLINE at warranty.invacare.com Please have your model number and purchase date available to complete your registration. Any registration information you submit will only be used by Invacare Corporation and protected as required by applicable laws and regulations. Part No 1149267...

  • Page 8: Special Notes

    It is Invacare’s position that users of wheelchairs should be transferred into appropriate seating in vehicles for transportation and use be made of the restraints made available by the auto industry.
  • Page 9 Invacare accessories. Accessories designed by other manufacturers have not been tested by Invacare and are not recommended for use with Invacare products. The seat positioning strap is a positioning belt ONLY. It is not designed for use as a safety device withstanding high stress loads such as auto or aircraft safety belts.

  • Page 10: Label Locations

    LABEL LOCATIONS LABEL LOCATIONS All Wheelchairs NOTE: 1150709 located  The POSITIVE ( + ) RED Battery Cable under the top shroud MUST connect to the POSITIVE (+) Battery Terminal(s)/ Post(s). The NEGATIVE (-) BLACK Battery Cable MUST connect to the NEGATIVE (-) Battery Terminal(s)/Post(s). DO NOT allow Battery Cable(s) to contact the opposite Battery Terminal(s)/Post(s).

  • Page 11: Wheelchairs With Trro

    LABEL LOCATIONS Wheelchairs with TRRO NOTE: Also on opposite side. ANSI/RESNA WC/19 THIS WHEELCHAIR COMPLIES WITH Refer to attached TRANSPORT READY OPTION Instruction card and wheelchair Owner’s Manual before use. Lower seat to lowest position, ensure docking pins are fully engaged and power is turned off before placing wheelchair into vehicle, securing for transport and removing the wheelchair from vehicle.

  • Page 12: Typical Product Parameters

    TYPICAL PRODUCT PARAMETERS TYPICAL PRODUCT PARAMETERS TDX SC TDX SPREE BASE LENGTH: 34 inches without Front Riggings OVERALL WIDTH OF BASE: WITH TWO U1 BATTERIES: 24 inches without joystick OVERALL HEIGHT WITH ASBA SEAT: 36.5 to 38.5 inches 34.5 to 38.5 inches...

  • Page 13: Section 1-General Guidelines

    SECTION 1 - GENERAL GUIDELINES contains important information for the safe operation and use of this product. Repair or Service Information Set‐up of the Electronics Control Unit is to be performed only by a qualified technician.  The final adjustments of the controller may affect other activities of the wheelchair.  Damage to the equipment could occur if improperly set‐up or adjusted.  Except for programming, DO NOT service or adjust the wheelchair while occupied,  unless otherwise noted. A pinch point exists between head tube cap and walking beam.  A pinch point exists between walking beam/head tube cap and telescoping tube when  TDX is at the lowest seat to floor height. Before adjusting, repairing or servicing the wheelchair, ALWAYS turn the wheelchair  power Off, otherwise, injury or damage may occur. Invacare products are specifically designed and manufactured for use in conjunction with  Invacare accessories. Accessories designed by other manufacturers have not been tested  by Invacare and are not recommended for use with Invacare products. Transport ready packages are not retrofittable to existing models and are not field  serviceable.  Wheelchairs should be examined during maintenance for signs of corrosion (water  exposure, incontinence, etc.). Electrical components damaged by corrosion should be  replaced IMMEDIATELY. Wheelchairs that are used by incontinent users and/or are frequently exposed to water  may require replacement of electrical components more frequently. For optimum performance, replace gas‐locking cylinders every 2 years. Operation Information Performance adjustments should only be made by professionals of the healthcare field or ...
  • Page 14 SECTION 1—GENERAL GUIDELINES DO NOT attempt to drive over curbs or obstacles greater than 2‐3/8 inches (60mm). Doing  so may cause your wheelchair to turn over and cause bodily harm or damage to the  wheelchair. ALWAYS stop before climbing an obstacle. Approach slowly until casters  contact the obstacle. Apply power and the action of the SureStep feature will lift the  casters over the obstacle. Weight is transferred to the drive wheels providing traction and  motor strength to power the wheelchair over the obstacle. DO NOT operate on roads, streets or highways. DO NOT climb, go up or down ramps or traverse slopes greater than 9°. DO NOT attempt to move up or down an incline with water, ice or oil film. DO NOT stand on the frame of the wheelchair. DO determine and establish your particular safety limits by practicing bending, reaching  and transferring activities in the presence of a qualified healthcare professional before  attempting active use of the wheelchair. DO NOT attempt to reach objects if you have to move forward in your seat.  DO NOT attempt to reach objects if you have to pick them up from the floor by reaching  between your knees. DO NOT lean over the top of the back upholstery to reach objects behind you, as this may  cause the wheelchair to tip over. ALWAYS shift your weight in the direction you are turning. DO NOT shift your weight  in the opposite direction of the turn. Shifting your weight in the opposite direction of the  turn may cause the inside drive wheel to lose traction and the wheelchair to tip over. DO NOT shift your weight or sitting position toward the direction you are reaching as the  wheelchair and/or seating system (if any) may tip over. DO NOT use an escalator to move a wheelchair between floors. Serious bodily injury may  occur. DO NOT use the footplates as a platform. When getting in or out of the wheelchair, make  sure that the footplates are in the upward position or swing footrests towards the outside  of the wheelchair. NEVER leave an unoccupied wheelchair unattended on an incline. DO NOT attempt to stop a moving wheelchair with the wheel locks. Wheel locks are not  brakes. DO NOT attempt to lift the wheelchair by any removable (detachable) parts. Lifting by  means of any removable (detachable) parts of the wheelchair may result in injury to the  user or damage to the wheelchair. DO NOT overtighten hardware attaching to the frame. This could cause damage to the  frame tubing. ALWAYS keep hands and fingers clear of moving parts to avoid injury. ALWAYS wear your seat positioning strap. The seat positioning strap is a positioning belt ...

  • Page 15: Wheelchairs With Trro Or Trbkts Only

    DO NOT use if joystick boot is torn or damaged. ALWAYS check foam grips for looseness before using the wheelchair. If loose, contact a  qualified technician for instructions. ALWAYS engage both wheel locks and reduce the gap distance before transferring to and  from the wheelchair. Turn all casters parallel to the object you are transferring onto. Avoid storing or using the wheelchair near open flame or combustible products. Serious  injury or damage to property may result. DO NOT engage or disengage the motor locks until the power is in the off position. Wheelchairs with TRRO or TRBKTS Only Only use the transport brackets included with TRRO and TRBKTS for the purposes  described in this manual. Electrical Grounding Instructions DO NOT, under any circumstances, cut or remove the round grounding prong from any  plug used with or for Invacare products. Some devices are equipped with three‐prong  (grounding) plugs for protection against possible shock hazards. Where a two‐prong wall  receptacle is encountered, it is the personal responsibility and obligation of the customer  to contact a qualified electrician and have the two‐prong receptacle replaced with a  properly grounded three‐prong wall receptacle in accordance with the National Electrical  Code. If you must use an extension cord, use only a three‐wire extension cord having the  same or higher electrical rating as the device being connected. In addition, Invacare has  placed RED/ORANGE warning tags on some equipment. DO NOT remove these tags. Batteries The warranty and performance specifications contained in this manual are based on the  use of AGM batteries. Invacare strongly recommends their use as the power source for  this unit. Carefully read battery/battery charger information prior to installing, servicing or  operating your wheelchair. Part No 1149267 TDX® SC TDX® Spree...

  • Page 16: Charging Batteries

    NEVER attempt to recharge the batteries by attaching cables directly to the battery  terminals. DO NOT attempt to recharge the batteries and operate the wheelchair at the same time. DO NOT operate wheelchair with extension cord attached to the AC cable. DO NOT attempt to recharge the batteries when the wheelchair has been exposed to any  type of moisture. DO NOT attempt to recharge the batteries when the wheelchair is outside. DO NOT sit in the wheelchair while charging the batteries. READ and CAREFULLY follow the manufacturer’s instructions for each charger  (supplied or purchased). If charging instructions are not supplied, consult a qualified  technician for proper procedures. Ensure the pins of the extension cord plug are the same number, size, and shape as those  on the charger. DO NOT under any circumstances cut or remove the round grounding plug from the  charger AC cable plug or the extension cord plug. Rain Test Invacare has tested its power wheelchairs in accordance with ISO 7176 “Rain Test”. This  provides the end user or his/her attendant sufficient time to remove his/her power  wheelchair from a rain storm and retain wheelchair operation. DO NOT leave power wheelchair in a rain storm of any kind. DO NOT use power wheelchair in a shower.  DO NOT leave power wheelchair in a damp area for any length of time. Direct exposure to rain or dampness will cause the wheelchair to malfunction electrically  and mechanically; may cause the wheelchair to prematurely rust or may damage the  upholstery. Check to ensure that the battery covers are secured in place, joystick boot is NOT torn or  cracked where water can enter and that all electrical connections are secure at all times. DO NOT use if the joystick boot is torn or cracked. If the joystick boot becomes torn or  cracked, replace IMMEDIATELY. TDX® SC TDX® Spree Part No 1149267...

  • Page 17: Weight Training

    SECTION 1—GENERAL GUIDELINES Weight Training Invacare DOES NOT recommend the use of its wheelchairs as a weight training  apparatus. Invacare wheelchairs have NOT been designed or tested as a seat for any kind  of weight training. If occupant uses said wheelchair as a weight training apparatus,  INVACARE SHALL NOT BE LIABLE FOR BODILY INJURY AND THE WARRANTY IS  VOID. Weight Limitation Refer to Typical Product Parameters for Typical Product Parameters on page 12 to  determine the weight limit (total combined weight of user and any attachments) of your  wheelchair model. DO NOT exceed the limit ‐ otherwise, injury or damage may result. Part No 1149267 TDX® SC TDX® Spree...

  • Page 18: Section 2-Emi Information

    SECTION 2—EMI INFORMATION SECTION 2—EMI INFORMATION WARNING CAUTION: IT IS VERY IMPORTANT THAT YOU READ THIS INFORMATION REGARDING THE POSSIBLE EFFECTS OF ELECTROMAGNETIC INTERFERENCE ON YOUR POWERED WHEELCHAIR. Electromagnetic Interference (EMI) From Radio Wave Sources Powered wheelchairs and motorized scooters (in this text, both will be referred to as powered wheelchairs) may be susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources such as radio stations, TV stations, amateur radio (HAM) transmitters, two way radios, and...
  • Page 19 2) This device has been tested to a radiated immunity level of 20 volts per meter. 3) The immunity level of the product is unknown. Modification of any kind to the electronics of this wheelchair as manufactured by Invacare may adversely affect the EMI immunity levels. Part No 1149267 TDX® SC TDX® Spree...

  • Page 20: Section 3-Safety/Handling Of Wheelchairs

    DO NOT climb, go UP or DOWN ramps or traverse slopes greater than 9°. Invacare strongly recommends proceeding down ramps or slopes slowly to avoid hard braking or sudden stops. DO NOT leave elevating legrests in the fully extended position when proceeding down ramps or slopes.

  • Page 21: Coping With Everyday Obstacles

    SECTION 3—SAFETY/HANDLING OF WHEELCHAIRS WARNING DO NOT attempt to reach objects if you have to move forward in the seat or pick them up from the floor by reaching down between your knees. Many activities require the wheelchair user to reach, bend and transfer in and out of the wheelchair.

  • Page 22: A Note To Wheelchair Assistants

    SECTION 3—SAFETY/HANDLING OF WHEELCHAIRS A Note to Wheelchair Assistants When assistance to the wheelchair user is required, remember to use good body  mechanics. Keep your back straight and bend your knees whenever tilting wheelchair or  traversing curbs or other impediments. Also, be aware of detachable parts such as arms or legrests. These must NEVER be used  to move the wheelchair or as lifting supports, as they may be inadvertently released,  resulting in possible injury to the user and/or assistant(s). When learning a new assistance technique, have an experienced assistant help you before  attempting it alone. Reaching, Leaning and Bending - Forward   WARNING DO NOT attempt to reach objects if you have to move forward in the seat or pick them up from the floor by reaching down between your knees.

  • Page 23: Reaching, Bending - Backward

    SECTION 3—SAFETY/HANDLING OF WHEELCHAIRS Reaching, Bending - Backward WARNING DO NOT lean over the top of the back upholstery. This will change your center of gravity and may cause you to tip over. NOTE: For this procedure, refer to  FIGURE 3.3. Position wheelchair as close as possible to  the desired object. Position the casters so  that they are extended away from the drive  wheels to create the longest possible  wheelbase. Reach back only as far as your ...

  • Page 24: Stairways

    MUST be removed and transported independently of the power wheelchair. Extreme caution is advised when it is necessary to move an unoccupied power wheelchair up or down the stairs. Invacare recommends using two assistants and making thorough preparations. Make sure to use ONLY secure, non-detachable parts for hand-hold supports.

  • Page 25: Transferring To And From Other Seats

    SECTION 3—SAFETY/HANDLING OF WHEELCHAIRS Transferring To and From Other Seats WARNING ALWAYS turn the wheelchair power OFF and engage the motor locks/clutches to prevent the wheels from moving before attempting to transfer in or out of the wheelchair. Also make sure every precaution is taken to reduce the gap distance. Align both casters parallel with the object you are transferring onto.

  • Page 26: Section 4-Safety Inspection/Troubleshooting

    SECTION 4—SAFETY INSPECTION/TROUBLESHOOTING SECTION 4—SAFETY INSPECTION/ TROUBLESHOOTING NOTE: Every six months take your wheelchair to a qualified technician for a thorough inspection  and servicing. Regular cleaning will reveal loose or worn parts and enhance the smooth operation  of your wheelchair. To operate properly and safely, your wheelchair must be cared for just like any  other vehicle. Routine maintenance will extend the life and efficiency of your wheelchair. Initial adjustments should be made to suit your personal body structure needs and  preference. Thereafter follow these maintenance procedures: Safety Inspection Checklists Inspect/Adjust Initially CAUTION As with any vehicle, the wheels and tires should be checked periodically for cracks and wear, and should be replaced. ❑ Ensure wheelchair rolls straight (no excessive drag or pull to one side). ❑...

  • Page 27: Inspect/Adjust Weekly

    SECTION 4—SAFETY INSPECTION/TROUBLESHOOTING ❑ Ensure wheel lock pivot points are free of wear and looseness. ❑ Ensure wheel locks are easy to engage. ❑ Inspect tires for flat spots and wear. ❑ Check center mount front riggings for worn/frayed belts and/or loose fasteners. If  found, replace these items. ❑ Check that all labels are present and legible. Replace if necessary. ❑ Inspect locking gas cylinders. ❑ Inspect stability lock function. ❑ Check that cables are routed and secured properly to ensure that cables DO NOT  become entangled and damaged during normal operation of seating system. Inspect/Adjust Weekly CAUTION As with any vehicle, the wheels and tires should be checked periodically for cracks and wear, and should be replaced. ❑...

  • Page 28: Inspect/Adjust Periodically

    SECTION 4—SAFETY INSPECTION/TROUBLESHOOTING ❑ Inspect stability lock function. ❑ Inspect seat positioning strap for any signs of wear. Ensure buckle latches. Verify  hardware that attaches strap to frame is secure and undamaged. Replace if necessary. Inspect/Adjust Periodically ❑ Ensure wheelchair rolls straight (no excessive drag or pull to one side). ❑ Inspect all fasteners. ❑ Inspect TRRO/TRBKTS fasteners and hardware. ❑ Ensure clothing guards are secure. ❑ Ensure arms are secure but easy to release and adjustment levers engage properly. ❑ Ensure adjustable height arms operate and lock securely. ❑ Inspect upholstery for rips or sagging. ❑ Ensure armrest pad sits flush against arm tube. ❑ Ensure axle nut and wheel mounting nuts are secure on drive wheels. ❑ Ensure wheels/casters have proper tension when wheels/casters are spun (when free‐ wheeling). Wheels/casters should come to a gradual stop. ❑ Ensure that casters are free of debris. ❑ Inspect foam handgrips for damage. If damaged, have them replaced by a qualified  technician. ❑ Check center mount front riggings for worn/frayed belts and/or loose fasteners. If  found, replace these items. ❑ Check that all labels are present and legible. Replace if necessary. ❑...

  • Page 29: Troubleshooting - Electrical

    SECTION 4—SAFETY INSPECTION/TROUBLESHOOTING Troubleshooting - Electrical NOTE: For additional troubleshooting information and explanation of error codes, refer to the  individual Electronics Manual supplied with each wheelchair. SPJ™+, SPJ+ w/PSS or SPJ+ w/ACC Joysticks The joystick information gauge and the service indicator give indications of the type of  fault or error detected by the control module. When a fault is detected, the wheelchair  may stop and not drive. The LEDs on the information gauge may flash in a particular  pattern or the service indicator light will flash. The number or type of flashes indicates the  nature of the error. If multiple errors are found, only the first error encountered by the  control module will be displayed. Information Gauge Display Diagnostics DISPLAY DESCRIPTION DEFINITION COMMENTS Information Gauge Display All LEDs are off. Power is off. All LEDs are on. Power is on.

  • Page 30: Service Indicator Light Diagnostics

    Contact Invacare/Dealer for service. Controller Fault Contact Invacare/Dealer for service. Communications Fault Contact Invacare/Dealer for service. General Fault Contact Invacare/Dealer for service. Incompatible or incorrect Wrong type of remote connected. Contact Invacare/Dealer Remote for service. TDX® SC TDX® Spree Part No 1149267...

  • Page 31: Mpj™+, Psr+, Psf+ Joysticks Or Displays

    (Error code W05). Batteries draw excessive current Battery failure. Have batteries checked for shorted cell. when charging. Replace if necessary. Electrical malfunction. Contact Dealer/Invacare for service. Part No 1149267 TDX® SC TDX® Spree...

  • Page 32: Checking Battery Charge Level

    Battery failure. Check batteries for shorted cell. level is low - immediately after Replace if necessary. recharge. Malfunctioning battery charger. Contact Dealer/Invacare for Service. Electrical malfunction. Contact Dealer/Invacare for Service. Battery indicator flashes the charge Batteries not charged. Have charger checked.

  • Page 33: Section 5-Wheelchair Operation

    SECTION 5—WHEELCHAIR OPERATION SECTION 5—WHEELCHAIR OPERATION WARNING After ANY adjustments, repair or service and before use, make sure that all attaching hardware is tightened securely - otherwise injury or damage may result. Set-up of the Electronic Control Unit is to be performed only by a qualified techni- cian.
  • Page 34 SECTION 5—WHEELCHAIR OPERATION The joystick has proportional drive control, meaning that the further it is pushed from the  upright (neutral) position, the faster the wheelchair moves. The maximum speed,  however, is limited by the setting of the speed‐control knob. To slow the wheelchair to a stop, simply release the joystick. The wheelchair has  automatic speed and direction compensation to minimize corrections. When first learning to drive, select a slow speed and try to drive the wheelchair as slowly  as possible by pushing the joystick slightly forward. This exercise will help you learn to  utilize the full potential of the proportional control and allow you to start and stop  smoothly. To drive the wheelchair, perform the following: 1. Adjust speed control knob to the appropriate setting. 2. Turn the power On. Refer to Turning the Power On/Off on page 33. 3. Maneuver the joystick in the following manner: MOVEMENT ACTION To Move To Move Left Forward FORWARD Push joystick forward, towards the front of the wheelchair. Front of REVERSE Pull joystick back, towards the Wheelchair...

  • Page 35: Spj+, Mk6I Spj+ W/Pss And Mk6I Spj+ W/Acc Joystick Switches And Indicators

    SECTION 5—WHEELCHAIR OPERATION SPJ+, MK6i SPJ+ w/PSS and MK6i SPJ+ w/ACC Joystick Switches and Indicators NOTE: For the following information, refer to FIGURE 5.3. Joystick Information Gauge Display On/Off Mode Button* Button Decrease Speedometer Speed Button Active (Tortoise) Increase Speed Button Additional Input (Hare) GREEN for Powered Seating Switch DETAIL “A”...

  • Page 36: Speed Control Buttons

    SECTION 5—WHEELCHAIR OPERATION Speed Control Buttons The speed control buttons (tortoise button ( ) and hare button ( )) are used to set and  adjust the maximum speed. 1. To adjust the speed, perform one of the following: • Adjust Speed in 20% Increments (5 Speed Mode) ‐ Press the tortoise button ( )  or hare button ( ) to decrease/increase the speed in 20% increments. The larger  bars in the speedometer will light. • Adjust Speed in Smaller Increments (VSP Mode) ‐ Perform the following steps: i. Press and hold both the tortoise button ( ) and hare button ( ) until the  joystick beeps. ii. Perform one of the following: • Press the tortoise button ( ) or hare button ( ) to decrease/increase the  speed in 20% increments. The larger bars in the speedometer will light. • Press and hold the tortoise button ( ) or hare button ( ) to decrease/ increase the speed in smaller increments. The smaller bars in the  speedometer will light. Joystick The joystick has proportional drive control, meaning that the further the joystick is  pushed from the upright (neutral) position, the faster the wheelchair or seat moves. Your ...

  • Page 37: Information Gauge Display

    SECTION 5—WHEELCHAIR OPERATION Information Gauge Display The information gauge display is located on the front of the joystick housing and provides  the following information to the user on the status of the wheelchair: 1. Power is On. 2. True state‐of‐battery‐charge, including notification of when the battery requires  charging: A. GREEN LEDs are lit, indicating well charged batteries. B. AMBER LEDs are lit, indicating batteries are moderately charged. Recharge  batteries before taking a long trip. C. RED LEDs are lit, indicating batteries are running out of charge. Recharge batteries  as soon as possible.  The Information Gauge display also serves as a system diagnostic device when a fault is  detected by the control module. A specific number of flashes of the LEDs indicate the type  of fault detected. Refer to Service Indicator Light Diagnostics on page 30 for the  diagnostic indications of the wheelchair status. MPJ+ Joystick Switches and Indicators NOTE: For this procedure, refer to FIGURE 5.4 on page 38. Drive Select Toggle Switch The drive select toggle switch is located on the left side, below the LCD. The drive select  position is momentary, meaning that it will return to the neutral position after a selection  is made.

  • Page 38: Speed Control

    SECTION 5—WHEELCHAIR OPERATION Memory Card Slot Charger/Programming Input (Front of Joystick) LCD Display Mode Switch Drive Select Toggle Switch Speed Control Knob Programmable Joystick Mono Port 1/2 or External Mode Remote On/Off Input Switch To Controller FIGURE 5.4 MPJ+ Joystick Switches and Indicators Speed Control The speed control knob is located on the side of the joystick housing. ...
  • Page 39 SECTION 5—WHEELCHAIR OPERATION Splash Screen NOTE: For this procedure, refer to   FIGURE 5.5. This screen is displayed at startup of the  joystick for about 2 seconds. This screen  displays the software version and date  information. After this screen, the joystick displays the  Main Screen. FIGURE 5.5 LCD Display Screens - Splash Screen Main Screen NOTE: For this information, refer to FIGURE 5.6 on page 40. During normal operation, the active drive is displayed in the upper half of the LCD  display. Battery charge level is shown in the Battery Gauge Display (BGD) located on the  right side of the LCD display. At full charge, solid blocks fill in all ten segments between  E (Empty) and F (Full). As the battery becomes discharged, the top most segments will  progressively disappear until no segments appear between E and F. At this level, the user  should charge the batteries as soon as possible. The lower half of the LCD display is the Information Center. The Information Center  displays current data on the wheelchair. Refer to LCD Display table on page 39 for descriptions of information shown. LCD DISPLAY ITEM DESCRIPTION DRIVE NAME This field shows the currently selected Drive’s Name.
  • Page 40 SECTION 5—WHEELCHAIR OPERATION ITEM DESCRIPTION STATUS INDICATOR The status indicator will show a “Warning” (exclamation point inside a triangle) indicator when the chair has a condition that requires attention. The status indicator will show a “STOP” sign when a serious condition exists. The chair will not be allowed to operate.

  • Page 41: Programmable Mono Port 1/2 Or External Mode Switch

    SECTION 5—WHEELCHAIR OPERATION Connected Devices Screen NOTE: For this procedure, refer to FIGURE 5.8. This screen is displayed if the Mode Select switch is held active for about 10 seconds. This  screen shows an icon that represents any additional devices that are connected to the  chair. ICON DESCRIPTION 4-Switch Attendant Control RIM Control ECU (1 to 4) Proportional Attendant Control Compact Joystick Sip and Puff Control ASL Digital Control ASL Analog Control Shark Power Module Actuator FIGURE 5.8 LCD Display Screens - Connected Devices Screen Programmable Mono Port 1/2 or External Mode Switch The programmable mono port or external mode switch input is located at the rear of the ...

  • Page 42: Remote On/Off Switch

    SECTION 5—WHEELCHAIR OPERATION Remote On/Off Switch The remote On/Off switch input is located at the rear of the joystick on the right side and  allows the power switch to be operated by an ability switch (normally open momentary  switch with mono plug). To use the remote On/Off feature, the Drive Select/On/Off switch  must be in the On position. Each activation of the ability switch will alternately turn the  joystick On or Off. Mode Switch NOTE: For this procedure, refer to FIGURE 5.4 on page 38. The mode switch is used to select the operating mode for the wheelchair. The mode  switch is located on the joystick. A mode switch is needed whenever any of the following  operating modes are programmed: • Environmental Controls (ECU 1, ECU 2, ECU 3, ECU 4)* • 3 Speed Mode in Digital 3 Speed (Slow, Medium, Full) • Latched Modes • Sleep Mode • RIM Mode* • Remote Drive Selection Mode* • Tilt/Recline Mode* • Information Center Display Selection (does not require Reset activation at power up) If any of the above modes are selected, the control will require activation of the switch  immediately after the power switch is turned On in order to enter the drive mode. The  second line of the LCD will display ‐ PRESS RESET. *NOTE: In these modes, Standby Select allows the reset switch to be bypassed for users unable to  activate the switch. Memory Card Slot The memory card slot is used with the basic or professional memory card for saving or ...

  • Page 43: Repositioning Joystick

    SECTION 5—WHEELCHAIR OPERATION Repositioning Joystick Van Seats NOTE: For this procedure, refer to FIGURE 5.9. NOTE: Take note of position and orientation of mounting hardware for reinstalling the joystick  assembly. 1. Turn the adjustment lock lever to release the joystick mounting tube from the  mounting bracket. 2. Remove the joystick mounting tube from the wheelchair. 3. Remove the three hex mounting screws, bushings and locknuts that secure the  mounting bracket to the three mounting holes on the armrest plate. NOTE: The mounting bracket is mounted to the inside of the armrest plate. 4. Reposition the mounting bracket on the opposite armrest plate. 5. Using the three hex mounting screws, bushings and locknuts secure the mounting  bracket to the three mounting holes of the armrest plate. 6. If necessary, perform the following to reposition the adjustment lock: A. Slide the adjustment lock from the mounting bracket.  B. Rotate adjustment lock 180° and slide adjustment lock over the opposite end of the  mounting bracket. 7. Slide joystick mounting tube through the mounting bracket to the desired position  and secure adjustment lock to tube by turning lever on adjustment lock. Mounting Bracket Hex Mounting Screws Armrest Plate Adjustment Lock Lever Joystick Mounting Tube...

  • Page 44: Adjustable Asba Seats

    SECTION 5—WHEELCHAIR OPERATION Adjustable ASBA Seats NOTE: For this procedure, refer to  Mounting Bracket FIGURE 5.10. Mounting (Threaded Plate) Bracket 1. Turn the adjustment lock lever to  release the joystick mounting tube from  Washers the mounting bracket. 2. Remove the joystick from the wheelchair. Arm Tube 3. Remove the three hex screws that  Adjustment NOTE:  secure both halves of the mounting  Lock Lever Joystick  bracket to the arm tube. not shown. 4. Reposition mounting bracket on  Hex Mounting opposite arm tube ensuring the  Screws Joystick Mounting Tube threaded plate of the mounting bracket ...

  • Page 45: Disconnecting/Connecting The Joysticks

    SECTION 5—WHEELCHAIR OPERATION Disconnecting/Connecting the Joysticks NOTE: For this procedure, refer to FIGURE 5.11 on page 45. NOTE: The joystick connector is located at the rear of the seat frame. SPJ+ Joysticks DISCONNECTING 1. Hold the light GREY collar portion of the joystick connector with one hand and the  controller connector on the wheelchair in the other and disconnect them by pulling  them apart. CONNECTING WARNING The joystick connector and controller connector fit together in one way only; DO NOT force them together. 1. Hold the light GREY collar portion of  Light Grey Collar the joystick connector with one hand ...

  • Page 46: Section 6-Seat - Tdx Sc Only

    SECTION 6—SEAT - TDX SC ONLY SECTION 6—SEAT - TDX SC ONLY WARNING After ANY adjustments, repair or service and BEFORE use, make sure that all attaching hardware is tightened securely - otherwise injury or damage may result. Before performing any maintenance, adjustment or service, verify that ON/OFF switch on the joystick is in the OFF position.

  • Page 47: Tilting The Seat Assembly - Wheelchairs Without Latch Bar Only

    SECTION 6—SEAT - TDX SC ONLY Latch Bar Rear Pivot Brackets Seat Clevis Pins Rear Pivot Brackets NOTE: TDX SC with  Transport Brackets  (TRBKTS) shown. FIGURE 6.1 Removing/Installing the Seat Assembly - Wheelchairs with Latch Bars Only Tilting the Seat Assembly - Wheelchairs without Latch Bar Only WARNING Make sure power to the wheelchair is OFF before performing this procedure.
  • Page 48 SECTION 6—SEAT - TDX SC ONLY 8. Remove prop rod from the clip located on the Formula CG frame and engage the prop  rod end into the front seat post. 9. Gently allow weight of seat assembly to be supported by the prop rod. NOTE: Only leave the seat assembly in the UP/OPEN position while performing any necessary  procedures. Always lower the seat assembly to the DOWN/CLOSED position when not servicing  the wheelchair. Ensure the seat is locked in place before using. Tilting the Seat Assembly Forward 1. Using one hand, firmly grasp the front edge of the seat assembly and lift until seat  assembly is no longer supported by the prop rod. 2. Disengage the prop rod from the front seat post and secure into clip. 3. Using both hands, slowly tilt the seat assembly FORWARD into the DOWN/CLOSED  position. WARNING Ensure the two mounting screws, washers and locknuts are securely tightened and the seat frame is locked in place before use - otherwise injury or damage may result.

  • Page 49: Section 7-Motor Locks

    SECTION 7—MOTOR LOCKS SECTION 7—MOTOR LOCKS WARNING After ANY adjustments, repair or service and before use, make sure that all attaching hardware is tightened securely - otherwise injury or damage may result. CAUTION As with any vehicle, the wheels and tires should be checked periodically for cracks and wear, and should be replaced.

  • Page 50: Section 8-Wheel Locks

    SECTION 8—WHEEL LOCKS SECTION 8—WHEEL LOCKS WARNING After ANY adjustments, repair or service and before use, make sure that all attaching hardware is tightened securely - otherwise injury or damage may result. CAUTION DO NOT use the wheel locks when the wheelchair power is on and the clutches are engaged - otherwise damage to the wheelchair may result.

  • Page 51: Section 9-Footboard Assembly

    SECTION 9—FOOTBOARD ASSEMBLY SECTION 9—FOOTBOARD ASSEMBLY WARNING After ANY adjustments, repair or service and before use, make sure that all attaching hardware is tightened securely - otherwise injury or damage may result. Before performing any maintenance, adjustment or service, verify that ON/OFF switch on the joystick is in the OFF position.

  • Page 52: Adjusting The Footboard Angle

    SECTION 9—FOOTBOARD ASSEMBLY Footboard Support Washers Socket Head Screw Washer Footboard Spacer Locknut Assembly FIGURE 9.1 Removing/Installing the Footboard Adjusting the Footboard Angle NOTE: For this procedure, refer to FIGURE 9.2. 1. Loosen the jam nut and set screw  Set Screw located underneath on the rear of the  footplate. 2. Adjust the mounting screw in or out to  obtain the desired footboard angle. Jam Nut 3. Thread the jam nut inward until it is  flush with the footboard bracket. Footboard 4.

  • Page 53: Section 10-Forks

    SECTION 10—FORKS SECTION 10—FORKS WARNING After ANY adjustments, repair or service and before use, make sure that all attaching hardware is tightened securely - otherwise injury or damage may result. CAUTION As with any vehicle, the wheels and tires should be checked periodically for cracks and wear, and should be replaced.

  • Page 54: Section 11-Wheels And Shrouds

    SECTION 11—WHEELS AND SHROUDS SECTION 11—WHEELS AND SHROUDS WARNING After any adjustments, repair or service and before use, make sure that all attaching hardware is tightened securely - otherwise injury or damage may result. Before performing any maintenance, adjustment or service verify that On/Off switch on the joystick is in the Off position.

  • Page 55: Wheelchairs With Elevating Seat

    SECTION 11—WHEELS AND SHROUDS Wheelchairs with Elevating Seat NOTE: For this procedure, refer to FIGURE 11.2. NOTE: Reverse this procedure to install the top shroud. 1. Elevate the seat. Refer to the seating system owners manual. 2. Remove the four thumb screws securing the rear half of the top shroud to the  wheelchair fame. 3. Pulling up, remove the rear half of the top shroud. 4. Pulling up, remove the front half of the top shroud. Rear Half of Top Shroud Thumb Front Half of Screws Top Shroud Wheelchair Frame FIGURE 11.2 Removing/Installing the Top Shroud - Wheelchairs with Elevating Seat Part No 1149267 TDX®...

  • Page 56: Section 12-Batteries

    Make sure power to the wheelchair is Off before performing this section. The use of rubber gloves is recommended when working with batteries. Invacare strongly recommends that battery installation and battery replacement ALWAYS be done by a qualified technician. U1 batteries weigh 24 pounds each. Use proper lifting techniques (lift with your legs) to avoid injury.

  • Page 57: Using The Proper Batteries

    SECTION 12—BATTERIES Using the Proper Batteries NOTE: For this procedure, refer to FIGURE 12.1. 1. Place battery on ground/flat surface. 2. Visually draw a horizontal and vertical centerline through the middle of battery  (FIGURE 12.1). 3. Position the battery so that the terminals are above the horizontal centerline. 4. Visually inspect the battery to ensure the correct position of the POSITIVE and  NEGATIVE terminals (FIGURE 12.1). WARNING Batteries with terminal configuration as shown below MUST be used. Batteries that have the reverse terminal configuration MUST NOT be used - otherwise injury and damage may occur.

  • Page 58: Removing/Installing The Batteries On Tdx Sc Without Elevating Seat

    NOTE: Have the following tools available: TOOL COMMENTS 7/16-INCH (6PT) BOX WRENCH Not Supplied DIAGONAL CUTTERS Not Supplied Removing/Installing the Batteries on TDX SC without Elevating Seat NOTE: For this procedure, refer to FIGURE 12.2 on page 59. Removing 1. Place the wheelchair in a well ventilated area where work can be performed without  risking damage to carpeting or floor covering. 2. Verify the joystick On/Off switch is in the Off position and disconnect joystick cable  (not shown). Refer to Disconnecting/Connecting the Joysticks on page 45. 3. Tilt the seat assembly to the up position. Refer to Tilting the Seat Assembly ‐  Wheelchairs without Latch Bar Only on page 47. 4. Remove the battery shroud. Refer to Removing/Installing the Top Shroud on page 54.

  • Page 59: Installing/Removing The Batteries On Tdx Sc With Elevating Seat Or Tdx Spree

    Wheelchair Base Frame Front of Wheelchair Rear of Wheelchair FIGURE 12.2 Removing/Installing the Batteries on TDX SC without Elevating Seat Installing/Removing the Batteries on TDX SC with Elevating Seat or TDX Spree NOTE: For this procedure, refer to FIGURE 12.3 on page 60. Removing the Batteries 1. Place the wheelchair in a well ventilated area where work can be performed without ...
  • Page 60 BLACK Controller Connector Plug into Controller Front Battery Rear Battery Wheelchair Base Frame Front of Wheelchair Rear of Wheelchair FIGURE 12.3 Installing/Removing the Batteries on TDX SC with Elevating Seat or TDX Spree TDX® SC TDX® Spree Part No 1149267...

  • Page 61: Installing/Removing The Batteries On Tdx Spree With Trro

    SECTION 12—BATTERIES Installing/Removing the Batteries on TDX Spree with TRRO WARNING This procedure MUST be performed by a qualified technician. NOTE: For this procedure, refer to FIGURE 12.4 on page 63. Removing the Batteries 1. Place the wheelchair in a well ventilated area where work can be performed without  risking damage to carpeting or floor covering. 2. Perform one of the following ‐  • If there is power in the batteries, elevate the seat to the highest position. Refer to  the owner’s manual shipped with wheelchair. • If there is no power left in the batteries, Remove the seat frame from the  wheelchair. Refer to Removing/Installing the Elevating Seat Assembly on page 63 3. Verify the joystick On/Off switch is in the Off position and disconnect joystick. Refer  to Disconnecting/Connecting the Joysticks on page 45.
  • Page 62 SECTION 12—BATTERIES Installing the Batteries NOTE: If replacing the batteries install the battery wiring harness. Refer to Connecting Battery  Cables on page 66. 1. If replacing the batteries, install the front and rear battery wiring harness. Refer to  Replacing the Batteries on page 65. 2. Using the battery handle and strap, position the front battery into the battery box. 3. Using the battery handle, position the rear battery into the battery box. 4. Connect the rear battery to the front battery (RED and BLACK connectors). 5. Connect the rear battery to the controller (BLACK connector). NOTE: Ensure rubber pad is positioned between the docking pin bracket and the elevating seat  post. 6. Position the docking pin bracket onto the wheelchair base frame so that the four tabs  set into the notches in both sides of the wheelchair base frame. 7. Apply loctite 242 to the threads of the four 5/16‐18 X 2.00 socket head screws. 8. Loosely install the four 5/16‐18 X 2.00 socket head screws, .330 X .625 X .050 flat  washers and 5/16‐18 locknuts, secure the docking pin bracket to the right and left  docking pin mounting brackets. 9. Apply loctite 242 to the threads of the two 1/4‐20 X .75 socket head screws. 10. Loosely install the two 1/4‐20 X .75 socket head screws and flat washers, secure the  docking pin bracket to the elevating seat post. 11. Securely tighten the four 5/16‐18 X 2.00 socket head screws, .330 X .625 X .050 flat  washers and 5/16‐18 locknuts. Torque to 13ft‐lbs ± 20%. 12. Securely tighten the two 1/4‐20 X .75 socket head screws and flat washers. Torque to  75i‐/lbs ± 20%.

  • Page 63: Removing/Installing The Elevating Seat Assembly

    SECTION 12—BATTERIES Battery Handle Battery Handle Front Battery BLACK Controller Connector RED and BLACK Battery Connectors Plug into Controller .330 X .625 X .050 5/16-18 X 2.00 Socket Flat Washers Rear Battery Head Screws Docking Pin Locknuts Bracket 1/4-20 X .75 Socket Head 1/4-20 X .75 Socket Screws, .330 X .625 X .050 Flat Head Screws...
  • Page 64 SECTION 12—BATTERIES Installing 1. Position the seat assembly onto the actuator post. 2. Using four mounting bolts and locknuts, secure the seat assembly to the actuator post.  Securely tighten. 3. Position the seat pan onto the seat frame as shown. 4. Using the two socket screws, secure the seat pan to the seat frame. 5. Install the seat cushion. 6. Connect the joystick. Refer to Disconnecting/Connecting the Joysticks on page 45. Seat Assembly NOTE: Complete seat  NOTE: Seat pan and  assembly not shown. socket screws not shown. Actuator Post Mounting Bolts NOTE: TDX SC  with elevating seat  Locknuts shown. TDX Spree  seating removes the  same. FIGURE 12.5 Removing/Installing the Elevating Seat Assembly TDX®...

  • Page 65: Replacing The Batteries

    SECTION 12—BATTERIES Replacing the Batteries NOTE: Refer to Disconnecting Battery Cables on page 65. Disconnecting/Connecting Battery Cables Disconnecting Battery Cables WARNING The use of rubber gloves is recommended when working with batteries. NEVER allow any of your tools and/or battery cables to contact both battery terminals at the same time. An electrical short may occur and serious personal injury or damage may occur.

  • Page 66: Connecting Battery Cables

    SECTION 12—BATTERIES Connecting Battery Cables WARNING NEVER allow any of your tools and/or battery cables to contact both battery terminals at the same time. An electrical short may occur and serious personal injury or damage may occur. Connect same color connectors to each other (RED to RED, BLACK to BLACK). DO NOT remove fuse or mounting hardware from POSITIVE (+) battery cable mounting screw.
  • Page 67 SECTION 12—BATTERIES DETAIL “A” NOTE: Battery terminal  POSITIVE (+) Battery caps not shown on front  Terminal Cap battery for clarity. RED Connectors Mounting Screw NEGATIVE (-) Battery Terminal NEGATIVE (-) Battery Cable NEGATIVE (-) Battery BLACK terminal Connectors POSITIVE (+) Battery Cable L-Bracket with Mounting Screw Locknuts POSITIVE (+) Battery terminal U1 Battery NOTE: Handles on batteries ...

  • Page 68: When To Charge Batteries

    SECTION 12—BATTERIES When to Charge Batteries SPJ+, SPJ+ w/PSS and SPJ+ w/ACC Joysticks NOTE: For this procedure, refer to FIGURE 12.7. The Information Gauge Display located on the front of the joystick housing, it provides  the state‐of‐battery charge, including notification of when the battery requires charging.  It also provides the following information to the user on the status of the wheelchair: A. GREEN LEDs are lit, indicating well  Batteries Information Gauge Display charged batteries. Empty Batteries Full B. AMBER LEDs are lit, indicating  batteries are moderately charged.  Recharge batteries before taking a  long trip. C. RED LEDs are lit, indicating  batteries are running out of charge.  Recharge batteries as soon as  Battery Charger/ possible.  Programming Port FIGURE 12.7 SPJ+, SPJ+ w/PSS and SPJ+ w/ ACC Joysticks...

  • Page 69: Charging Batteries

    There are some basic concepts which will help you understand this automatic process.  They are: The amount of electrical current drawn within a given time to charge a battery is called  the “charge rate”. If, due to usage, the charge stored in the battery is low, the charge rate  is high, as indicated by the GREEN light on the charger. Initially, the GREEN light will  stay illuminated for a short period of time followed by a longer period of off time. As a  charge builds up, the charge rate is reduced, and the GREEN light will stay illuminated  for a longer period of time followed by a shorter off time.  WARNING NEVER leave the charger unattended when the breaker has tripped. A fault condi- tion exists. Unplug and discontinue using immediately. Contact an Invacare dealer. Part No 1149267 TDX® SC TDX® Spree...
  • Page 70 Not Supplied 1. Attach the battery charger connector to the charger port on the joystick. 2. Plug the charger’s AC power cord, or extension, into the grounded 120 VAC wall  outlet. 3. Wait until charging is complete. NOTE: Allow eight hours for normal charging. Larger batteries (greater than 55 ampere‐hours) or  severely discharged batteries may require up to sixteen hours to be properly charged and equalized. NOTE: It is advantageous to recharge frequently rather than only when necessary. In fact, a  battery’s life is extended if the charge level is maintained well above a low condition. NOTE: If the batteries need to be charged more often or take longer to charge than normal, they  may need to be replaced. Contact an Invacare dealer for service. SPJ+, SPJ+ w/PSS and SPJ+ w/ACC MPJ+ Joystick Joysticks Charger/Programming Port (On Front of Joystick) Charger/ Programming Port FIGURE 12.9 Charging Batteries TDX® SC TDX® Spree...

  • Page 71: Cleaning Battery Terminals

    SECTION 12—BATTERIES Cleaning Battery Terminals WARNING Most batteries are not sold with instructions. However, warnings are frequently noted on the cell caps. Read them carefully. DO NOT allow the liquid in the battery to come in contact with skin, clothes or other possessions.

  • Page 72: Section 13-Transport Ready Package (Trro)

    NOTE: The information in this section is for wheelchairs ordered with the transport ready package  ONLY. WARNING Contact Invacare Corporation (800-333-6900) with any questions about using this wheelchair for seating in a motor vehicle. When feasible, wheelchair occupants should transfer into the vehicle seat and use the OEM (Original Equipment Manufacturer) vehicle-installed restraint system.

  • Page 73: About Transport Ready Packages

    Only use the transport brackets included with TRRO and TRBKTS for the purposes described in this manual. About Transport Ready Packages TRRO includes four factory‐installed transport brackets and a wheelchair anchored  pelvic belt. TRRO has been crash‐tested in accordance with ANSI/RESNA WC Vol 1  Section 19 Frontal Impact Test requirements for wheelchairs with a 130 lb crash test  dummy, which corresponds to a person with a weight of 125 to 165 lbs. for Junior seat  sizes or a 168 lb crash dummy, which corresponds to a person with a weight of 165 to 300  lbs. for Adult seat sizes. TRBKTS includes four factory‐installed wheelchair transport brackets. TRBKTS has not  been crash‐tested in accordance with WC 19. Use these transport brackets only to secure  an unoccupied wheelchair during transport. As of this date, the U.S. Department of Transportation has not approved any tie‐down  systems for transportation of a user while in a wheelchair, in a moving vehicle of any type.  It is Invacare’s position that users of wheelchairs should be transferred into appropriate  seating in vehicles for transportation and use be made of the restraints made available by  the auto industry. Invacare cannot and does not recommend any wheelchair  transportation systems. Compliance Information This wheelchair conforms with the requirements of the ANSI/RESNA WC/Vol. 1 ‐ Section  NOTE: ANSI = American National Standards Institute, RESNA= Rehabilitation Engineering  and Assistive Technology Society of North America. This wheelchair has been dynamically tested in a forward‐facing mode with a 130 lb crash  test dummy, which corresponds to a person with a weight of 125 to 165 lbs. for Junior seat  sizes or a 168 lb crash dummy, which corresponds to a person with a weight of 165 to 300  lbs. for Adult seat sizes, restrained by Both pelvic and upper‐torso belts in accordance  with ansi/resna wc Vol 1 Section 19. Both pelvic and upper‐torso belts should be used to  reduce the possibility of head and chest impacts with vehicle components.

  • Page 74: Specifications

    SECTION 13—TRANSPORT READY PACKAGE (TRRO) Specifications MODEL MOTOR WHEELCHAIR WEIGHT LIMIT ADULT JUNIOR TDX SC 2 Pole Up to 250 pounds TDX SPREE 2 Pole Up to 165 pounds Securing the Wheelchair to the Vehicle Positioning the Wheelchair in the Vehicle...

  • Page 75: Securement Points

    SECTION 13—TRANSPORT READY PACKAGE (TRRO) Securement Points Tie-Down Tie-Down Bracket Brackets Tie-Down Bracket FIGURE 13.1 Securement Points Securing the Wheelchair This wheelchair is to be used only with Wheelchair Tie‐down and Occupant Restraint  Systems (WTORS) that have been installed in accordance with the manufacturerʹs  instructions and SAE J2249. NOTE: A copy of SAE J2249 Wheelchair Tie‐down and Occupant Restraint Systems (WTORS)  for use in Motor Vehicles can be obtained from: SAE International, 400 Commonwealth Drive,  Warrendale, PA 15096‐0001, (877) 606‐7232 or (724) 776‐4970. Attach WTORS to the tie‐down brackets in accordance with the manufacturerʹs  instructions and SAE J2249. Part No 1149267 TDX® SC TDX® Spree...

  • Page 76: Securing The Occupant

    Securing the Occupant Wheelchair-Anchored Belts WARNING The pelvic belt that is provided by Invacare has been tested for use in a motor vehi- cle on this wheelchair ONLY. DO NOT replace the pelvic belt with a different style pelvic belt.
  • Page 77 SECTION 13—TRANSPORT READY PACKAGE (TRRO) DETAIL “A” Pelvic Belt (Used to secure the vehicle anchored upper-torso belt) Male End DETAIL “B” Back Angle Bracket Belt Mounting Bracket Large End of Slot Small End of Slot FIGURE 13.2 Wheelchair-Anchored Belts Part No 1149267 TDX®...

  • Page 78: Vehicle-Anchored Belts

    SECTION 13—TRANSPORT READY PACKAGE (TRRO) Vehicle-Anchored Belts NOTE: For this procedure, refer to FIGURE 13.3. With regard to accommodating the use and fit of vehicle‐anchored belts, this wheelchair  has an overall rating of: • TDX SC ‐ A • TDX SPREE ‐ A This rating is scored as follows: RATING DESCRIPTION Excellent Good Fair Poor The test for Lateral Stability Displacement for Point (P) is shown in FIGURE 13.3. The  average test result for point (P) is: • TDX SC Adult ‐ 0.47‐inches (11.9 mm) • TDX SPREE ‐ 0.53‐inches (13.0 mm) Point (P) NOTE: Rear view of the  wheelchair and human  surrogate secured on test  platform and tilted to 45°. Test Platform 45° FIGURE 13.3 Vehicle-Anchored Belts TDX®...

  • Page 79: Seating System

    SECTION 13—TRANSPORT READY PACKAGE (TRRO) Seating System WARNING This wheelchair has been tested for seating in a motor vehicle with the factory installed seating system ONLY. Ensure that the factory installed seating system is secured to the wheelchair frame before  operation. Refer to the seating system owner’s manual. Positioning Belts WARNING The angle of the pelvic belt should be within the preferred zone of 45 to 75 degrees to the horizontal OR within the optional zone of 30 to 45 degrees to the horizontal.

  • Page 80: Limited Warranty

    Invacare warrants all batteries to be free from defects in materials and workmanship for a period of six (6) months from the date of purchase from Invacare or a dealer, with a copy of the seller’s invoice required for coverage under this warranty. Invacare warrants all remaining components (excluding...
