- Page 1 Family...
-
Page 2: History
Tradition. Innovation. Vision. For the last two and a half decades, Invacare has been the industry leader in powerchair electronics and bases. Every year, our engineers design chairs, electronics, components and features that consistently raise the bar for power wheelchair performance. Invacare’s rich powerchair history... -
Page 3: Table Of Contents
The New Invacare Family ® ® Contents History ® Family ® SP Led The Way Traction Control Design/SureStep ® MK6i ™ Electronics Stability Lock/True Center-Wheel Drive ® ® SP Elegant Design ® SP Seating Options ® SP Specifications ® Gearless Brushless GB/TrueTrack ®... - Page 4 Things Just Keep Getting Better… The TDX SP led the way. Now we've done it again. Invacare built upon a legacy of powerchair knowledge and design to develop the TDX ® The TDX SP improves upon all the features of the TDX Series with enhanced performance, superior ride quality, overall quieter chassis, and an elegantly simple design that is sure to turn heads.
-
Page 5: Traction Control Design/Surestep
Design reverse transition. TRACTION CONTROL DESIGN. ENHANCED SURESTEP ® The new TDX ® Family uses an enhanced version of Invacare’s patented SureStep ® technology that was made famous on the first generation TDX and the Pronto ® series of wheelchairs. -
Page 6: Mk6I ™ Electronics
™ + BASIC JOYSTICK ELECTRONICS. DESIGNED WITH BENEFITS FOR ALL. MK Series electronics are the benchmark in power wheelchair drive systems. This is the result of years of experience in the design and manufacture of electronics specifically for the needs of wheelchair consumers. -
Page 7: Stability Lock/True Center-Wheel Drive
QUIET STABILITY LOCK. THE DIFFERENCE MAKER IN REHAB. The original TDX introduced quiet Stability Lock, a feature that kept the powerchair stable whenever it felt that the driver's weight was rocking forward. The new TDX ® Family takes that same feature to the next level. The Stability Lock feature is designed to operate and keep the powerchair stable while it is in motion. -
Page 8: Tdxsp
TDXSP-CG (Group 3 Single Power) TDXSP-CG HD (Group 3 Single Power Heavy-Duty) TDXSP-MCG (Group 3 Multiple Power) TDXSP-MCG HD (Group 3 Multiple Power Heavy-Duty) Invacare ® ® is the first model in the next generation of TDX (Total Driving eXperience) power wheelchairs. - Page 9 ELEGANT SIMPLICITY. INSPIRING DESIGN. Our designers started with sketches and drove the design so that aesthetics were never sacrificed for functionality. The end result is an elegant design with a focus on simplicity and detail.
-
Page 10: Tdx ® Sp Seating Options
Pediatric Seat Adjustable Rehab Seat Van Seat TDX SP SEATING OPTIONS. VERSATILITY. The TDX ® SP offers a wide variety of seating options that make it an extremely versatile powerchair. The standard TDX SP offers a choice of an adjustable Rehab (ASBA) seat that is growable in width and depth. -
Page 11: Tdx ® Sp Specifications
® SP SPECIFICATIONS. Adj. ASBA Rehab Seat Overall dimensions Base Length (w/o front riggings) 35.25" Base Width 24"/25.5" Height 35.5" - 39.5" Seat Dimensions Width 12" - 24" Depth 12" - 22" Back Height 12" - 24" with Headrest Back Angle 85˚... -
Page 12: Tdxsr
® builds off of the proven TDX benefits of Gearless Brushless TrueTrack motors. TrueTrack allows the chair to maintain its true forward path keeping the chair tracking straight. TrueTrack motors ultimately result in less fatigue for drivers of alternative driver controls. TDXSR (Group 4 Rehab Seat) TDXSRV... - Page 13 TrueTrack technology, the design is 75% efficient resulting in 17% more battery range than Invacare’s 4-pole motors. Battery range is an important feature for active users and users requiring powered seating systems.
-
Page 14: Tdx Sr Seating Options
TDX SR SEATING OPTIONS. The TDX SR is available with the adjustable rehab seat, captain’s seating, and the full range of powered seating options. The Formula Powered Seating system offers up to 7" of weight shift tilt, a low starting seat to floor height of 17.5", numerous back type options, and six combinations of tilt, recline, and elevate including: •... -
Page 15: Tdx ® Sr Specifications
® SR SPECIFICATIONS. Adj. ASBA Rehab Seat Overall dimensions Base Length (w/o front riggings) Base Length (w/front riggings) Base Width 25.5" (w/o joystick) Height 35.5" - 39.5" Motor Package TrueTrack GB Seat Dimensions Width Depth Back Height with Headrest Back Angle 85˚... -

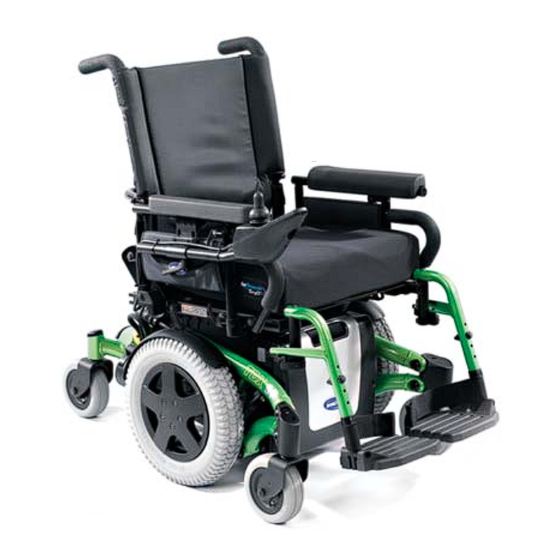

Page 16: Tdxsc
TDXSC (Group 3 Rehab Seat) TDXSCV (Group 2 Captain’s Seat) TDXSC2-CG (Group 2 Single Power) ® SC, also built off of the successful TDX 10" drive tires, U1 batteries, and 2 pole motors. The TDX SC is an extension of the TDX SP family and continues to offer the distinguishing features of Enhanced SureStep ®... -
Page 17: Tdx ® Sc Specifications
® SC SPECIFICATIONS. Adj. ASBA Rehab Seat Overall dimensions Base Length (w/o front riggings) Base Length (w/front riggings Base Width (w/o joystick) Height 36.5" - 38.5" Motor Package 2-pole Seat Dimensions Width 16" - 20" Depth 16" - 20" Back Height 16"... -
Page 18: Tdxspree
• Currently pending SADMERC approval TDXSPREE (Group 3 Rehab Seat) TDXSPREE-CG (Group 3 Single Power) K0848 K0856... -
Page 19: Tdx
TRANSPORT READY OPTION. The TDX Spree offers standard a transport package standard. Please refer to page 22 for more information on Invacare’s Transport Ready Options. Transport Ready Option ® Spree is a Standard features of the TDX Spree: distinctive and fun power •... - Page 20 ® Spree is designed to meet a wide variety of rehab needs for smaller clients. The powered seat height adjuster allows the client to reach peer level and the low seat-to-floor height allows for easy access to the ground. The optional tilt feature can be operated TDX Spree manually by a caregiver or powered for the client to accomplish their own weight shift positioning.
- Page 21 ® SPREE SPECIFICATIONS. Adj. ASBA Rehab Seat Overall dimensions Base Length (w/o front riggings) Base Length (w/ front riggings Base Width (w/o joystick) Height 34.5" - 38.5" Motor Package 2-pole Seat Dimensions Width 12" - 16" Depth 12" - 18" Back Angle 85˚...
- Page 22 ANSI/RESNA Vol. 1 Section 19.5.3 Frontal Impact Test (W/C 19).** Invacare also offers the TRBKTS option. Unlike the TRRO configura- tion, a chair with TRBKTS option does not have a pelvic belt and it has not been crash-tested in accordance with W/C 19 or any other standard.
-
Page 23: Tdx Family
Family…The Right Rehab Solution From One Source. Adjustable Rehab Seat TDX SR with Rehab Seating Formula ™ Tilt TDX SR with Formula TDX SC with Van Seating TDX SC with Formula ™ ™ Tilt/Recline TDX Spree with Powered Seat Height Adjustment Power Tilt TDX Spree with Powered Tilt... - Page 24 G. For all types of vehicles, the TDX SP requires four SAE J2249- compliant tie-down strap assemblies for effective securement. H. The TDX SP provides a location for anchoring of an Invacare- provided pelvic belt. This belt has been tested in accordance with ANSI/RESNA W/C 19.
- Page 25 G. For all types of vehicles, the TDX SC requires four SAE J2249- compliant tie-down strap assemblies for effective securement. H. The TDX SC provides a location for anchoring of an Invacare- provided pelvic belt. This belt has been tested in accordance with ANSI/RESNA W/C 19.
- Page 26 Invacare Corporation www.invacare.com One Invacare Way Elyria, Ohio 44035-4190 (800) 333-6900 Canada 570 Matheson Blvd. E., Unit 8 Mississauga, Ontario L4Z 4G4 Canada (800) 668-5324 All rights reserved. Trademarks are identified by the symbols ™, ®. All trademarks are owned by or licensed to Invacare Corporation unless otherwise noted.
