en | Rack Installation
4.3
BRS 19-inch 1U - Rack Mounting Instructions
This section provides information on installing the chassis into a rack unit. There are a variety
of rack units on the market, which may mean the assembly procedure will differ slightly. You
should also refer to the installation instructions that came with the rack unit you are using.
Note:
This rail will fit a rack between 26" and 33.5" deep.
4.3.1

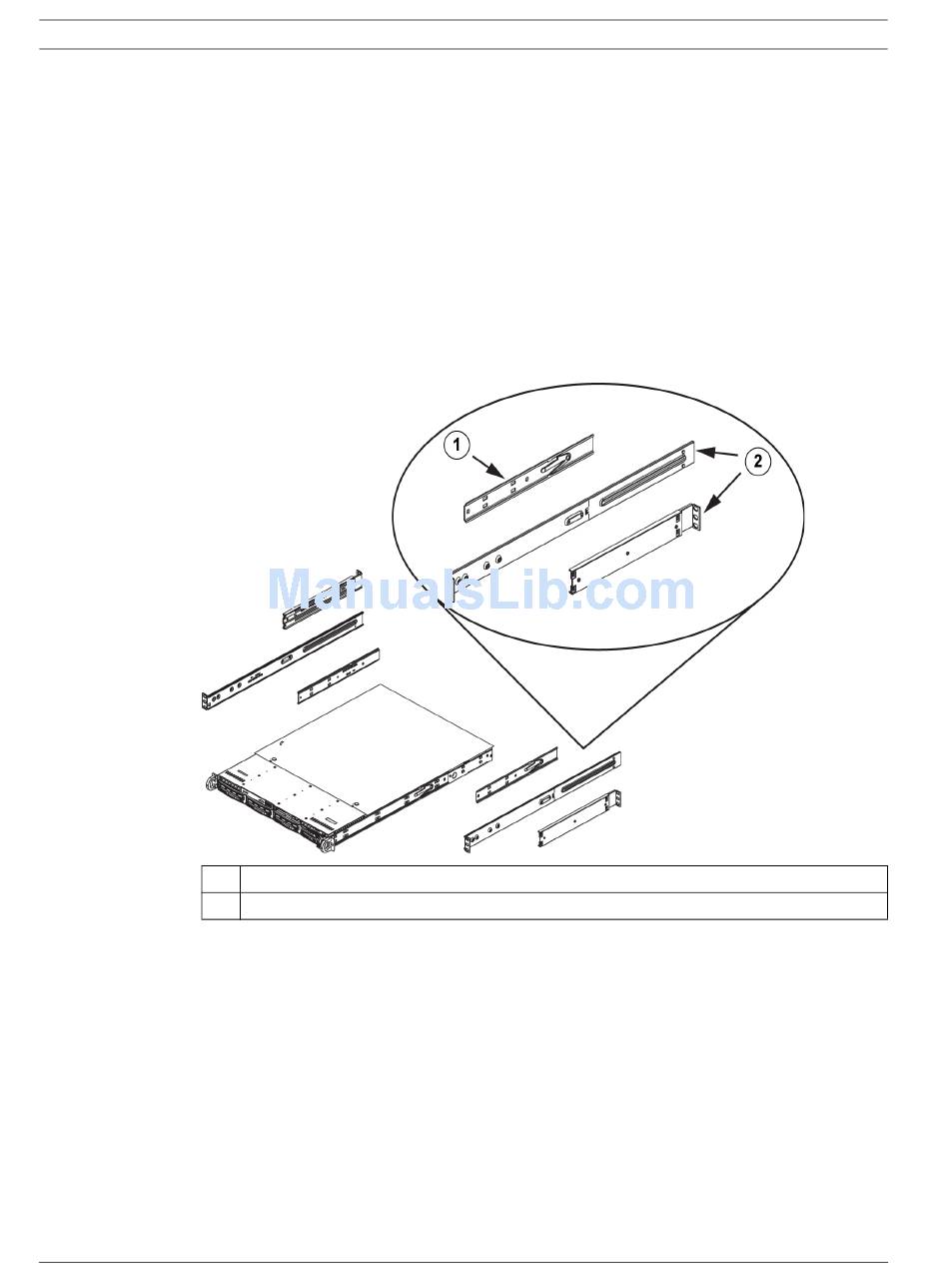

Identifying the Sections of the Rack Rails
The chassis package includes two rack rail assemblies in the rack mounting kit.
Each assembly consists of two sections:
–
–
1
2
- | V1 | 2011.10
an inner fixed chassis rail that secures directly to the system chassis
an outer fixed rack rail that secures directly to the rack itself.
Rail Extension (Inner Rail is pre-installed on the chassis)
Outer Rails
Hardware Installation Manual
Bosch Recording Station Appliance
