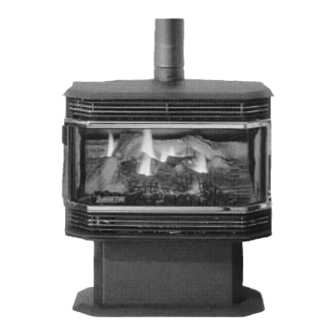

GRAND BAY 40 GAS FREESTANDING (GB40 FS)
CONGRATULATIONS!
You are now the proud owner of one of the finest gas
stoves on the market, the
If the information in this manual is not followed exactly, a fire or explosion may result causing property
DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any ther appliance.
• Extinguish any open flame.
• Open windows.
• Do not try to light any appliance.
• Do not touch any electric switch.
• Do not use any telephone in your building.
• Immediately call your gas supplier from a neighbor's
phone.
Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer
to this manual for correct installation and operational procedures. For assistance or additional information
consult a qualified installer, service agency, or the gas supplier.
401 N. Wynne Street
Colville, WA 99114
INSTALLATION, OPERATION, VENTING
AND MAINTENANCE INSTRUCTIONS
QUADRA-FIRE
GB40FS
WARNING
damage, personal injury, or death.
FOR YOUR SAFETY:
WHAT TO DO IF YOU SMELL GAS
SAVE THESE INSTRUCTIONS
Part #250-2970 #842-1620
• Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
• Installation and service must be performed by a
qualified installer, service agency, or the gas
supplier.
WARNING
(Revised 01/2000)
CAUTION!
PRIOR TO FIRST FIRE:
Clean gold door with a
glass cleanser and soft
cloth, as fingerprint oils
will cause discoloration on
gold when heated.
www.aladdinhearth.com
aladdin@aladdinhearth.com
Advertisement
Table of Contents
Related Manuals for Quadra-Fire GRAND BAY 40 GB40FS
Summary of Contents for Quadra-Fire GRAND BAY 40 GB40FS
- Page 1 INSTALLATION, OPERATION, VENTING AND MAINTENANCE INSTRUCTIONS CONGRATULATIONS! You are now the proud owner of one of the finest gas stoves on the market, the QUADRA-FIRE GB40FS CAUTION! PRIOR TO FIRST FIRE: Clean gold door with a glass cleanser and soft...
-
Page 2: Welcome
Ask your Quadra-Fire Dealer for information on these options. From design, to fabrication, to shipping: Our guarantee of quality is more than a word, it’s Quadra-Fire tradition, and we proudly back this tradition with a Lifetime Warranty. -
Page 3: Notes
Grand Bay 40 Gas Freestanding N O T E S MODEL PURCHASED: GB40FS SERIAL NUMBER: DATE PURCHASED: DEALERSHIP WHERE PURCHASED: DEALER PHONE NUMBER ADDITIONAL INFORMATION : ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ ATTACH YOUR SALES RECEIPT AND WARRANTY STUB HERE: January 2000 Page 3... -
Page 4: Table Of Contents
Grand Bay 40 Gas Freestanding TABLE OF CONTENTS Welcome................2 Notes ................... 3 Safety Label................. 5 Safety Notices ..............6 Specifications ..............7 Gas Line Connection ............7 Pressure Testing ..............7 Listings ................7 Dimensions................8 Installation Clearances to Combustibles........... 9 Hearth Requirements ............. -
Page 5: Safety Label
Grand Bay 40 Gas Freestanding GB40FS SAFETY LABEL (FOUND ON BACK OF STOVE) January 2000 Page 5... -
Page 6: Safety Notices
Grand Bay 40 Gas Freestanding SAFETY NOTICES This appliance should only be installed by a qualified installer. It is approved for installation in a bedroom. Bedroom installation in Canada requires that the stove be connected to a thermostat. The appliance must be electrically grounded in accordance with local codes, or the latest edition of the National Electric Code. -
Page 7: Specifications
(as seen below). Turn clockwise for a higher flame and counterclockwise for a lower flame. INPUT SIDE TEST VALVE OUTPUT SIDE TEST VALVE LISTINGS The Quadra-Fire GB40 FS is listed to ANSI Z21.11.1 and CAN 1-2.1 by OMNI-Test Laboratories, Inc. January 2000 Page 7... -
Page 8: Dimensions
Grand Bay 40 Gas Freestanding DIMENSIONS Page 8 January 2000... -
Page 9: Clearances To Combustibles
Grand Bay 40 Gas Freestanding CLEARANCES TO COMBUSTIBLES Minimum clearances to combustible materials from stove body: Side wall to combustible 7” (178mm) Back wall to combustible 4” (102mm) Top of unit 22” (560mm) Corner clearance 1” (25mm) HEARTH REQUIREMENTS The floor area beneath the stove must be stable, level and strong enough to support the stove without a tipping hazard. -
Page 10: High Altitude Operation
Grand Bay 40 Gas Freestanding HIGH ALTITUDE OPERATION For installations in the United States and at altitudes above 2000 feet, the appliance input shall be adjusted in accordance with local codes or, in the absence of any, follow the current ANSI Z223.1, National Fuel Gas Code. -
Page 11: Unpacking The Stove
Grand Bay 40 Gas Freestanding UNPACKING THE STOVE Unbolt pallet from appliance using a 7/16” wrench to remove the two bolts from the underside of the pallet. Logs, twigs, brick refractory, glowing embers, touch-up paint, tee handle, and this owner’s manual are shipped in the firebox for security in shipping. -
Page 12: Door Operation
Grand Bay 40 Gas Freestanding DOOR OPERATION INSTRUCTIONS 1. Verify that the proper door hook (part number 450-7490) is installed on the door. See Fig. A. FIG. A 2. Install the door to check the latchbox adjustment. When closing the door, look between the door and the face of the stove at the latching arm. - Page 13 Grand Bay 40 Gas Freestanding DOOR OPERATION INSTRUCTIONS 3. Open the door and place a sheet of paper between the door and the stove to check for door rope tension. Close the door and pull on the paper to feel the amount of pressure required to slide the paper out.
-
Page 14: Brick Installation
Grand Bay 40 Gas Freestanding BRICK INSTALLATION The brick in this unit is packed in the firebox to prevent breakage during shipping. To install the brick, follow the directions below: Open stove door. Place brick A on the left side of the firebox so that it slides into the slots on the top of the firebox and behind the manifold block. - Page 15 Grand Bay 40 Gas Freestanding BRICK INSTALLATION Place brick D on the right side of the firebox floor so that the cutout slides around the log holder. Slide brick E in front of the front burner tube so that the brick fits between the burner tube and the face of the insert.
-
Page 16: Log Set Installation
Grand Bay 40 Gas Freestanding INSTALLING THE LOG SET CORRECT LOG PLACEMENT IS IMPORTANT TO PREVENT SOOTING! The vacuum- formed ceramic logs are extremely fragile. PLEASE HANDLE CAREFULLY. Small chips on the logs can be covered up using the touch-up paint supplied with the stove.This appliance has been supplied with external shutter adjustments. - Page 17 Grand Bay 40 Gas Freestanding INSTALLING THE LOG SET 3. Place right twig on front and rear log using ceramic pins and place- ment holes in bottom of twig for alignment. (If ceramic pins are too close, tilt front log forward, do not make new holes in twigs.) Repeat step for left twig.
-
Page 18: Thermostat Installation
Grand Bay 40 Gas Freestanding THERMOSTAT INSTALLATION If desired, a thermostat may be installed to regulate the Quadra-Fire GB40 FS. It is important to use a thermostat designed for millivolt operation. Do not connect this appliance to a thermostat serving any other appliance. -
Page 19: Installation Procedure
Grand Bay 40 Gas Freestanding INSTALLATION PROCEDURES The following procedures show some of the basic installation applications. Remember that every installation is different, and the installer should adjust to insure that the appliance is installed properly. GAS CONNECTIONS Before hooking up the stove to the gas supply, be sure that the appliance you are installing is designed for the type of gas being supplied to it. -
Page 20: Venting Requirements
Grand Bay 40 Gas Freestanding VENT TERMINATIONS REQUIREMENTS This unit is equipped with a thermal damper, which has been set at the factory. Do not remove or attempt to adjust. The vent must terminate vertically with an approved cap, and the vent termination must be located where it cannot become restricted or blocked by foreign material (for example, snow and leaves). -
Page 21: Vent Attachment To Flue Collar
Grand Bay 40 Gas Freestanding VERTICAL TERMINATIONS AND TERMINATIONS WITH HORIZONTAL SECTIONS The total horizontal run must not exceed 50% of the total vertical run. Provide a 1⁄4” rise for each 12” horizontal run. You must have at least 5 feet of vertical rise. NOTE: Recommended maximum 35’... -
Page 22: Exhaust Spillage And Testing Procedure
Grand Bay 40 Gas Freestanding EXHAUST SPILLAGE AND TESTING PROCEDURE There is a spill switch located on the back of the stove below the draft hood, which is designed to shut down the stove in the case of a blocked flue or a severe downdraft. The switch acts as a safety shutoff to prevent carbon monoxide or unburned gas leaking into the room. -
Page 23: Lighting Instructions
Grand Bay 40 Gas Freestanding LIGHTING INSTRUCTIONS FOR YOUR SAFETY READ BEFORE LIGHTING This appliance has a pilot that must be lit manually, using the piezo igniter. When lighting the pilot, follow these instructions exactly. BEFORE LIGHTING, smell all around the appliance area for gas. Be sure to smell next to the floor because some gas is heavier than air and will settle on the floor. -
Page 24: First Fire
Grand Bay 40 Gas Freestanding FIRST FIRE NOTE: Never operate this appliance with the door open. NOTE: No electrical power supply is required for the gas control to operate. Standing pilot allows the valve to operate with manual switch or millivolt thermostat. WARNING: When the appliance is equipped with a 24 karat gold-plated door, you must clean all the fingerprints and oils from the gold surface before firing the appliance for the first time. -
Page 25: Maintenance
Grand Bay 40 Gas Freestanding MAINTENANCE CLEANING AND INSPECTION At least once yearly, preferably before the heating season, have the insert and venting system cleaned and inspected by a qualified service person. This will insure proper and safe operation throughout the year. CLEANING THE BURNER TUBES Turn off pilot light. -
Page 26: Glass Replacement
Grand Bay 40 Gas Freestanding MAINTENANCE (cont.) GLASS REPLACEMENT (posted doors only; full view doors must be returned to the manufacturer for glass replacement) WARNING: USE ONLY MANUFACTURER-SUPPLIED REPLACEMENT PARTS (PART NUMBER 842-1360 SIDE GLASS; 842-1280 CENTER GLASS). Open and remove stove door. Place door on a soft surface. Remove rope gasket from door frame. -
Page 27: Schematics
Grand Bay 40 Gas Freestanding SCHEMATICS January 2000 Page 27... -
Page 28: Blower Replacement
Grand Bay 40 Gas Freestanding BLOWER AND SNAP DISC REPLACEMENT NOTE: BLOWER DOES NOT REQUIRE LUBRICATION. HOWEVER, WE RECOMMEND VACUUMING OR BRUSHING OFF DUST OR LINT FROM THE FAN BLADES AS NEEDED. BLOWER AND SNAP DISC REMOVAL This appliance is equipped with a 170 cfm convection blower that is automatically controlled by a temperature-sensing snap disc (145º). -
Page 29: Troubleshooting
Check the wiring between the piezo and the igniter. If bad, fix wiring; if good, you may have a faulty piezo or cracked ceramic on the electrode. b. Call your Quadra-Fire dealer. 2. If there is a spark: i. Try to light the insert with a match. The flame should either light or flutter. -
Page 30: Conversion To Alternate Fuel
Grand Bay 40 Gas Freestanding CONVERSION KIT INSTRUCTIONS NG Part #842-1361 LP Part#842-1641 Tools Required: Kit Contents: (1) Pilot Line 3/8" socket and open end wrenches (3) Burner Orifices 7/16" socket and open end wrenches 10 mm open end wrench (1) Pilot assembly (1) Conversion Sticker TH20 torque screwdriver... - Page 31 Grand Bay 40 Gas Freestanding CONVERSION INSTRUCTIONS, CONT. 6. Disconnect thermocouple, thermopile Fig. D and piezo wire connector from existing pilot assembly. See Figure D 7. Align old pilot line side by side with new Fig. E line and pre-bend new line into correct position.
- Page 32 Grand Bay 40 Gas Freestanding CONVERSION INSTRUCTIONS, CONT. Fig. I 10. Reinstall Thermocouple and Ther- mopile into pilot assembly and reconnect piezo wire connector. See Figure I 11. Secure pilot assembly to pilot tower with 2 screws. 12. Insert pilot line into lox-it fitting Fig.
- Page 33 Grand Bay 40 Gas Freestanding CONVERSION INSTRUCTIONS, CONT. 15. Remove and replace manual regula- tor. See instructions provided with part. See Figure M Fig. M 16. Light pilot and leak test. Manual Regulator 17. Ignite burners and check HI/LO reg- ulator for leaks.
-
Page 34: Accessories & Replacement Parts
Grand Bay 40 Gas Freestanding ACCESSORIES These may be ordered through your Quadra-Fire dealer. 812-2880 Thermostat, manual 811-0520 Thermostat, electronic set back 841-0320 Remote control 841-0540 6” flue collar SERVICE PARTS 842-0330 Gray Brick Panel Set 842-1260 Baffle 842-2030 Gray Left Side Brick... -
Page 35: Warranty
Aladdin Hearth Products. This new Quadra-Fire product must be installed by a competent, authorized service contractor. It must be installed and operated at all times in accordance with the Installation, Operation and Maintenance Instructions furnished with this product, as well as any applicable local and national codes. - Page 36 Grand Bay 40 Gas Freestanding OWNER’S MANUAL...
