Disassembly

Disassembly

Indoor Unit

WARNING: Disconnect the unit from
power supply before making any
checks. Be sure the power switch is set
to "OFF"

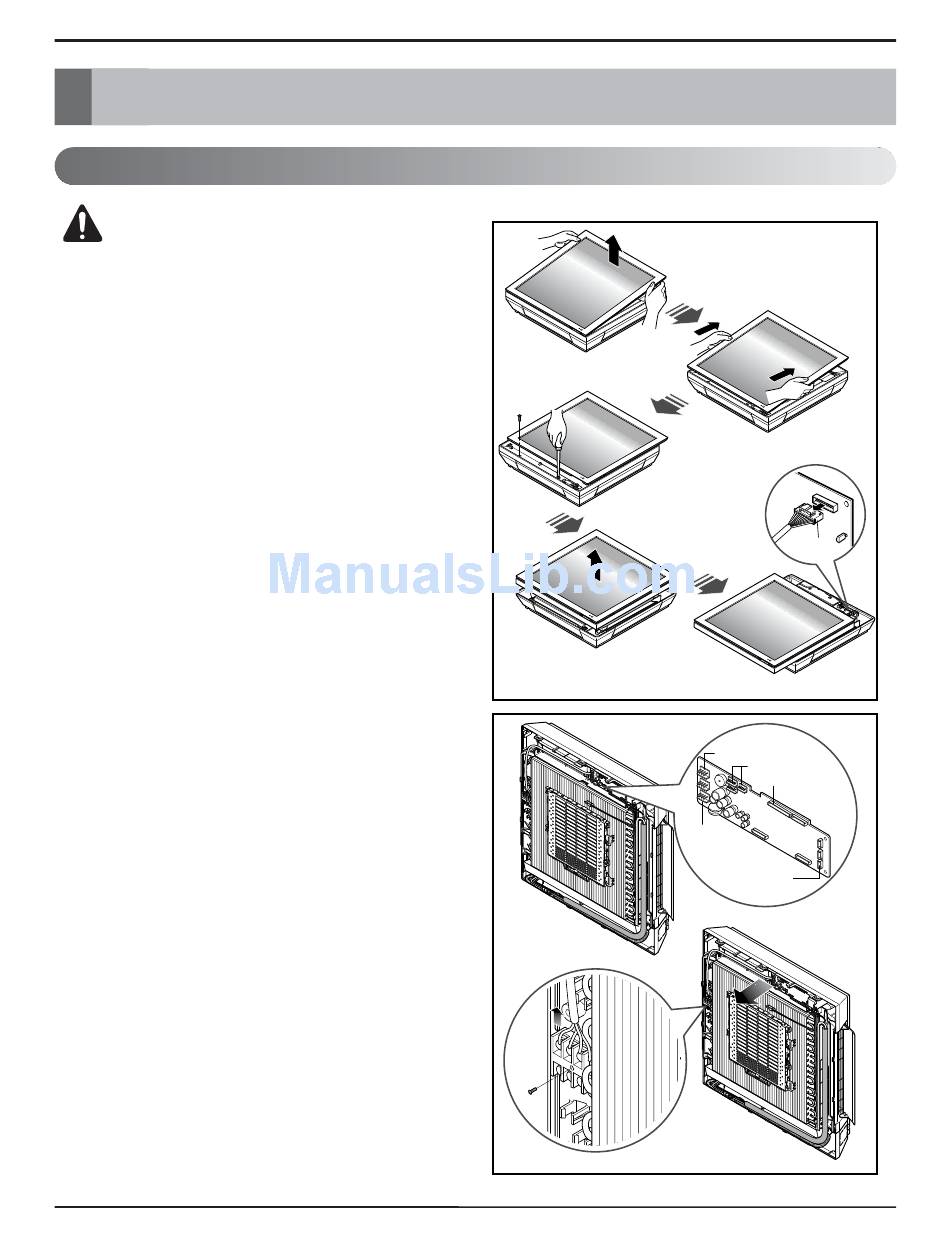

1. To remove the Grille from the Chassis.
- Pull the grille bottom, the remove 2 securing screws.
- Lift the both lower parts of panel front.
- After pull down this panel a bit, separate connecting
wire with product.
2. To remove the Control Box.
- Before removing the control box, be sure to
disconnect the wires from PWB.
- Pull the cover control out from the control box
and disconnect other wires.
- Remove securing screws.
- Pull the control box out from the chassis carefully.
Copyright ©2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes
- 46 -
Panel Front
Connector
Communication Connector
Step Motro Connector
Front Panel Connector
Motor Connector
Sensor Connector
