2.1.2. Overview of Inverter

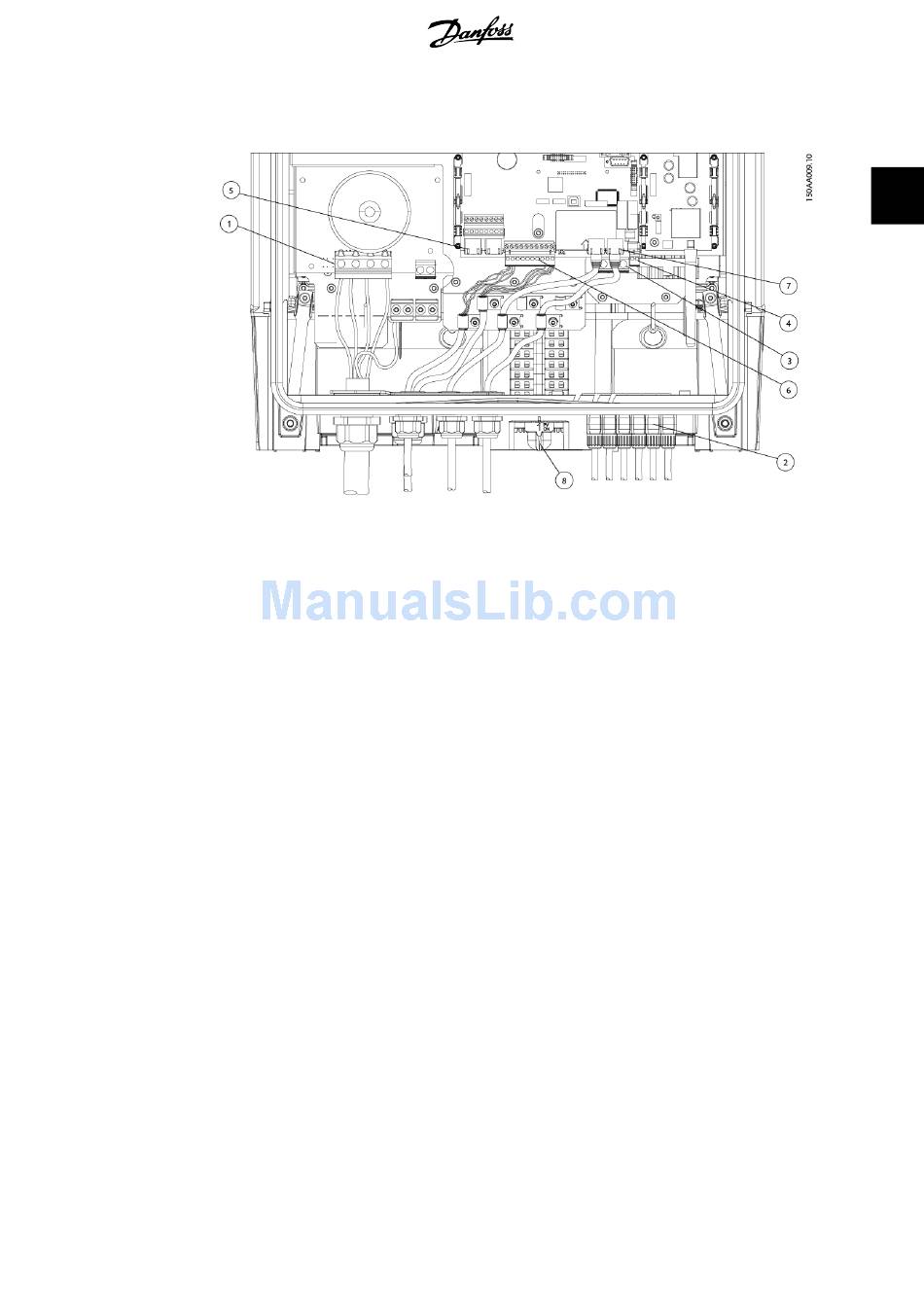

Illustration 2.3: Overview of Danfoss TLX CN inverter
Live Part
1.
AC Connection Area
2.
DC Connection Area
3.
Terminal block for parallel connection
4.
Auxiliary output: Potential free relay
PELV (Safe to touch)
5.
Auxiliary interface: RS485
6.
Auxiliary interface: Temperature, Irradiation, Energy meter (SO)
7.
Auxiliary interface: Ethernet
Other
8.
DC-switch
The TLX CN Pro and TLX CN Pro+ variants can also be configured via the Web Server. For fur-
ther information refer to the Web Server User Manual.
L00410580-01_02
