2. Introduction
2.1. Introduction
This manual explains the installation and setup of the TripleLynx CN solar inverter, for the in-
stallation technician.
The inverter display and Web Server are available in Chinese language only. In the manual,
English texts appearing in the screenshots and menus are shown for guidance only.

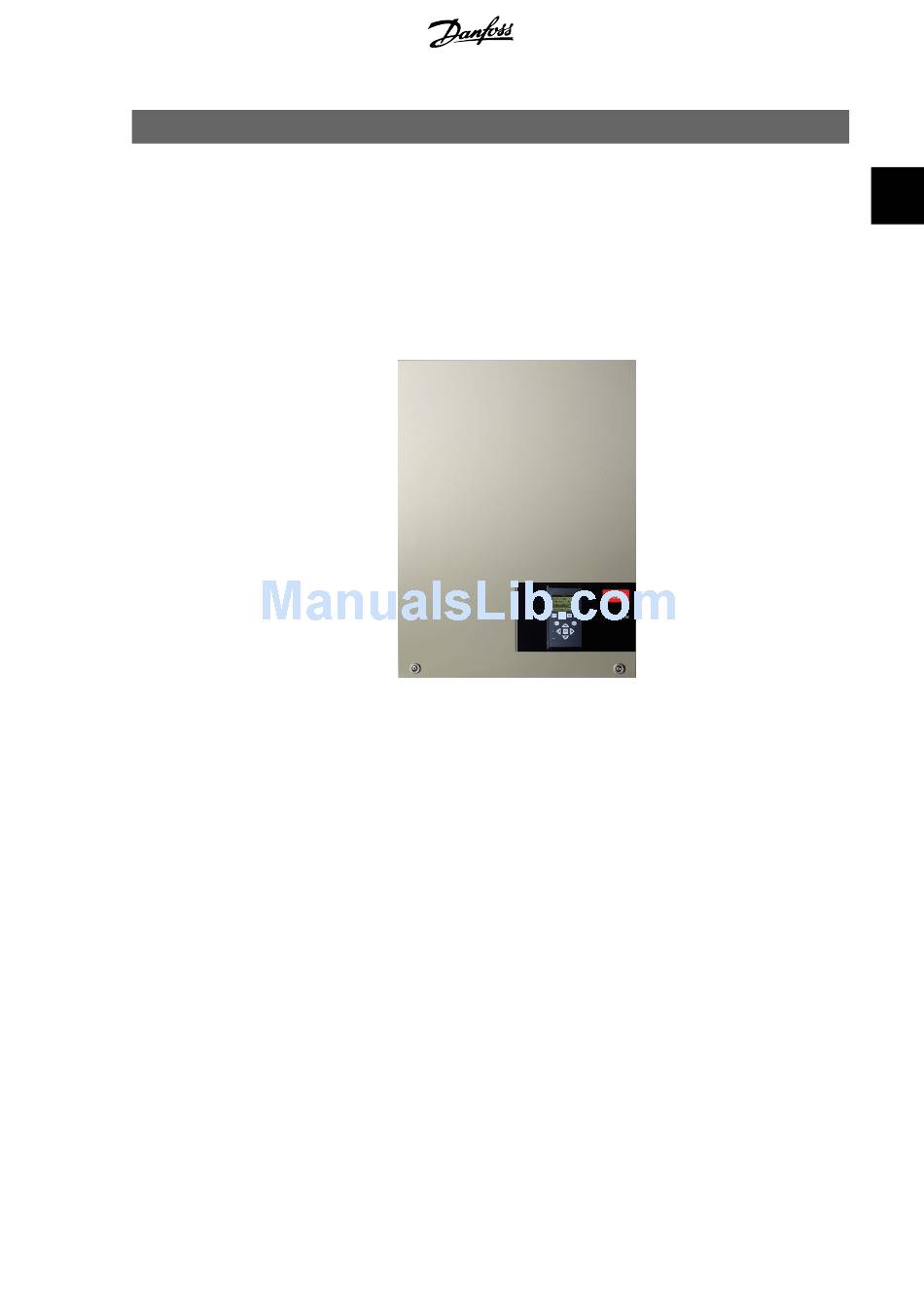

Illustration 2.1: TripleLynx CN 8 kW, 10 kW, 12.5 kW, 15 kW
The TripleLynx CN inverter series comprises:
TLX CN
TLX CN+
TLX CN Pro
TLX CN Pro+
Common features of the TripleLynx CN variants:
•
Output rating of 8 kW, 10 kW, 12.5 kW or 15 kW
•
IP 54 enclosure
•
PV load switch
•
MC4 connectors
•
Manual access via the local display, for inverter configuration
Additionally, the TLX CN Pro and TLX CN Pro+ variants provide:
•
Local and web server access for inverter configuration
•
Ancillary service functionalities. Refer to the chapter
L00410580-01_02
2. Introduction
Ancillary Services for details.
