COLOUR VIDEO MONITOR BEDIENUNGSANLEITUNG MANUEL D’INSTRUCTIONS ISTRUZIONI MANUAL DE INSTRUCCIONES : MONITOR DE VIDEO A COLOR TM-A140E : FARB-VIDEO-MONITOR : MONITEUR VIDÉO COULEUR : MONITOR VIDEO A COLORI INSTRUCTIONS PHASE CHROMA BRIGHT CONTRAST MENU TM-A140E – INPUT SELECT VOLUME/SELECT POWER LCT2142-001A-H...
Thank you for purchasing this JVC colour video monitor. Before using it, read and follow all instructions carefully to take full advantage of the monitor’s capabilities. SAFETY PRECAUTIONS In order to prevent any fatal accidents caused by misoperation or mishandling the monitor, be fully aware of all the following precautions.
Dear Customer, This apparatus is in conformance with the valid European directives and standards regarding electromagnetic compatibility and electrical safety. European representative of Victor Company of Japan Limited is: JVC Technology Centre Europe GmbH Postfach 10 05 52 61145 Friedberg Germany...

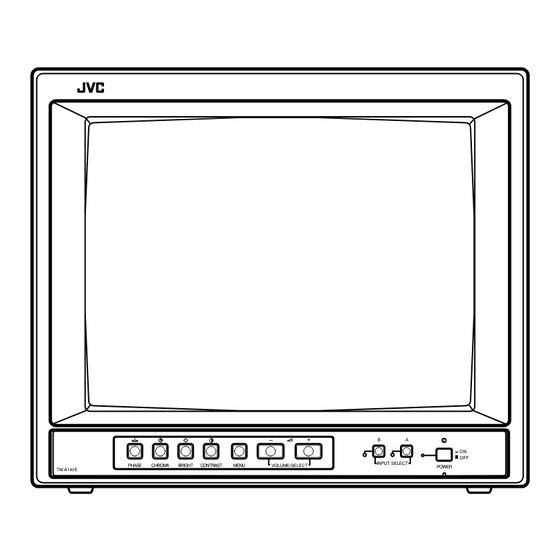

CONTROLS AND FEATURES FRONT VIEW <Front Panel> – INPUT SELECT PHASE CHROMA BRIGHT CONTRAST MENU VOLUME/SELECT POWER TM-A140E 1 Phase button [PHASE Press this button to set the picture hue adjustment mode. Adjust the value with the VOLUME/SELECT buttons. Also used as a control button in the menu function mode.
REAR VIEW <Rear Panel> VIDEO Y/C IN To AC outlet (230 V AC, 50 Hz/60 Hz) r Video A terminals [VIDEO A IN/OUT] Video signal input (IN) and output (OUT) terminals. The output terminal is bridge-connected. : Video signal input terminal OUT : Bridge-connected video signal output terminal Notes: * For corresponding audio signals, use the AUDIO A...
HOW TO HANDLE BASIC OPERATIONS BASIC OPERATION 1. Press the POWER switch to turn on the power. _ON : Power turns ON. (Power indicator: lit) —OFF : Power turns OFF. (Power indicator: unlit) POWER 2. Press the INPUT SELECT button to choose input. Selects video/audio signals input to terminals on the rear panel.
HOW TO USE THE MENU FUNCTIONS DISPLAY AND SELECTION IN THE <MENU> SCREEN MODE (SETTING) You can set the following menu items. Set them depending on your needs. • SHARPNESS • COLOR SYSTEM 1. Press the MENU button. The <MENU> screen is displayed. MENU 2.
Page 8
HOW TO USE THE MENU FUNCTIONS DISPLAY AND SELECTIONS IN THE <SET-UP MENU> MODE (SETTING) You can set the following set-up menu items. ● H. POSITION ● WHITE BALANCE Note: ● Parameters for H. POSITION can be set separately depending on the video input (Input A or Input B) selected by the input select buttons on the front panel.
Page 9
Set-up menu items H. POSITION Adjusts the horizontal position of the screen (+ : Horizontal position shifts to the right/–: Horizontal position shifts to the left). WHITE BALANCE Adjusts the white balance. DRIVE R.DRIVE Adjusts red level. B.DRIVE Adjusts blue level. CUT OFF R.
HOW TO INITIALIZE THE SETTING SCREEN DISPLAY AND SELECTIONS IN THE <SET-UP MENU> RESET MODE You can set <MENU> and <SET-UP MENU> screen items, picture adjustment items and the volume level to their factory-set (initial) values. 1. Press the POWER ( —...
BASIC CONNECTION EXAMPLE Notes: ● Before connecting your system, make sure that all units are turned off. ● The illustration below shows some examples of different connections. Terminal connections may differ depending on the component connected. Be sure to refer to the instructions provided with the unit(s) you are connecting. ●...
TROUBLESHOOTING Solutions to common problems related to your monitor are described here. If none of the solutions presented here solves the problem, unplug the monitor and consult a JVC-authorized dealer or service center for assistance. Problems No power supply. Is the power plug loosened or disconnected?
SPECIFICATIONS MODEL Type Colour system Picture tube Effective screen size Scanning frequency Horizontal resolution Input terminals VIDEO A VIDEO B AUDIO A AUDIO B Audio power output Built-in speaker Environmental conditions Power requirements Power consumption Dimensions Weight Accessory * Illustrations used in this manual are for explanatory purposes only. The appearance of the actual product may differ slightly. * Dimensions and weight are approximate.
Page 14
7 Dimensions < Front View > – PHASE CHROMA BRIGHT CONTRAST MENU VOLUME/SELECT TM-A140E ∗ * Asterisks ( ) are used to indicate front panel dimensions. 7 Y/C (Mini DIN 4 pin) terminal specifi cation Y/C IN Unit : mm <...
